RapidOS RL-3480RH 16 Channel H/W MPEG 4 (ISO/IEC 1496-2 MPEG-4 SOP@LEVEL 1,2,3 Dual Speed Full Hardwired MPEG4 Core Compression) Linux DVR Security/Surveillance Equipment
- 16 x BNC
- H/W MPEG 4 (ISO/IEC 1496-2 MPEG-4 SOP@LEVEL 1,2,3 Dual Speed Full Hardwired MPEG4 Core Compression)
- 16 Channel
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the RapidOS RL-3480RH
| Brand | RapidOS |
|---|---|
| Model | RL-3480RH |
| Type | Linux DVR |
|---|---|
| Interface | PCI |
| Camera inputs | 16 Channel |
| Video Input | 16 x BNC |
| Video Output | 1 x TV-OUT |
| Audio Input | 16 x Audio |
| Resolution Display | NTSC: 704 x 480 (15fps), 704 x 240 (30fps), 352 x 240 (30fps) PAL: 704 x 576 (12.5fps), 704 x 288 (25fps), 352 x 288 (25fps) |
| Display Frame Rate | 400fps (PAL) / 480fps (NTSC) |
| Resolution Recording | NTSC: 704 x 480 (15fps), 704 x 240 (30fps), 352 x 240 (30fps) PAL: 704 x 576 (12.5fps), 704 x 288 (25fps), 352 x 288 (25fps) |
| Recording Frame Rate | 400fps (PAL) / 480fps (NTSC) |
| Recording Mode | Continuously record, Motion detection record, Schedule record, Alarm record, Secret record, Event record |
| Recording Compression | H/W MPEG 4 (ISO/IEC 1496-2 MPEG-4 SOP@LEVEL 1,2,3 Dual Speed Full Hardwired MPEG4 Core Compression) |
| Backup Device | Can backup to designated Folder?FDD?RAID?USB Device?CD-R?through Internet or Burn to DVD/VCD type and play by DVD Player. |
| Features | - Recording Quality: 5 levels of recording quality: Very Low/Low/Medium/High/Very High - Language Selection: Supports multi-language (Traditional Chinese, Simplified Chinese, English…etc) - Screen Display Layout: Unique layout for 1, 3, 4, 7, 9, 10, 13, 16 with vertical, horizontal, tile and sequence view - Motion Detection: Independent set multi motion detection areas (22 x 15) - Pre, Post-Recording: Independent set pre-recording (5 seconds) and post-recording (30 seconds) and the frame rate can be accelerated to 30 frames on motion detection record. - Full-Screen Display: Display monitoring image in full-screen - Alarm Notice: Border Blinking, E-Map Display, Beep Warning, E-mail - Event-view: View event files (Video lost, video recovery, motion detection...etc), store files and print files - Channel Names Setup: Setup each channel's name display on screen in Chinese, English… , even describe the location and utility of the channel. - Alarm Trigger: Supports alarm trigger function, ex: (emergency, camera signal lost, disk error…) - Watch Dog: Yes - System Current Status Display: Display monitoring, storage capacity, operation status, alarm status. |
|---|

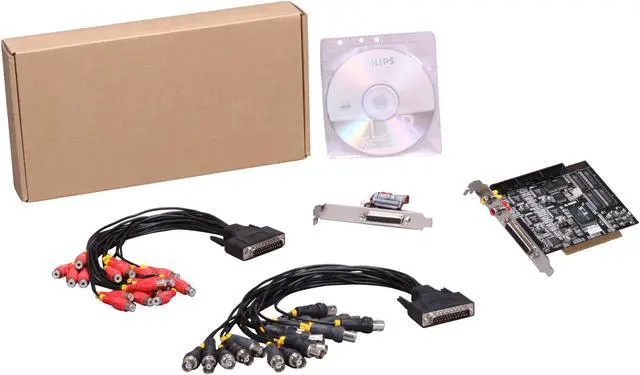

| Package Contents | RL-3480RH User Manual Driver Disk Fedora 7 2 x Multi Cable Add Bracket & cable |
|---|
| Date First Available | February 04, 2008 |
|---|
