Item#: N82E16886971016

YAMAHA YHT-4910U AV Home Theater System

  • 5.1 Channels

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

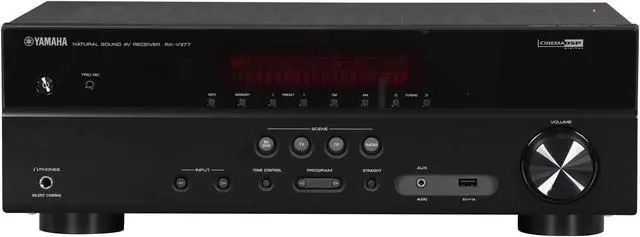

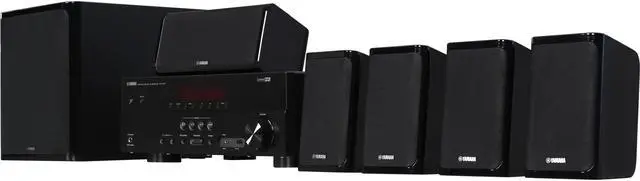

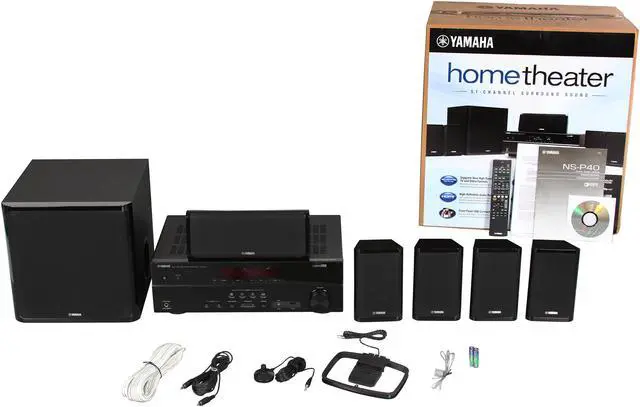

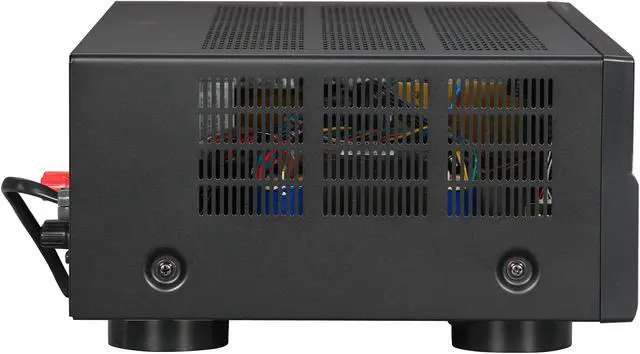

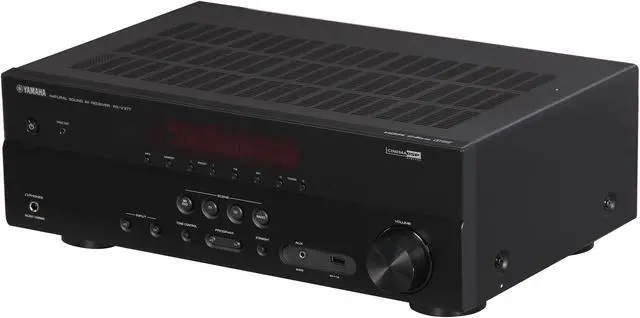

YAMAHA YHT-4910U AV Home Theater System

The Yamaha YHT-4910UBL 5.1-channel AV home theater system features discrete amplifier circuit design, while Virtual CINEMA FRONT and Extra Bass enhance the overall capabilities and performance of the system. A compact, high-gloss black 5-channel speaker package and a powerful 100W powered subwoofer are perfectly matched and work seamlessly to provide an exciting home theater experience.

  • 5-Channel powerful surround sound
  • 100W per channel (8 Ohms, 1kHz, 0.9% THD, 1-ch driven)
  • 70W per channel (8 Ohms, 20Hz - 20kHz, 0.09% THD, 2-Ch. driven)
  • Discrete amp configuration
  • HDMI® (4 in / 1 out) with 4K Ultra HD pass-through for super high resolution images
  • Front panel USB digital connection for iPod® and iPhone®
  • Virtual CINEMA FRONT provides virtual surround sound with five speakers in front
  • Extra Bass enriches powerful bass sound even with small speakers
  • YPAO™ sound optimization for automatic speaker set up
  • Multilingual color OSD for improved visibility (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)
  • ECO mode operation for about 20 percentage less power consumption

Features

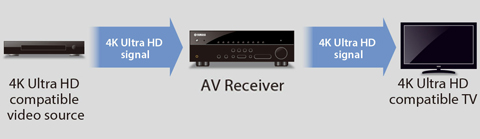

4K Ultra HD Pass-Through for Super High Resolution Images

This AV receiver provides advanced HDMI® features including pass-through of 4K Ultra HD, which is gaining popularity. 4K Ultra HD refers to four times the resolution of a 1080p display. This receiver is capable of passing the 4K Ultra HD data from the source to the monitor for image clarity far beyond present standards.

RX-V577


HDMI with 3D and Audio Return Channel

RX-V577

3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable so you can hear the sound from the TV via a single HDMI cable with no need for an extra optical cable.


HDMI CEC for Easy Operation

Another benefit of HDMI is the availability of CEC functionality*. When the unit is connected to a CEC compatible TV, it will turn on and off together with the TV and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like skip and stop.

*All connected devices must be HDMI CEC compatible. Some CEC compatible TVs / players may not work.

RX-V577

Discrete Amp Configuration for High Sound Quality

RX-V577

This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low jitter PLL circuit, which contribute to its excellent audio performance.


USB Digital Connection for iPod® and iPhone® on the Front Panel

RX-V577

A USB port on the front panel allows convenient connection of an iPod / iPhone, which also charges when connected. Because the digital signal from the iPod / iPhone is transmitted directly to the AV receiver, there is no signal loss or interference so you enjoy the best possible sound quality. In addition, you can use the receiver's remote control unit to operate the iPod / iPhone music playback functions.

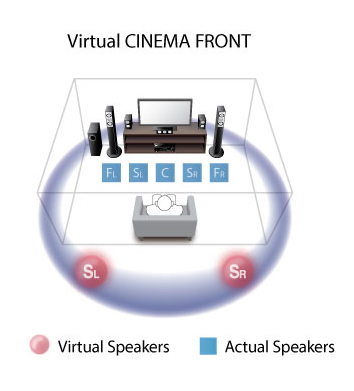

Virtual CINEMA FRONT Provides Virtual 5-channel Surround Sound with High Quality and Resolution

With Virtual CINEMA FRONT, you will enjoy virtual 5-channel surround sound with higher quality and resolution by installing surround speakers at the front. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.

RX-V577

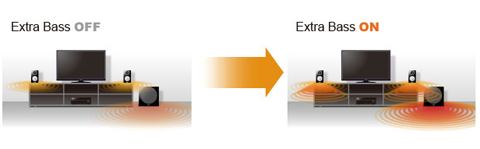

Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers

Yamaha's exclusive low-range enhancement technology delivers richer bass than you expect from the speaker size while maintaining good localization and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You'll enjoy video and music with sound that has exceptional power and presence.

RX-V577

YPAO™ Sound Optimization for Automatic Speaker Set Up

RX-V577

YPAO analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes. It's like having a professional installer calibrate your system.


HD Audio with CINEMA DSP

Yamaha's exclusive CINEMA DSP technology supports playback of HD Audio (Dolby® TrueHD, DTS-HD Master Audio™, etc.), providing natural and expansive sound imaging.


RX-V577

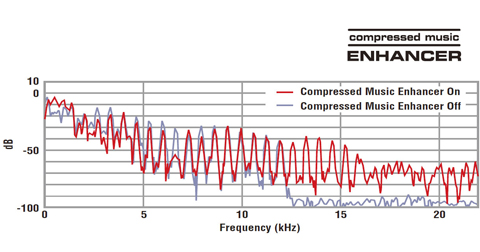

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha's Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

RX-V577

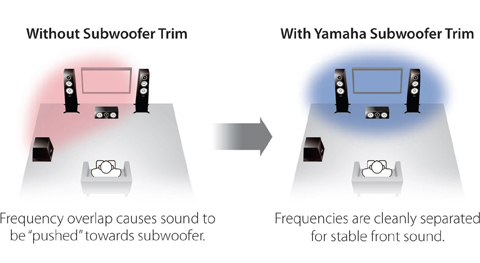

Subwoofer Trim Contol for Improved Sound Imaging

The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

RX-V577

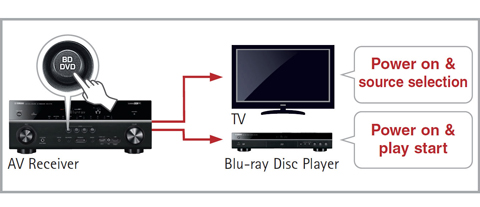

SCENE for One-Touch Start

RX-V577

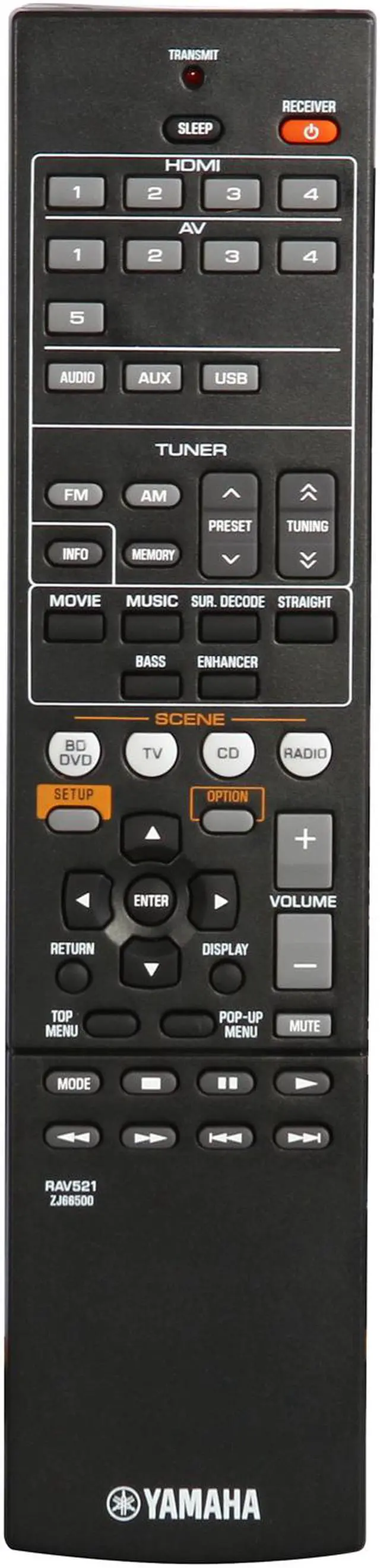

Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.


ECO Mode Lowers Power Consumption by 20 Percent*

RX-V577

Yamaha's new ECO mode reduces power consumption by about 20 percent. It can be set from the top of the GUI menu.

*Compared to power consumption when ECO mode is off (Yamaha measurement).


Selectable Auto Power Down

RX-V577

Auto power down lets you save energy by selecting to turn off the power after two, four, eight or 12 hours.



Learn more about the Yamaha YHT-4910U

Model

Brand
YAMAHA
Model
YHT-4910U

Features

Features
AV Receiver

Compressed Music Enhancer

YPAO sound optimization

Adaptive DRC (Dynamic Range Control)

Initial Volume & Maximum Volume Setting

Audio Delay: Yes (0-500 ms)

4K Ultra HD pass-through


HDMI 3D pass-through

HDMI Audio Return Channel

Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync

Spec

Channels
5.1
Speakers Driver Unit

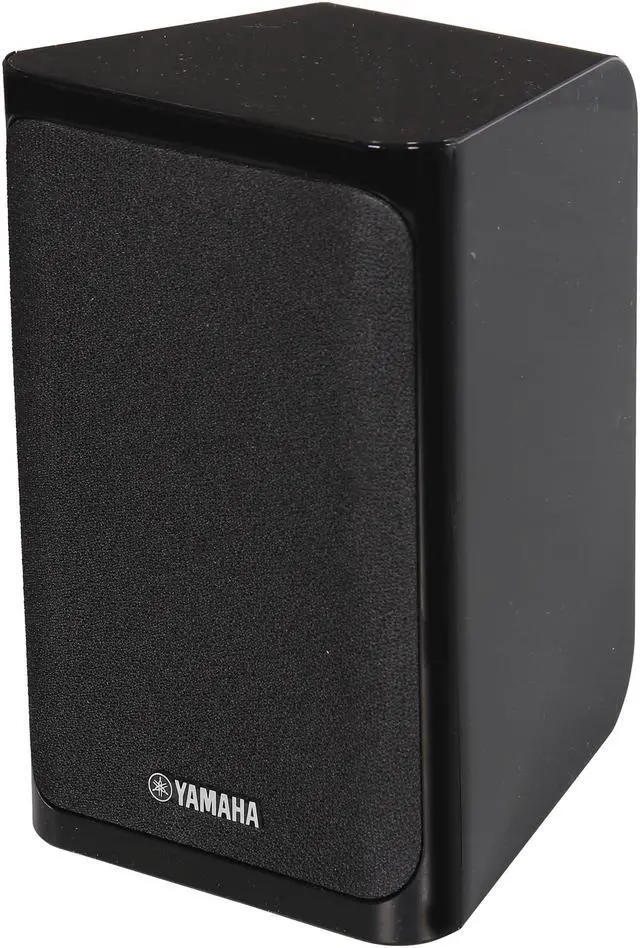

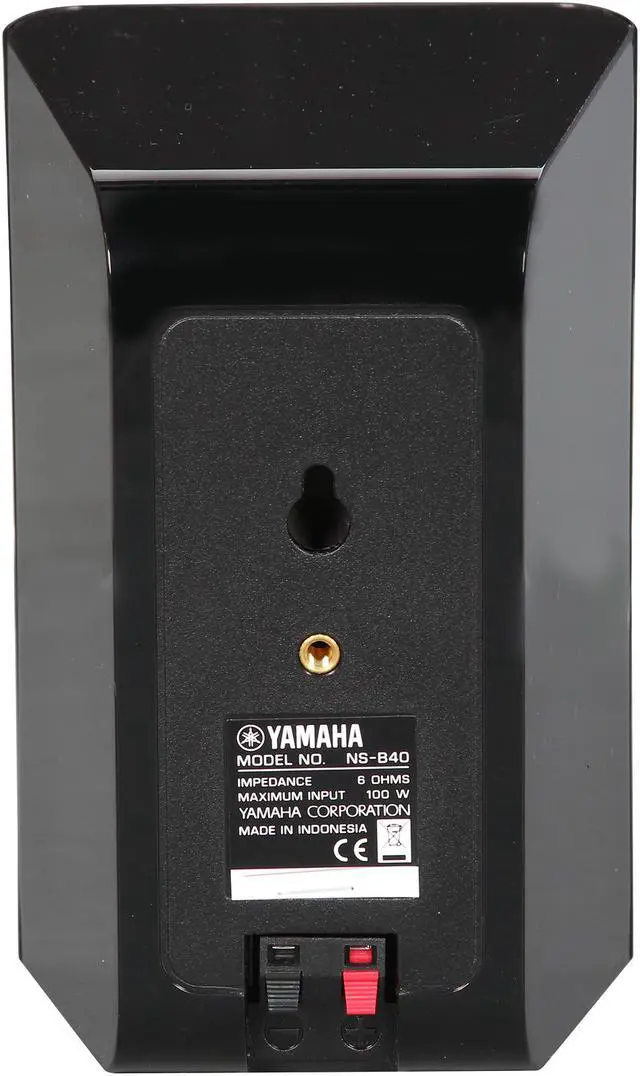

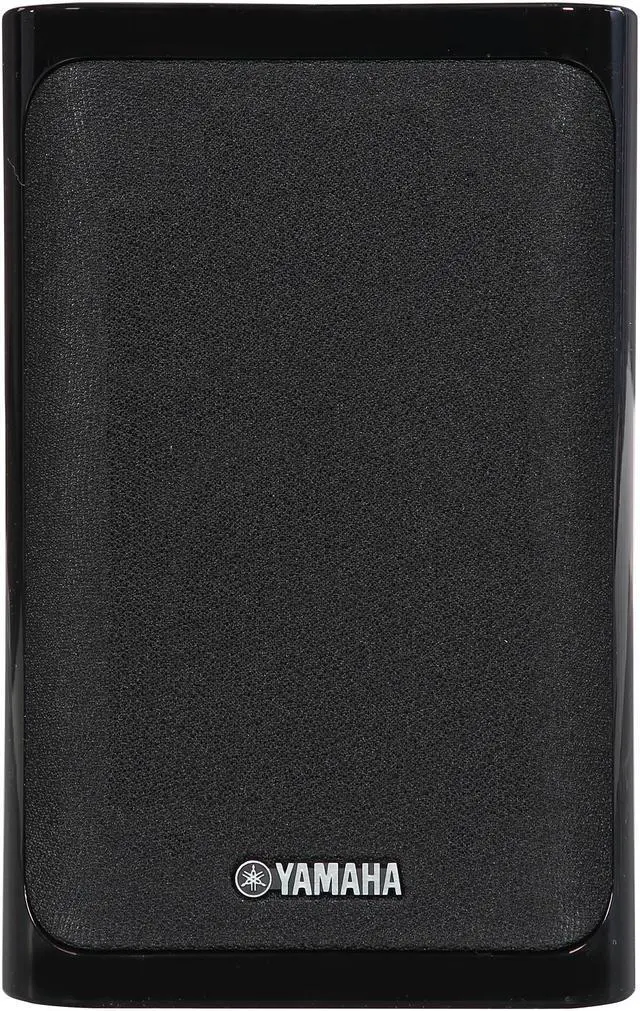

Front Speakers Speaker Size: 2-3/4” full-range cone

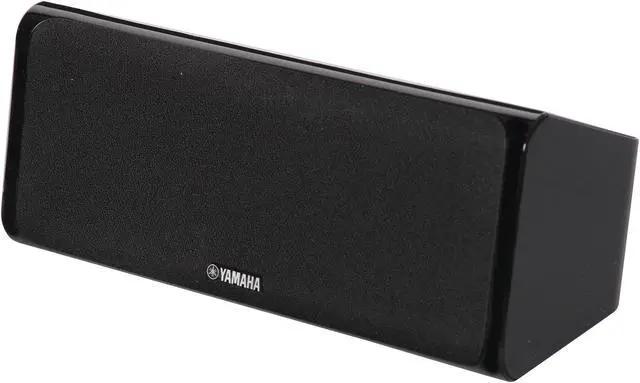

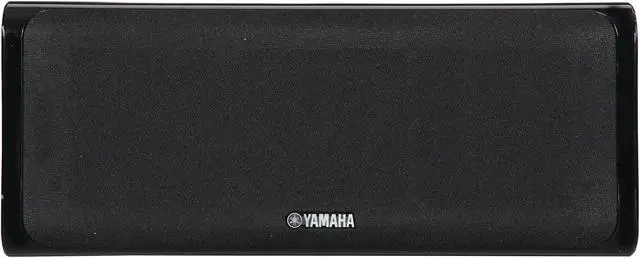

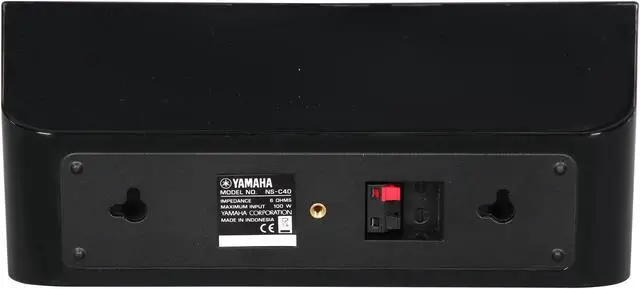

Center Speaker Speaker Size: 2-3/4” full-range cone

Surround Speakers Speaker Size: 2-3/4” full-range cone

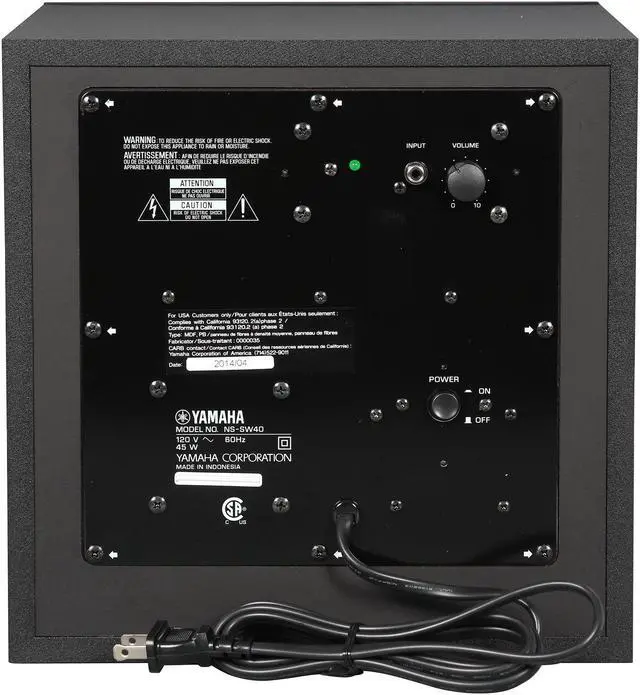

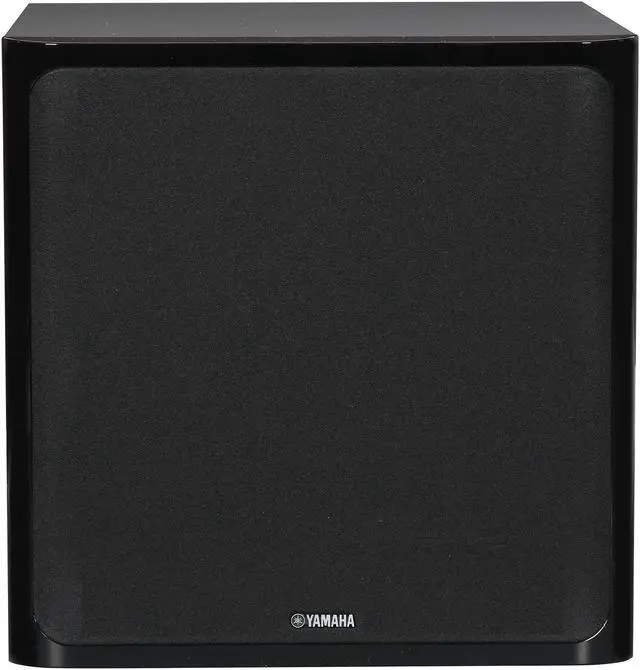

Subwoofer Model NS-SW40BL Driver Size: 6 -1/2” cone
Speakers Power Rating
Rated Output Power (1kHz, 1ch driven): 100 W (8 ohms, 0.9% THD)

Rated Output Power (1kHz, 2ch driven): 85 W (8 ohms, 0.9% THD)

Rated Output Power (20Hz-20kHz, 2ch driven): 70 W (8 ohms, 0.09% THD)

Dynamic Power per Channel (8/6/4/2 ohms): 110 / 130 / 160 / 180 W
Decoder
Dolby TrueHD

Dolby Digital Plus

DTS-HD Master Audio
D/A Converter
192kHz/24-bit DACs for all channels

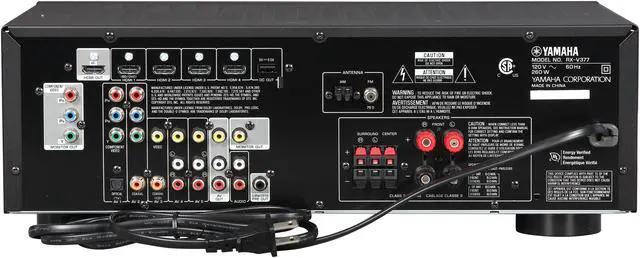

Input
AV Receiver

HDMI Input x 4

HDMI CEC

USB Input iPod / iPhone, USB memory, portable audio player

Front AV Input USB / Mini-jack

Digital Audio Input/Output: Optical 1

Digital Audio Input/Output: Coaxial 2

Component Video Input/Output 2 / 1

Composite Video Input/Output 3 / 1
Output
AV Receiver

Preout Subwoofer

Headphone Output 1

HDMI Output x 1

Analog Audio Input/Output 4 (1 front) / 1
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Customer Reviews of the Yamaha YHT-4910U

There are no reviews yet... do you own this product? Write a Review
