LET YOUR LIGHTS DO THE TALKING
Made for those seeking excellent airflow, quiet operation, and powerful lighting, the PECHAM 120mm RGB case fan puts your PC back in the loop.
Please do not plug in the wrong power supply interface, otherwise it will burn the fan .
- Size: 120*120*25mm
- Color: Rainbow RGB
- Speed:0-1300RPM±10%
- Air Flow:38.5CFM
- Air Pressure:1.6 mmH2O
- Noise Level:25dBA ±10%
- Bearing: Hydro bearing
- Interface: D-Type 4 pin
- Input Power: 4.2W
- Rated Voltage: DC 12V
- Input Current: 0.18A
- Life Time: 25000Hrs
- Cable length: 48cm / 19in
- Connector: 10* 6pin (for fan) Controller : 1* 4pin(for DC Power supply)

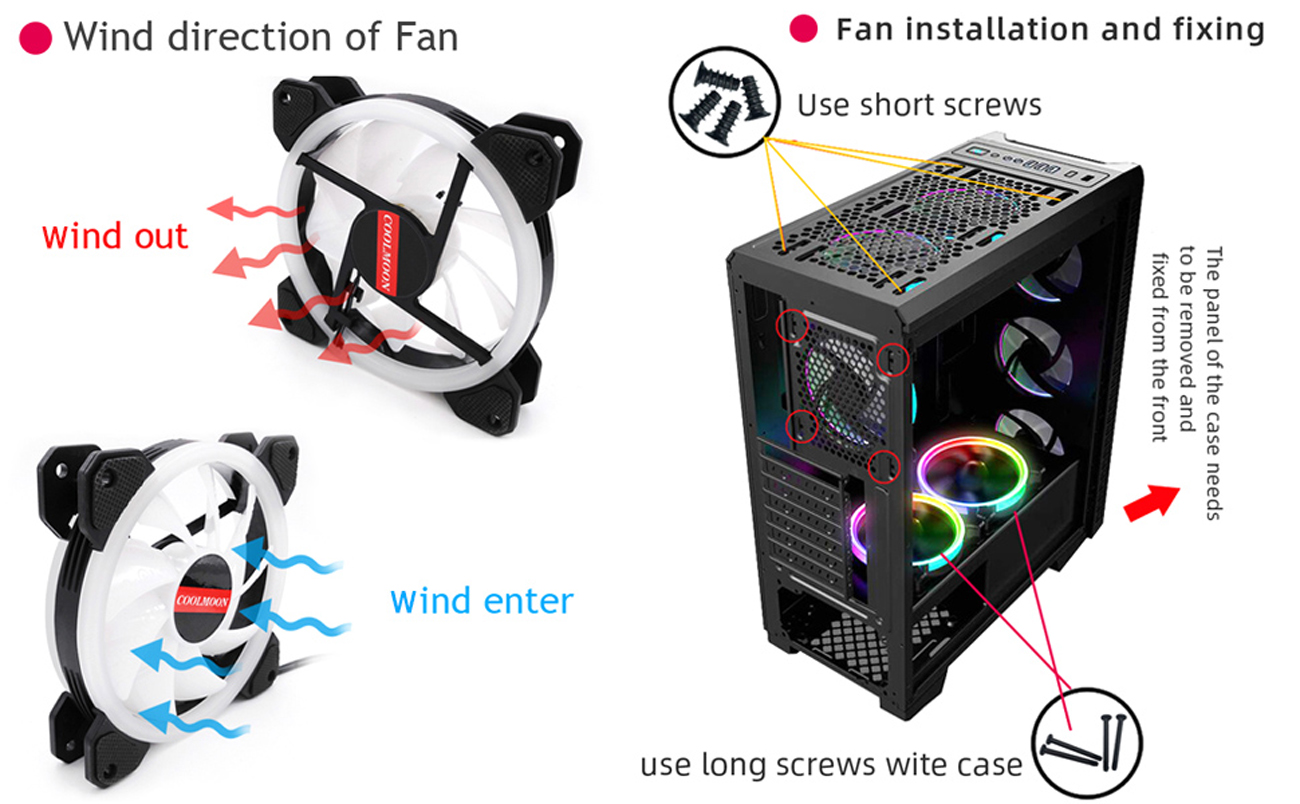

Installation Instruction

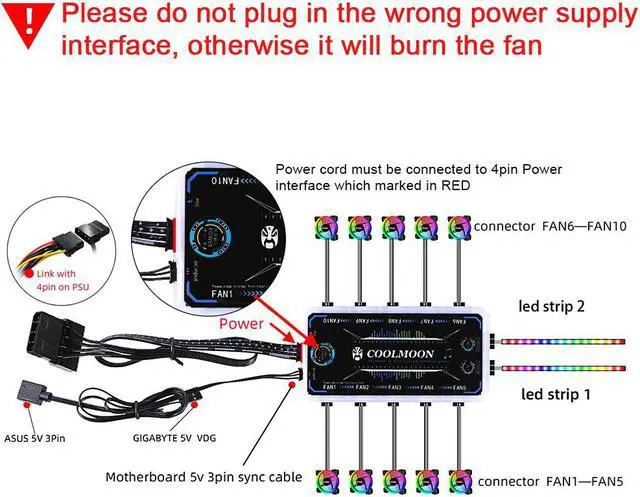

- The 4pin power cord must be connected to 4pin Power interface which marked in RED
- Please do not connect the power cable to LED Strip interface ,it will burn the fan !!!
- Please do not plug in the wrong power supply interface , otherwise it will burn the fan
The possible situation you may meet :
When the LED dosen't light on:
1, The power supply is not plugged in, other devices are connected in series in front of the power supply, so must be connected to the power supply first
2, The controller may be in the motherboard mode, press M/B to switch
3, Use a non-computer power supply, the computer power supply must be 4pin (including 12V+5v power supply)
If the fan and light dosen't work, pls check if it connected to power supply, if only the light on but fan didn't work, click the middle shaft of the fan, it is loose blade .
When motherboard is not working:
1. The motherboard cable is not plugged in, the plug is not a 5v RGB interface.
2. Did not press M/B to switch to motherboard mode.
Computer RGB Cooling Fan

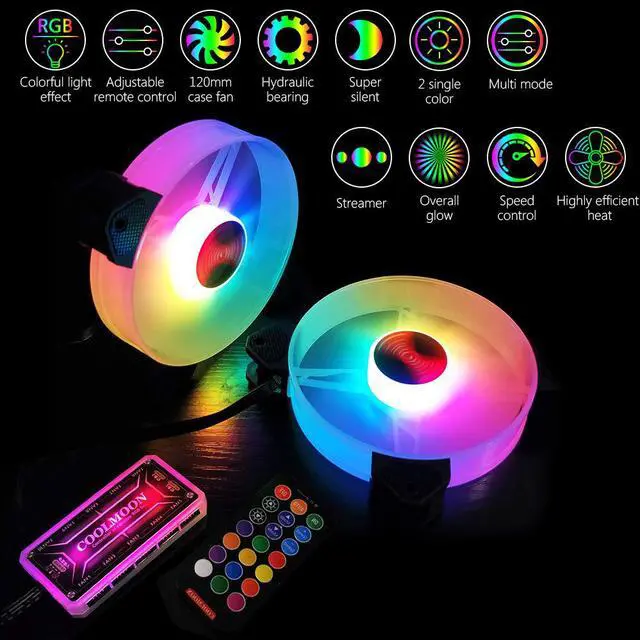

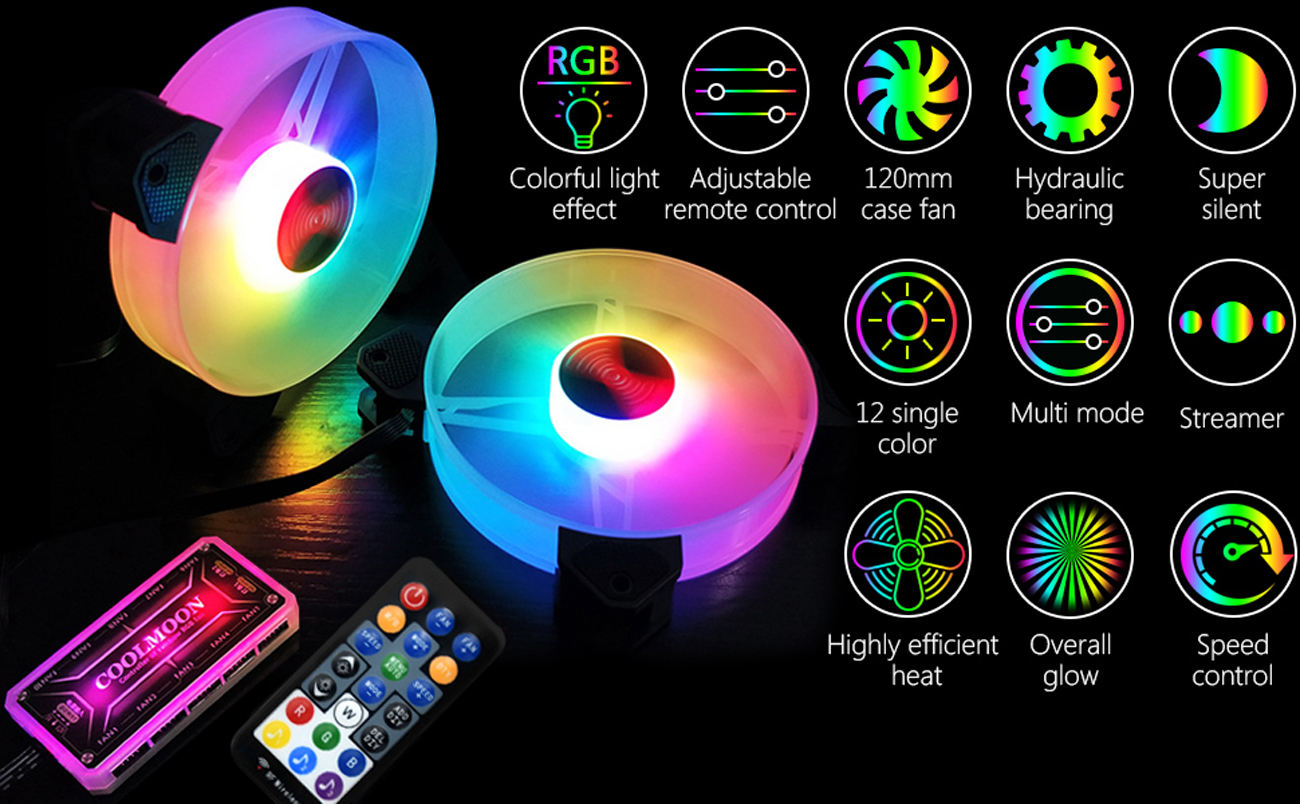

- There are 10 fan ports and 2 LED (light bar) ports. Can adjust speed, brightness, support monochrome breathing, multi-color breathing, fast and slow flashing, marquee, breathing light and other light effect modes. The lights can be turned off, change color automatically, what a colorful fan!

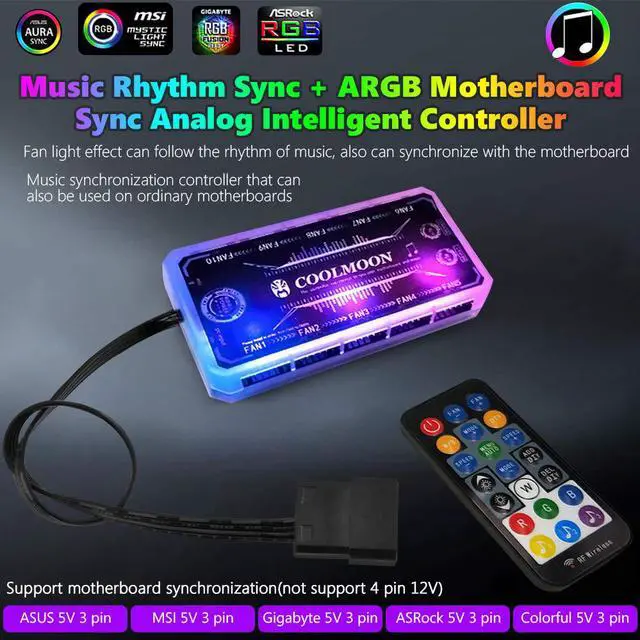

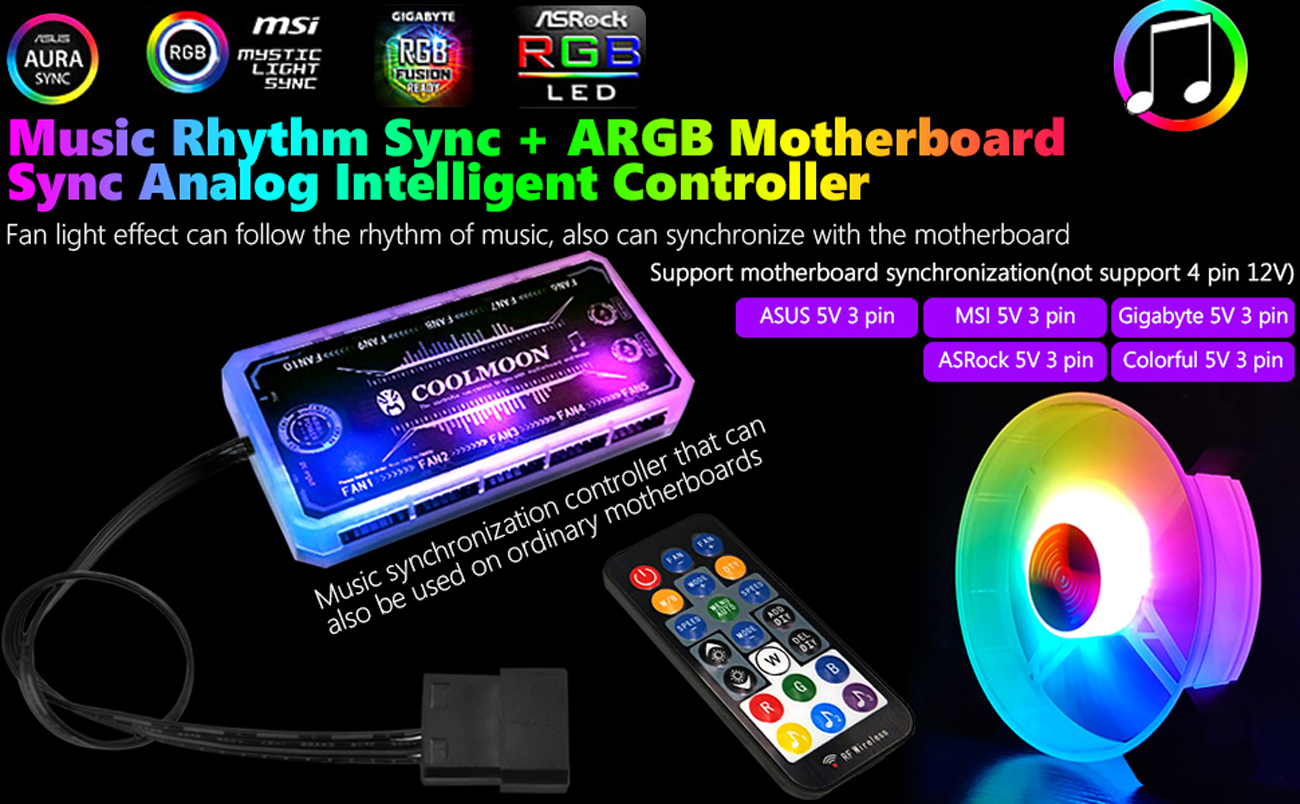

- Fan light effect can follow the rhythm of music, also can synchronize with the motherboard.
If the remote control does not respond, first pls confirm the indicator light is on.
If not on, the plastic sheet may not be pulled out.
If the light is on, it may be interference. If the power supply is replugged, or if there is interference, press and hold the music mode 1 key for more than 3 seconds. Lock code.
Important :
Please do not connect the power cable to LED Strip interface, it will burn the fan !!!
Package included:
- 3* RGB computer cooling fan
- 1* Controller box
- 1* Remote control
- 1* Power Cable D type 4pin
- 1* 5V 3pin sync cable
- 3* 4pcs/pack screws
Important: Please do not connect the power cable to LED Strip interface, it will burn the fan !!!

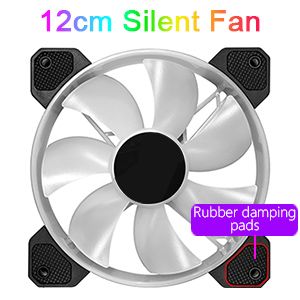

12cm standard size ,compatible with most device
- 12cm size silent fan: This fan is only designed with 12cm size, streamlined fan blades, large air volume and pressure, and stable air flow,Super silent
- The four corners are equipped with rubber damping pads to reduce the resonance between the fan and the chassis, effectively reducing noise

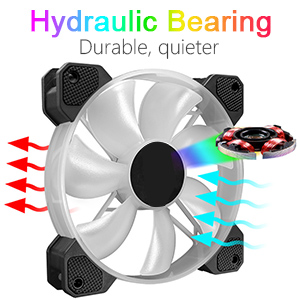

Strong magnetic durability, quieter
- The hydraulic bearing has a larger storage space, forming a unique loop-type oil supply circuit, and driven by a strong magnetic motor, which makes the fan life longer, quieter and more durable

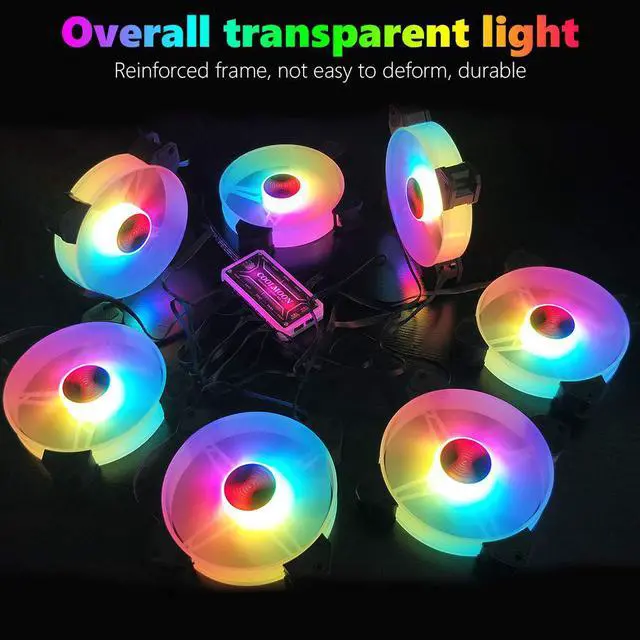

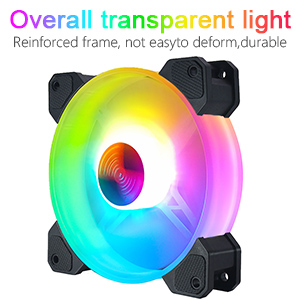

Reinforced frame, not easy to deform, durable
- Reinforced frame, not easy to deform, durable

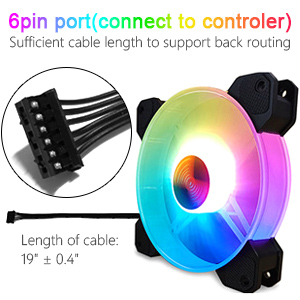

The 19" of the cable lengh can support back routing

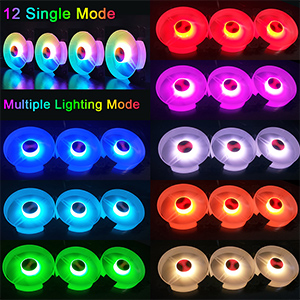

380 Light Modes & 12 Single Modes
There are 380 Light Modes in total
Also 12 Single Modes are available
Colorful your life !
388 Lighting Models
- Music Model 1: All fan lights can be synchronized with music node
- Music Model 2 : All fan lights in rainbow mode jump randomly
- Music Model 3: All fan lights in monochrome mode and Symphony mode jump randomly
