ABIT IL-90MV Socket 478 Intel 945GT HDMI Micro ATX Intel Motherboard

Name: ABIT IL-90MV Socket 478 Micro ATX Intel Motherboard
Brand: Universal abit USA
SKU: N82E16813127009
Rating: 4 (11 reviews)

(11) Write a Review

Intel 945GT
Core Duo / Core Solo Mobile
DDR2 667

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (11)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Universal abit USA IL-90MV

Model
Brand	ABIT
Model	IL-90MV

Supported CPU
CPU Socket Type	Socket 478
CPU Type	Core Duo / Core Solo Mobile
FSB	667/533 MHz

Chipsets
Chipset	Intel 945GT
South Bridge	Intel ICH7-M DH

Onboard Video
Onboard Video Chipset	Intel GMA 950

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR2 667
Maximum Memory Supported	2GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	None
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1

Onboard Audio
Audio Chipset	AC97 Codec
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel 82573L
Max LAN Speed	1Gbps

Rear Panel Ports

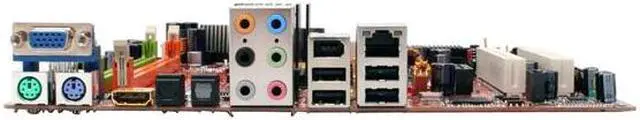

Back I/O Ports	1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub
HDMI	1 x HDMI 1.2
USB 1.1/2.0	4 x USB 2.0
IEEE 1394	1 x IEEE 1394a
S/PDIF Out	1 x Optical
S/PDIF In	1 x Optical
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0
Onboard 1394	1 x 1394a

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	24 Pin

Features
Features	100% lead-free process and RoHS Compliancy Intel ViiV Certified MoDT-HTPC

Packaging

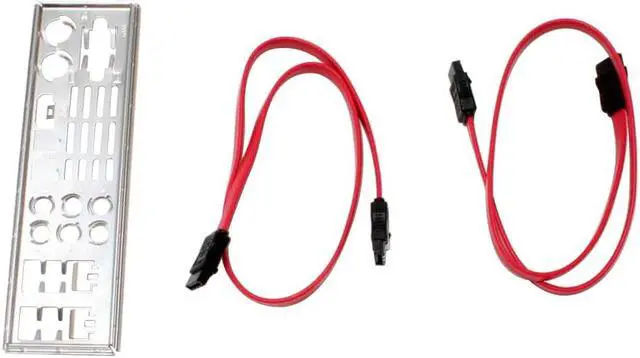

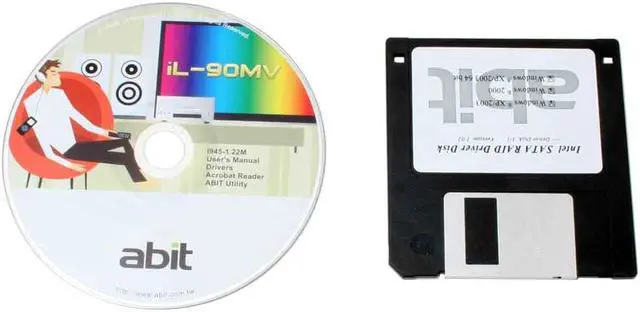

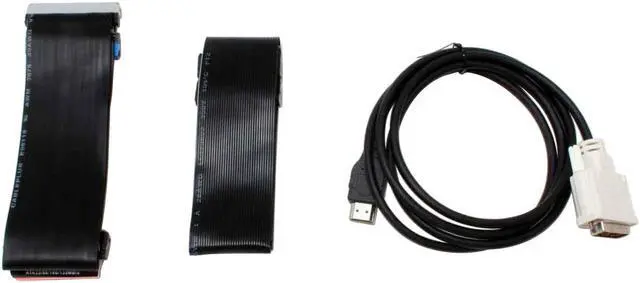

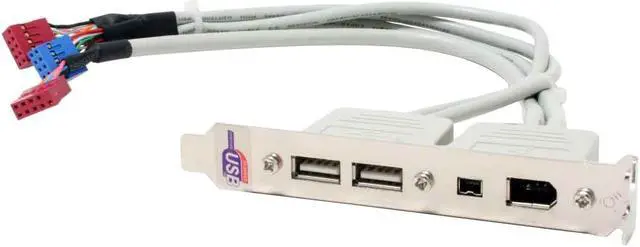

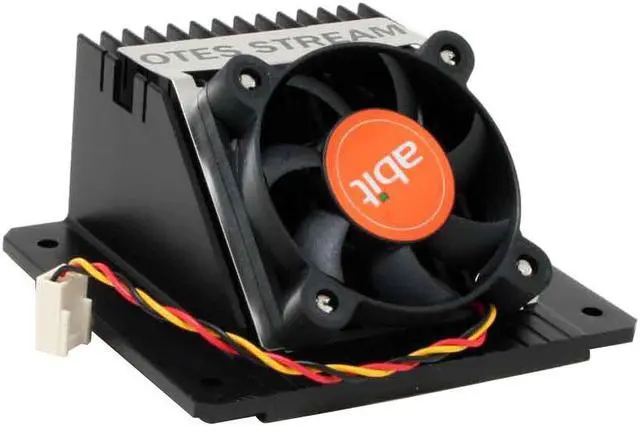

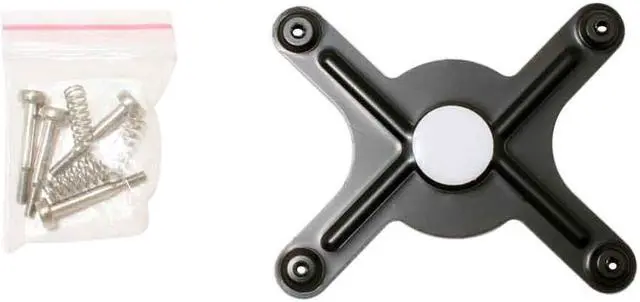

Package Contents	IL-90MV Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable Floppy Drive Diskette Screws CPU Cooler Backplate CPU Heatsink & Fan IEEE 1394 and USB Bracket HDMI to DVI Cable

Additional Information
First Listed on Newegg	August 15, 2006
