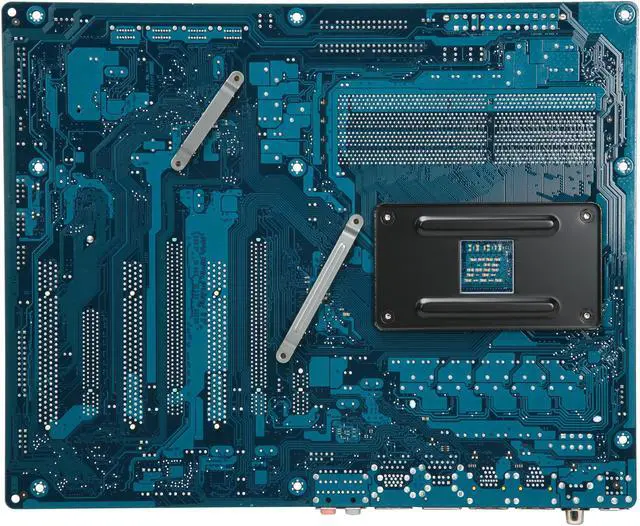

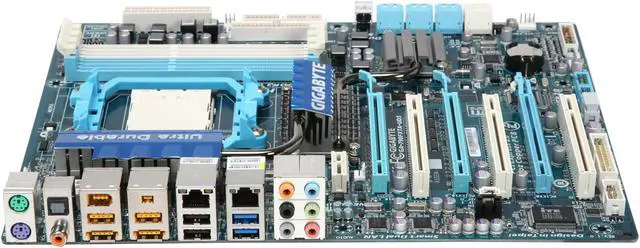

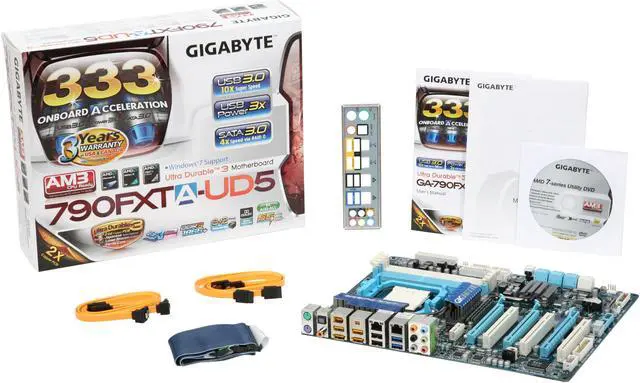

    GIGABYTE GA-790FXTA-UD5 AM3 AMD 790FX USB 3.0 ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD 790FX
    • Phenom II / Athlon II / Sempron
    • DDR3 1866(OC)*/1333/1066 * To reach DDR3 1866MHz or above, you must install two memory modules and install them in the DDR3_3 and DDR3_4 memory sockets.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-790FXTA-UD5

    Model
    Brand GIGABYTE
    Model GA-790FXTA-UD5
    Supported CPU
    CPU Socket Type AM3
    CPU Type Phenom II / Athlon II / Sempron
    FSB 2600 MHz
    Chipsets
    Chipset AMD 790FX
    South Bridge AMD SB750
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR3 1866(OC)*/1333/1066
    * To reach DDR3 1866MHz or above, you must install two memory modules and install them in the DDR3_3 and DDR3_4 memory sockets.
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 2 x PCI Express x16 slots, running at x16 (PCIEX16_1 and PCIEX16_2)*
    1 x PCI Express x16 slot, running at x8 (PCIEX8)**

    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.

    **The PCIEX8 slot shares bandwidth with the PCIEX16_2 slot. When PCIEX8 is populated with a PCI Express graphics card, the PCIEX16_2 slot will operate at up to x8 mode.
    PCI Express x1 1 x PCI Express x1
    PCI Slots 3 x PCI Slots
    Storage Devices
    PATA 1 x ATA133 2 Dev. Max
    Serial ATA (SATA) 2 x SATA 6Gb/s
    SATA RAID 0/1/5/10/JBOD
    Onboard Video
    Onboard Video Chipset None
    Onboard Audio
    Audio Chipset Realtek ALC889
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8111D
    Second LAN Chipset Realtek 8111D
    Max LAN Speed 2 x 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 2 x USB 3.1 Gen 1 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
    PS/2 2
    USB 3.0 2 x USB 3.0
    USB 1.1/2.0 4 x USB 2.0
    IEEE 1394 2 x IEEE 1394a
    eSATA 2 x eSATA/USB Combo connectors
    S/PDIF Out 1 x Optical, 1 x Coaxial
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 4 x USB 2.0
    Onboard 1394 1 x 1394a
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 24 Pin
    Features
    Features Advanced 8+2 phase CPU VRM power design for AMD high-TDP 140W CPU support
    Provides newest Marvell SE9128 high speed SATA3 storage interface with superfast 6Gbps link speed
    Smart DualLAN with Intelligent LAN port auto-switching
