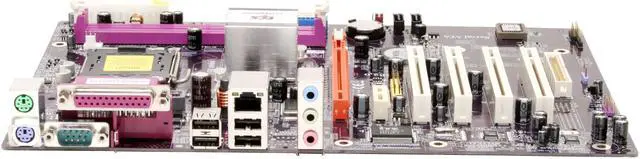

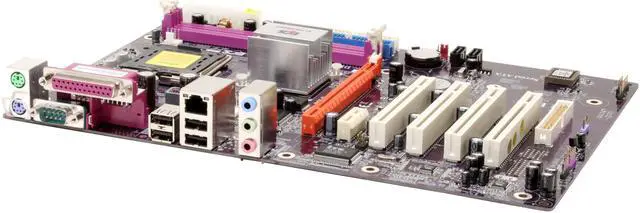

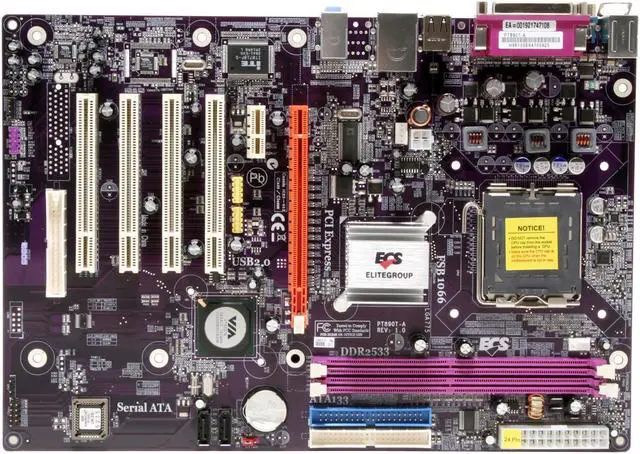

ECS PT890T-A V1.0 LGA 775 VIA PT890 ATX Intel Motherboard

(29) Write a Review
  • VIA PT890
  • Core 2 Duo / Pentium D / Celeron D
  • DDR2 533
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (29)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) PT890T-A V1.0

Model
Brand ECS
Model PT890T-A V1.0
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Pentium D / Celeron D
FSB 1066/800 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset VIA PT890
South Bridge VIA VT8237A
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 533
Maximum Memory Supported 4GB
Expansion Slots
PCI Express x16 1 x PCI Express x16
PCI Express x1 1 x PCI Express x1
PCI Slots 4 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Audio
Audio Chipset VIA VT1708A
Audio Channels 6 Channels
Onboard LAN
LAN Chipset VIA VT6103L
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 2 x PS/2 / 4 x USB 2.0/1.1
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

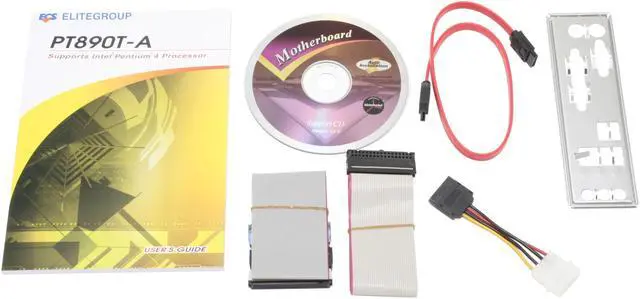

Package Contents PT890T-A V1.0
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
Date First Available January 15, 2007
