Item#: N82E16817103462

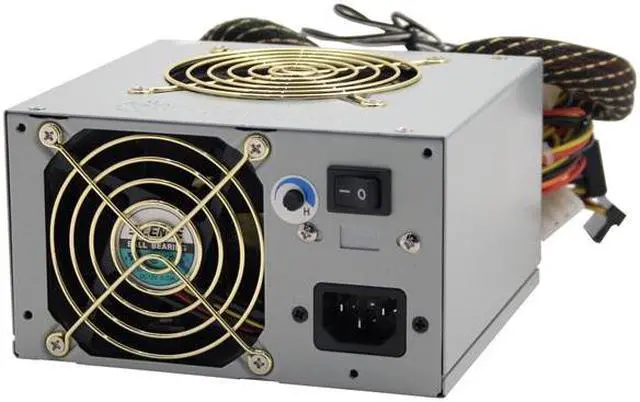

ENERMAX EG565AX-VEFMA2.0-SLI 535W ATX12V Ver.2.0 SLI Certified CrossFire Ready Active PFC Power Supply

  • ATX12V Ver.2.0
  • 100 - 240 V 50/60 Hz
  • +3.3V@32A,+5V@32A,+12V1@18A,+12V2@18A,
  • -12V@0.8A,+5VSB@2.5A
ICON Loading...

Learn more about the Enermax EG565AX-VEFMA2.0-SLI

Model

Brand
ENERMAX
Model
EG565AX-VEFMA2.0-SLI

Spec

Type
ATX12V Ver.2.0
Maximum Power
535W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
Yes
PCI-Express Connector
2 x 6-Pin
SLI
SLI Certified
CrossFire
CrossFire Ready
Modular
No
Hold-up Time
17ms min.
Over Voltage Protection
+5V: 5.5V~7.0V; +3.3V:3.76V~4.3V; +12V & +12V2: 13.4V~15.6V
Overload Protection
110~160% of max load
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Input Current
9.5A - 4A
Output
+3.3V@32A,+5V@32A,+12V1@18A,+12V2@18A,
-12V@0.8A,+5VSB@2.5A
MTBF
Greater than 100K hours at 70% of full rated load; 230VAC / 50Hz input; 25°C ambient
Approvals
UL, cUL, TUV, CB

Features

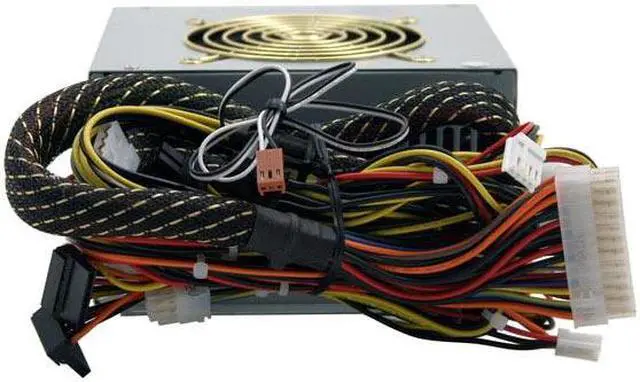

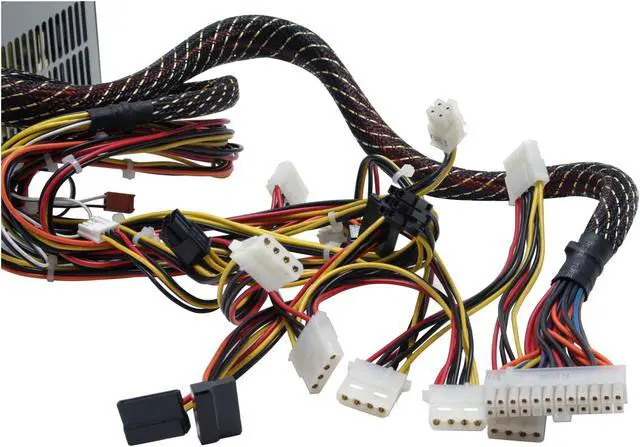

Connectors

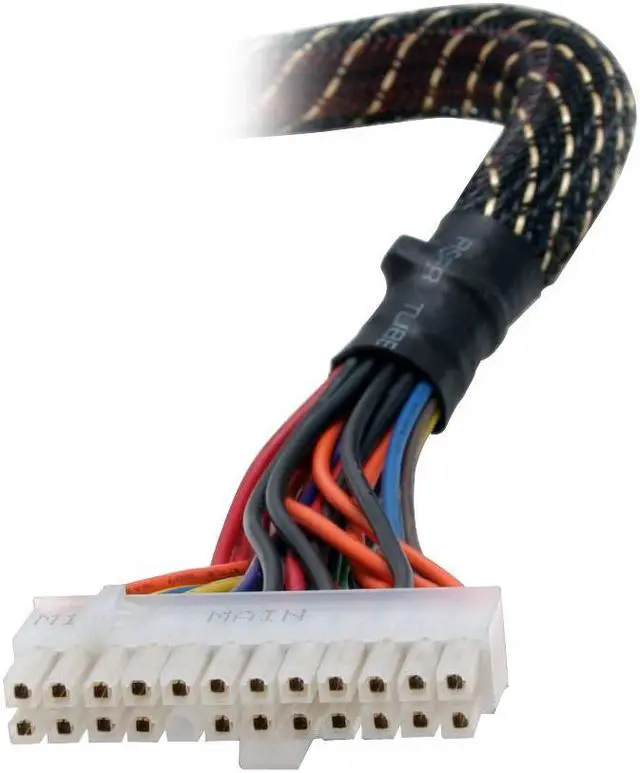

1 x Main connector (20+4Pin)
1 x 12V (P4)
7 x peripheral
3 x SATA
2 x Floppy
2 x PCI-E

Manufacturer Warranty

Parts
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 0 day


Customer Reviews of the Enermax EG565AX-VEFMA2.0-SLI

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Ralph K.
  • 9/25/2011 1:49:06 AM
  • Tech Level: High
  • Ownership: more than 1 year

5 out of 5 eggs6 years later

Pros: Still working after 6 yrs running 24/7. Very quiet

Cons: none

Did you find this review helpful? Yes No

  • Nathan S.
  • 3/22/2007 1:34:53 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggs

Pros: Newegg was easy to deal with as far as returning it.

Cons: Had to RMA it after it died about an hour after installing it.

Sort of concerned now about long-term durability.

Other Thoughts: Bought it for a new build and had all the power and capabilities that I was looking for. When I got it, it seemed to have good build quality, but it died about an hour after installing it.

Can't give it a glowing endorsement, but there are far worse choices than this.

It was easy to RMA with Newegg.

Got the new one and have been fine for a little over a week.

0 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 3/9/2007 12:46:33 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreat PSU

Pros: Everything, great price. Good power. Works like a dream.

Cons: none so far.. those of you who are having problems should take a second look @ how you are installing and handling your hardware.

Other Thoughts: I run a 7800GTX in SLI mode and have had the system running now continuosly for 10 months without shutting down or rebooting. No problems at all.

4 out of 4 people found this review helpful. Did you? Yes No

  • Robert K.
  • 1/3/2007 12:50:54 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

1 out of 5 eggsBuy something else

Pros: None really

Cons: Bad PSU youre better off buying something that will work. Mine went bad and started shutting down randomly 6 months after I bought it, changed to a new PSU and the problem went away way I make a bad PSU Enermax...will never buy Enermax again and you should do the same.

Other Thoughts: Enermax needs to work on making better products

1 out of 7 people found this review helpful. Did you? Yes No

  • Anonymous
  • 9/13/2006 6:16:51 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsExcellent PSU

Pros: What can you say? SLi Support, Power connections galore and adjustable rear fan speed. One good PSU (power supply unit).

Cons: None so far.

Did you find this review helpful? Yes No

  • Anonymous
  • 8/24/2006 6:41:48 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

2 out of 5 eggs13 months

Pros: Did what it should for 12 months

Cons: The segment which powered my video card died a few weeks after the warranty expired. Was not always able to power on card, PX6800GT. Workaround by using connector to power card via HD 12V instead of dedicated video supply.

Other Thoughts: No as robust as one would have hoped.

0 out of 1 people found this review helpful. Did you? Yes No

  • Stephen W.
  • 7/28/2006 9:35:00 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

5 out of 5 eggsHad mine for about a year

Pros: Works well. I'm using it to power 2 7900GTX in Sli with an overclocked 3800 X2 AMD 2 drives, 4x 120mm 3speed fans (on high) and for about 8 hours a day and I haven't had any power issues. I am using an UPS unit though so I've never wacked the thing with uneven or fuzzy current. I bought it for the price and at the time the wattage was all I needed. Runs sturdy and quiet even with the fan on high.

Cons: Thats its not 700W...?

Other Thoughts: Good power supply for SLi if you've already spent waaaaay to much money on video cards.

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 6/23/2006 4:55:19 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsLoyal Enermax user

Pros: Clean and stable power for my new rig (eventually to be SLI). PFC and fan throttling keep noise and heat down. All rails are tightly within spec and hold very stable. Only variance I've noticed was a tiny 0.01 volt sag on my processor Vcore when running a Prime95 torture test (Opteron 170 @ 2.5GHz, 1.4v), but at that point it's really more the voltage regulators on the motherboard (Asus A8N32-SLI) than any fault of the PSU.

Cons: Perhaps it would've been a few bucks cheaper if I didn't have to get the cheap "Enermax" logo duffle bag bonus item it comes with? Kind of a weird freebee for a computer PSU, don't ya think? Of course, I would've been the envy of all the other geeks when I went to the gym... or something. :P I gave it to Goodwill.

Other Thoughts: I've used Enermax PSUs in my last several personal systems, and recommend them to friends. They've never done me wrong. The oldest (~5 years, a 431W model) is still chugging along great! Just do clean out the dust now and then. ;)

Did you find this review helpful? Yes No

  • Brett Z.
  • 6/17/2006 7:50:07 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggs15 months

Pros: Quiet, well built, durable and clean power.

Cons: none.

Other Thoughts: i hooked up my o-scope three times since i have owned this P.S. why? because i live in southern italy and all the power here comes from france and is horribly "un-clean" this powersupply has taken major black-outs, power spikes, and has dealt with the horrible power levels of my area for over a year. its good buy if you don't have good power in your area and will prolong the life of everything it is attached to.

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 5/24/2006 8:03:14 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsworked fine

Pros: This PSU worked great for almost a full year, powering a dual sli system without any major problems

Cons: The plug in for the power cable was loose, if bumped it would power down the computer. Finally, the whole thing fried about 3 days ago. I initally hoped that replacing the blown fuse would fix the problem, but the whole PSU had shorted itself out. Seems a common enough problem from what I've read on here.

0 out of 1 people found this review helpful. Did you? Yes No
