Currently Unavailable
-
-
-
Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
- Manufacturer Limited Warranty period (parts): 1 year
- Manufacturer Limited Warranty period (labor): 1 year
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|

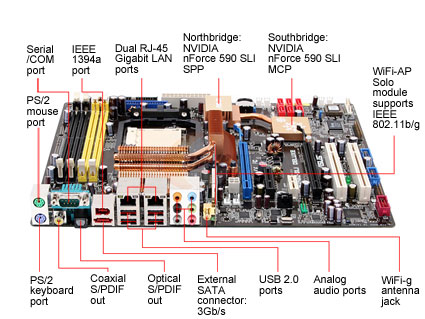

The ASUS M2N32-SLI Deluxe Wireless Edition, based on NVIDIA's nForce 590 SLI brings lifestyle and personal computing together. Boasting support for AMD's all-new Socket AM2 processors and up to 8GB dual channel DDR2 800 system memory, this board also features an explosive pair of dual PCI Express x16 slots running at full speed with SLI support to liberate graphics cards from the narrow bandwidth platform of x8 speed only. Other advanced features include 8 Serial ATA ports with RAID support, dual Gigabit LAN controllers and High Definition Audio for cutting-edge audio features.
Innovative ASUS AI Lifestyle features, such as AI Gear, an 8-Phase Power Design, Stack Cool2 and a purpose-built and designed heat-pipe for fanless operation enable the M2N32-SLI Deluxe to deliver ultra-powerful yet ultra-quiet computing. This talented motherboard is bundled with a unique Array Microphone and the WiFi AP Solo function for all the comforts of the digital life. Together with the extreme over-clocking potential, faster graphics performance and higher video quality are all available today, with raw power in reserve for the demanding applications of tomorrow!"
-
- 5
-
- 65%
- 4
-
- 17%
- 3
-
- 6%
- 2
-
- 6%
- 1
-
- 6%
| Product Rating: |

|
| Total Reviews: |
942 |
PLEASE READ IN FULL! This post will help you
- Pros: You really do get a lot of goodies for the price of this MB; lots of SATA connections, 2 wired LAN, built in wireless LAN with a magnetic based antenna (keep this away from your hard disk), tons of cables, along with a decent software package. I actually would have rated this at 4.5 if there was that option and the only reason I’m not giving it a 5 is because it was so hard to get setup. As with all Asus MB's I've owned (and its a high number), this MB is rock steady. There are tons of connections for Hard Disks and fans.
- Cons: This MB left the factory a little premature and working around the BIOS glitches was tiring. At first power up the MB did NOTHING; fans came on but no video, no beeps, nothing; it did the same thing with the video card, memory, and processor removed completely. This was not a bad board, the problem was attributed to the slow rotation speed of a 10CM case fan! This was only found after re-assembling of the computer on a workbench where you need no case fans. Asus tech support gave me an RMA for this problem, which tells me they don’t know either. Next problem I encountered was a POST failure for memory (this happened to a lot of people) and I was using memory certified to work with this board! The fix is to install one module, then manually set the timings and voltage for the memory you are using, then you can install the dual channel module and it will work fine. Corsair has an excellent web site, which contains the BIOS settings used to certify their memory with various MBs.
- Other Thoughts: (continued)
Next, the sound was horrible (another complaint of a lot of people). This board actually has very good sound if setup properly, just make sure you have the BIOS setting for “Front Panel Support Type” set to HD Audio, not AC97, then install the latest drivers. There is also a problem with the MBs layout; if you use the PCI-E #1 for your video card then you have a “hot spot” since its located right next to the heat fins from the MB chipset. If you use PCI-E #2 and have a large video card…let’s face it, if you are looking at this MB, you are going to have a big video board…then you can no longer use SATA ports 1 and 2. Yes, Asus does give you right angle SATA cables; they still sit too high to properly seat my video board.
Hardware installed was AMD Athlon 64 X2 4600+, Corsair DDR2 800 (TWIN2X2048-6400C4), EVGA e-GeForce 7950 GX2, standard 610W power supply.
Best Board for Business and Gaming
- Pros: Extremely stable board for single or dual chip processors. Provided drivers work excellent with 32 Bit and 64 Bit Windows OS. BIOS SATA drive support boots drives with out added drivers. Moderate overclocks are simple. Wireless works flawlessly without slowing the system at startup. VISTA ready. Checks for power problems before damage could occur at startup. Tons of features. AM2 support is excellent.
- Cons: Bios does require settings changes - not difficult and well covered in the manual, but could be hard for some. Needs +36 amps at the 12 volt supply.
- Other Thoughts: Neo HE 550 power supply, AM2 Athlon64 X2 4800, two SATA WD2500KS drives, two ASUS Silent EN7600GS 256 PCI-e GDDR2, Two GB. "Balistix" DDR PC2-6400 RAM, Windows XP 64 Bit/ XP 32 Bit/ VISTA RC-1. Runs great in 64 Bit XP. Extremely fast and cool in all uses with moderate fan cooling (three 80 mm. case fans). Only board I've ever owned that offered me zero issues with the heavy software loading I apply. Would be great for any Media System.
| Model | M2N32-SLI DLX WIFI |
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | NVIDIA nForce 590 SLI MCP |
-
- 5
-
- 65%
- 4
-
- 17%
- 3
-
- 6%
- 2
-
- 6%
- 1
-
- 6%
| Product Rating: |
|
| Total Reviews: |
942 |
- Pros: No problems with the mobo...
- Cons: The Sli bridge that comes with the mobo, was damaged right out of the box.
I called asus, they said tuff... it's condidered an accessory... even though it has the asus name on it, and comes with an asus mobo, it's considered an "accessory" and is not covered by their warranty...
Pretty said customer service IMHO...
- Other Thoughts: With the attitude I recieved form the lady at asus.... NEVER will I purchase asus anything again...
But... NEWEGG sent me not 1, but 2 SLI bridges... one short, one long...
I can not say enough GOOD about newegg!!!!!!!!
Solid Board!
- Pros: Great overclocking. Great wireless support (for cheap now!). Easy support from ASUS. SLI wasn't a hassle either.
- Cons: There's some RAM that has trouble with this board. I had simply been testing a friend's (value) DDR2-800 RAM and it didn't boot, but my XMS2 DDR2-800 did when it arrived.
- Other Thoughts: Great board if you want to stick with AM2 processors. I've owned this board for 2 years and love it.
Great board
- Pros: This board works perfect out of the "Open Box". Yeah, I took a risk and jumped in. Couldn't pass up the amazing features this 'older' board has for only 121.00. The eSata, dual nics, dual RAID and its bios upgradable to the quads. What 700 level SLI can you get with dual RAID and Dual Nics for under 150? AND this thing has enough history to have many people worked it over to solve bugs. Great board
- Cons: The open box is a risk (no eggs taken off) and it came with absolutely nothing (no Q connectors, cables, screws, wireless antena or mic - nothing! but it was clearly said - you get nothing. In fact, the box it came in was an in-side-out P5 box - Ha.
- Other Thoughts: M2N32 Wireless Deluxe, Ath X2 6400, Dual 2gig OCZ SLI DDR 800's, XFX 8800GT Alpha Dog, Antec 900, 250 gig Seagate ES.2 (blazing fast drive!)
| Model |
| Brand |
ASUS |
| Model |
M2N32-SLI Deluxe Wireless Edition |
| Supported CPU |
| CPU Socket Type |
AM2 |
| CPU Type |
Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB |
1000MHz Hyper Transport (2000 MT/s) |
| Chipsets |
| North Bridge |
NVIDIA nForce 590 SLI MCP |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 800 |
| Maximum Memory Supported |
8GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
2 |
| PCI Express x4 |
1 |
| PCI Express x1 |
1 |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| PATA RAID |
NV RAID 0/1/0+1 JBOD |
| SATA 3Gb/s |
6 |
| SATA RAID |
NV RAID 0/1/0+1/5 JBOD |
| Additional RAID Controller |
Sil 3132 |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
ADI AD1988B |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
NVIDIA nForce 590 SLI MCP |
| Second LAN Chipset |
Marvell PHY |
| Max LAN Speed |
Dual 10/100/1000Mbps |
| Rear Panel Ports |
| PS/2 |
2 |
| COM |
1 |
| USB 1.1/2.0 |
4 x USB 2.0 |
| IEEE 1394 |
1 x IEEE 1394a |
| eSATA |
1 x eSATA 3Gb/s |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
4 x USB 2.0 |
| Onboard 1394 |
| Onboard 1394 |
1x 1394a |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 9.6" |
| Windows Vista |
Certified for Windows Vista |
| Power Pin |
24 Pin |
| Features |
| Features |
1 x External SATA port
1 x WiFi-g antenna jack
WiFi-AP Solo USB wireless module supports IEEE802.11b/g |
| Packaging |
| Package Contents |
M2N32-SLI Deluxe Wireless Edition
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
6 x SATA Cable
3 x Power Cable
USB Bracket
IEEE 1394 Bracket
SLI Bridge
Wireless Antenna
Optional Fan
ASUS Array Mic
ASUS Q-Connector Kit |
| Manufacturer Warranty |
| Parts |
1 year limited |
| Labor |
1 year limited |
Introduction
The ASUS M2N32-SLI Deluxe Wireless Edition, based on NVIDIA's nForce 590 SLI brings lifestyle and personal computing together. Boasting support for AMD's all-new Socket AM2 processors and up to 8GB dual channel DDR2 800 system memory, this board also features an explosive pair of dual PCI Express x16 slots running at full speed with SLI support to liberate graphics cards from the narrow bandwidth platform of x8 speed only. Other advanced features include 8 Serial ATA ports with RAID support, dual Gigabit LAN controllers and High Definition Audio for cutting-edge audio features.
Innovative ASUS AI Lifestyle features, such as AI Gear, an 8-Phase Power Design, Stack Cool2 and a purpose-built and designed heat-pipe for fanless operation enable the M2N32-SLI Deluxe to deliver ultra-powerful yet ultra-quiet computing. This talented motherboard is bundled with a unique Array Microphone and the WiFi AP Solo function for all the comforts of the digital life. Together with the extreme over-clocking potential, faster graphics performance and higher video quality are all available today, with raw power in reserve for the demanding applications of tomorrow!"
Highlights
 |
AMD LIVE! Ready
Developed for full-featured consumer multimedia desktop and notebook PCs, AMD LIVE! seamlessly connects, stores, distributes, accesses and enables digital media content in multiple rooms throughout the home and even on the go!
|
 |
NVIDIA nForce 590 SLI Chipset
The NVIDIA nForce 590 SLI chipsets are engineered for enthusiasts to deliver outstanding gaming experiences with two SLI-based full-bandwidth PCI Express x16 links for unrestricted graphics performance and NVIDIA LinkBoost technology automatically delivering additional GPU and MCP bandwidth. Take advantage of NVIDIA FirstPacket technology to prioritize gaming traffic for reduced ping times. Other advanced features include SATA 3Gb/s RAID, dual Gigabit LAN and High Definition Audio.
|
 |
Ultimate Gaming Performance with NVIDIA SLI Technology
NVIDIA SLI (Scalable Link Interface) takes advantage of the increased bandwidth of the PCI Express bus architecture and features intelligent hardware and software enabling a pair of GPUs to deliver earth-shattering, scalable graphics power, approaching twice the performance in certain applications.
|
 |
8 Phase Power Design
The ASUS 8-Phase Power Design protects the CPU and power module from the risk of excessively high power stress to greatly extend CPU lifetime and system stability. The highly-efficient design also generates less heat to ensure low ambient temperatures, while the vigorous power pump delivers serious overclocking potential.
|
 |
WiFi-AP Solo
Based on 54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b, the on-board WiFi AP Solo allows a new level of versatility for your PC, enabling it to create a complete wireless home network in either AP or wireless client mode. Users will be able to play LAN games, connect to the Internet, access and share printers, and use Skype from anywhere within range.
|
 |
ASUS Array Mic
Featuring advanced de-reverberation techniques to reduce echo effect on the speech engine, the bundled Superbeam Array Microphone eliminates interference and reverberations, and allows for enhanced experiences in speech-centric applications like Skype, online gaming, and video conferencing.
|
Quick Specs
| CPU Socket Type | AM2 |
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000MHz Hyper Transport (2000 MT/s) |
| North Bridge | NVIDIA nForce 590 SLI MCP |
| PCI Express x16 | 2 |
| SATA 3Gb/s | 6 |
| PATA | 1 x ATA100 2 Dev. Max |
| Max LAN Speed | Dual 10/100/1000Mbps |
| IEEE 1394 | 1 x IEEE 1394a |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Form Factor | ATX |
|
4x Winner of Customer Choice Award - AMD Motherboards
Reviewed By: on 10/2/2006
Tech Level: high - Ownership: 1 week to 1 month
