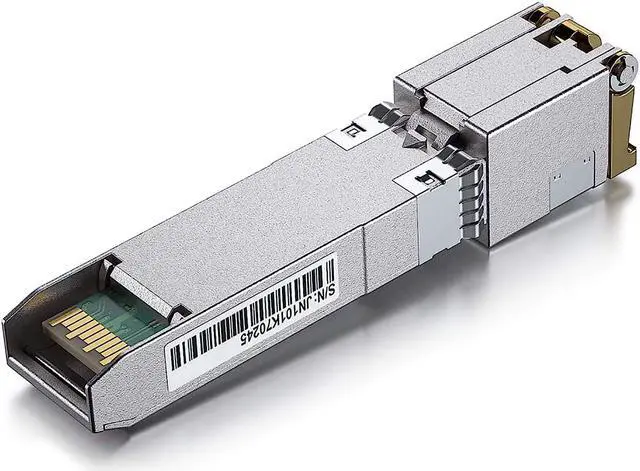

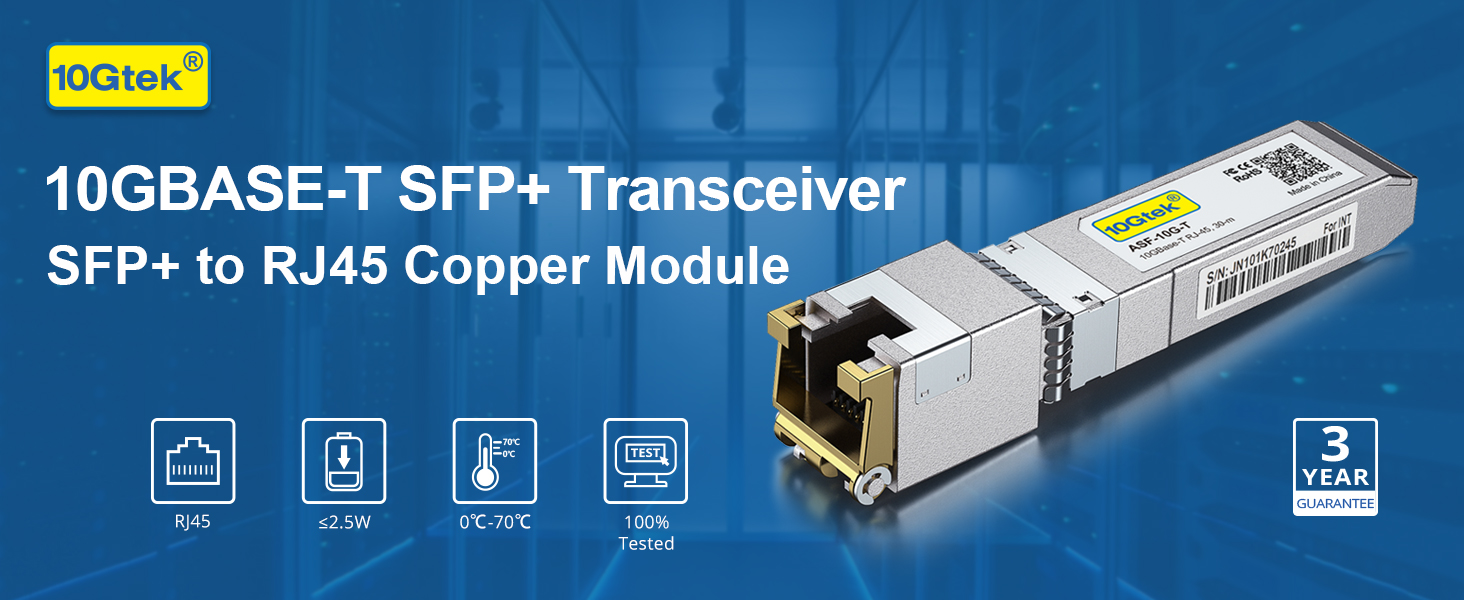

    10Gtek 10G SFP+ RJ45 Copper Module, 10G-T Transceiver, Compatible with Cisco SFP-10G-T-S, Ubiquiti UniFi UF-RJ45-10G, Fortinet, Netgear, D-Link, Supermicro and More, CAT.6a, up to 30 meters

    (1) Write a Review
    • 1 Pack
    • 2 Packs
    • 4 Packs
    • 10 Packs
    • 10GBase-SR: 300m
    • 10GBase-T
    • 10GBase-LR: 10km
    • 1000Base-T: 100m
    • 1000Base-SX
    • 1000Base-LX
    • 25GBase-SR: 100m
    • 25GBase-LR: 10km
    • Data Rate: 10G
    • Interface: SFP+, RJ-45;
    • Cable Type: CAT.6a/CAT7
    • Reach: up to 30 meters
    • Wide Compatibility - for Cisco sfp-10g-t, Ubiquiti uf-mm-10g, Netgear, D-Link, TP-Link, Linksys, Broadcom, Edge-core, EMC, F5, Meraki, Norkia, QTC, Supermicro, and Other Open Switches.
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews (1)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Products
    1.25G-T 1000Base-T
    SX 1000Base-SX
    LX 1000Base-LX
    10G-T 10GBase-T
    SR 10GBase-SR
    LR 10GBase-LR
    Data Rate 1.25G 1.25G 1.25G 10G 10G 10G
    Wavelength RJ-45 850nm 1310nm RJ-45 850nm 1310nm
    Fiber Type CAT.5e MMF SMF CAT.6a/CAT.7 MMF SMF
    Distance 100 m 550 m 20 km <30m <300m 10km
    Optical Comp - PF/PIN FP/PIN - VCSEL/PIN DFB/PIN
    Tx Power(dBm) - -8~-4 -9~-3 - -1~-6 1~-3
    E.R(dBm) - >9 >9 - >=6 >=3.5
    Rx Sens.(dBm) - -18~0 -22~-3 - -11.1~-1 -12.6~0.5
    Temp 0~70 0~70 0~70 0~70 0~70 0-70
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    1
    ASF-10G-T

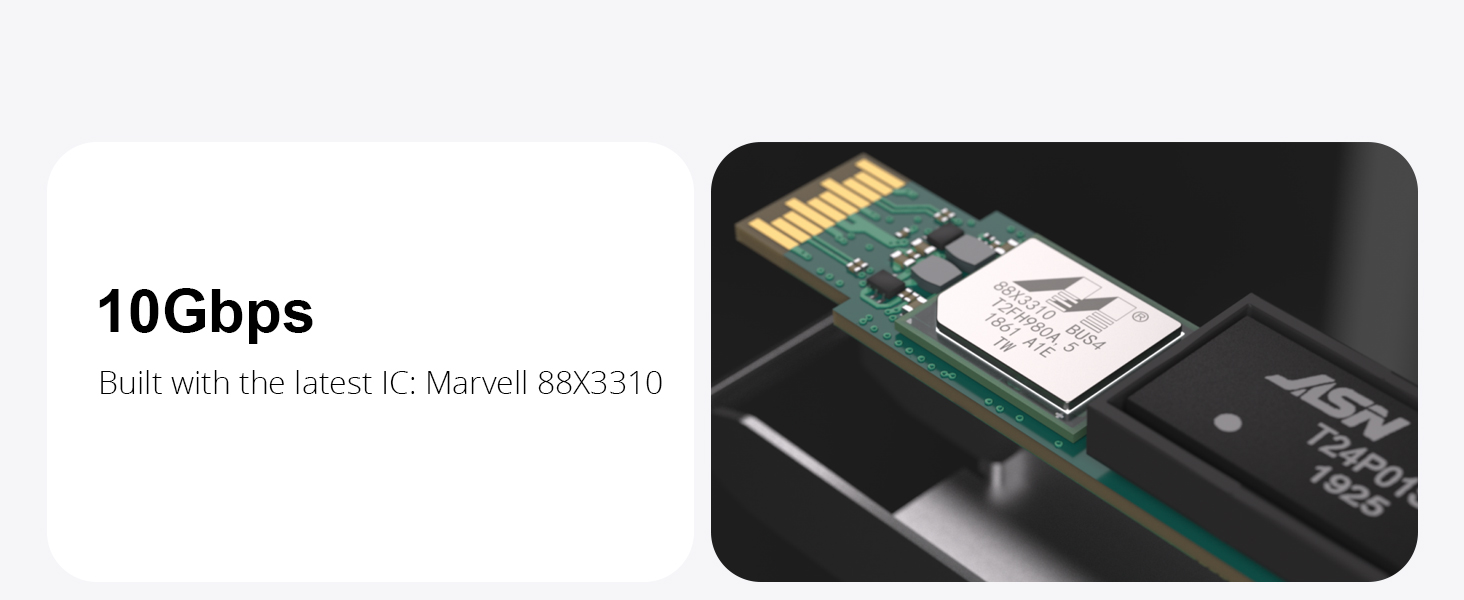

    The 10GBase-T copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. Durable and Low Power Consumption Less than 2.5W power dissipation and heat-conducting gasket provide superior heat dissipation function to dissipate heat away from module and increases its service life. It is specifically designed in with Marvell 88X3300 PHY chip following IEEE 802.3 an and SFP+ MSA.

    Features:
    10GBase-T
    Data Rate: 1.25G /10G, multi-rate 30 meters transmission over CAT. 6a/CAT.
    7 Interface: RJ-45 RoHS Compliant with 10G Base-T IEEE 802.3 an
    Temp.Range:: 0~60
    Applications: 10 Gigabit Ethernet 1.25 Gigabit Ethernet
