| Products |
|
|
|
|
|
|
| Data Rate |
1.25G |
1.25G |
1.25G |
10G |
10G |
10G |
| Wavelength |
RJ-45 |
850nm |
850nm |
1310nm |
1310nm |
1270nm/1330nm |
| Fiber Type |
CAT.6a/CAT.7 |
MMF |
MMF |
SMF |
SMF |
SMF |
| Distance |
<30 m |
550 m |
<300 m |
20 km |
10 km |
20 km |
| Optical Comp |
|
PF/PIN |
VCSEL/PIN |
FP/PIN |
DFB/PIN |
DFB/PIN |
| Tx Power(dBm) |
|
-8~-4 |
-1~-6 |
-9~-3 |
1~-3 |
-2~2 |
| E.R(dBm) |
|
>9 |
>6 |
>9 |
>3.5 |
>3.5 |
| Rx Sens.(dBm) |
|
-18~0 |
-11.1~-1 |
-22~-3 |
-12.6~0.5 |
-14~0.5 |
| Temp |
0~60 |
0~70 |
0~70 |
0~70 |
0~70 |
0~70 |
AXS13-192-10

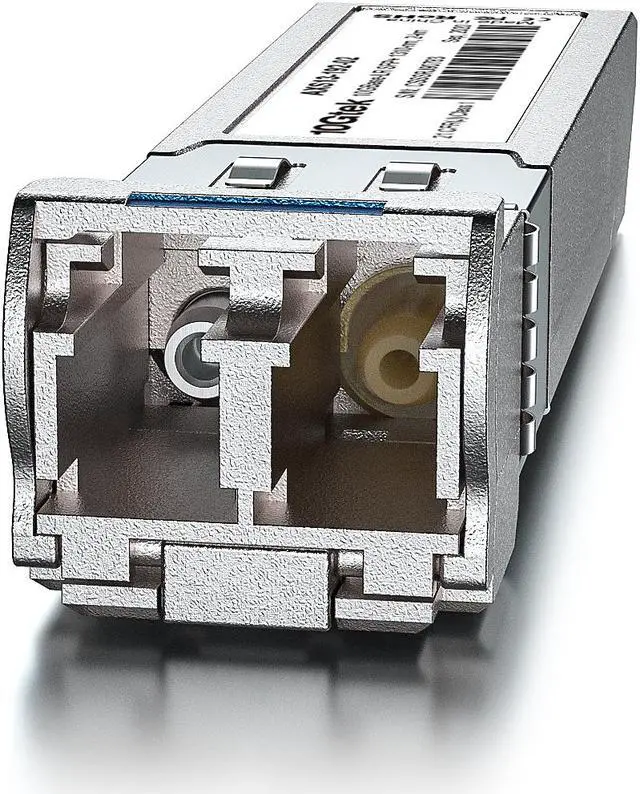

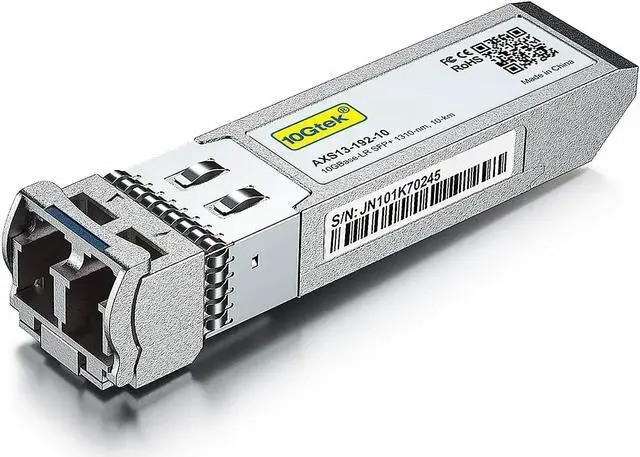

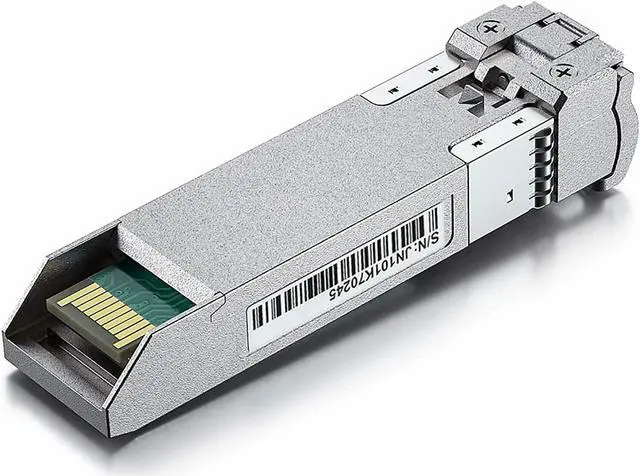

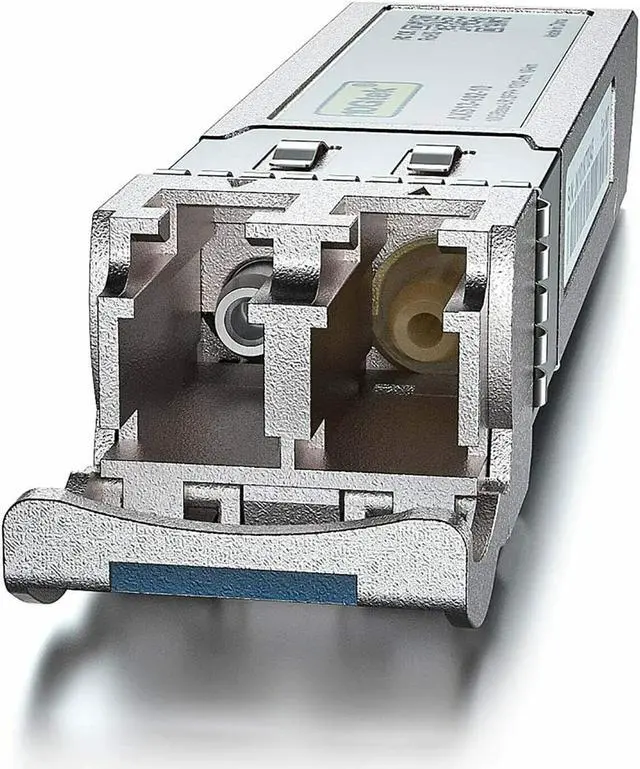

10Gtek's AXS13-192-10 is a 10Gbps SFP+ transceiver supporting up to 10 km transmission over dual LC SMF fiber, following IEEE 802.3ae and SFP+ MSA 10GBase-LR. The SFP+ transceiver consists of 1310nm FP laser TOSA, PIN-(tia) ROSA, Driver IC and eeprom I2C unit.
Features:
10GBase-LR
Data Rate: 10Gb/s
Interface: Dual LC connectors
1310nm FP Laser TOSA
Applications:
10GbE, 10G Ethernet
10GBase-LR
10G Networking, Storage, Telecommunications
10G Switches, Routers, Network Interface Card(NICs)
