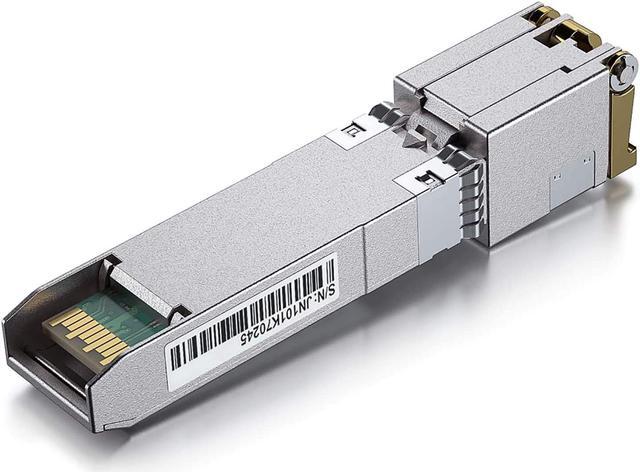

    10Gtek 1.25G SFP-T, 1000BASE-T Copper SFP, SFP to RJ45 SFP Module Transceiver for Cisco SFP-GE-T, Meraki, Fortinet, Ubiquiti UniFi UF-RJ45-1G, D-Link, Supermicro, Netgear, TP-Link and More

    (1) Write a Review
    • 1 Pack
    • 2 Packs
    • 4 Packs
    • 10 Packs
    • 10GBase-SR: 300m
    • 10GBase-T
    • 10GBase-LR: 10km
    • 1000Base-T: 100m
    • 1000Base-SX
    • 1000Base-LX
    • 25GBase-SR: 100m
    • Data Rate: 1.25Gb/s
    • Interface: RJ-45
    • Cable Type: CAT.5e
    • Reach: up to 100 meters transmission over CAT.5e
    • Wide Compatibility - for Cisco, Meraki, Ubiquiti, Fortinet, D-Link, Supermicro, TP-Link, Linksys, TP-Link TL-SM331T and Other Open Switches.
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews (1)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

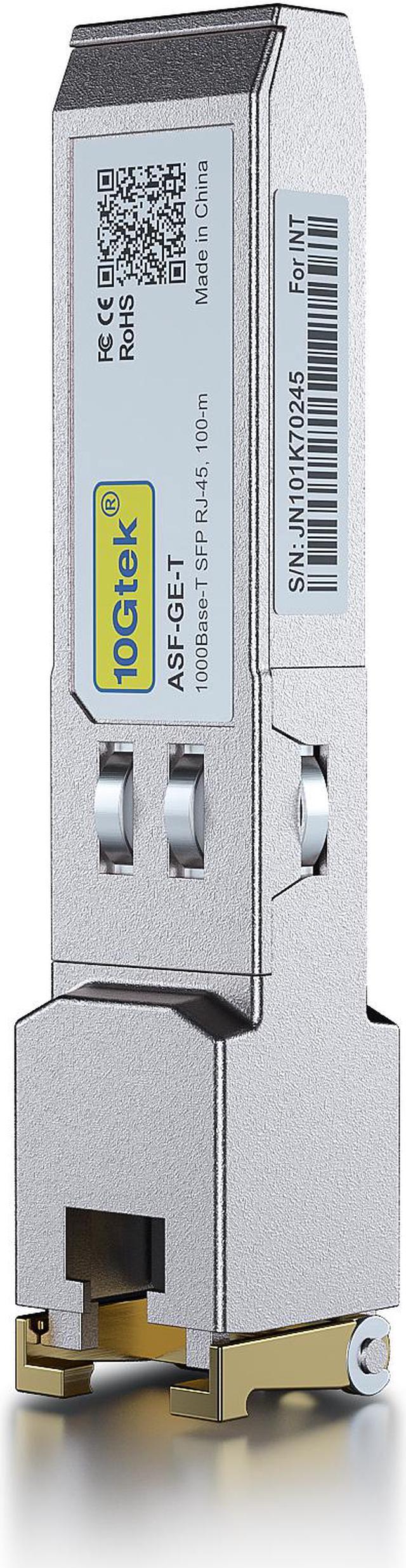

    ASF-GE-T
    10Gtek's ASF-GE-T is a 1000Base-T Copper RJ45 SFP Transceiver, designed in with Marvell 88E1111 PHY chip following IEEE 802.3ab and SFP MSA, supporting up to 100-meter transmission over CAT.5e

    Features:
    1000Base-T
    Data Rate: 1.25Gb/s
    Interface: RJ-45
    100 meters transmission over CAT.5e
    Compliant with IEEE 802.3ab
    Compliant with SFP MSA
    Hot Pluggable SFP footprint
    +3.3V single power supply
    Temp. Range(?): 0~70
    RoHS

    Applications:
    1.25 Gigabit Ethernet
    Products
    image for this item 1000Base-T
    LX 1000Base-LX
    image for this item 1000Base-SX
    10GBase-T 10GBase-T
    SR 10GBase-SR
    LR 10GBase-LR
    Data Rate 1.25G 1.25G 1.25G 10G 10G 10G
    Wavelength RJ-45 1310nm 850nm RJ-45 850nm 1310nm
    Fiber Type CAT.5e SMF MMF CAT.6a/CAT.7 MMF SMF
    Distance 100 m 20KM 550 m <30 m <300 m 10 km
    Optical Comp. 100 m N/A FP/PIN PF/PIN N/A VCSEL/PIN DFB/PIN
    Tx Power(dBm) - -9~-3 -8~-4 - -1~-6 1~-3
    E.R(dBm) - >9 >9 - >=6 >=3.5
    Rx Sens.(dBm) - -22~-3 -18~0 - -11.1~-1 -12.6~0.5
    Temp 0~70 0~70 0~70 0~70 0~70 0-70
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
