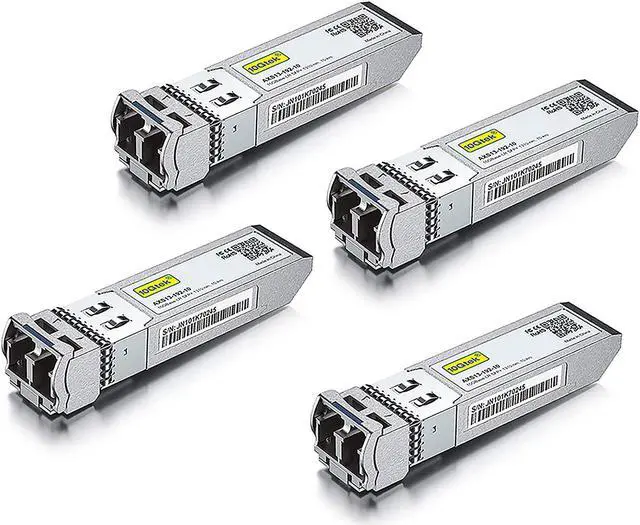

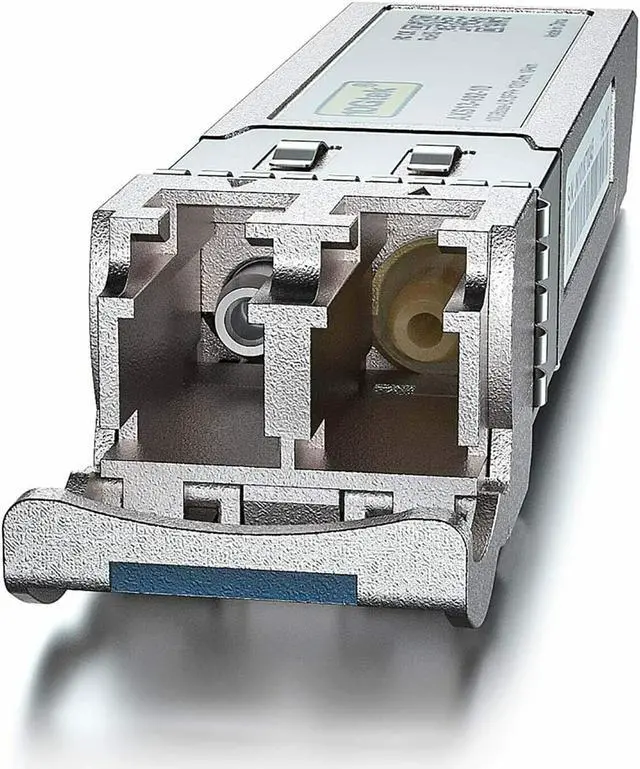

    10Gtek 10GBase-LR SFP+ Transceiver, 10G 1310nm SingleMode LC Fiber Optic Module, up to 10km, for Cisco SFP-10G-LR, Meraki MA-SFP-10GB-LR, Ubiquiti UniFi UF-SM-10G, Fortinet, Mikrotik, Pack of 4

    (1) Write a Review
    • 1 Pack
    • 2 Packs
    • 4 Packs
    • 10 Packs
    • 10GBase-SR: 300m
    • 10GBase-T
    • 10GBase-LR: 10km
    • 1000Base-T: 100m
    • 1000Base-SX
    • 1000Base-LX
    • 25GBase-SR: 100m
    • Data Rate: 10G

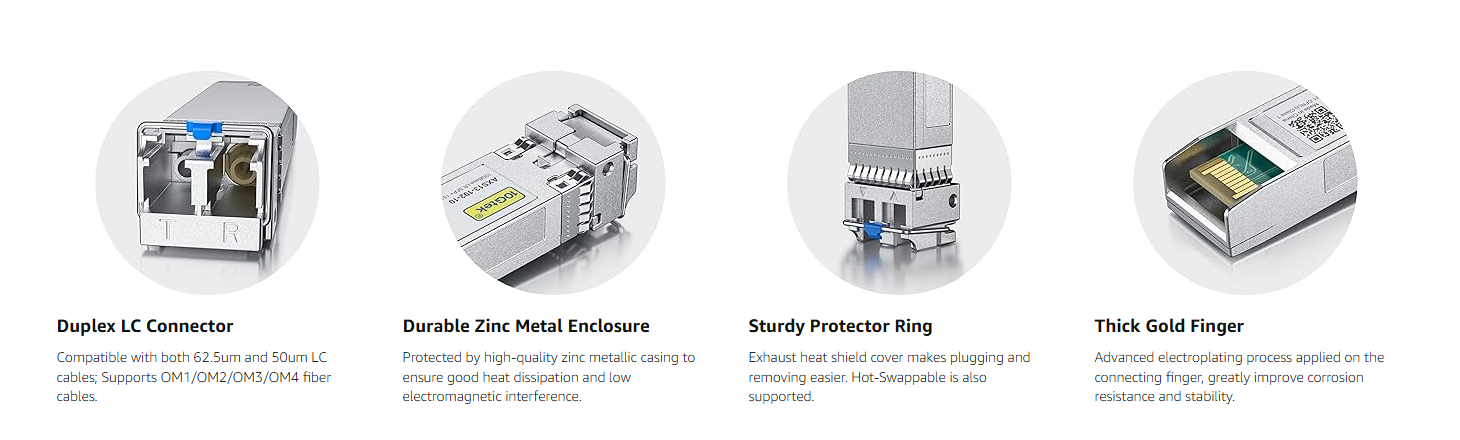

    • Interface: Dual LC Connectors
    • Wavelength: 1310-nm;
    • Reach: up to 10 km
    • Fiber Type: Dual LC single-mode fiber
    • Wide Compatibility - for Cisco, Fortinet, Ubiquiti, Netgear, D-Link, TP-Link, Linksys, Edge-core, EMC, F5, Meraki, Mikrotik, Norkia, QTC, Supermicro, and Other Open Switches.
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews (1)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Products
    1.25G-T 1000Base-T
    SX 1000Base-SX
    LX 1000Base-LX
    10G-T 10GBase-T
    SR 10GBase-SR
    LR 10GBase-LR
    Data Rate 1.25G 1.25G 1.25G 10G 10G 10G
    Wavelength RJ-45 850nm 850nm 1310nm 1310nm 1270nm/1330nm
    Fiber Type CAT.6a/CAT.7 MMF MMF SMF SMF SMF
    Distance <30 m 550 m <300 m 20 km 10 km 20 km
    Optical Comp PF/PIN VCSEL/PIN FP/PIN DFB/PIN DFB/PIN
    Tx Power(dBm) -8~-4 -1~-6 -9~-3 1~-3 -2~2
    E.R(dBm) >9 >6 >9 >3.5 >3.5
    Rx Sens.(dBm) -18~0 -11.1~-1 -22~-3 -12.6~0.5 -14~0.5
    Temp 0~60 0~70 0~70 0~70 0~70 0~70
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    A+
    A+
    image for this item

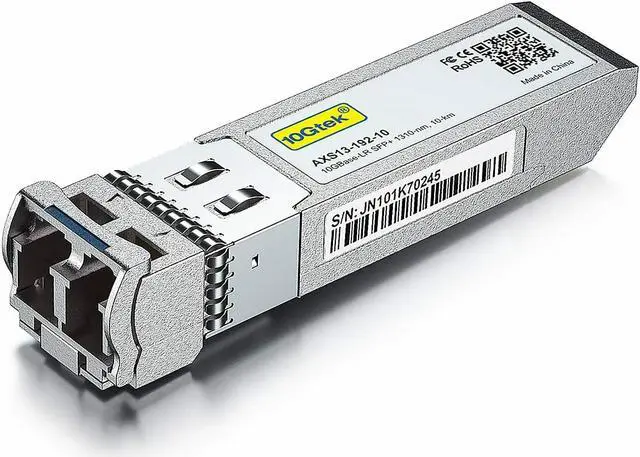

    AXS13-192-10

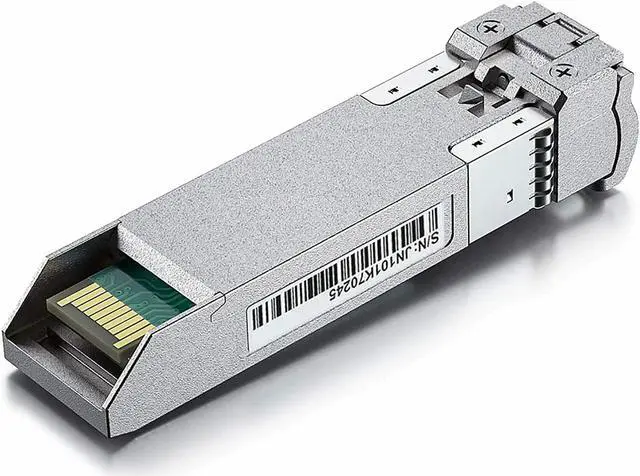

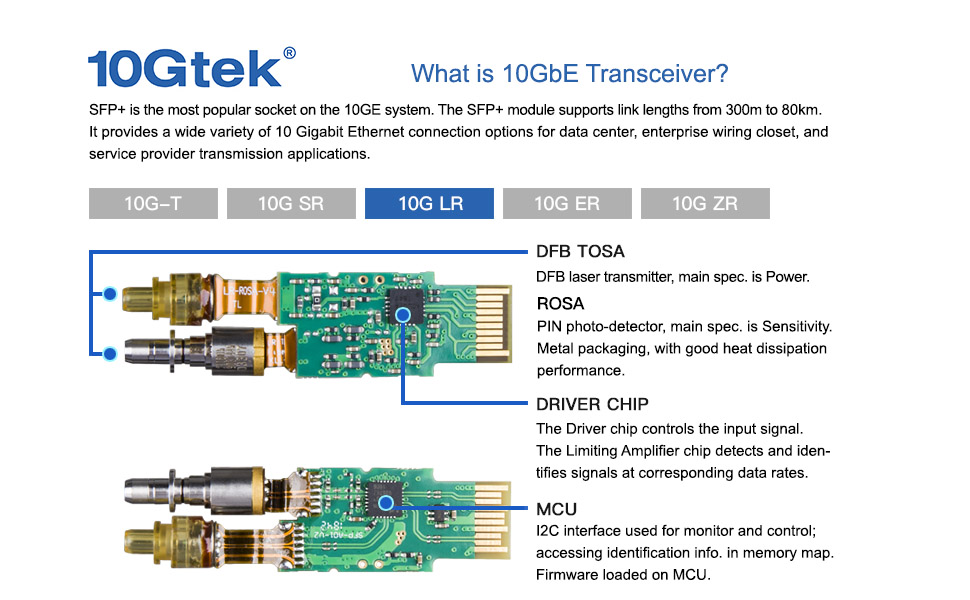

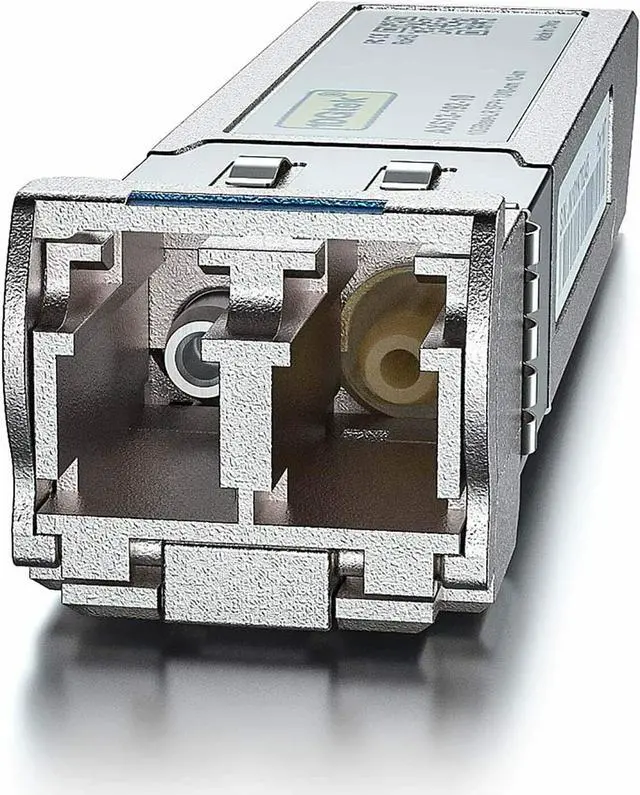

    10Gtek's AXS13-192-10 is a 10Gbps SFP+ transceiver supporting up to 10 km transmission over dual LC SMF fiber, following IEEE 802.3ae and SFP+ MSA 10GBase-LR. The SFP+ transceiver consists of 1310nm FP laser TOSA, PIN-(tia) ROSA, Driver IC and eeprom I2C unit.
    Features:
    10GBase-LR
    Data Rate: 10Gb/s
    Interface: Dual LC connectors
    1310nm FP Laser TOSA

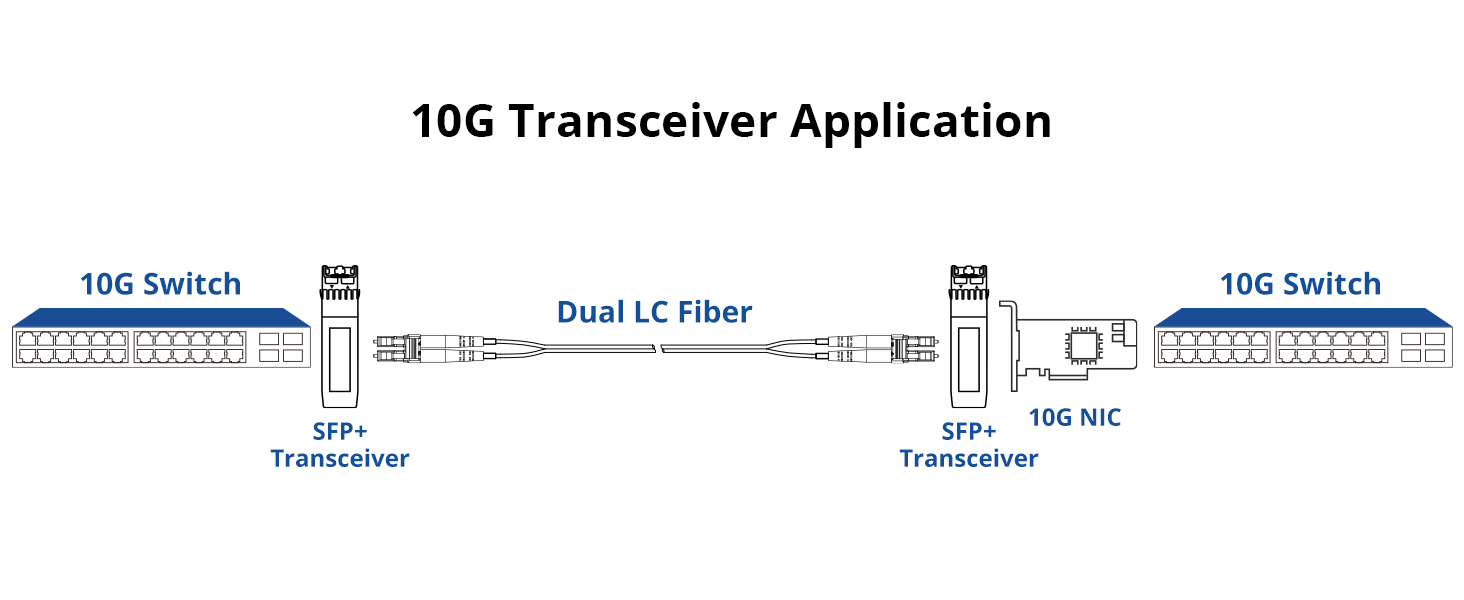

    Applications:
    10GbE, 10G Ethernet
    10GBase-LR
    10G Networking, Storage, Telecommunications
    10G Switches, Routers, Network Interface Card(NICs)
