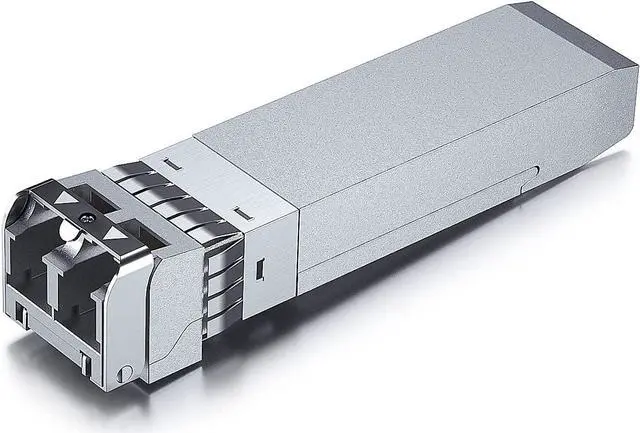

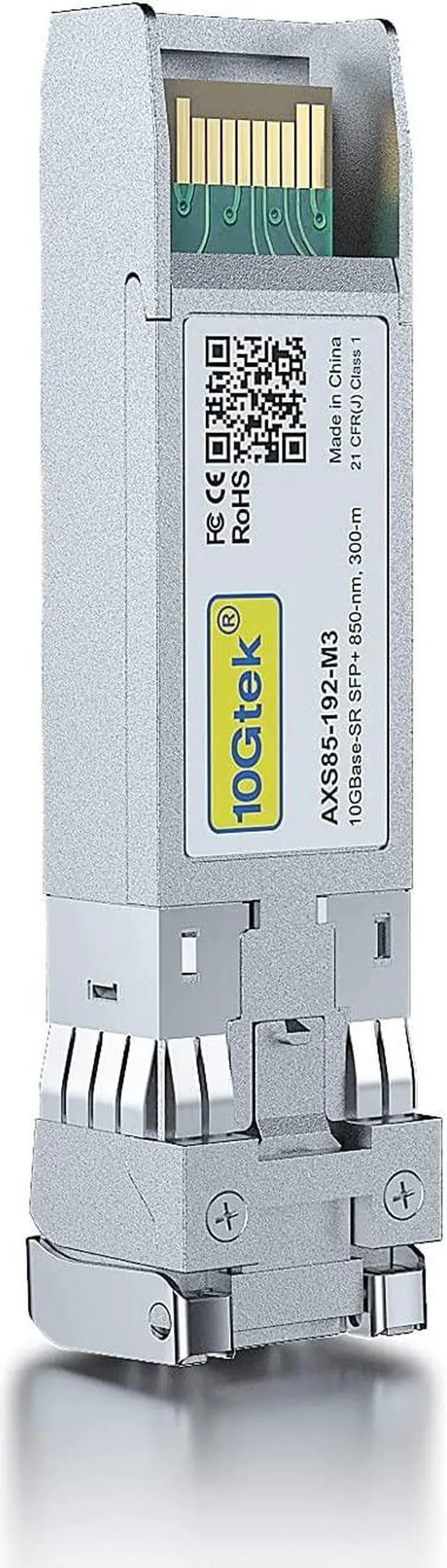

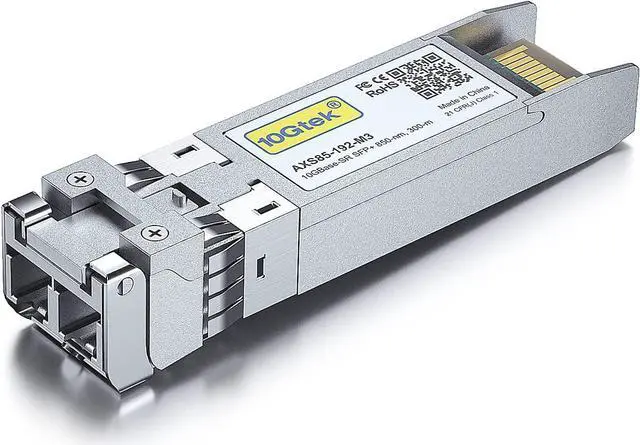

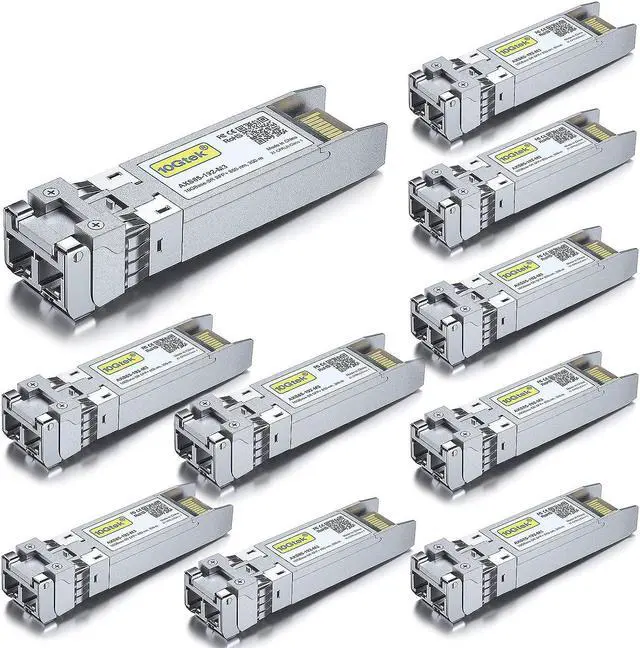

    10Gtek 10-PACK 10GBase-SR Multimode SFP+ to LC Fiber Module Transceiver for Cisco SFP-10G-SR, Ubiquiti UF-MM-10G, Meraki, Mikrotik, Netgear, D-Link, Edgecore, Linkysys etc. (850nm MMF, up to 300M)

    (1) Write a Review
    • 1 Pack
    • 2 Packs
    • 4 Packs
    • 10 Packs
    • 10GBase-SR: 300m
    • 10GBase-T
    • 10GBase-LR: 10km
    • 1000Base-T: 100m
    • 1000Base-SX
    • 1000Base-LX
    • 25GBase-SR: 100m

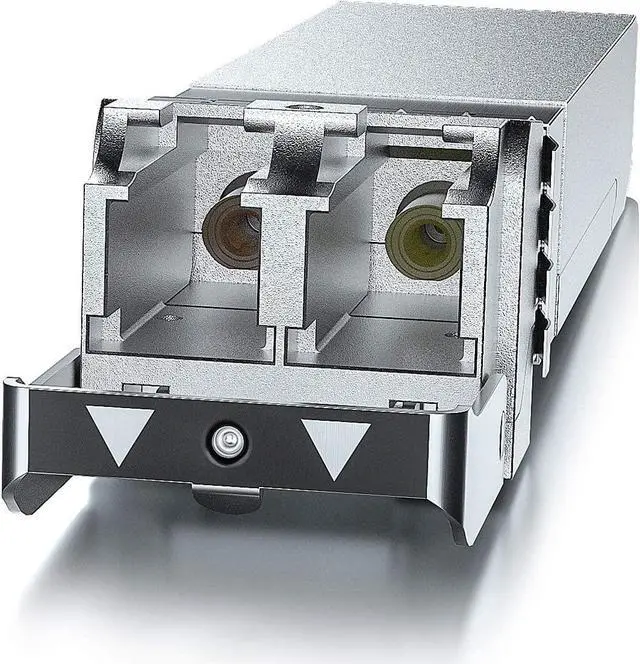

    • 10GBASE-SR SFP+ to LC Optical 10 Gigabit Ethernet Fiber transceiver module, 10GbE Multimode SFP+(compatible with both 62.5um and 50um LC cables; supports OM1/OM2/OM3/OM4 fiber cables), Duplex LC connector, 850nm, DDM, up to 300m.
    • [Wide Compatibility] Compatible with Cisco SFP-10G-SR, Meraki MA-SFP-10GB-SR, Ubiquiti UniFi UF-MM-10G, Fortinet, Mikrotik, Netgear, D-Link, Supermicro, TP-Link and Other Open Switches.
    • [Easy to Use] Easy installation, plug and play, fully hot-pluggable with ESD protection. Widely used in network switch, server, or NIC with SFP+ to a 10 Gigabit fiber channel network with multimode LC for Network Attached Storage(NAS), Storage Area Network(SAN), and High Performance Computing(HPC) applications.
    • [Durable & Low Power Consumption] Adpot high quality alloy, the shell is strong and wear-resistant; Low power consumption(less than 1.05watt) and low EMI emission design. SFP MSA Compliant, IEEE 802.3ae Compliant. Operating Temperature: 0°C to 70°C.
    +
    +
    Overview
    Specs
    Reviews (1)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Data Rate10 Gb/s, 850nm, up to 300m via duplex LC MMF patch cord cable.
    Driver Chip ControllerThe SFP+ transceiver consists of VCESL laser, PIN- (tia), Driver IC and EEPROM I2C unit based on COB (Chip on Board) technology.
    Protocols CompliantCompliant with IEEE 802.3 ae 10GBase-SR/SWMSA SFP+ Specification SFF-8431
    Compatibility Compatible with Cisco SFP-10G-SR, Meraki MA-SFP-10GB-SR, Ubiquiti UF-MM-10G, Mikrotik, Netgear etc.
    Products

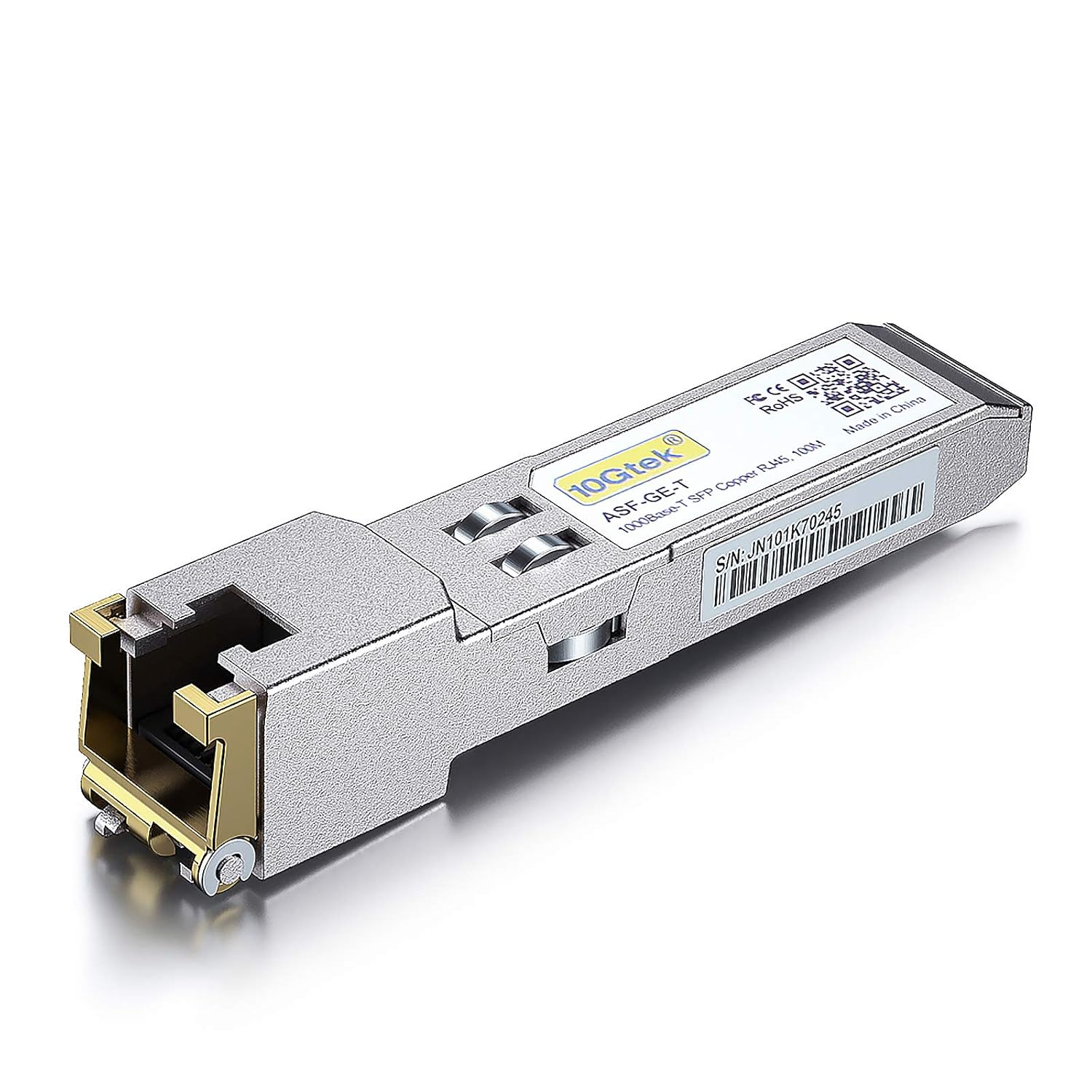

    1.25G-T 1000Base-T

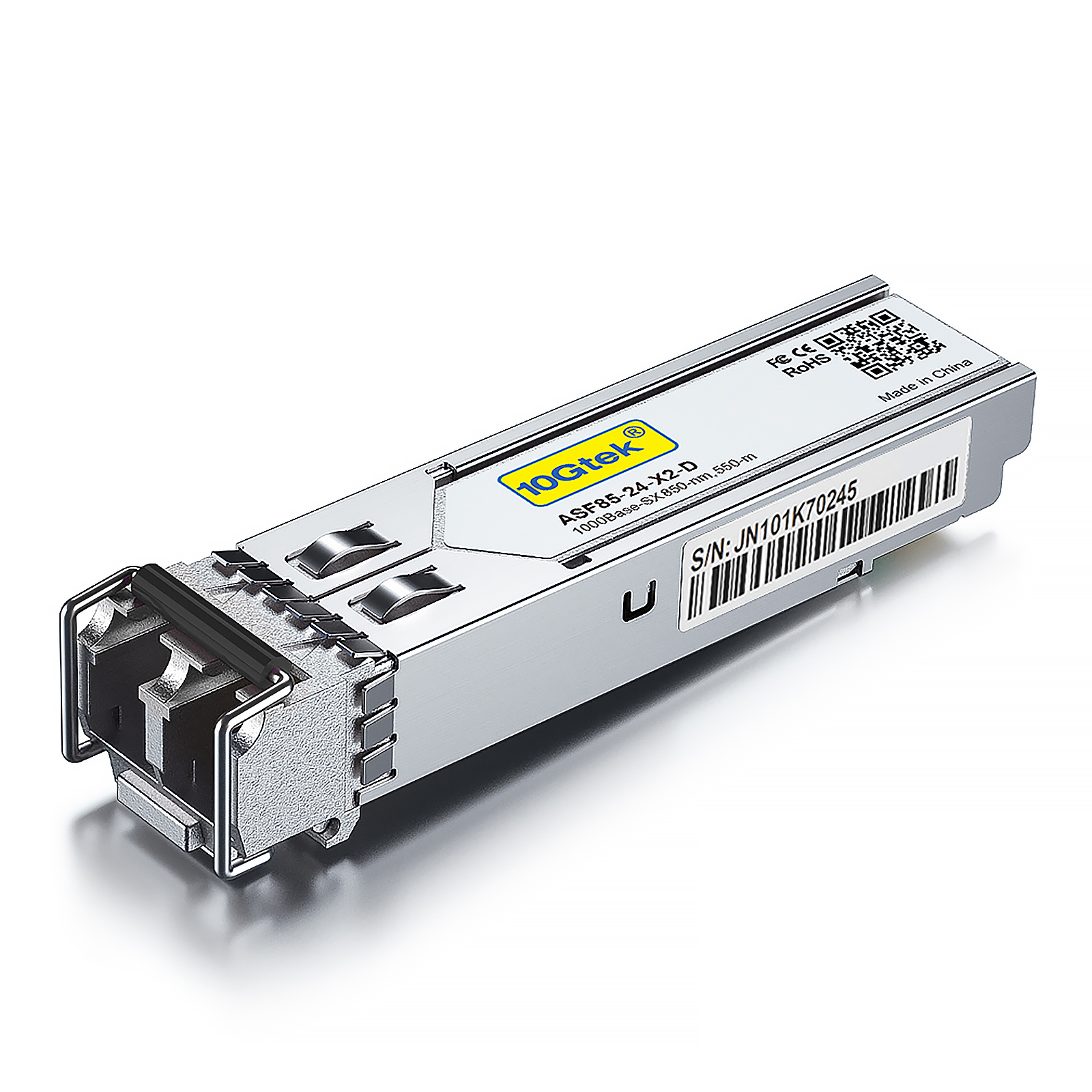

    sfp 1000Base-SX
    LX 1000Base-LX
    10G-T 10GBase-T
    SR 10GBase-SR
    LR 10GBase-LR
    Data Rate 1.25G 1.25G 1.25G 10GG 10G 10G
    Wavelength RJ-45 850nm 1310nm RJ-45 850nm 1310nm
    Fiber Type CAT.5e MMF SMF CAT.6a/CAT.7 MMF SMF
    Distance 100 m 550 m 20 km <30 m <300 m 10 km
    Optical Comp - PF/PIN FP/PIN - VCSEL/PIN DFB/PIN
    Tx Power(dBm) - -8~-4 -9~-3 - -1~-6 1~-3
    E.R(dBm) - >9 >9 - >=6 >=3.5
    Rx Sens.(dBm) - -18~0 -22~-3 - -11.1~-1 -12.6~0.5
    Temp 0~70 0~70 0~70 0~70 0~70 0~70
    image for this item
    image for this item
    image for this item
    image for this item
