| Products |
|
|
|
|
|
|
| Data Rate |
1.25G |
1.25G |
1.25G |
10GG |
10G |
10G |
| Wavelength |
RJ-45 |
850nm |
1310nm |
RJ-45 |
850nm |
1310nm |
| Fiber Type |
CAT.5e |
MMF |
SMF |
CAT.6a/CAT.7 |
MMF |
SMF |
| Distance |
100 m |
550 m |
20 km |
<30 m |
<300 m |
10 km |
| Optical Comp |
- |
PF/PIN |
FP/PIN |
- |
VCSEL/PIN |
DFB/PIN |
| Tx Power(dBm) |
- |
-8~-4 |
-9~-3 |
- |
-1~-6 |
1~-3 |
| E.R(dBm) |
- |
>9 |
>9 |
- |
>=6 |
>=3.5 |
| Rx Sens.(dBm) |
- |
-18~0 |
-22~-3 |
- |
-11.1~-1 |
-12.6~0.5 |
| Temp |
0~70 |
0~70 |
0~70 |
0~70 |
0~70 |
0~70 |

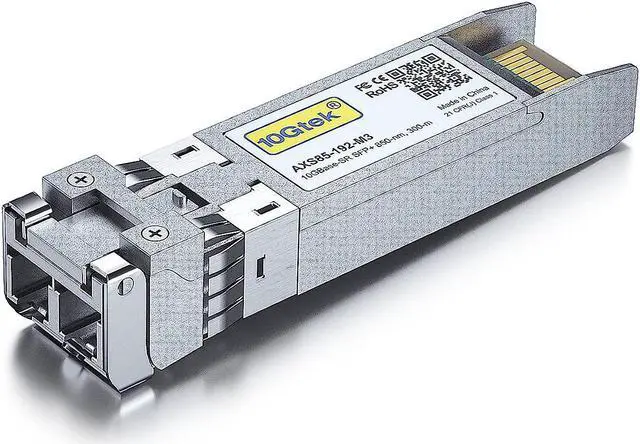

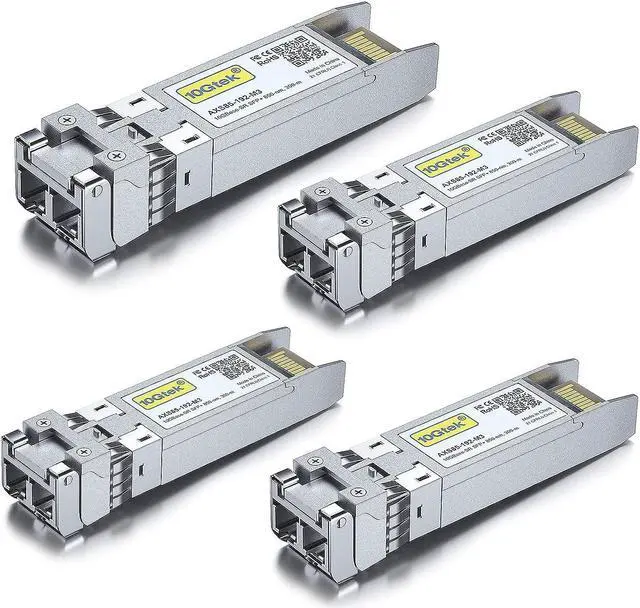

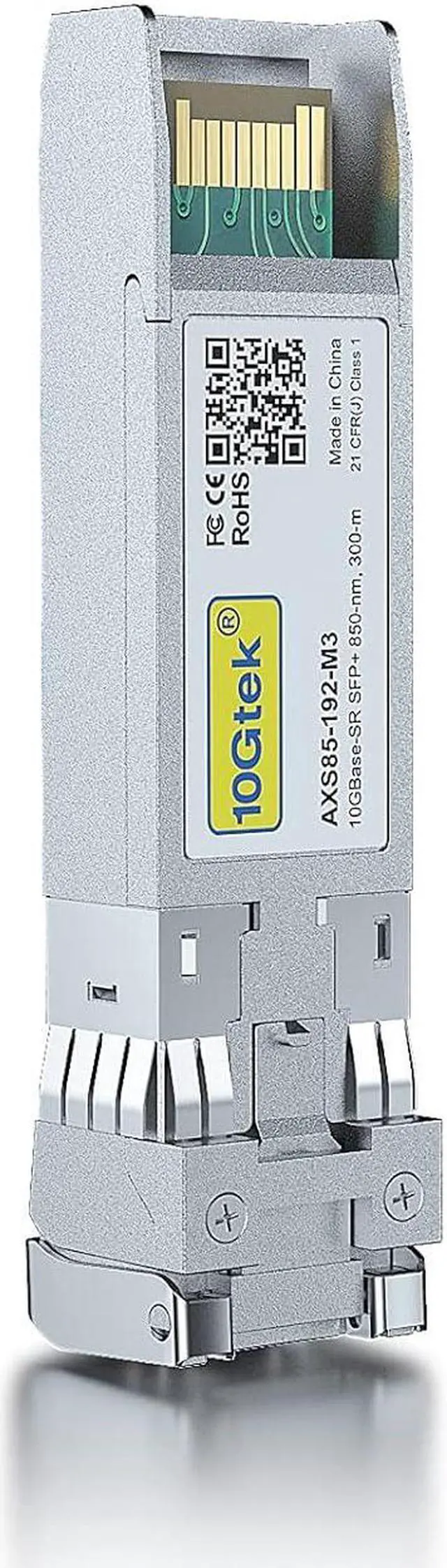

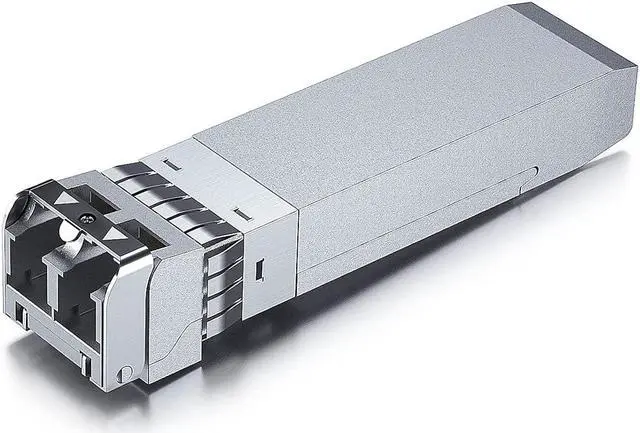

AXS85-192-M3
10Gtek's AXS85-192-M3 is a 10Gbps SFP+ transceiver supporting up to 300 meters transmission over OM3 MMF fiber or 82 meters over OM2 MMF fiber or 26 meters over OM1 MMF fiber, this module following IEEE 802.3ae and SFP+ MSA 10GBase-SR.
The SFP+ transceiver consists of VCESL laser, PIN-(tia), Driver IC and eeprom I2C unit based on COB (Chip on Board) technology.
Features:
Operating data rate up to 10.3Gbps
850nm VCESL Transmitter
Distance up to 300m @ 50/125 µm MMF
Single 3. 3V Power supply and TTL Logic Interface

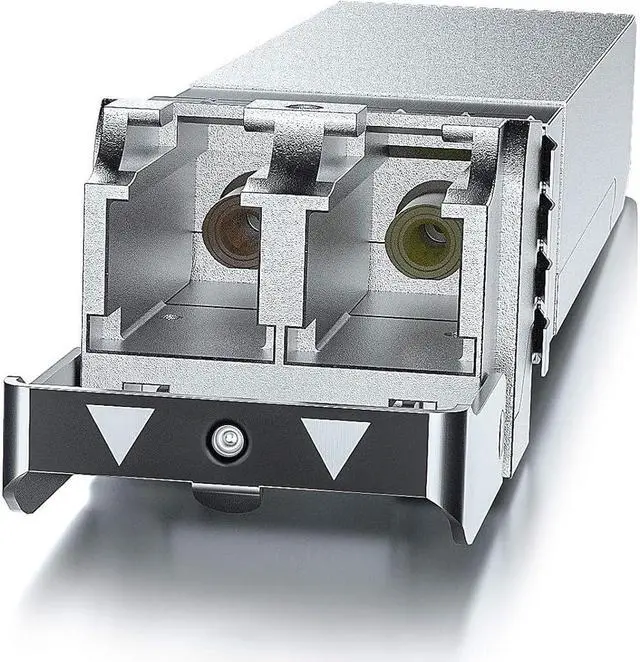

Duplex LC Connector Interface
Compliant with MSA SFP+ Specification SFF-8431
Compliant with IEEE 802.3ae 10GBase-SR/SW
Temp. Range(?): 0~70
Applications:
10GbE, 10G Ethernet
10GBase-SR
10G Networking, Storage, Telecommunications
10G Switches, Routers, Network Interface Card(NICs)
