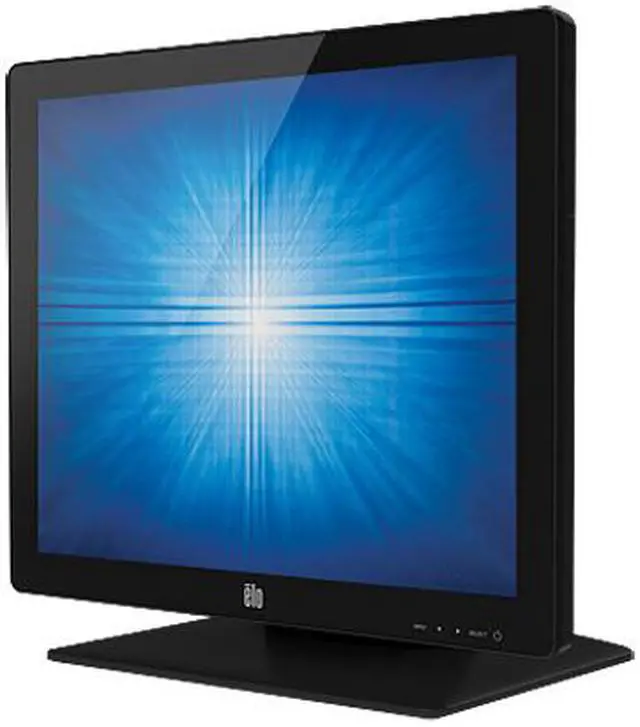

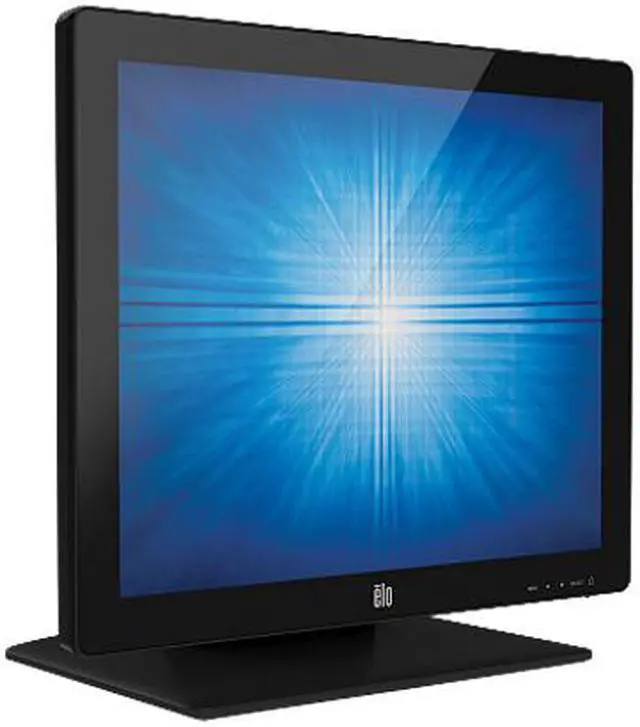

Elo Touch E649473 1717L 17-inch AccuTouchDesktop Touch Screen Monitor
- AccuTouch
- Serial/USB
- Black
- Antiglare
- No Bezel
+
+
Overview
Specs
Reviews (1)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Elo 1717L 17-inch Multifunction Desktop Touchmonitor
- Sleek and thin design with "Built for Touch" Reliability
- 40% Energy Savings using LED Technology
- 3 Year Standard Warranty
- Integrated cable management
- Space-saving design
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Features:
- Sleek and thin design with “Built for Touch” Reliability.
- Flexible and space-saving.
- 40% Energy savings using LED technology.
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 17” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 13.3 x 10.6 inches/338 x 270 mm.
- 5:4 aspect ratio.
- 1280 x 1024 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 20W, internal and external power options.
- Warranty: 3 years standard.
Key Applications
- Point-of-Sale
- Point-of-Information
Part Numbers
| Part Number | Technology | Interface | Bezel | Surface Treatment | Color | Availability |
| E877820 | AccuTouch | Serial/USB | Yes | Antiglare | Black | Worldwide |
| E371267 | AccuTouch | Serial/USB | Yes | Antiglare | White | Worldwide |
| E649473 | AccuTouch | Serial/USB | No | Antiglare | Black | Worldwide |
| E679434 | AccuTouch | Serial/USB | No | Antiglare | White | Worldwide |
| E077464 | IntelliTouch | Serial/USB | Yes | Antiglare | Black | Worldwide |
| E214112 | IntelliTouch | Serial/USB | Yes | Antiglare | White | Worldwide |
| E179069 | iTouch | Serial/USB | No | Clear | Black | Worldwide |
| E227652 | iTouch | Serial/USB | No | Clear | White | Worldwide |
| E017030 | iTouch | Serial/USB | No | Antiglare | Black | Worldwide |
| E415033 | iTouch | Serial/USB | No | Antiglare | White | Worldwide |
External Elo Peripherals
| Peripheral | Interface | Color | Part #(RoHS Compliant) |
| Magnetic Stripe Reader | USB | Black | E500356 |
| Magnetic Stripe Reader | USB | White | E233227 |
- The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail- focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, loyalty systems, and shelf-level and countertop interactive digital signage are found.
The 1717L is offered with Accu
Touch five-wire resistive, Intelli
Touch surface acoustic wave, or iTouch zero-bezel surface acoustic wave technology. Accu
Touch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Intelli
Touch-and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR) is programmable to either HID or Keyboard Emulation. It is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the- art LED backlights in the display panels.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-557-1458
- Support Email: customerservice@elotouch.com
- Support Website
- View other products from Elo Touch Solutions
LOADING...
LOADING...
The Elo Touch 1717L E649473 is a 17-inch AccuTouch touchscreen monitor for point-of-sale and other counter-based business systems. Its 1280 × 1024 display, VGA video input, and serial/USB touch interface suit retail workstations designed for these connections.
Recommended For
- Retail and hospitality operators equipping a staffed checkout or service counter where customers or employees select on-screen POS controls; Elo positions the 1717L for point-of-sale and continuous public use.
- Food-service counters where staff need a touch display exposed to occasional splashes, food, or grease; Elo describes the AccuTouch resistive technology as suited to retail and hospitality environments with these conditions.
- Businesses building a fixed information, service, loyalty, or interactive-signage station around a compatible computer, with desktop, wall, or VESA mounting options.
- Operators maintaining an existing POS setup that needs a 17-inch, 5:4 touchscreen with VGA video and serial or USB touch connections.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Point-of-sale setups that need a 17-inch touchscreen with serial or USB connectivity |
| Panel And Resolution | 17-inch active-matrix TFT LCD with LED backlighting, 1280 × 1024 resolution, and 16.7 million colors |
| Image Quality And Response | 200 cd/m² brightness, 1000:1 contrast ratio, 7.8 ms response time, and viewing angles of 170° horizontal and 160° vertical |
| Ports And Connectivity | Analog VGA via female DE-15, one HDMI port, and one USB 2.0 port; touchscreen interface supports serial or USB |
| Touch And On-Screen Controls | AccuTouch touchscreen with bottom-mounted OSD switches for menu navigation, display adjustments, language selection, and OSD and power lockouts |
| Physical Design And Mounting | Black cabinet with no bezel; wall-mountable, with dimensions of 15.40 × 7.50 × 14.20 inches with stand and weight of 11.90 lb |
| Power And Video Timing | 100–240 VAC, 50/60 Hz; power consumption is 20 W on, 1.1 W in sleep, and 0.8 W off. Supports horizontal sync of 31.5–80 kHz and vertical sync of 56–75 Hz |
| Operating Environment | Operating temperature: 32°F to 104°F (0°C to 40°C) and humidity: 20%–80%; storage temperature: -4°F to 140°F (20°C to 60°C) and humidity: 10%–90% |
| Model Identifiers | Elo TouchSystems 1717L |
