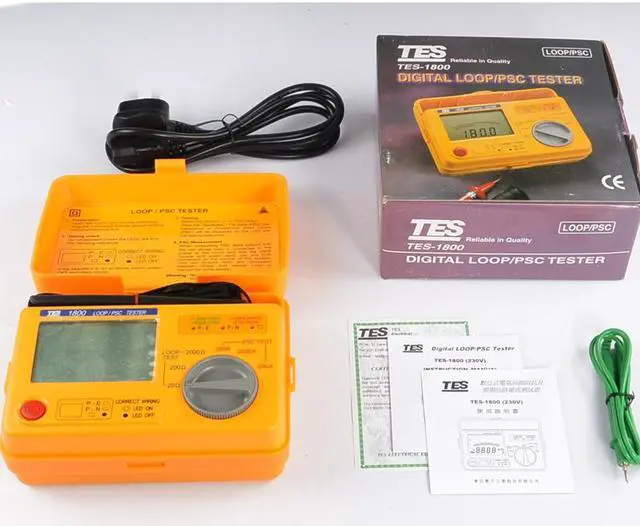

TES-1800A (230V) Digital LOOP/PSC Tester Meter Loop Impedance 20/200/2000 W

TES-1800A PSC Resistance Tester 0.01 W 3 Digit LCD Display Loop Impedance Anticipation Ahort-circuit Current Tester

Large custom high contrast display.
Auto lock out if test resister overheats.
Voltage indication.
Measure low loop with 0.01 W resolution.
High loop range permit measurement
of ground spikes.
Microprocessor controlled.


Loop Impedance Range 20 / 200 / 2000 W
Loop Impedance Accuracy +/- ( 2% + 2dgts ) at 1 W on 20 W Range
Lowest Resolution 0.01 W
Voltage Display +/- 2% + 1digit
Ac Test Current 25A nominal at 20 Range
Ac Test Period 20ms
PSC Range 200A / 2000A / 20KA
Operating Voltage 230V +/- 10% , 50Hz +/- 1 %
Withstand Voltage 3000V AC for 1 minute
Fuse Protection HRC ceramic fuse
Dimensions 200(L) x 140(W) x 95(H)mm
Weight Approx. 900g
Display 3 digit liquid crystal display with a maximum reading
of 1999.
Over Range Indication " OL " will be shown on the LCD
Penal when out of range measurement is made.
Operating Temperature and Humidity 0 to 40 (32 to 104 ), Below 80% RH
Storage Temperature -10 to 60 (14 to 140 )
Over Temperature " OL " on " " in display
Accessories Test Lead with IEC Connecto
