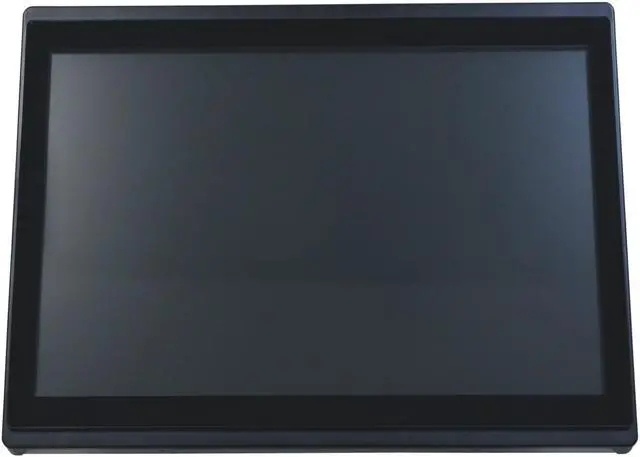

1- This item is 21.5 inches Open Frame P-cap Touch Screen Monitor (Model is GT215-L04M-P), which design for interactive application;
2- 10 ponits touch with 3mm thickness tempered glass;
3- Flat and ultrathin design will let this model can be used in more location;

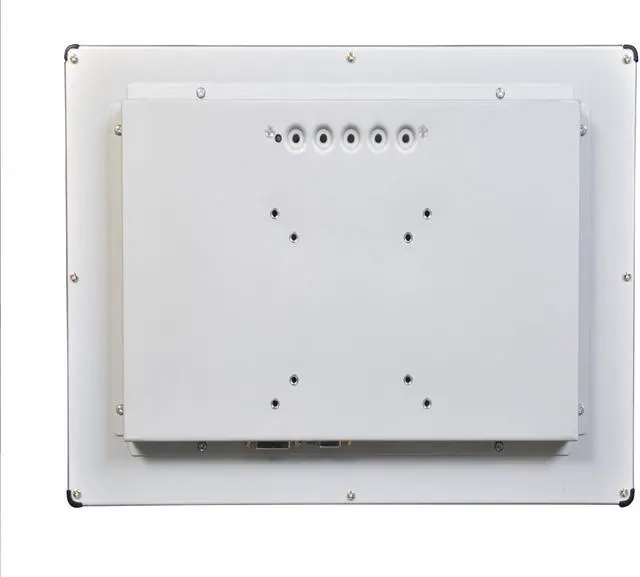

4- Frame back be with 100*100 mm standard VESA mounting hole;

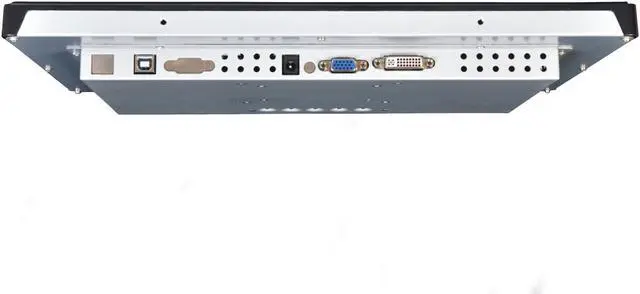

5- Be with USB, HDMI and VGA ;
6- Free driver on Windows OS, Anfroid OS (don't suppot Android TV box)
1- This is 19 inch P-cap touch monitor, 5:4 ratio, the highest resolution is 1280*1024;
2- The biggest outside size is 429.56mm*356.96mm, the touch galss size is 524*349mm;
3- Reserved screw holes on left and right sides, you can select embedded installation.
1- be with 100*100mm and 75*75mm VESA hole;
2- you can mount it or select desktop.
1- 10 ponits touch with 3mm thickness tempered glass;
2- Reserved screw holes on left and right sides, you can select embedded installation.
1- Free driver on windows OS;
2- Free drvier on Android OS (not including Android TV box);
3- Support major edition of Linux OS. If you use this item on Linux, please inquiry us before order it.
Be with 100*100mm and 75*75mm VESA hole;
| Touch points | 10 points |
|---|---|
| Display resolution | 1920*1080 |
| Pixel Pitch | 0.297*0.297mm |
| LCD color | 16.7 million |
| Brightness | 250cd/m² |
| Pixel Response Time | 8ms |
| Backing Lamp Life | 50000 hours |
| Contrast ratio | 1000:1 |
| Horizontal Viewing Angle | 178º (89º/89º) |
| Vertical Viewing Angle | 178º (89º/89º) |
| Touch response time | 10.4ms |
| Interface port | 1-USB\1-VGA\1-12V DC |
| Power input | 12V DC |
| Operation humidity | 0%-90%, no condensation |
