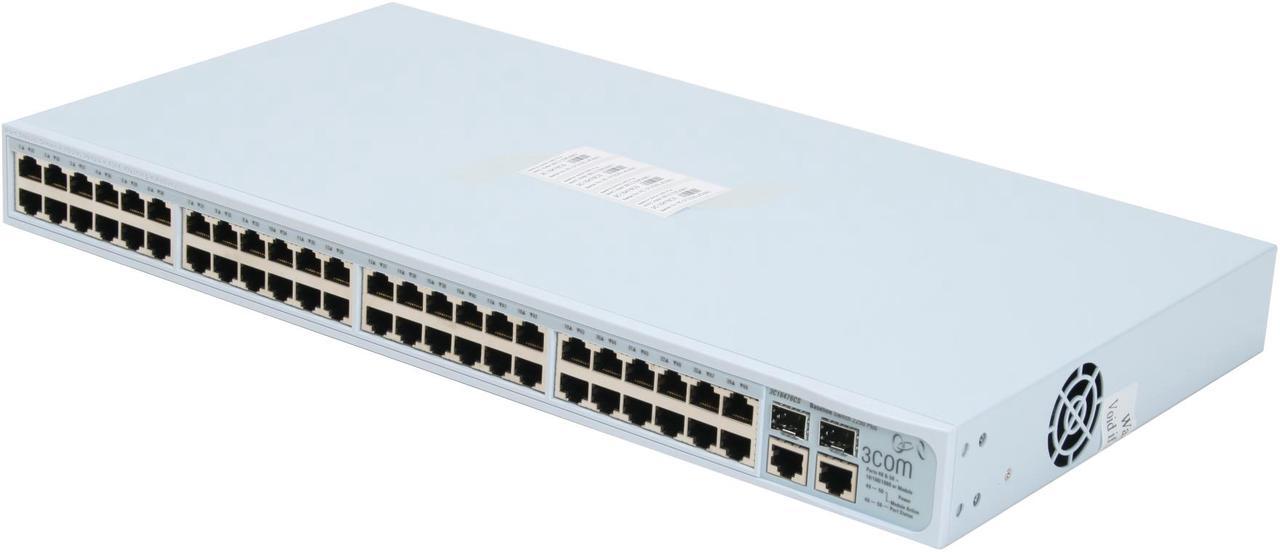

3com 3C16476CS 10/100Mbps + 1000Mbps Baseline Switch 2250 Plus - 48-Port 10/100 with 2 GBIC 48 x autosensing 10/100 ports 2 x dual-personality Gigabit port pairs, configurable as 10/100/1000 or SFP

Be the first to review this product...
  • 48 x autosensing 10/100 ports
  • 2 x dual-personality Gigabit port pairs, configurable as 10/100/1000 or SFP
Specs
Reviews

Learn more about the 3Com 3C16476CS

Model
Brand 3com
Model 3C16476CS
Format & Standards
Standards IEEE 802.1d Spanning Tree
IEEE 802.1p Priority Tags
IEEE 802.1Q VLANs
IEEE 802.1X Port Security
IEEE 802.1w Rapid Spanning Tree
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
ISO 8802-3
Ports & Interface

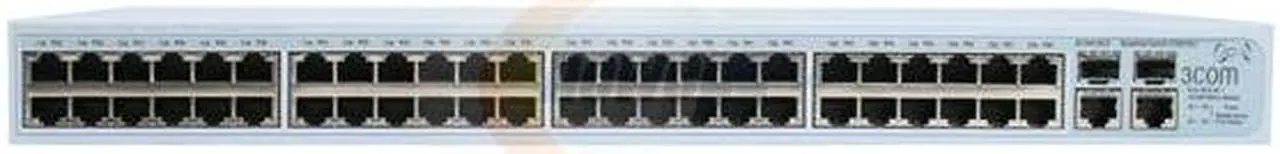

Primary Ports 48 x autosensing 10/100 ports
2 x dual-personality Gigabit port pairs, configurable as 10/100/1000 or SFP
Primary Port Speed 10/100Mbps + 1000Mbps
Data Transmission
Switching Method Store and Forward
VLAN Support Yes
Details
LEDs Module active, power, link status/speed/active
Power Input voltage: 100-240 VAC, 50/60 Hz
Features
Features Performance: 13.6 Gbps, max.; wirespeed performance across ports
Layer 2 switching: full-rate nonblocking on all ports, full-/half-duplex autonegotiation, flow control, IEEE 802.1Q VLAN support, IEEE 802.1p traffic prioritization, IGMP snooping; more
Convergence: 4 hardware queues per port; traffic prioritization at Layer 2 (802.1p) and at Layer 3 (TOS with DSCP); auto-VLAN assignment for voice traffic; more
Switch management: Web-based configuration, SNMP management

Web-managed Layer 2 10/100 Ethernet switch
No need to configure the switch if default settings are acceptable
If more control desired, the completely redesigned switch interface allows even novice users to quickly and confidently configure the switch
Switch can be managed with SNMP-compatible software
VLANs segment the network by grouping users based on their data or traffic requirements, making the best use of available bandwidth
Voice over IP (VoIP) traffic can be automatically assigned to a voice-dedicated VLAN, optimizing this delay-sensitive traffic
With manual link aggregation, group ports together to form an ultra-high-bandwidth trunked connection to the network backbone and help prevent traffic bottlenecks
IEEE 802.1X network access control provides standards-based security combined with local authentication
Rapid Spanning Tree Protocol (RSTP) support improves network compatibility, scalability and availability
IGMP snooping and query and multicast filtering optimizes network performance
Dimensions & Weight
Dimensions 17.3" x 9.2" x 1.7"
Weight 6.9 lbs.
Environmental
Temperature 0ºC to 45ºC (32ºF to 113ºF)
Humidity 10 to 95% (non-condensing)
Packaging
Package Contents 3C16476CS
Resource Disk

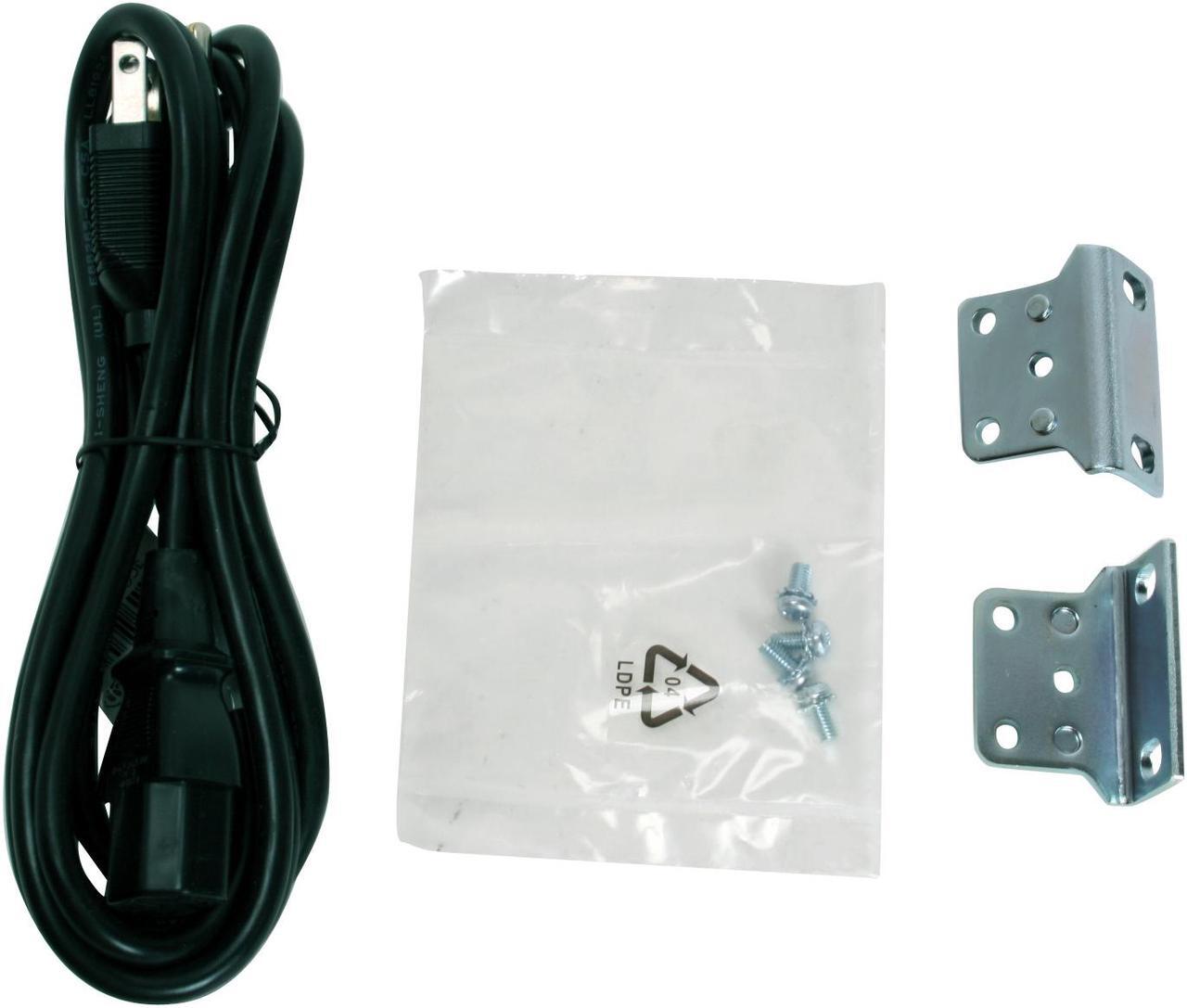

Power Cord
Rack Mount Kit
Additional Information
Date First Available July 11, 2007
