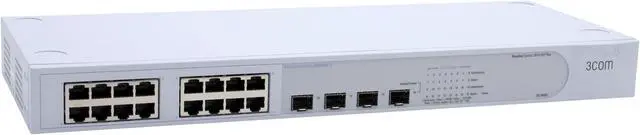

3com 3c16485us 3Com Baseline Switch 2824-SFP Plus and Baseline Switch 2816-SFP Plus

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the 3Com 3c16485us

Model
Brand	3com
Model	3c16485us

Format & Standards
Standards	ISO 8802-3; IEEE 802.3 (Ethernet); IEEE 802.3u (Fast Ethernet); IEEE 802.1d (Bridging) IEEE 802.1Q (VLANs); IEEE 802.3ab (Gigabit Ethernet); IEEE 802.1p (Traffic Prioritization)

Ports & Interface
Primary Ports	16 10/100/1000BASE-T and 4 dual-purpose ports for Gigabit copper or SFP slots for 1000Base-SX or 1000Base-FX fiber. Auto MDI/MDIX on all ports.
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K
VLAN Support	Yes

Details
LEDs	Module active, Power, Network traffic/Duplex mode, Link status/Speed

Power Supply
Power	Power Inlet: IEC 320 AC line Frequency: 50/60 Hz Operating Input Voltage: 100-240 VAC Current Rating: 1 Amp (maximum) Maximum Power Consumption: 60W Maximum Power Dissipation: 184.3 BTU/hr

Dimensions & Weight
Dimensions	1.7"H x 17.3"W x 6.8"D
Weight	8.0lbs

Environmental
Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10 to 95% (non-condensing)

Features
Features	Cost-optimized "smart" Layer 2 10/100/1000 switch for desktop and workgroup aggregation Web-based browser interface for easy set up, installation, and configuration Wirespeed, non-blocking performance to help eliminate traffic bottlenecks Advanced switching features for network control and flexibility of operation An enterprise-class switch for small-to-medium businesses
