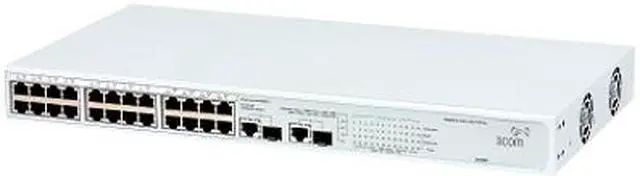

3com 3C16491 Baseline Switch 2426-PWR Plus

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the 3Com 3C16491

Model
Brand 3com
Model 3C16491
Format & Standards
Standards IEEE 802.1d Spanning Tree
IEEE 802.1p Priority Tags
IEEE 802.1Q VLANs
IEEE 802.1X Port Security
IEEE 802.1w Rapid Spanning Tree
IEEE 802.3 Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3z Gigabit Ethernet
ISO 8802-3
Ports & Interface
Primary Ports 24 x auto-negotiating 10BASE-T/100BASE-TX
2 x dual-personality Gigabit port pairs, configurable as 10BASE-T/100BASE-TX/1000BASE-T or SFP
Primary Port Speed 10/100Mbps + 1000Mbps
Data Transmission
Switching Method Store and Forward
VLAN Support Yes
Details
Security IEEE 802.1X
LEDs Module active, power, network traffic/duplex mode, link status/speed
Power Supply
Power Input voltage: 100-240 VAC, 50/60 Hz
Dimensions & Weight
Dimensions 17.3" x 9.4" x 1.7"
Weight 7.1 lbs.
Environmental
Temperature 0°C to 45°C (32°F to 113°F)
Humidity 10 to 95% (non-condensing)
Features
Features Performance: 8.8 Gbps, max.; wirespeed performance across ports
Layer 2 switching: full-rate nonblocking on all ports, full-/half-duplex autonegotiation, flow control, IEEE 802.1Q VLAN support, IEEE 802.1p traffic prioritization, IGMP snooping; more
Convergence: 4 hardware queues per port; traffic prioritization at Layer 2 (802.1p) and at Layer 3 (TOS with DSCP); auto-VLAN assignment for voice traffic; more
Power over Ethernet: IEEE 802.3af; 180W per switch, max.
Switch management: Web-based configuration, SNMP management

Web-managed Layer 2 10/100 Ethernet switch
PoE provides power for IP phones, wireless LAN access points, and other compliant devices over the same cable used for data
Auto-voice VLAN automatically assigns Voice over IP (VoIP) traffic to a voice-dedicated VLAN, optimizing this delay-sensitive traffic
No need to configure the switch if default settings are acceptable
If more control desired, the completely redesigned switch interface allows even novice users to quickly and confidently configure the switch
VLANs segment the network by grouping users based on their data or traffic requirements, making the best use of available bandwidth
With manual link aggregation, group ports together to form an ultra-high-bandwidth trunked connection to the network backbone and help prevent traffic bottlenecks
IEEE 802.1X network access control provides standards-based security combined with local authentication
Rapid Spanning Tree Protocol (RSTP) support improves network compatibility, scalability and availability
IGMP snooping and query and multicast filtering optimizes network performance
Packaging
Package Contents 3C16491

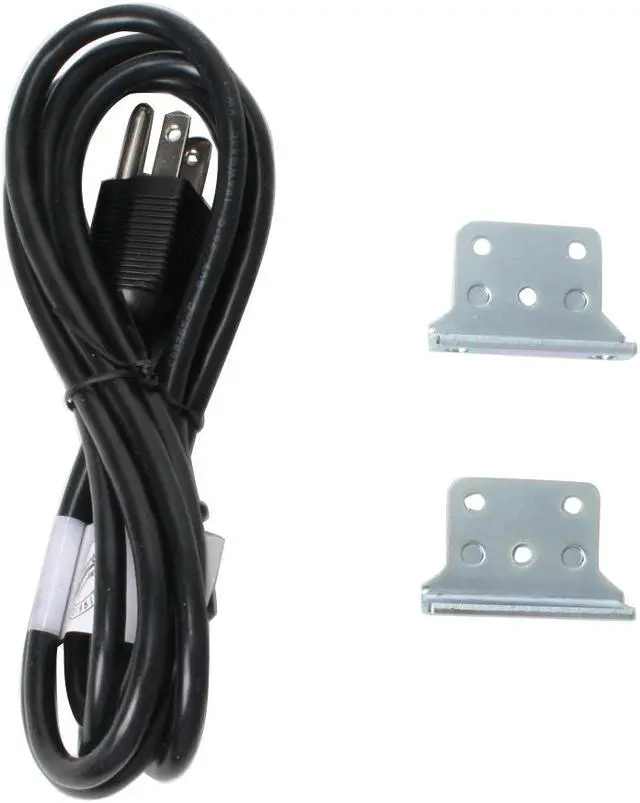

Rack Mount Kit
Resource Disk
Power Cord
Additional Information
First Listed on Newegg July 11, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
