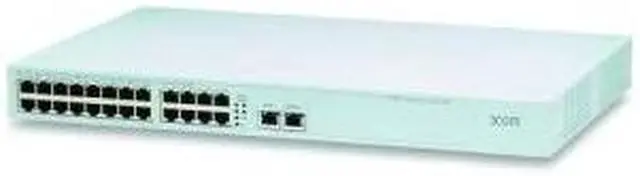

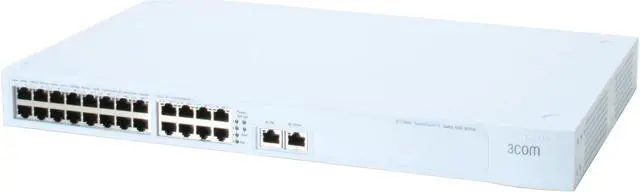

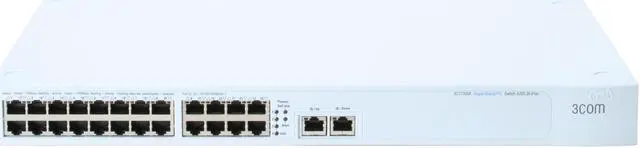

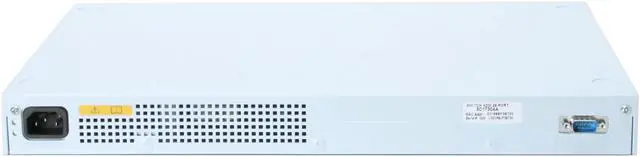

3com 3C17300A Switch 4200 26-Port

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the 3Com 3C17300A

Model
Brand 3com
Model 3C17300A
Format & Standards
Standards IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p QoS
IEEE 802.1Q VLANs / VLAN tagging
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1X Network Login Security
IEEE 802.3 Ethernet
IEEE 802.3ab (1000BASE-T)
IEEE 802.3ad Link Aggregation
(unit wide)
IEEE 802.3i 10BASE-T
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow control
IEEE 802.3z Gigabit Ethernet 1000BASE-X
Ports & Interface
Primary Ports 24x 10BASE-T/100BASE-TX
2 x 10BASE-T/100BASE-TX/1000BASE-T
Primary Port Speed 10/100Mbps + 1000Mbps
Data Transmission
VLAN Support Yes
Power Supply
Power Input voltage: 100-240 VAC, 50/60 Hz
Current rating: 1.0A maximum
Dimensions & Weight
Dimensions 17.3" x 10.8" x 1.7"
Weight 5.0 lbs.
Environmental
Temperature 0°C to 40°C (32°F to 104°F)
Humidity 10% - 90%, Non-condensing
Features
Features Full-rate nonblocking on all Ethernet ports, full/half-duplex auto-negotiation and flow control, multicast Layer 2 filtering, 802.1Q VLAN support, 802.1p traffic prioritization, IGMP snooping
Wirespeed, non-blocking performance
Fixed-configuration design means the switch will operate right out of the box
Switch can configure its own IP settings for management through SNMP, web, or CLI
Forwarding rates up to 10.1 million packets per second
Two built-in 10/100/1000 ports support high-speed connections as uplinks or for stacking
Integrated stack management, for single IP management of up to four units
IEEE 802.1x Network Login security, RADIUS Authentication and Radius Authenticated Device Access (RADA)
Additional Information
First Listed on Newegg July 26, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
