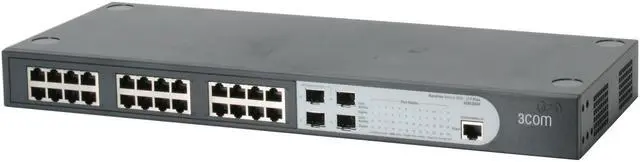

Learn more about the 3Com 3CBLSG24
| Brand | 3com |
|---|---|
| Model | 3CBLSG24 |
| Standards | IEEE 802.1ad Provider Bridges IEEE 802.1d Spanning Tree IEEE 802.1p Priority Tags IEEE 802.1Q VLANs IEEE 802.1X Port Security IEEE 802.1w Rapid Spanning Tree IEEE 802.3 Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3ad Link Aggregation IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3z Gigabit Ethernet ISO 8802-3 |
|---|
| Primary Ports | 24 x RJ45 + 4 x SFP |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| Switching Method | Store and Forward |
|---|---|
| VLAN Support | Yes |
| Jumbo Frames | Up to 9K bytes |
| Security | IEEE 802.1X network login; advanced ACLs |
|---|---|
| LEDs | Module active, power, network traffic/duplex mode, link status/speed |
| Power | Input voltage: 100-240 VAC, 50/60 Hz |
|---|
| Dimensions | 17.3" x 6.7" x 1.7" |
|---|---|
| Weight | 4.2 lbs. |
| Temperature | 0°C to 40°C (32°F to 104°F) |
|---|---|
| Humidity | 10 to 95% (non-condensing) |
| Features | Performance: 48 Gbps, max.; wirespeed performance across ports Layer 2 switching: full-rate nonblocking on all ports, full-/half-duplex autonegotiation, flow control, IEEE 802.1Q VLAN support, IEEE 802.1p traffic prioritization, IGMP snooping; more Convergence: 4 hardware queues per port; traffic prioritization at Layer 2 (802.1p) and at Layer 3 (TOS with DSCP); auto-VLAN assignment for voice traffic; more Switch management: Web-based configuration, 3Com Network Supervisor and Network Director, other SNMP management tools; CLI using console port Managed Layer 2 Gigabit Ethernet switch Auto-voice VLAN automatically assigns Voice over IP (VoIP) traffic to a voice-dedicated VLAN, optimizing this delay-sensitive traffic No need to configure the switch if default settings are acceptable If more control desired, the completely redesigned switch interface allows even novice users to quickly and confidently configure the switch VLANs segment the network by grouping users based on their data or traffic requirements, making the best use of available bandwidth With LACP link aggregation, automatically group ports together to form an ultra-high-bandwidth trunked connection to the network backbone and help prevent traffic bottlenecks IEEE 802.1X network access control provides standards-based security combined with local authentication MAC- and IP-based ACLs enable network traffic filtering and enhance network control Rapid Spanning Tree Protocol (RSTP) support improves network compatibility, scalability and availability IGMP snooping and multicast filtering optimizes network performance |
|---|
| First Listed on Newegg | July 31, 2007 |
|---|
