Want to get the most out of our OSD/Video setup? Our circularly polarized cloverleaf antenna and skew planar antenna will take your video signal the full distance, ensuring you get top real-time imaging each and every time you fly.
Learn more about the 3D Robotics WLS-KIT-0006
Model
Brand
3D Robotics
Model
WLS-KIT-0006
Connection
Other Connector
Air Antenna: RP-SMA Ground Antenna: RP-SMA
Power
Power Consumption
20 W
Specification
Specification
Type: Air Antenna: Three-lobed antenna Ground Antenna: Four-lobed antenna
Frequency Range: 5725 to 5875 MHz
Gain: 2.5 dBi
Lobe Level: 45°
Vertical Lobe: 30°
Radiation: Omni
VSWR: < 1.5
Input Impedance: 50 ohm
Polarization: RHCP
Feature
Feature

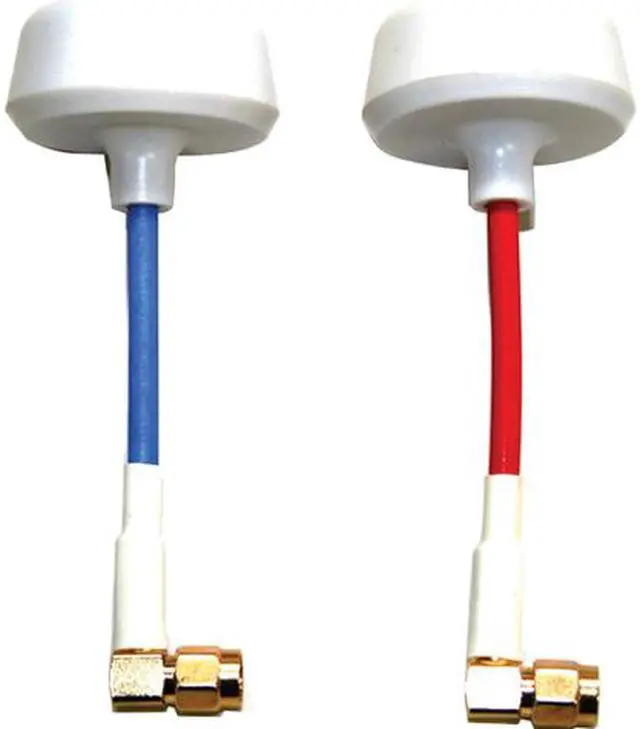

The Clover Leaf Antenna Kit with Cover Set features two antennas, a three-lobed air antenna and a four-lobed ground antenna. They are designed for use with 5.8 GHz video transmission systems and OSDs. Each antenna has a right angle SMA type connector.
