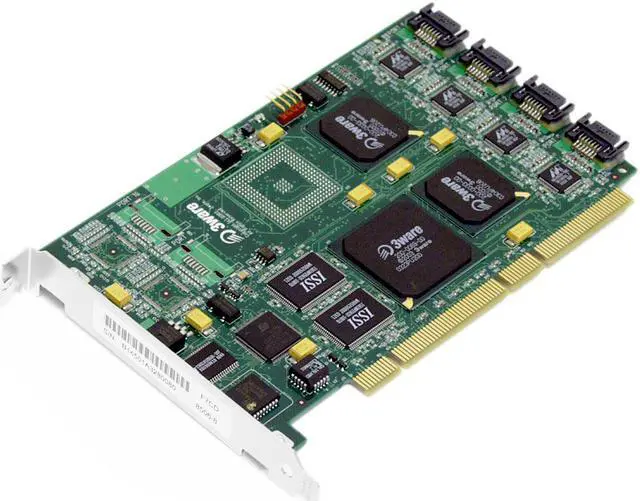

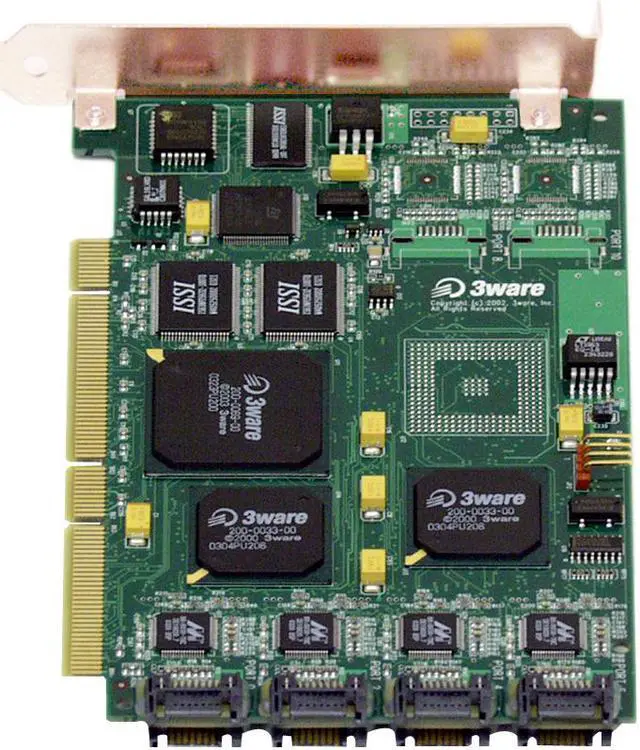

3ware 8506-8 Kit PCI SATA Controller Card - Kit

Name: 3ware 8506-8 Kit PCI SATA Controller Card - Kit
Brand: 3ware
SKU: N82E16816116023
Rating: 5 (3 reviews)

Specs

Reviews (3)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the 3ware 8506-8 Kit

Model
Brand	3ware
Model	8506-8 Kit

Details
Type	SATA
Internal Connectors	8 x SATA 150
Interface	PCI
RAID	RAID 0/1/5/10 JBOD
Operating Systems Supported	Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux,FreeBSD
Dimensions	6.9" x 3.9"

Features
Features	Half-length PCI Universal short form factor PCI 2.2 compliant 64-bit/66MHz bus master Auto-sensing Serial ATA BIOS PnP (plug and play) and BBS (BIOS boot specification) support Supports up to 12 TB of storage (dependent on drive capacity) — Up to 4 cards supported within a system — Maximum of 2 TB per RAID array StorSwitch point-to-point, non-blocking architecture Optimized hardware XOR RAID 5 engine provides true hardware based RAID and intelligent drive management functions SCSI device driver model to take advantage of the benefits of SCSI using inexpensive ATA drives Remote browser 3ware Disk Manager (3DM) utility with password security for network management of storage arrays SMTP support for email/pager notification Easy-to-configure arrays from BIOS, 3DM or CLI utilities Staggered spin-up to minimize in-rush current at power up Bootable array support for greater fault tolerance Multiple logical volumes and RAID levels can exist on one card for maximum configuration flexibility Hot-swap and hot-spare support for data availability Dynamic sector repair for robust data protection S.M.A.R.T. disk drive monitoring for reliability 2 levels of administrator access to 3DM for added security

Additional Information
First Listed on Newegg	July 25, 2003
