Port Count: 4 Connector Type: Multi-lane Internal Connectors
Overview
Specs
Reviews (136)

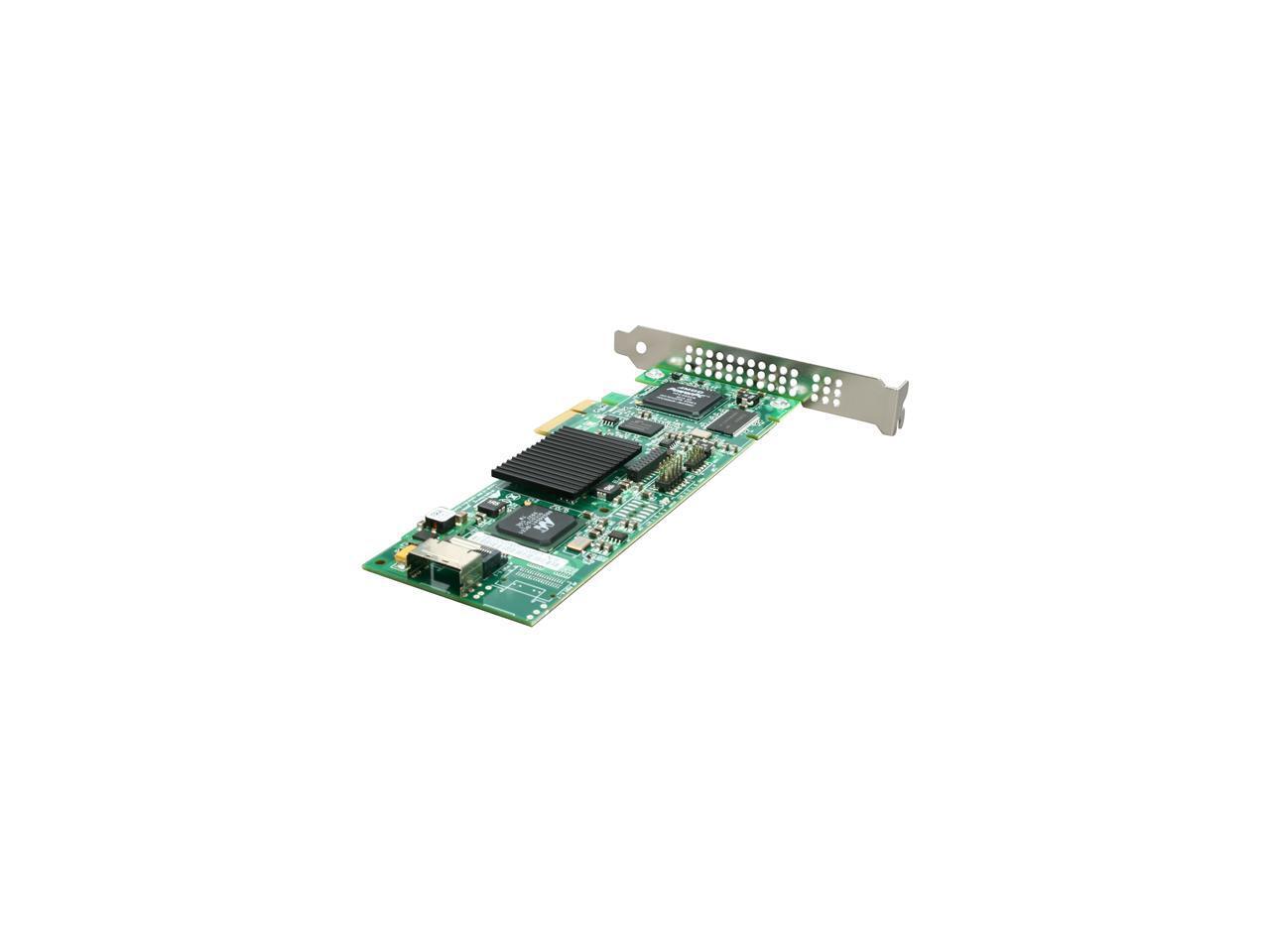

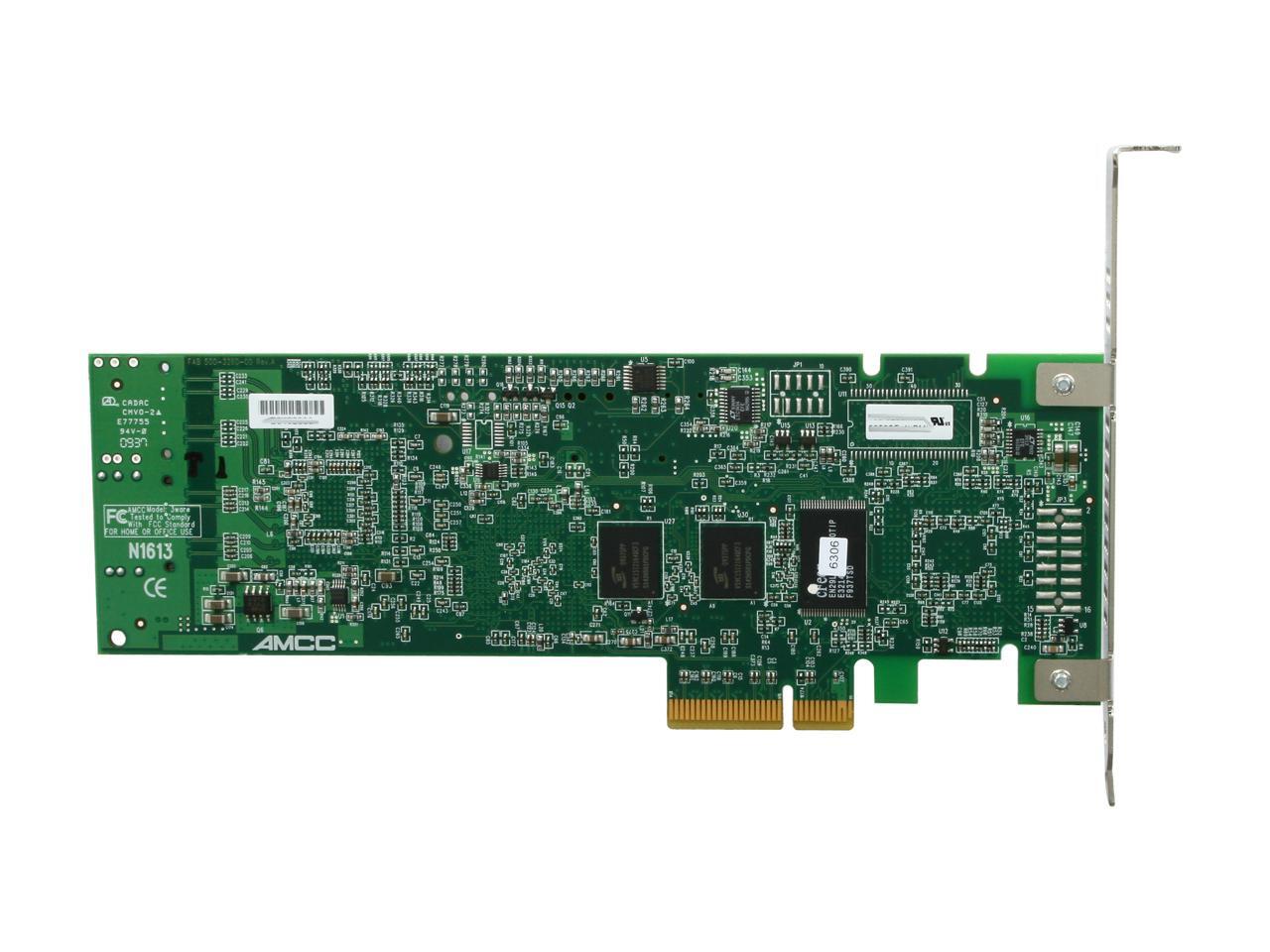

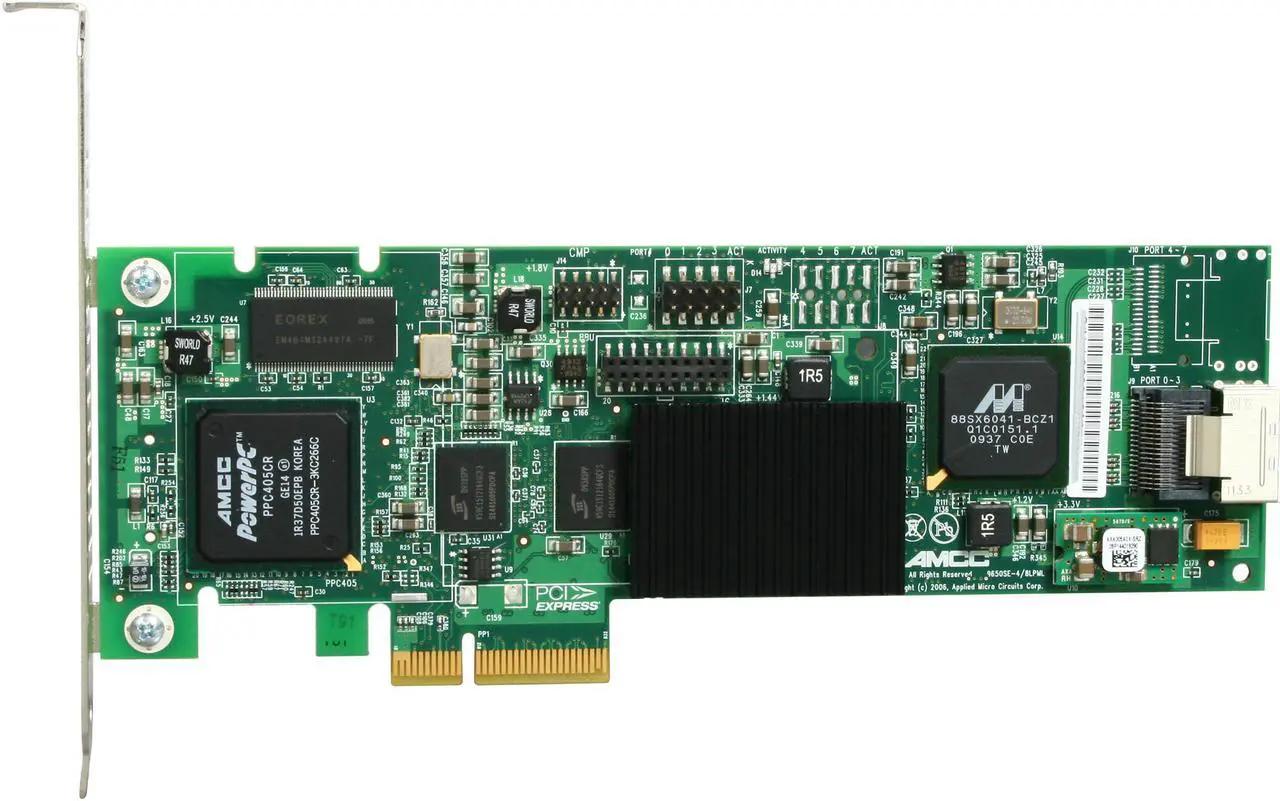

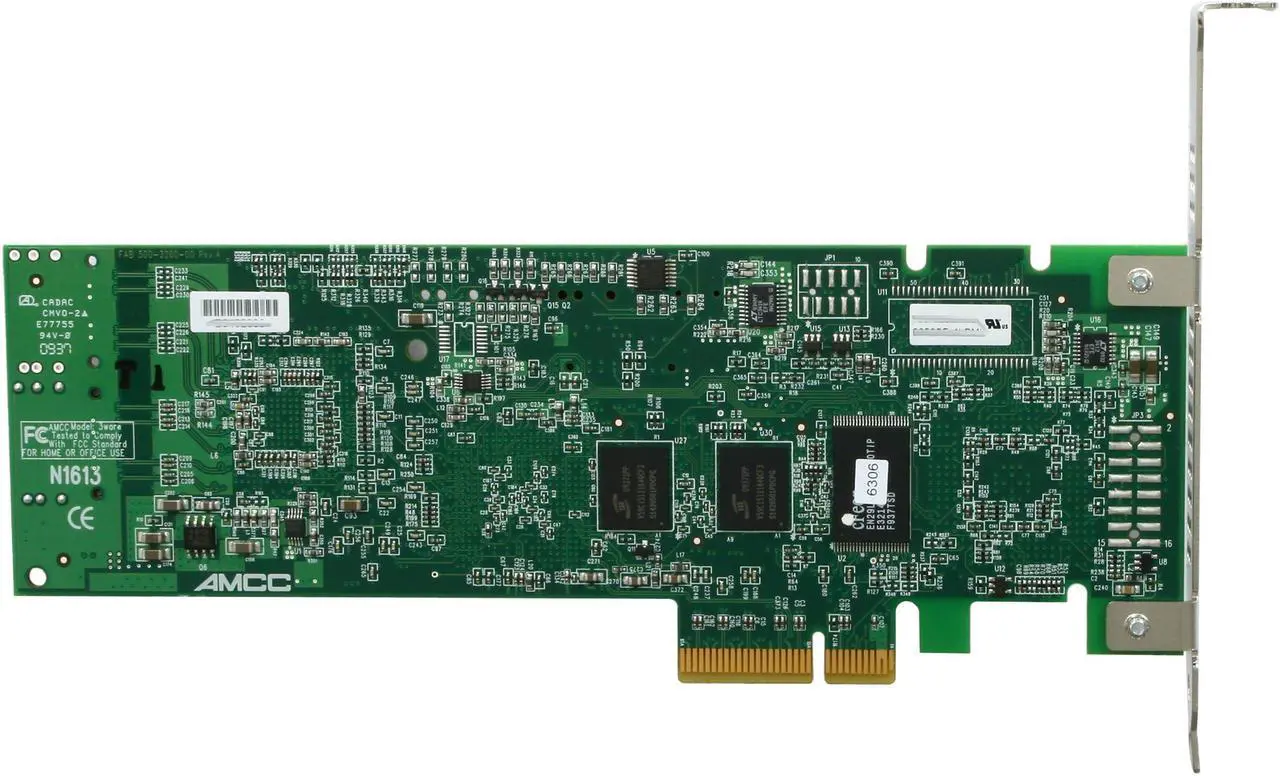

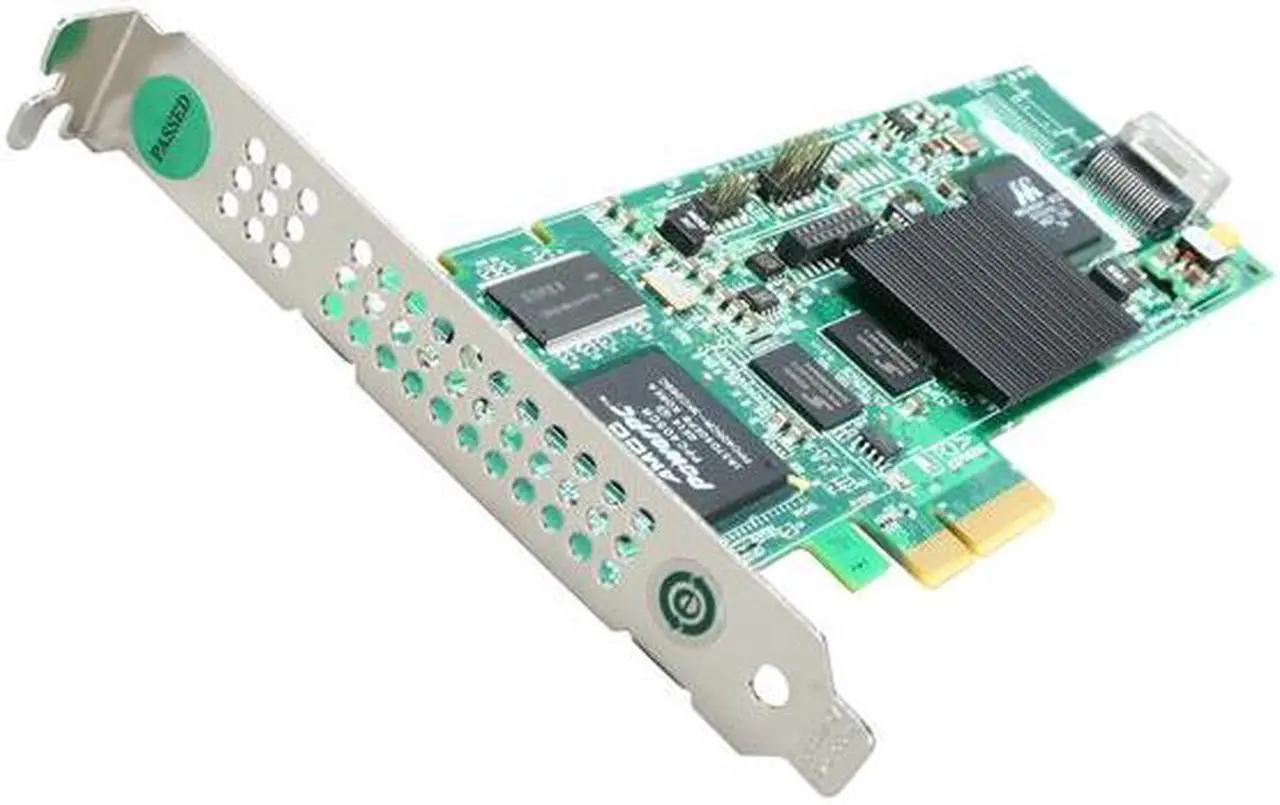

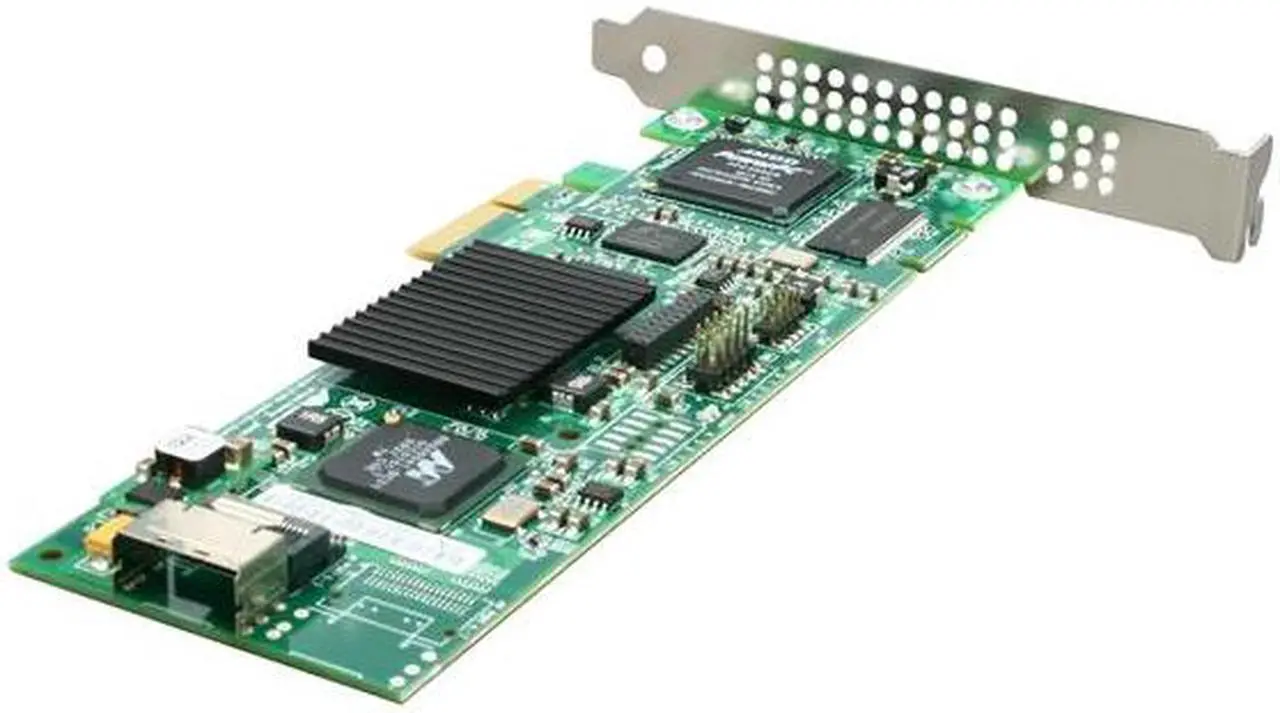

Supporting up to 4 SATA II and SATA I hard drives, the 3ware 9650SE-4LPML PCI Express controller card is perfect for entry-level storage servers. Supporting RAID 0, 1, 5, 10, single disk, and JBOD, the 3ware 9650SE can not only backup data but can also extend the storage capacity of a system significantly.
Featuring a PCI-Express x4 compatibility, it's one of the few PCIe controller cards available. Providing S.M.A.R.T drive monitoring for status and reliability, hot swap and hot spare drive storage, the 3ware 9650SE is perfect for small to medium size businesses.
Another essential feature in IT environments is the ability for the 3ware 9650SE card to automatically rebuild the RAID array if a drive fails. Last but not least, the 9650SE supports a variety of operating systems including the following: Windows (XP, 2000, Server 2003), Windows x64bit, Linux and FreeBSD.
Supporting up to 4 SATA II and SATA I hard drives, the 3ware 9650SE-4LPML PCI Express controller card is perfect for entry-level storage servers. Supporting RAID 0, 1, 5, 10, single disk, and JBOD, the 3ware 9650SE can not only backup data but can also extend the storage capacity of a system significantly.
Featuring a PCI-Express x4 compatibility, it's one of the few PCIe controller cards available. Providing S.M.A.R.T drive monitoring for status and reliability, hot swap and hot spare drive storage, the 3ware 9650SE is perfect for small to medium size businesses.
Another essential feature in IT environments is the ability for the 3ware 9650SE card to automatically rebuild the RAID array if a drive fails. Last but not least, the 9650SE supports a variety of operating systems including the following: Windows (XP, 2000, Server 2003), Windows x64bit, Linux and FreeBSD.
Serial ATA 3.0 Gb/s with RAIDThe revolutionary Serial ATA 3.0 Gb/s interface provides scalable performance for storage devices. SATA technology enables easy-to-install and high-performance hard drives. Four SATA ports (Through Multi-lane Connector) support RAID Levels 0, 1, 5, 10, Single Disk, JBOD for better performance and reliability.
PCI Express x4 InterfaceThe PCI Express x1 interface provides 10 Gb/s throughput and full-duplex operation for enhanced performance.

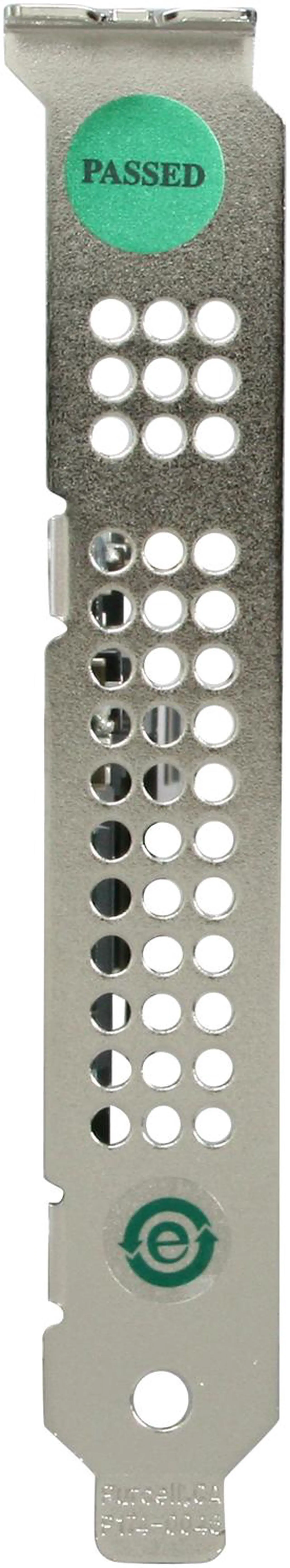

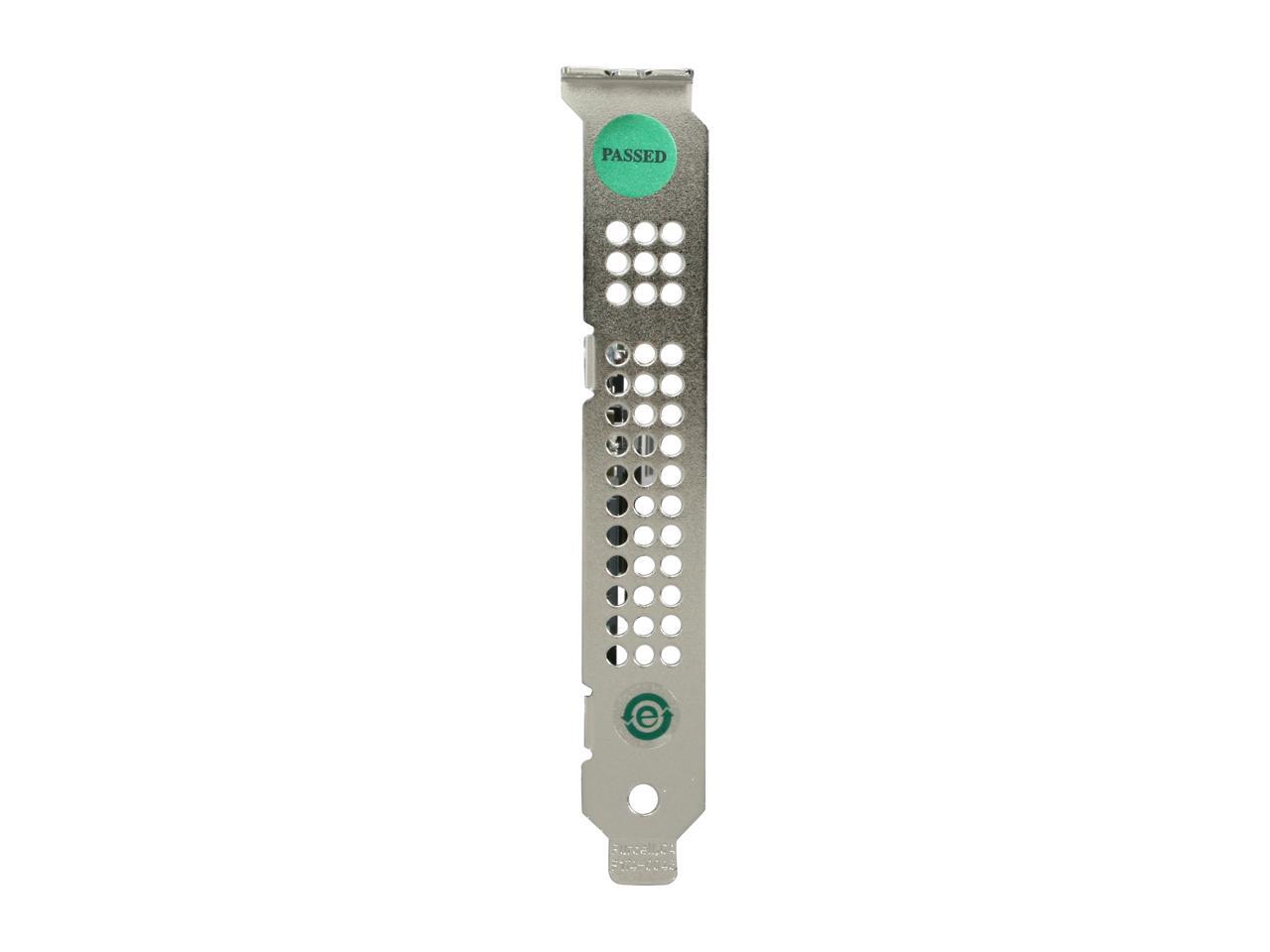

2 BracketsThe 3ware 9650SE-4LPML includes 2 brackets to support low-profile and regular PCI slots.
Learn more about the 3ware 9650SE-4LPML KIT
Model
Brand
3ware
Model
9650SE-4LPML KIT
Details
Type
SATA II (3.0Gb/s)
Internal Connectors
Port Count: 4 Connector Type: Multi-lane
Interface
PCI Express Lanes: 4
Cache Memory
256 MB DDR2 533
RAID
RAID Levels 0, 1, 5, 10, Single Disk, JBOD
Operating Systems Supported
Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD
Dimensions
7.3" x 2.7"
Features
Features
BBU Support: Yes Form Factor: Low Profile
8th-generation StorSwitch non-blocking switched architecture On-board I/O RISC processor and RAID offload provides true hardware RAID SCSI device driver model to take advantage of the benefits of SCSI using inexpensive Serial ATA drives Bootable array support for greater fault tolerance. Variable stripe size for performance tuning by application. 64-bit LBA support 64-bit LBA support. ATA pass-through mode support SNMP support. SMTP support for email/pager notification Multiple logical unit sizes and RAID levels on one card. Multiple card support within a system for large storage requirements. Hot-swap and hot-spare support for data availability. Dynamic sector repair for robust data protection. S.M.A.R.T. disk drive monitoring for reliability. Emergency Flash Recovery protects against failed firmware upgrade

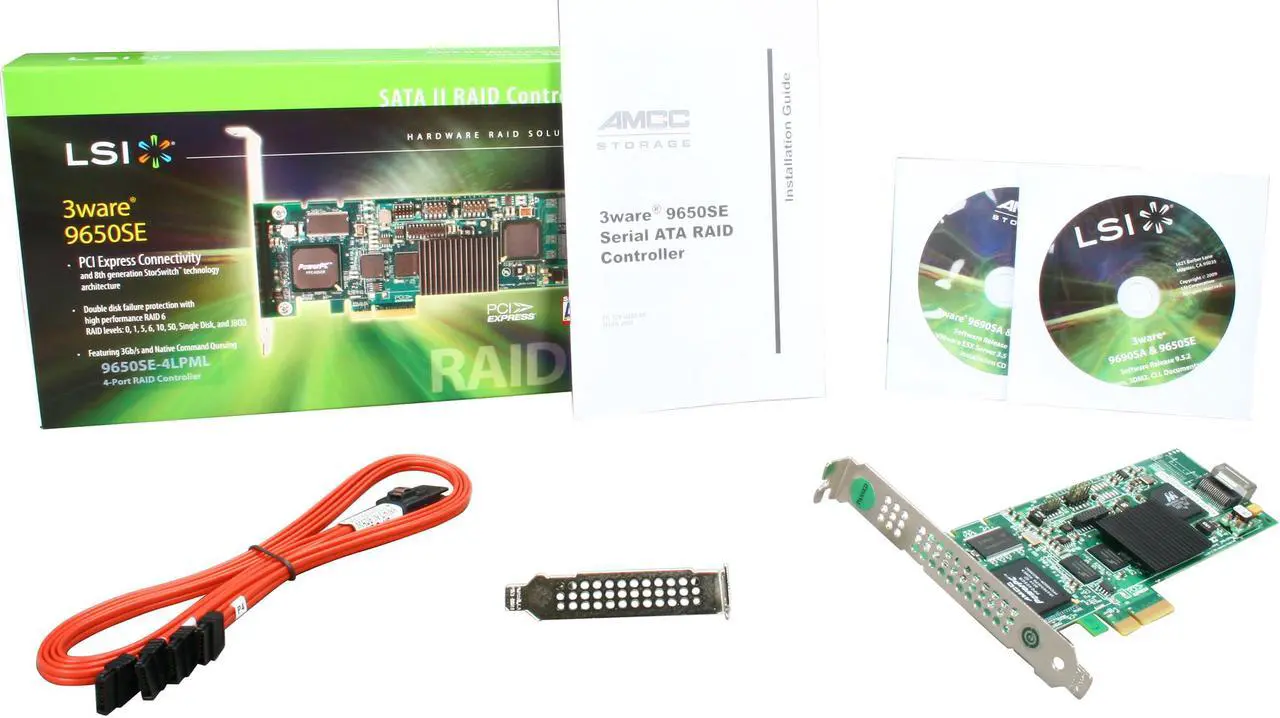

Package Contents
Package Contents
9650SE-4LPML User Guide Driver Disk SATA Cable L-P Bracket
