Question 1

does this cable support 6gb per second?

Accepted Answer

According to the manufacturer, yes it does support 3gb per second.  Here is the product description:

The Multi-lane SATA cable/connection system is fast, secure, simple, and clutter free. It combines the RAID controller's multiple SAS/SATA ports into single locked connections. Multiple 3Gb/s or 6Gb/s lanes of SAS/SATA traffic travel through just one cable from the RAID controller to the system backplane or to multiple hard drives with a breakout cable.

Features:

Multiple lanes of high speed SAS/SATA traffic through a single cable
    Increased system reliability
    Reduced cable count
    Streamlined storage
    Locked connections
    Improved airflow

Technical Information:

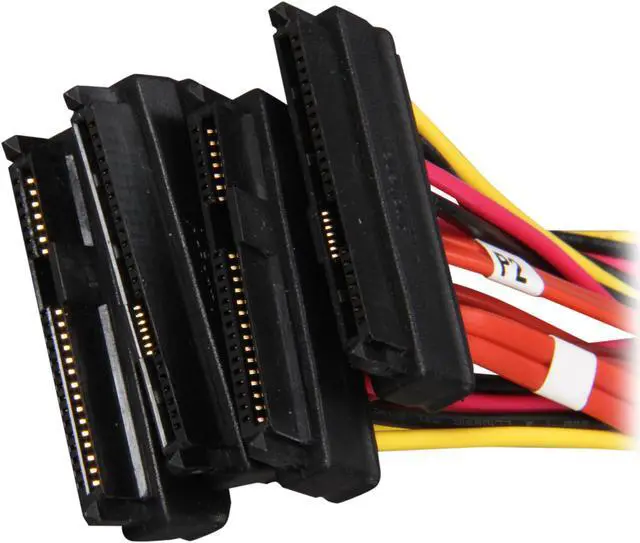

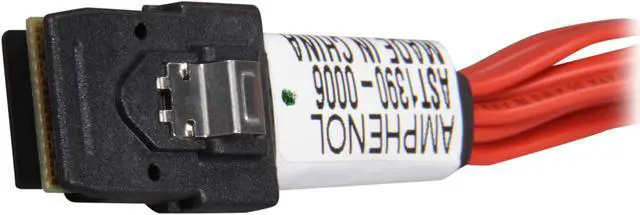

0.6 meter Multi-lane Internal (SFF-8087) SAS/SATA breakout cable, forward, 4x (SFF-8482) w/ pwr (QTY 1)

Question 2

Is this a 29pin SAS connector?

Accepted Answer

did not count the pins but it is for SAS drives. I hope this helps.

Question 3

Hello, would this breakout cable work to connect two SATA eMLC and two SAS SLC SSDs to a single mini-SAS port on the LSI 9211-4i HBA? I know that 9211-8i HBA would let me use two different breakout cables, but I do not want to spend extra on the -8i card. Regards

Accepted Answer

No.  The MLC is very small microchip connector and the cable is a single connector to the 4i board using SATA size 2.5" drives.  Unless you can keep all the drives the same type of connection then you could use the MLC 4 port cable on that LSI9211-4i card.

Question 4

I am planning to use this cable with 9211-8i RAID card. The other end is SFF8482( with Dual SAS port). Can i use this part. Also can i get the Wiring diagram for this product?

Accepted Answer

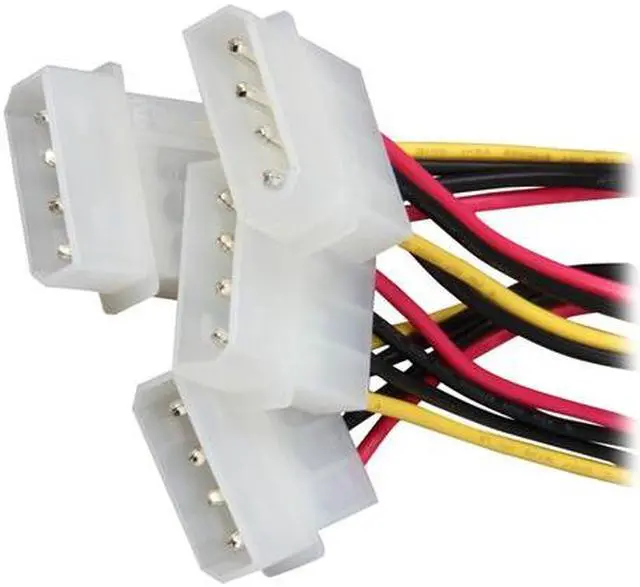

Assuming you have SAS drives, rather than SATA, then this will work for 4 SAS drives. You also need to make sure your power supply has enough 4-pin power connectors for the number of hard drives you are installing (or use 4-pin power splitters).

Brand	3ware
Model	CBL-SAS8087OCF-06M

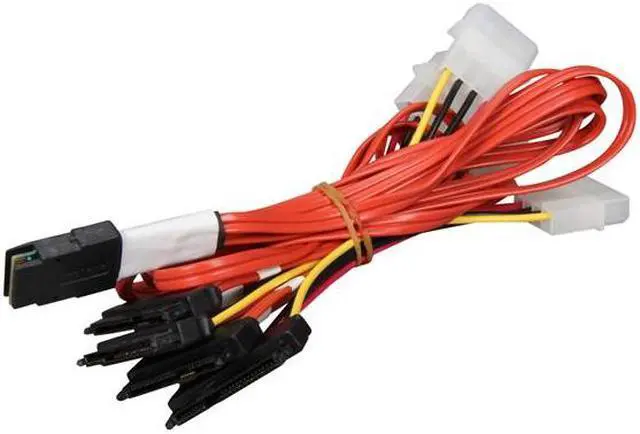

3ware CBL-SAS8087OCF-06M 0.6m (SFF-8087) SAS/SATA breakout cable, forward, 4x (SFF8482) with power
