MAIN OVERVIEW FEATURES: Maximum Frequency: 350 MHzInput Voltage: 12 V DCHeight: 1.8"Width: 5.7"Depth: 3.3"Weight (Approximate): 15.87 ozLimited Warranty: 1 Year
Learn more about the 4XEM 4XVGASP3502
Model
Brand
4xem
Model
4XVGASP3502
Details
Specification
Signal:VGA SVGA,XGA,QXGA,UXGA and Multisync displays
RGB: Bandwidth 350MHz
Input port:1 Port x High Density DB15 (Female)
Output port; 2 port x High Density DB15 (Female)
Video input :1Vp-p
Video impedance :75ohm
Video gain : 0db<=DG<=1db
Maximum Video Resolutions :1920 x 1440 85HZ
VGA Bandwidth:350M/-3db
Operating Environment Temperature:-10 Degree C - 40 Degree C
Power
Power Consumption
3W
Power Supply
DC12V
Feature
Feature

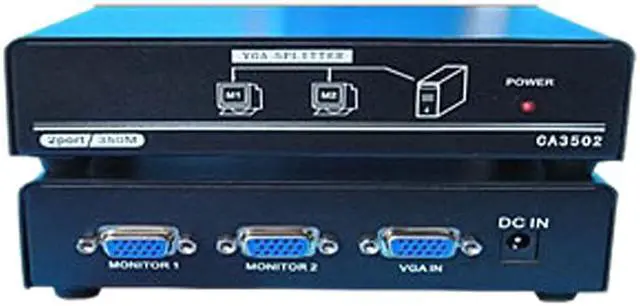

The 4XVGASP3502 2 Port VGA Video Splitter offers outstanding quality and distance, allowing you to deliver high resolution VGA video from a single video source to up to two monitors simultaneously.
Supporting a maximum VGA video bandwidth of up to 350MHz and resolutions up to 1920 x 1440@85HZ, the device is sure to deliver on image quality. The multi-display VGA video splitter is very simple to install, allowing you to locate screens up to 30m (100ft) away from the VGA video source.
Typical applications of this product would include digital signage, retail and tradeshow environments, educational and government facilities, or corporate displays where high quality multi-monitor VGA video is required
