What types of processors are compatible with the GIGABYTE X870I AORUS PRO ICE motherboard?

The GIGABYTE X870I AORUS PRO ICE motherboard supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors.

What color scheme does this motherboard have?

Its mostly a bright white, with some grey accents.

Can the MB GIGA AMD X870I AORUS PRO ICE R fit into the Cooler Master NR200P case?

It fits in my NR200 just fine. The only downside is that the motherboard io is pretty chunky so it prevents mounting a 120mm fan on the backside. That's not a huge deal IMO.

What revision is this? On the Gigabytes site there are v1.0 and v1.1 listed.

I got one ten days ago, and it is Rev 1.1

How would this motherboard work with Corsair Dominators @6600Mhz using the XMP Intel RAM profile?

When buying ram for AMD motherboards from Corsair always check it has a "Z" which means its optimized to be used with amd/expo.

$318^.12

Free 30-day Returns

Volume Discounts Available

2$312.85 ea.
3$310.93 ea.
4+$305.34 ea.

Limit 99999 per customer.

Sold by BeachAudio

Top Rated

4.4 (8,567 seller ratings)

Shipped by BeachAudio

Price alert

Add to wish list

Best Sellers

antonline

Top Rated

4.5 (17,972 total ratings)

$322^.89
+ FREE SHIPPING

Deal Targets

Hot Seller

3.2 (2,125 total ratings)

$319^.81
+ $12.99 Shipping

Hot Deals 4 Less

Top Rated

4 (3,715 total ratings)

$373^.04

Meet Your Seller

BeachAudio

See Seller Store

More Resources

MSI MEG X870E Godlike X Edition Review

AM5 vs Intel LGA 1700 & LGA 1851 Platform Comparison

How to Install a CPU Safely

Choosing the Right Gaming Motherboard Guide

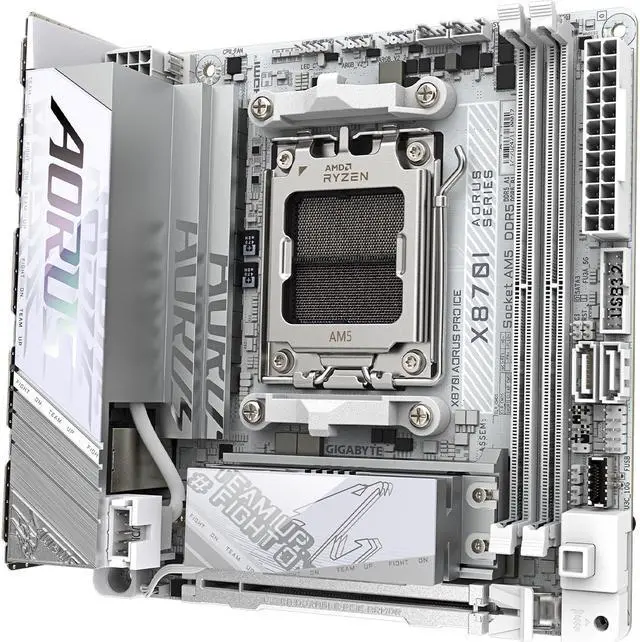

Main image of GIGABYTE X870I AORUS PRO ICE AMD AM5 LGA 1718 Motherboard, Mini-ITX, DDR5, 2x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

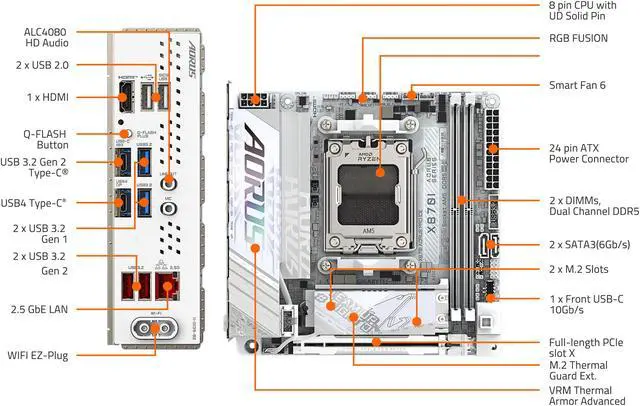

Alt view image 2 of 6 - GIGABYTE X870I AORUS PRO ICE AMD AM5 LGA 1718 Motherboard, Mini-ITX, DDR5, 2x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

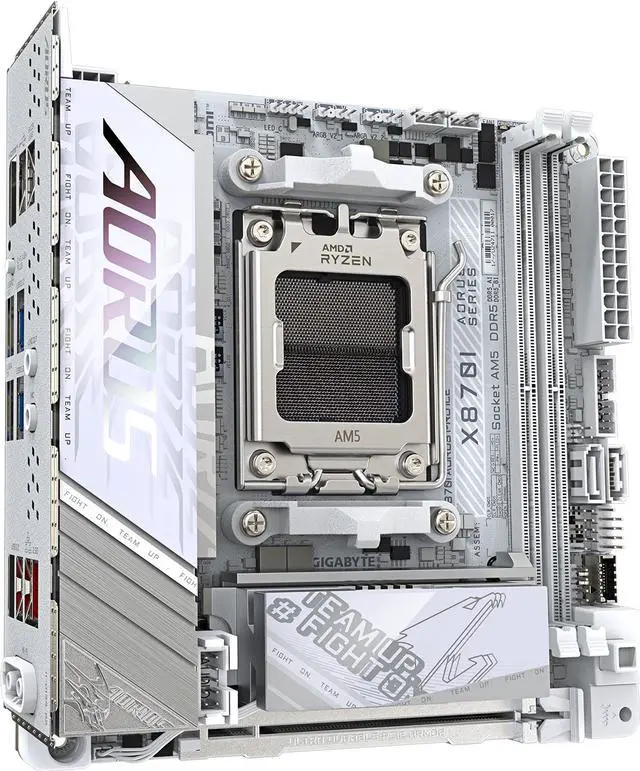

Alt view image 3 of 6 - GIGABYTE X870I AORUS PRO ICE AMD AM5 LGA 1718 Motherboard, Mini-ITX, DDR5, 2x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 4 of 6 - GIGABYTE X870I AORUS PRO ICE AMD AM5 LGA 1718 Motherboard, Mini-ITX, DDR5, 2x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 5 of 6 - GIGABYTE X870I AORUS PRO ICE AMD AM5 LGA 1718 Motherboard, Mini-ITX, DDR5, 2x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

Alt view image 6 of 6 - GIGABYTE X870I AORUS PRO ICE AMD AM5 LGA 1718 Motherboard, Mini-ITX, DDR5, 2x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

Customer images

Shop All GIGABYTE Products | Visit BeachAudio Store

GIGABYTE X870I AORUS PRO ICE AMD AM5 LGA 1718 Motherboard, Mini-ITX, DDR5, 2x M.2, PCIe 5.0, USB-C, WIFI7, 2.5GbE LAN, EZ-Latch, 5-Year Warranty

(623)(145) Write a Review

Option: X870I AORUS PRO ICE

X870E AORUS MASTER
X870E AORUS PRO
X870E AORUS ELITE WIFI7
X870 AORUS ELITE WIFI7
X870 GAMING X WIFI7
X870 EAGLE WIFI7
X870 GAMING WIFI6
X870E AORUS XTREME AI TOP
X870I AORUS PRO ICE

AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
DDR5 Compatible: 2*DIMMs with AMD EXPO Support
Power Design: 8+2+1, 110A Smart Power Stage
Thermals: VRM and M.2 Thermal Guard
Connectivity: PCIe 5.0, 2x M.2 Slots, Front and Rear USB-C
DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, EZ-Debug Zone
Networking: WIFI7, 2.5GbE LAN
5-Year Warranty

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (623)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Model	X870I AORUS PRO ICE

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870

Memory
Number of Memory Slots	2x288pin (DDR5)
Memory Standard	DDR5 5600 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7600 / DDR5 7800 / DDR5 8000 / DDR5 8200 / DDR5 8800 / DDR5 9000
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	2 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Realtek Wi-Fi 7 RTL8922AE

Rear Panel Ports

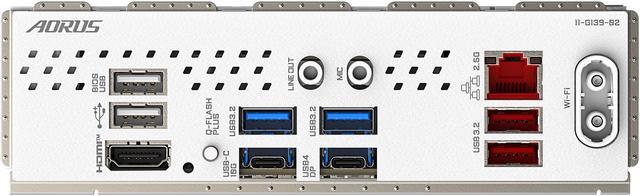

Back I/O Ports	1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks (Note) Actual support may vary by CPU.

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker header 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Software Feature
BIOS Feature	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11	Support for Windows 11 64-bit

Features
Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Additional Information
First Listed on Newegg	December 16, 2024
