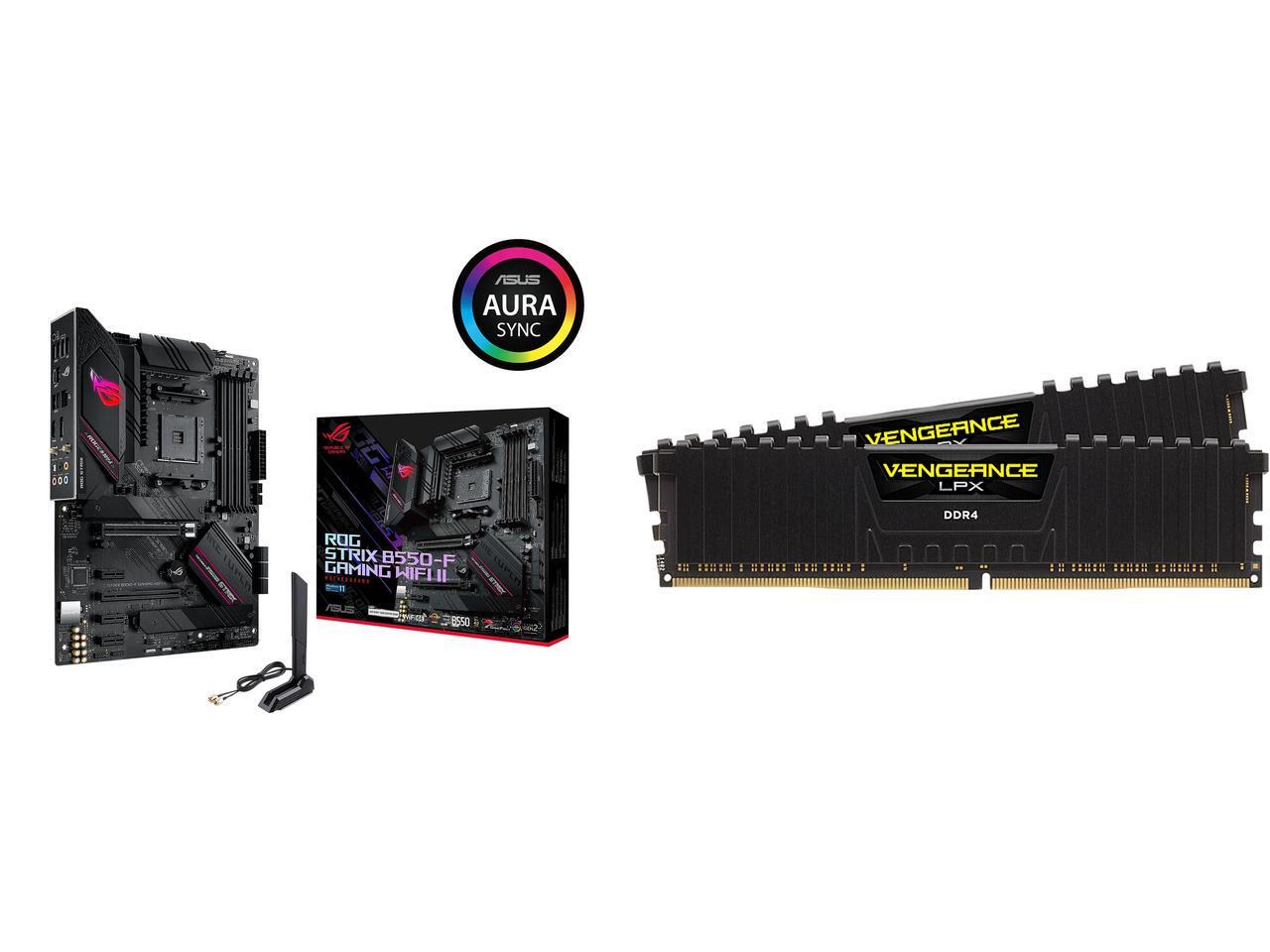

This Combo Includes 2 Items
Learn more about the ASUS STRIX B550-F GAMING WIFI II
Model| Brand | ASUS |
|---|
| Series | ROG |
|---|
| Model | STRIX B550-F GAMING WIFI II |
|---|
Supported CPU| CPU Socket Type | AM4 |
|---|
| CPU Type | Supports AMD Ryzen 5000 / 3000 Series Processors* Supports AMD Ryzen 5000 / 4000 G-Series Processors*
* Refer to www.asus.com for CPU support list. |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR4) |
|---|
| Memory Standard | DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) *
DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|---|
| Maximum Memory Supported | 128GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16*
* Supports x4 mode. * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3. |
|---|
| PCI Express x1 | 3 x PCIe 3.0 x1 |
|---|
Storage Devices| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled. |
|---|
| SATA RAID | 0/1/10 |
|---|
Onboard Video| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
Onboard Audio| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| LAN Chipset | Intel I225-V |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 6E 802.11a/b/g/n/ac/ax |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports 1 x Wi-Fi Module 1 x DisplayPort 1 x HDMI port 1 x Intel I225-V 2.5G Ethernet 1 x Optical S/PDIF out 5 x Audio jacks 1 x BIOS FlashBack button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|---|
| Other Connectors | Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU fan header 1 x 4-Pin CPU_OPT fan header 3 x 4-Pin Chassis fan headers Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front panel audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| LED Lighting | RGB |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
|---|
Software Feature| Windows 11 | Supported |
|---|
Features| Features | Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - M.2 heatsink AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot
Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3: - Performance And Power Saving Utility EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR DAEMON Tools Norton Anti-virus software (Free Trial version) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows 10 64-bit, Windows 11 64-bit |
|---|
Packaging| Package Contents | Cables 1 x Addressable RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
|---|
Additional Information| First Listed on Newegg | December 17, 2021 |
|---|
