This Combo Includes 2 Items

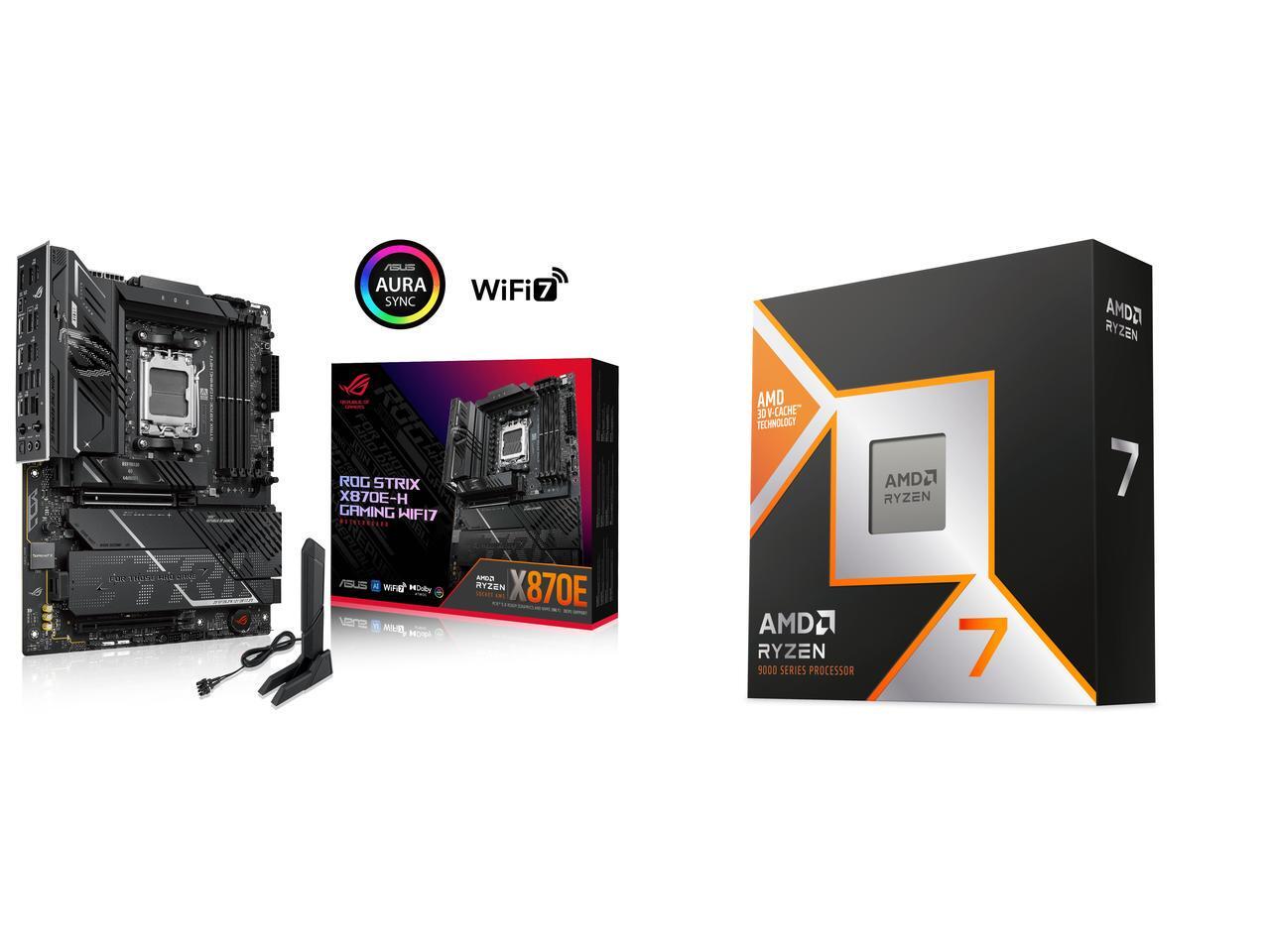

Learn more about the ASUS ROG STRIX X870E-H GAMING WIFI7
Model| Brand | ASUS |
|---|
| Model | ROG STRIX X870E-H GAMING WIFI7 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Chipsets| Chipset | AMD X870E |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | Supports up to 8000+MT/s(OC) with Ryzen |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Non-ECC |
|---|
Expansion Slots| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|---|
Storage Devices| M.2 | 2 x M.2 (Support PCIe 4.0 x4) / 2 x M.2 (Support PCIe 5.0 x4) |
|---|
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|---|
Onboard Audio| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| Max LAN Speed | 5Gbps |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB4 (40Gbps) ports(2 x USB Type-C) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge) 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers
Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector |
|---|
Software Feature| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|
| Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst ASUS AI Advisor ASUS DriverHub - AIDA64 Extreme (60 days free trial) - HWiNFO ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
|---|
| Windows 11 | Supported |
|---|
Features| Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync -Addressable RGB Gen 2 headers |
|---|
Packaging| Package Contents | Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber
Documentation 1 x Quick start guide |
|---|
Additional Information| First Listed on Newegg | August 15, 2025 |
|---|
