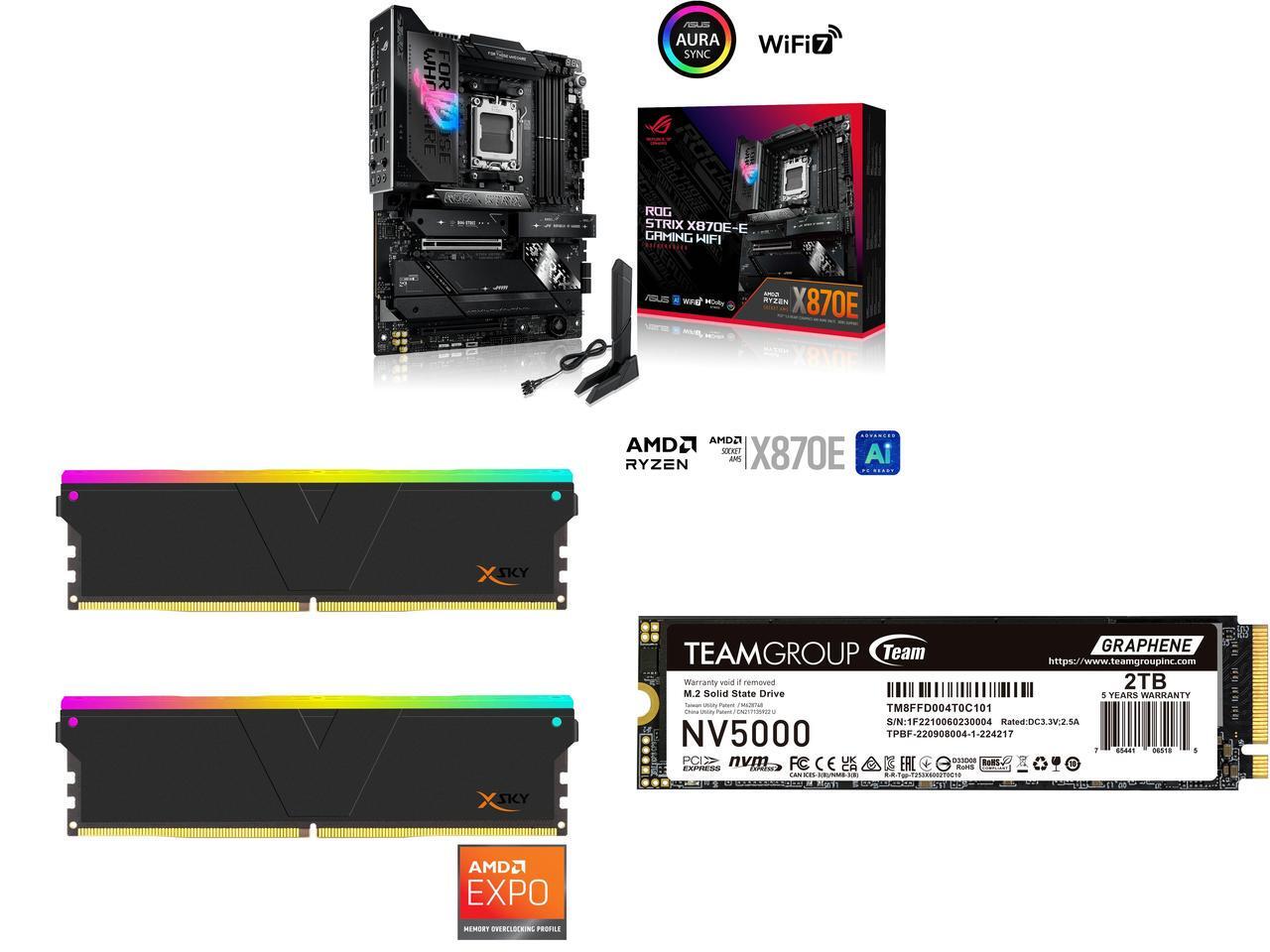

This Combo Includes 3 Items
V-COLOR Manta XSky DDR5 32GB (2x16GB) 6000MHz CL30 1.35V RGB Gaming Desktop Upgrade Memory Module Black, for AMD EXPO TMXSAL1660830KWK
Learn more about the ASUS ROG STRIX X870E-E GAMING WIFI
Model| Brand | ASUS |
|---|
| Model | ROG STRIX X870E-E GAMING WIFI |
|---|
| Part Number | 90MB1IB0-M0AAY0 |
|---|
Supported CPU| CPU Socket Type | AM5 |
|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|---|
Chipsets| Chipset | AMD X870E |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR5) |
|---|
| Memory Standard | DDR5 4400 |
|---|
| Maximum Memory Supported | 256GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | Yes |
|---|
| Buffer Supported | Un-buffered |
|---|
| Memory Feature | Supports up to
8000+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
|---|
Expansion Slots| PCI Express 5.0 x16 | AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slots (supports x16 mode) |
|---|
| PCI Express 4.0 x16 | AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode) |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only. |
|---|
| SATA RAID | *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU. |
|---|
Onboard Audio| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| Max LAN Speed | 5Gbps |
|---|
| Wireless LAN | Wi-Fi 802.11 be |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)
10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors |
|---|
Software Feature| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|
| Windows 11 | Supported |
|---|
Features| Features | Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers |
|---|
Packaging| Package Contents | Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
Documentation
1 x Quick start guide |
|---|
Additional Information| First Listed on Newegg | September 30, 2024 |
|---|
