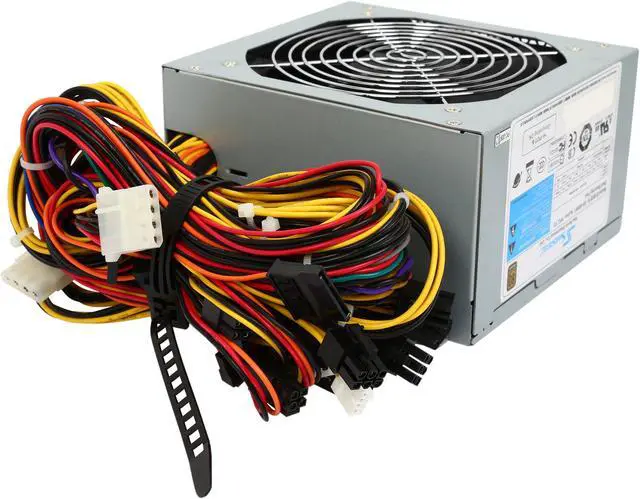

Seasonic SS-650HT 80 Plus Bronze Certified 650W Active PFC ATX12V (v2.2) Power Supply 12cm Double Ball Bearing Series
- 80 Plus Bronze certified
- Active PFC ATX12V (v2.2)
- Ultra Quiet (25dBA)
- PCI Express*
- RoHS & WEEE compliant
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Seasonic S12 Energy+ 650W SLI EPS Power Supply
Features
- Specification compliance: ATX12V v2.3
- Supports the latest Intel & AMD Socket
- PCI Express & Serial ATA ready
- Double forward converter circuit
- High efficiency and reliability
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% Hi-pot test
- 100% Burn in, high temperature cycled on/off
Product Information
1. Dimensions (L x W x H): 5.9 x 5.5 x 3.3 inches (150 x 140 x 86mm)
2. AC Input & DC Output Voltages (AC Input: 100 ~ 240VAC | 47/63Hz)
| Model | +3.3V | +5V | +12V | -12V | +5Vsb | Total Power |
| SS-650HT Active PFC | 24A | 30A | 52A | 0.8A | 3A | 650W |
| 170W | 624W | 9.6W | 15W | |||
Electrical Specifications
| Input Frequency | 47/63Hz |
| Inrush Current, Cold Start | 100A max. |
| Efficiency: At Normal Input Voltage | > 82% |
| Line Regulation | ± 1% typical |
| Load Regulation | ± 5% typical |
| Cross Regulation | ± 5% typical |
| Ripple / Noise | 1% |
| Power Factor Correction | 99% typical |
| Safety | CUL, TUV, CB, CCC, D, N, S, FI, GOST-R, BSMI, UKR |
| EMC | CE, FCC, C-tick |
Connectors
| Main Power (24/20P) | ATX12V (8P/4P) | ATX12V (8P) | PCI Express (8P/6P) | PCI Express (6P) | Peripherals: SATA, HDD, FDD |
| 1 | 1 | 1 | 2 | 2 |
