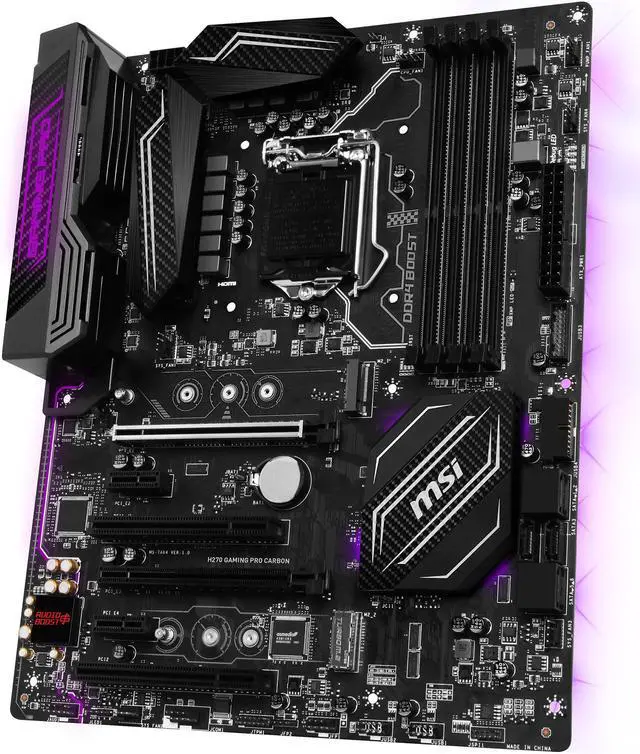

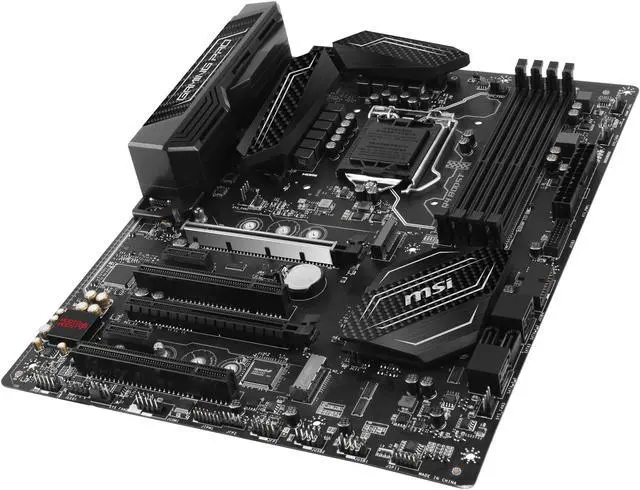

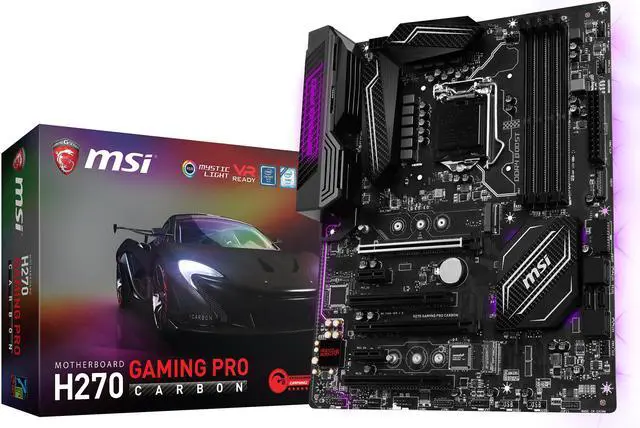

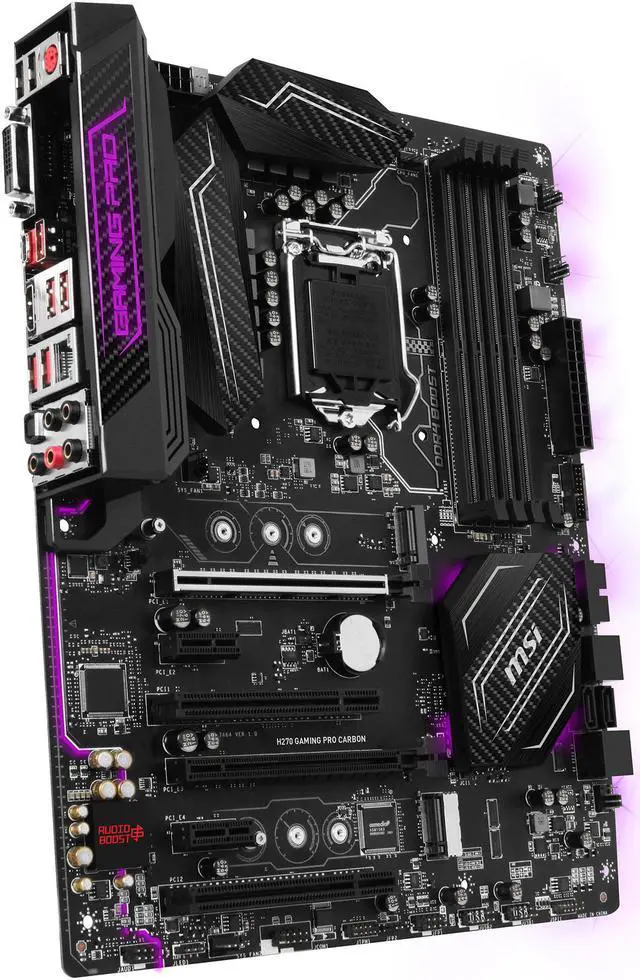

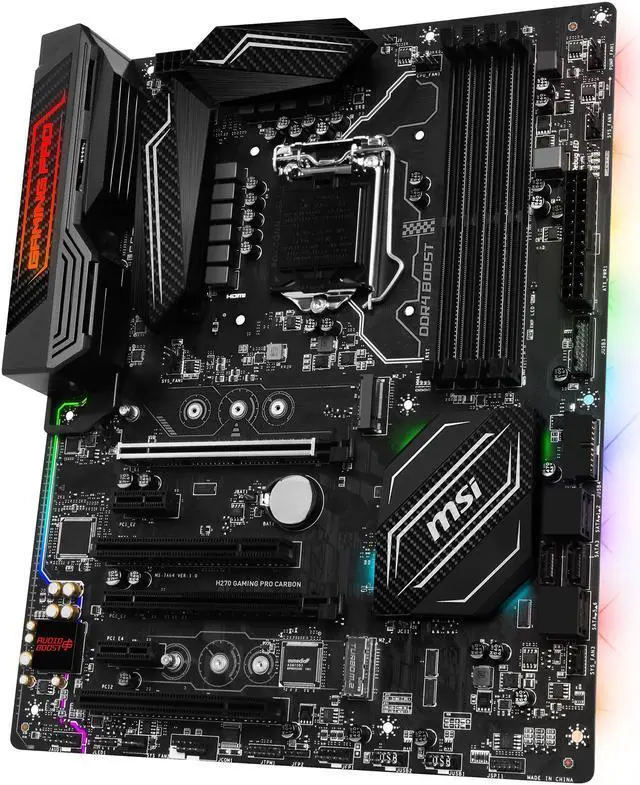

MSI H270 GAMING PRO CARBON LGA 1151 Intel H270 HDMI USB 3.1 ATX Motherboards - Intel
- Intel H270
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- 7th Gen processors support DDR4 2400/ 2133
- 6th Gen processors support DDR4 2133
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI H270 GAMING PRO CARBON
| Brand | MSI |
|---|---|
| Model | H270 GAMING PRO CARBON |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Supported CPU Technologies | * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel H270 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | 7th Gen processors support DDR4 2400/ 2133 6th Gen processors support DDR4 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCIe 3.0 x16 slots (support x16/x4 mode) |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s ports* * M.2 and SATA ports combination details please refer user manual. |
|---|---|
| M.2 | 2 x M.2 slots (Key M) - Support up to PCIe 3.0 x4 and SATA 6Gb/s - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card ** - M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices - M2_2 slot supports 2242/ 2260 /2280 storage devices ** The Turbo U.2 Host Card is not included, please purchase separately. *** Intel Optane Technology is only supported when using 7th Gen processors. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

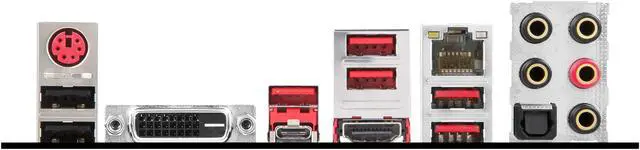

| Back I/O Ports | 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 1 x USB 3.1 Gen2 Type-A port 1 x USB 3.1 Gen2 Type-C port 4 x USB 3.1 Gen1 Type-A ports |
| USB 1.1/2.0 | 2 x USB 2.0 Type-A ports |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x OFC audio jacks |
| Onboard USB | 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x RGB LED connector 1 x TPM module connector 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-2400 Memory (Max.) DDR4 Boost: Give your DDR4 memory a performance boost VR Ready: Best virtual reality game experience without latency Mystic Light and Mystic Light Sync: Control all LEDs in system with one click by GAMING APP or mobile devices. Lightning Fast Game experience: Twin Turbo M.2 with Steel Armor. Intel Optane Memory Ready, Turbo U.2, Lightning USB 3.1 Gen2 Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience GAMING LAN with LAN Protect, powered by Intel : The best online gaming experience with lowest latency and bandwidth management Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire In-Game Weapons: GAMING Hotkey, X-Boost, Xsplit Gamecaster EZ Debug LED: Easiest way to troubleshoot Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players |
|---|
| First Listed on Newegg | January 10, 2017 |
|---|
