| Technical SPEC(AI-AUREOLA) | |
| LED Color | RGB |
| Voltage | 12V |
| Start Voltage | 5V |
| Fan Speed | 1500 rpm ± 10% |
| Max Air Flow | 35.2 CFM |
| Air Pressure | 1.04 MM-H2O |
| Noise Level | 34.8 dbA |
| Bearing | Rifle Bearing |
| Connector | 5 PIN |
| Weight | 120.5g |
| Dimension | 120 x 120 x 25mm |
| Power Consumption | 0.96W |
| Rate Current | 0.1A |
| Technical SPEC(AI-CL-XL-AR) | |

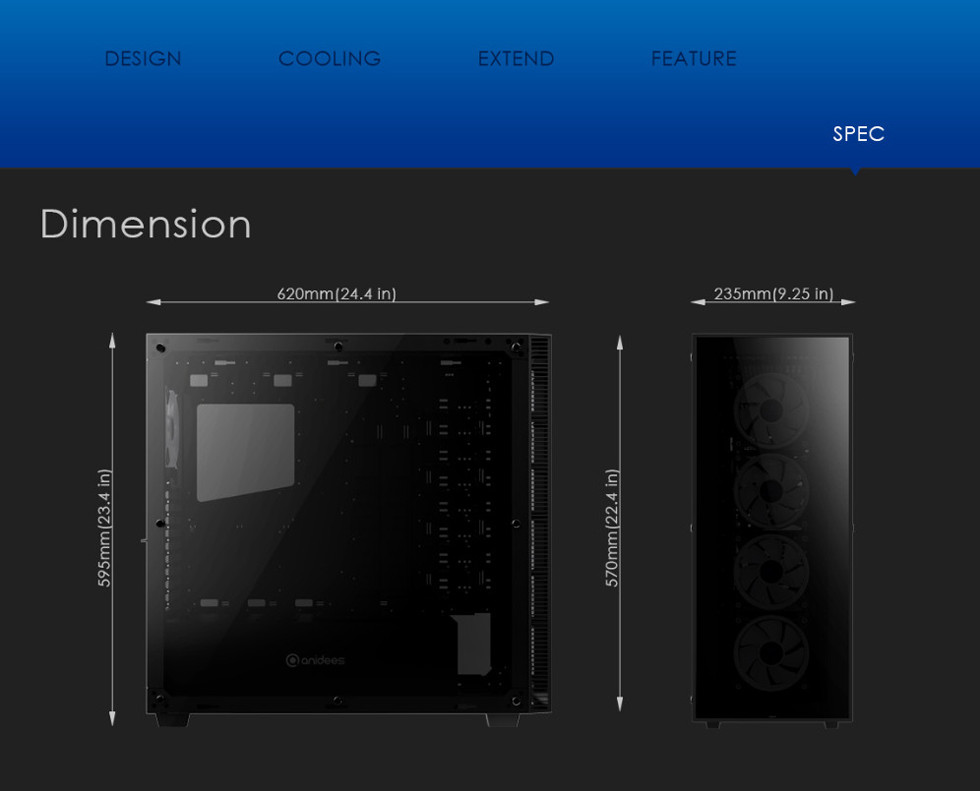

| Dimension (D / W / H ) | 620 x 235 x 595mm / 24.4 x 9.25 x 23.4 in |
| Color | Black |

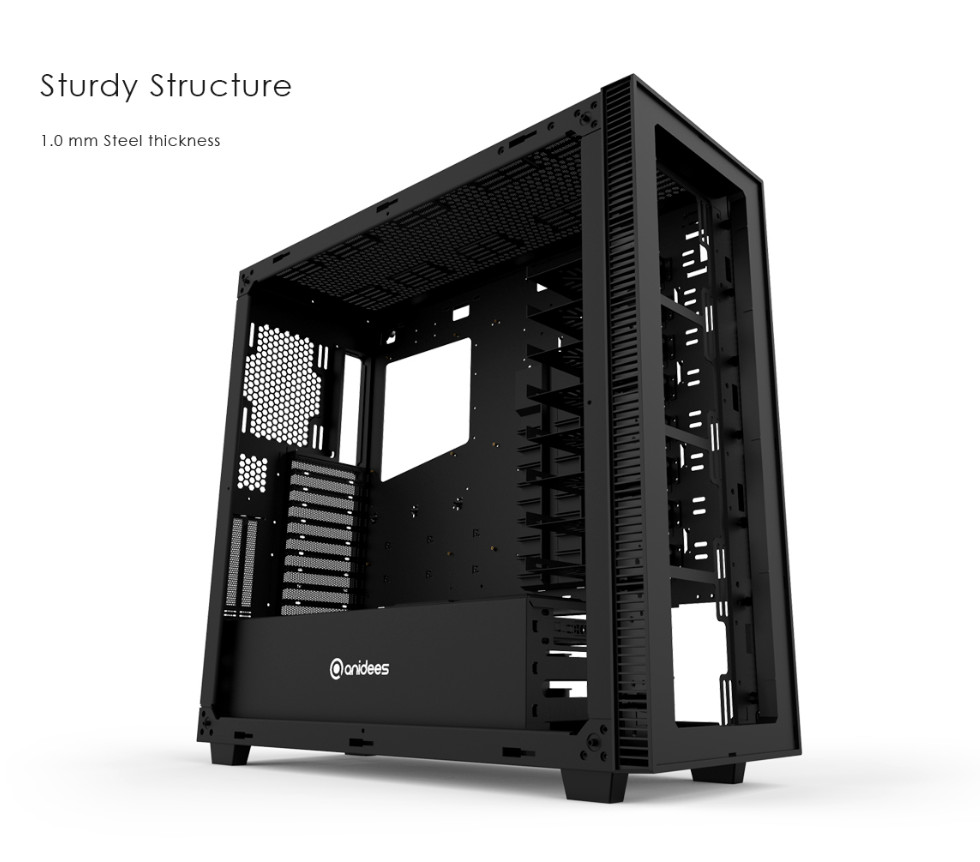

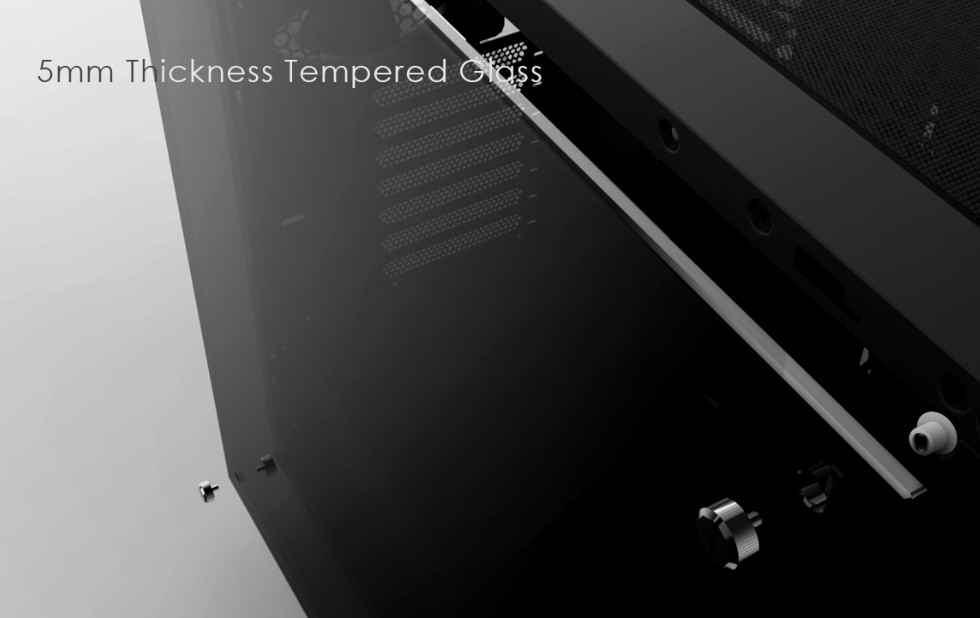

| Material | Steel body / Plastic / 5mm thickness Tempered Glass |
| Form Factor | Full Tower |

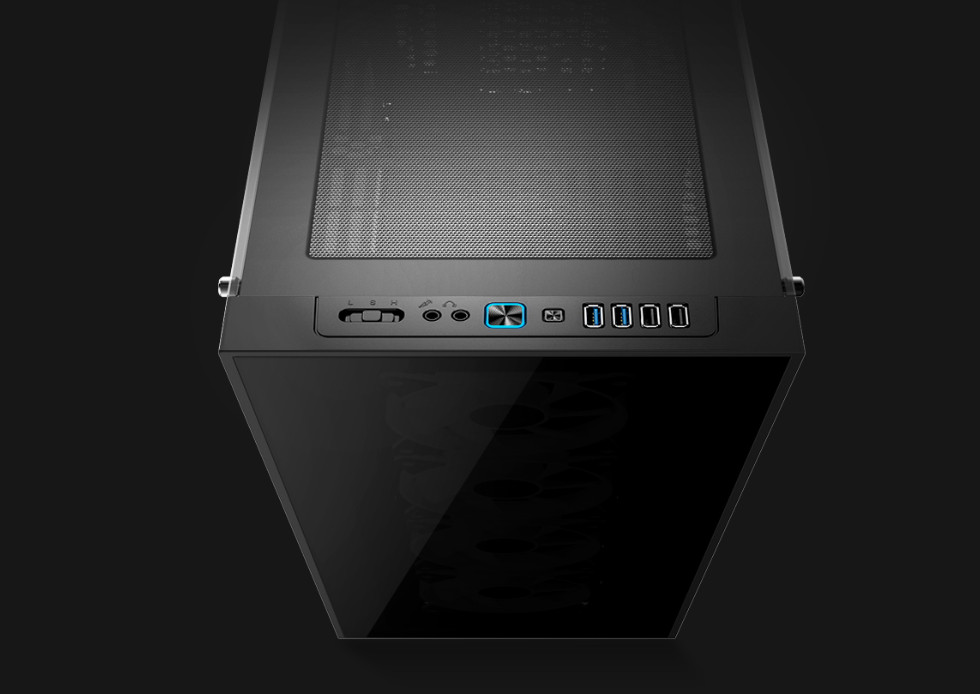

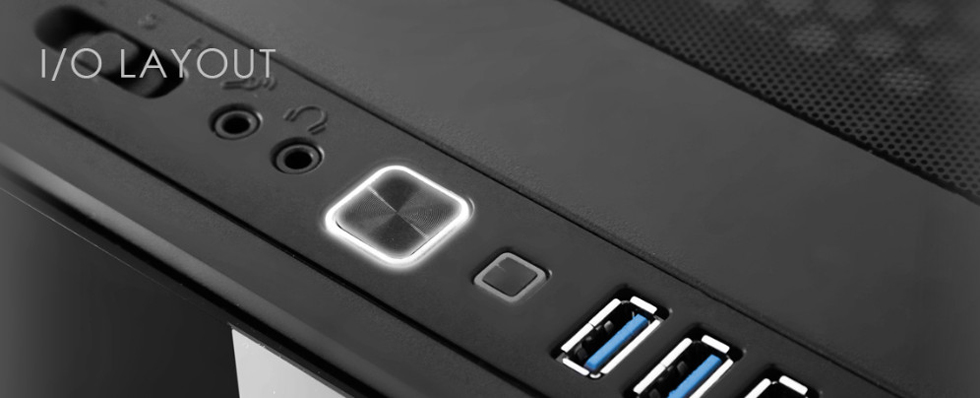

| Front IO | USB3.0 x 2, USB2.0 x 2,Fan Controller, Audio,Mic |
| 5.25" Drive Bay | N/A |

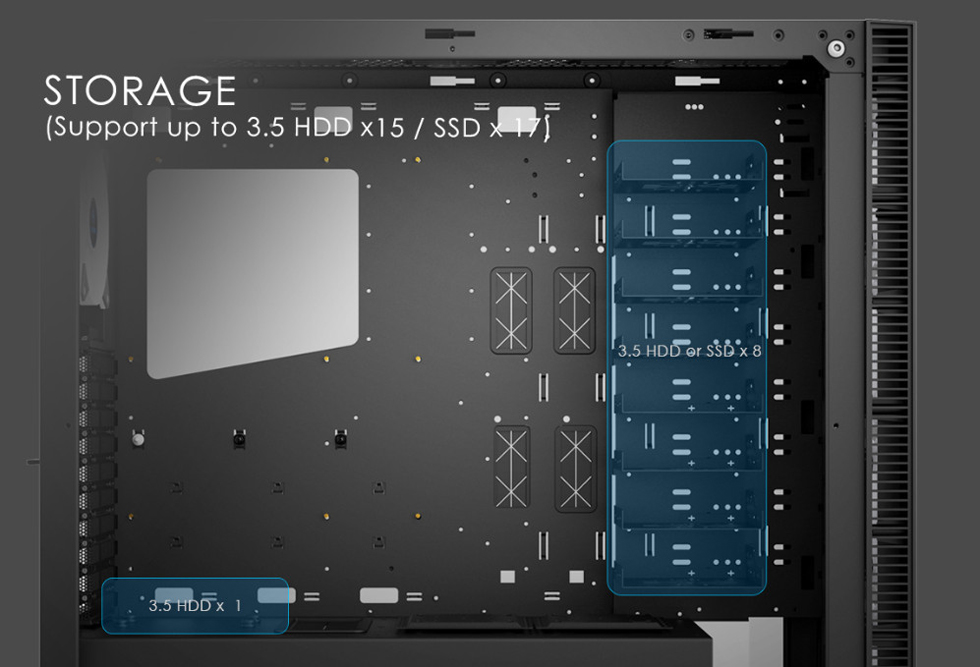

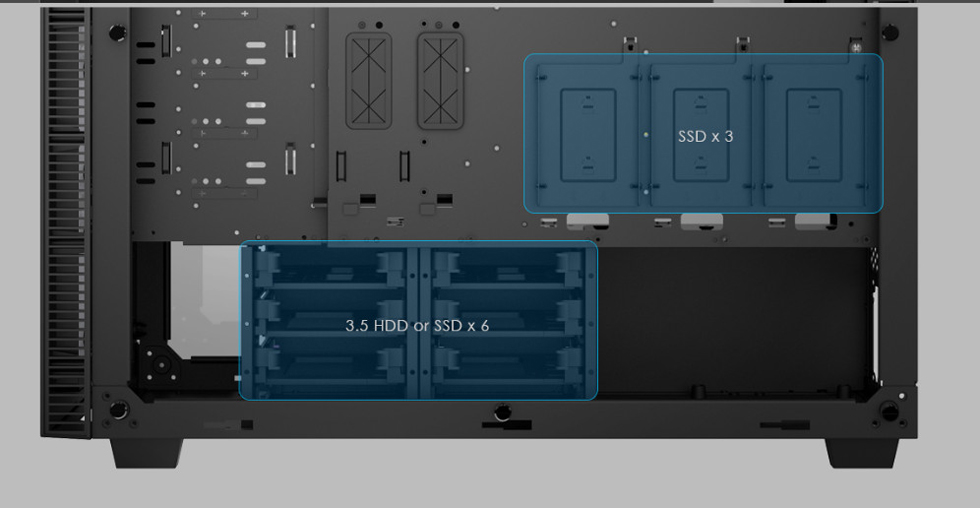

| 3.5" Drive Bay(internal) | 15 (Max) |
| 2.5" Drive Bay | 17 (Max) |

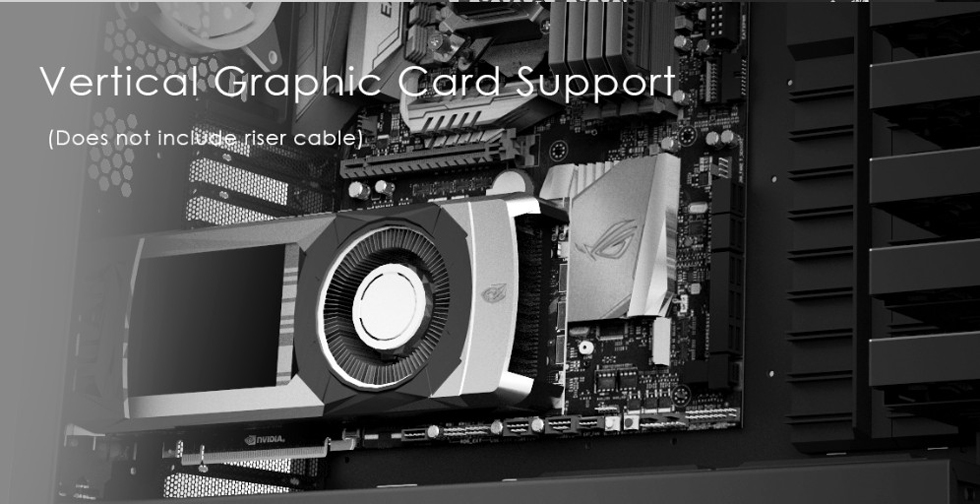

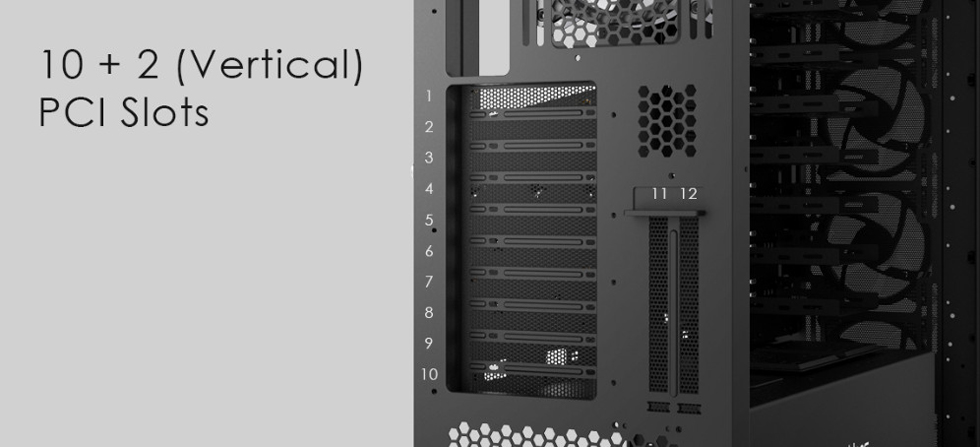

| Expansion Slots | 10 + 2 (Vertical) |
| Compatibility | |

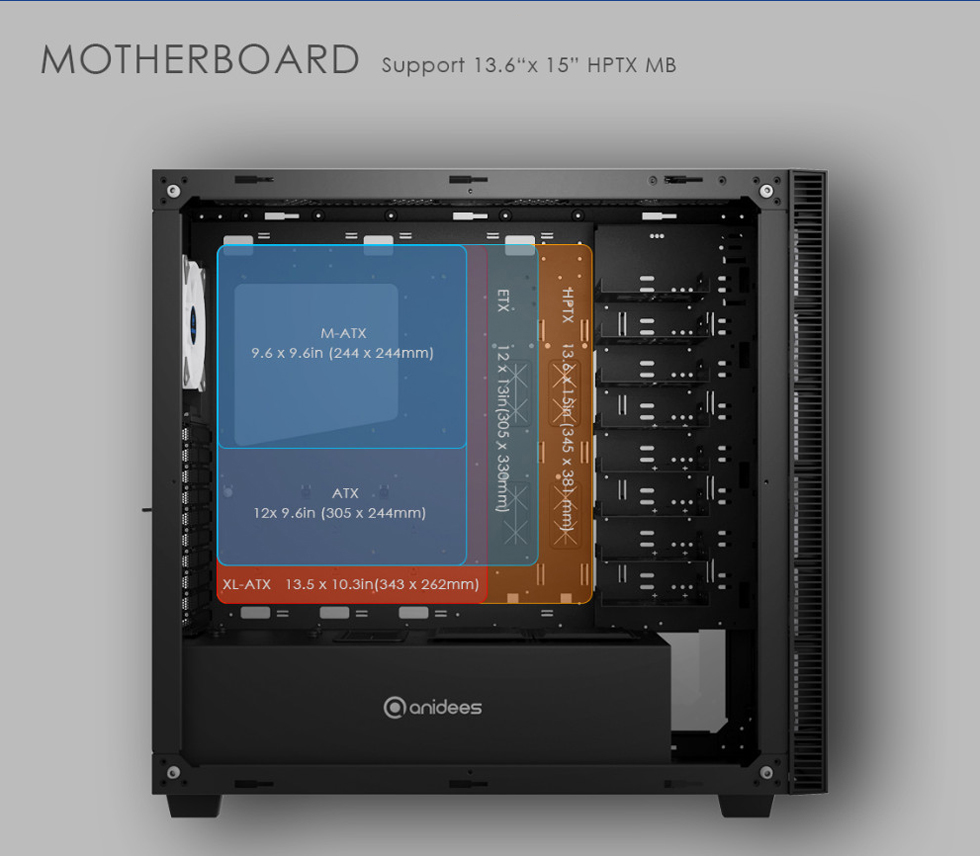

| Motherboard Type | M-ITX,M-ATX,ATX,E-ATX,XL-ATX,HPTX |

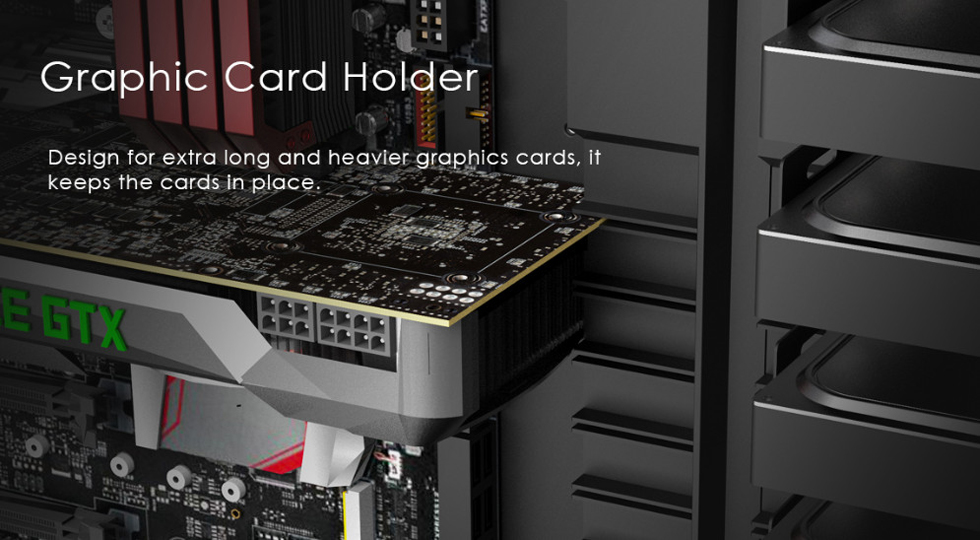

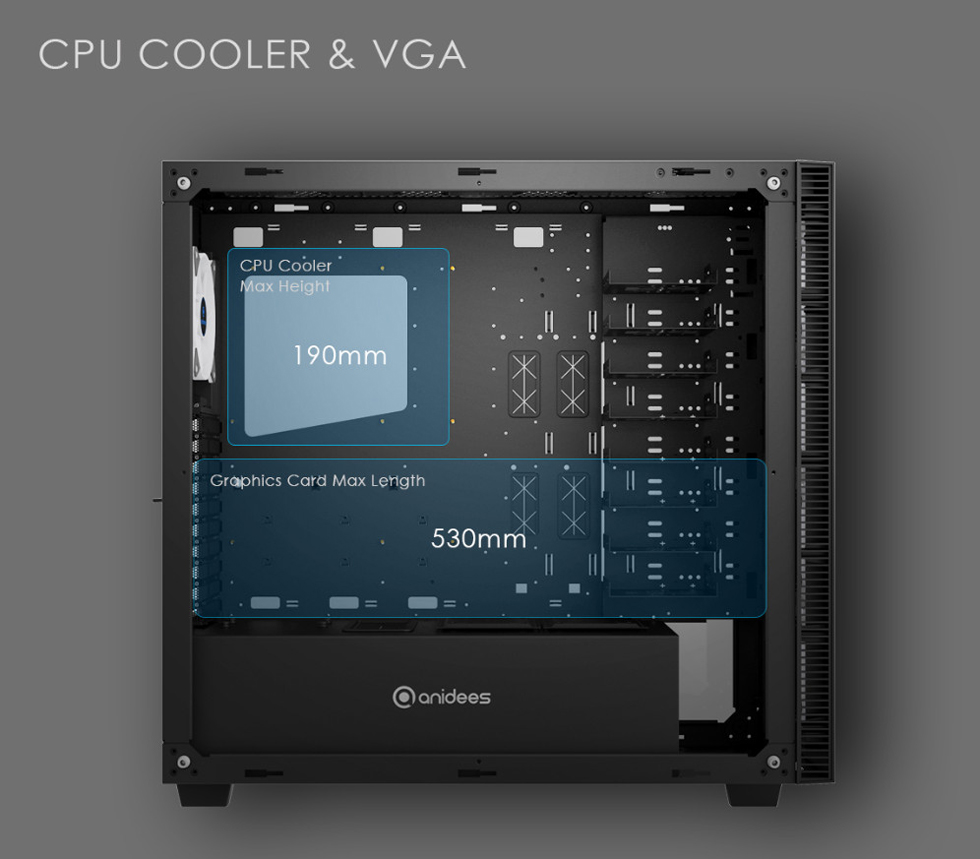

| Graphics Card Length | 530mm / 20.8 inches |
| CPU Cooler Height | 190mm / 7.4 inches |

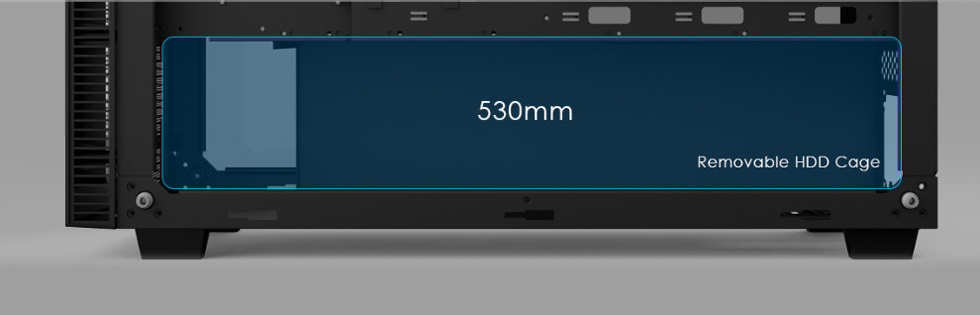

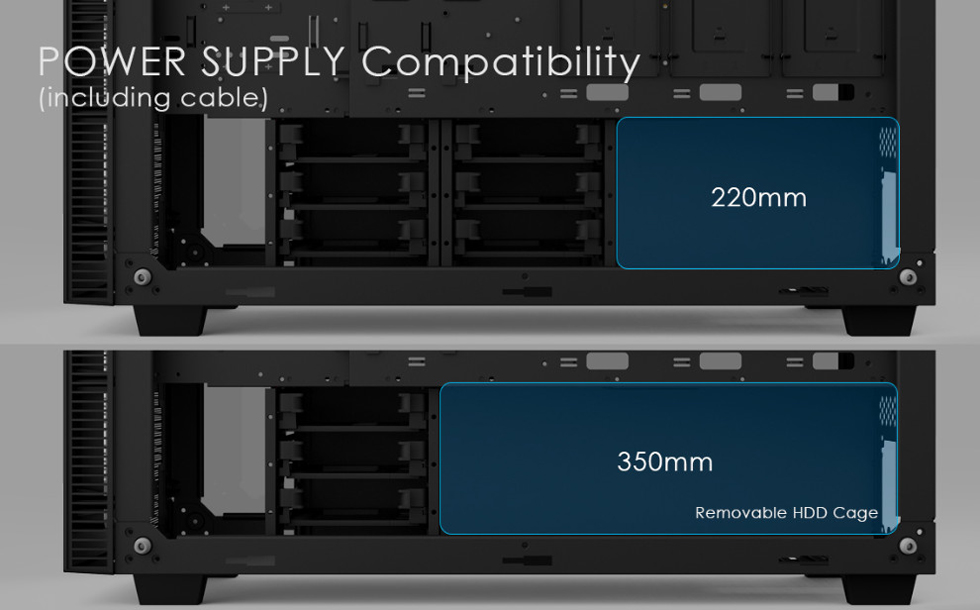

| PSU (including cable) | 530mm / 20.8 inches |

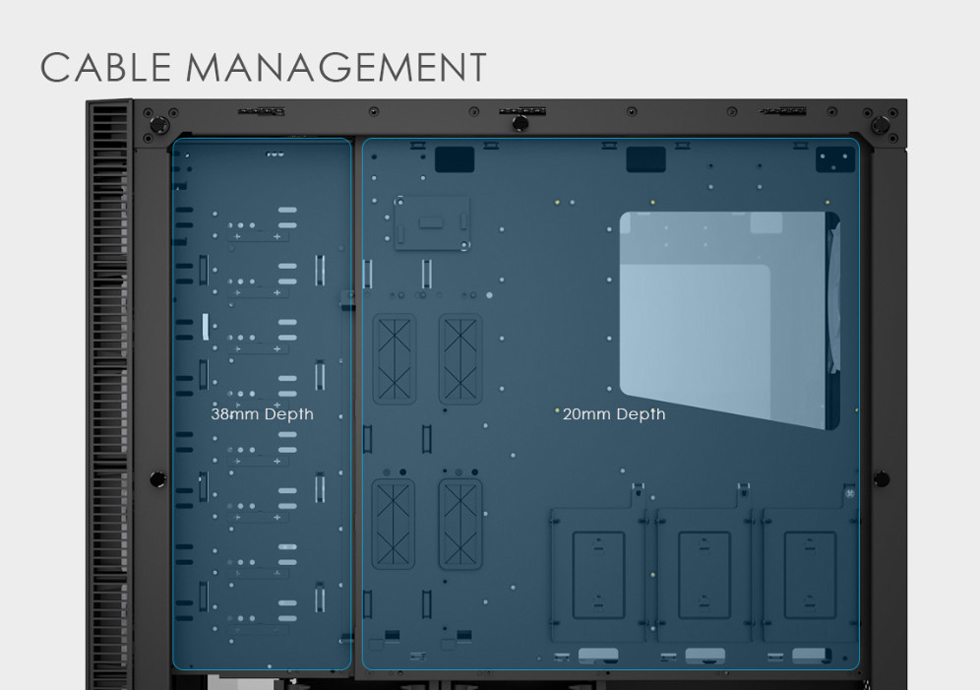

| Cable Management | 38mm / 1.5 inches |

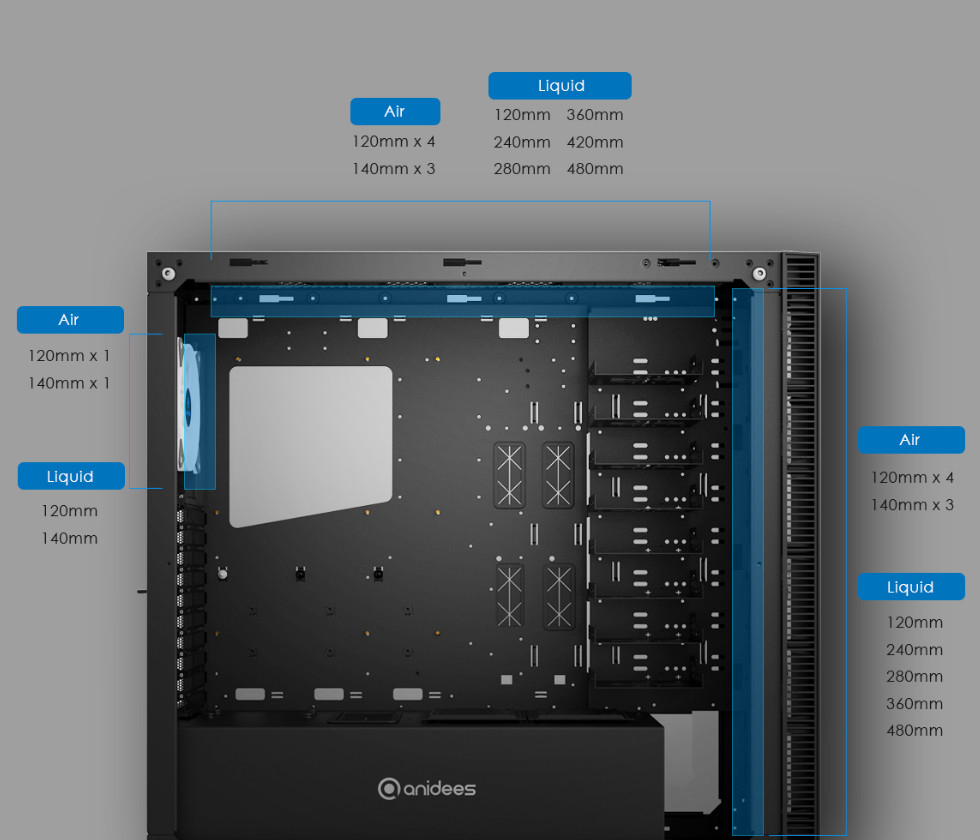

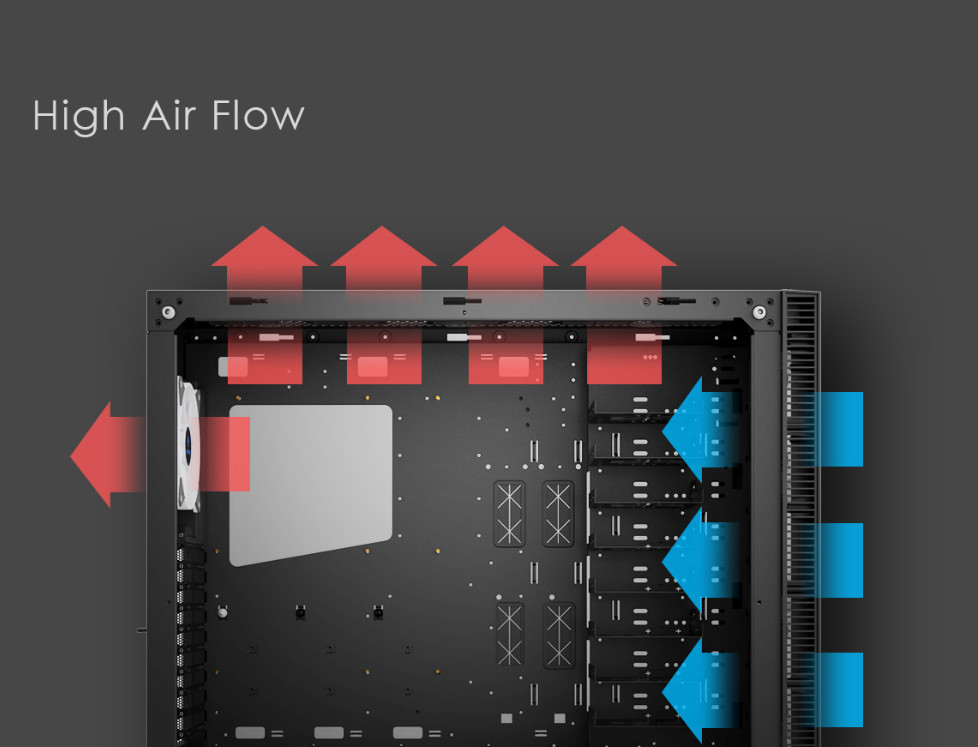

| Air Cooling | |

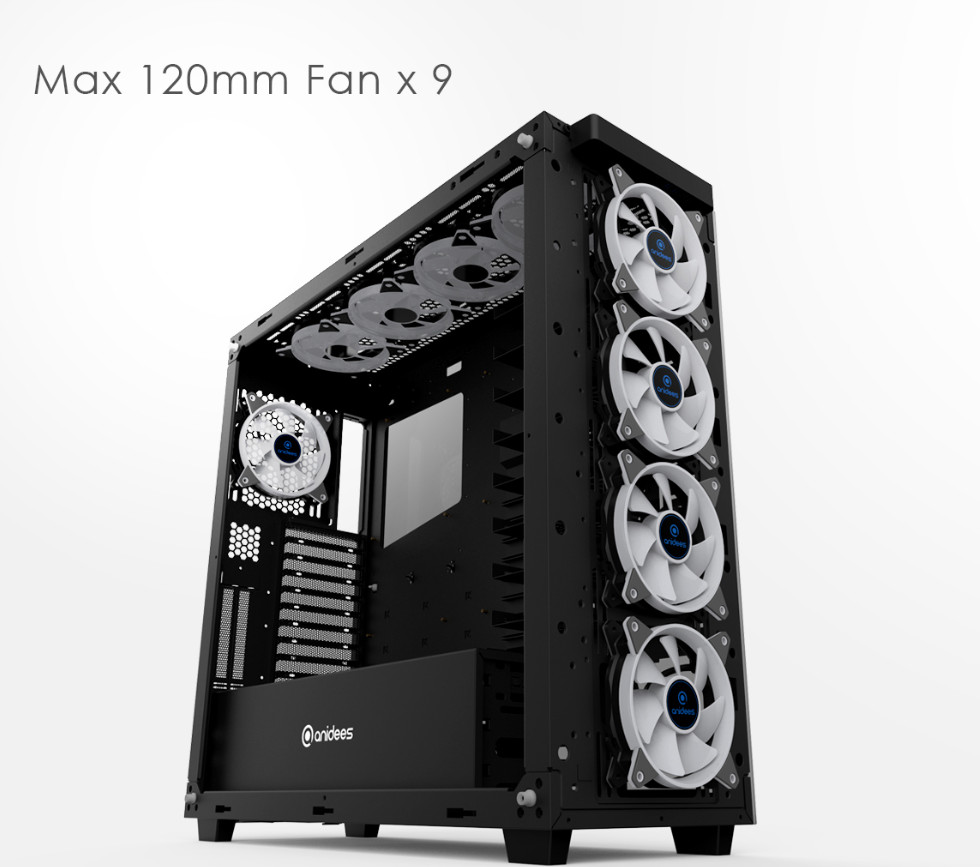

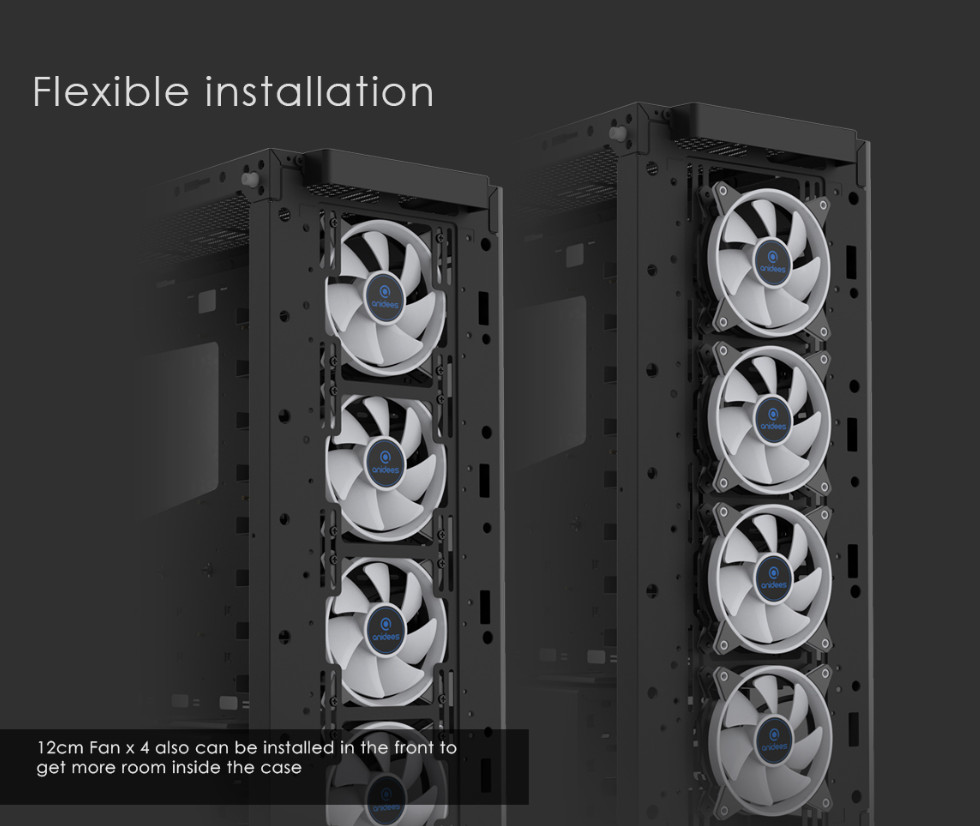

| Front | 120mm Fan x 4 / 140mm Fan x 3 AI AUREOLA RGB 120mm x 4 (included) |
| Top | 120mm Fan x 4 / 140mm Fan x 3(Optional) |
| Rear | 120mm Fan x 1 / 140mm Fan x 1 AI AUREOLA RGB 120mm x 1 (included) |

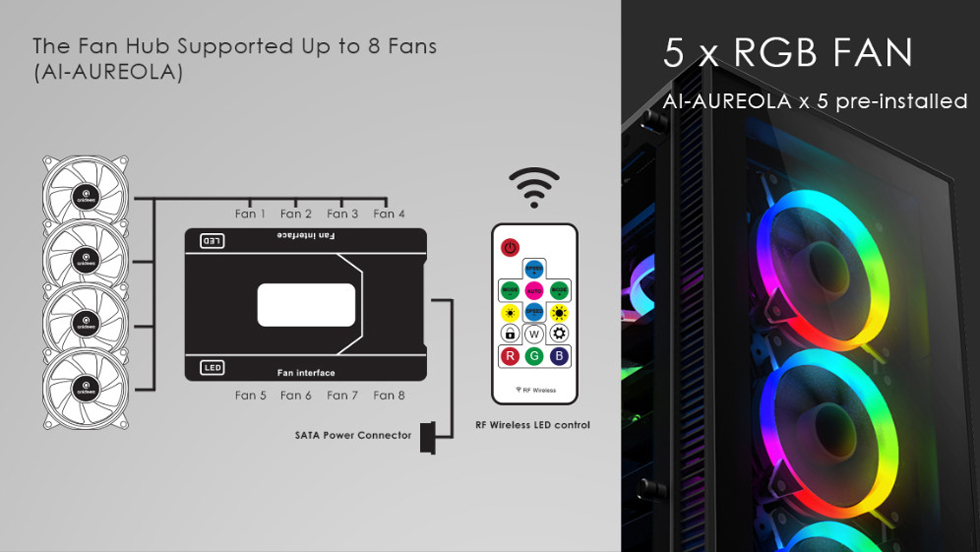

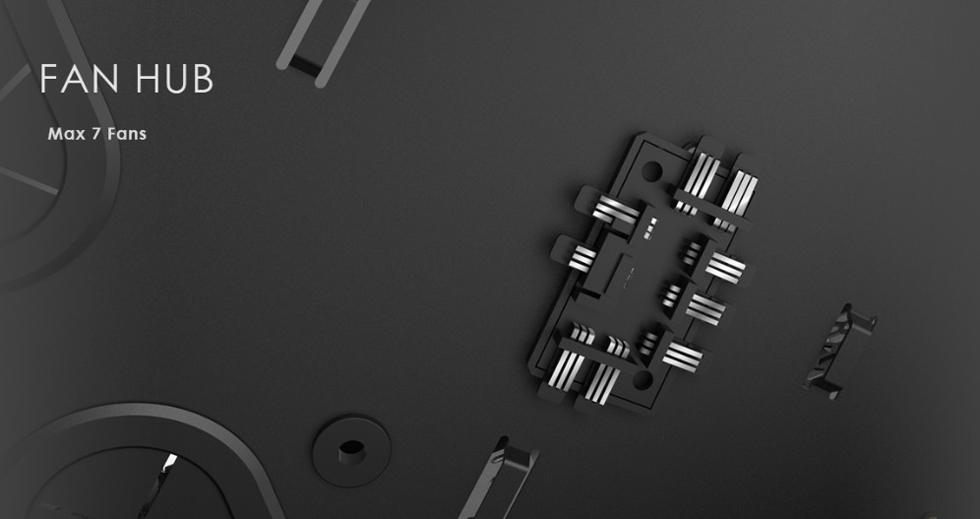

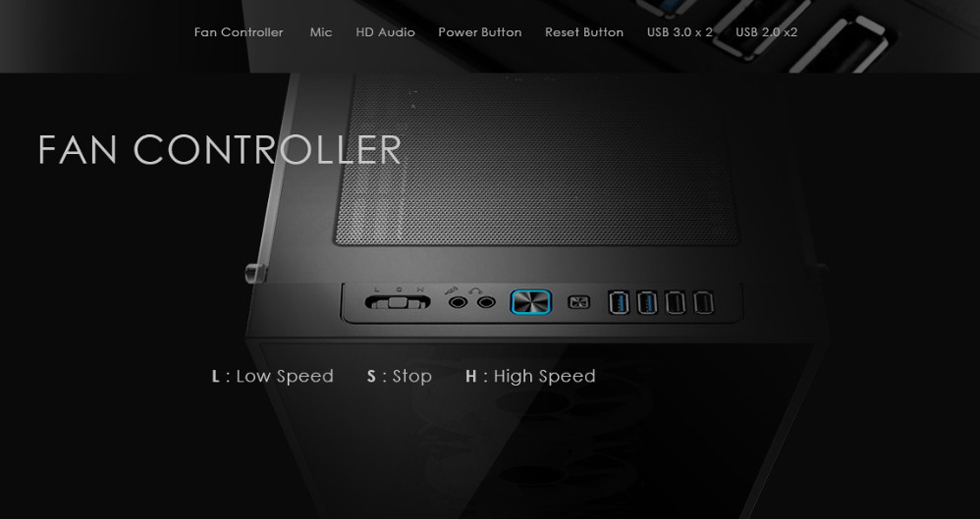

| Fan control | 3 steps Fan Controller (L/S/H) |

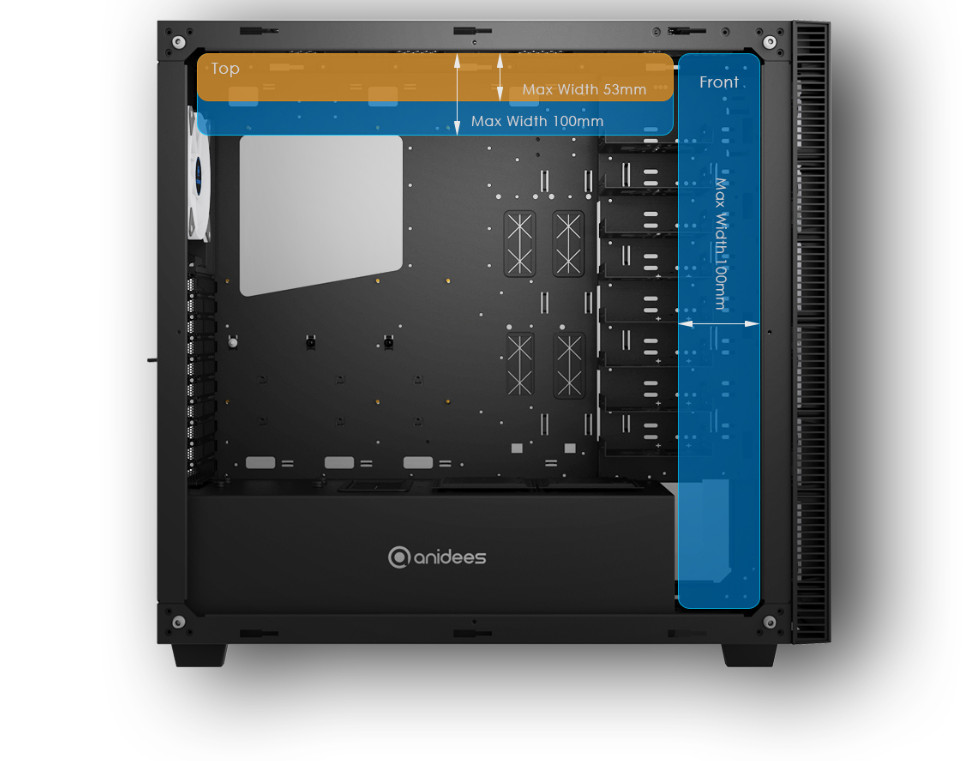

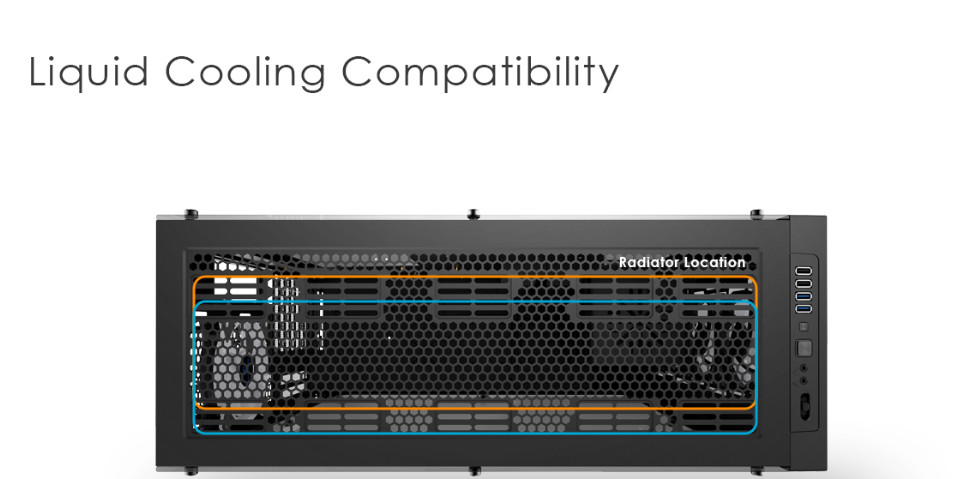

| Liquid Cooling | |

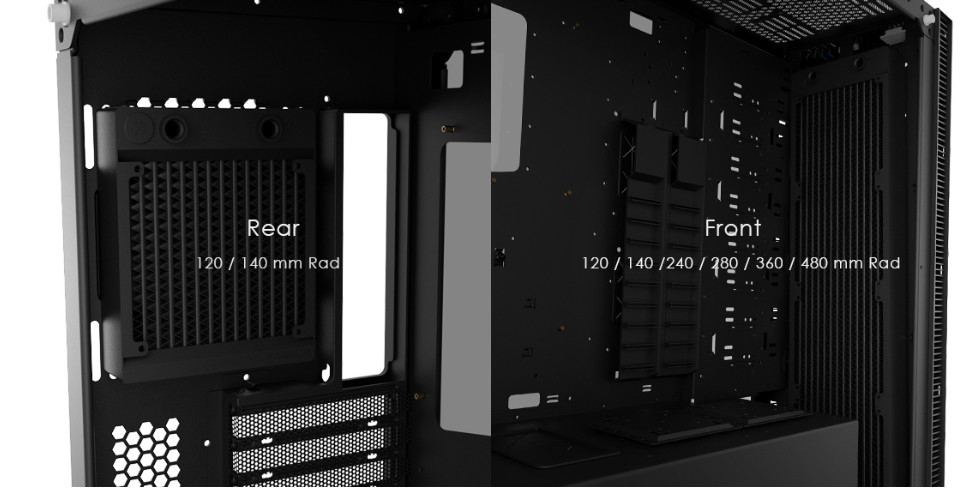

| Front | 120 / 240 / 280 / 360 / 480mm Rad. Max thicknes 100mm |

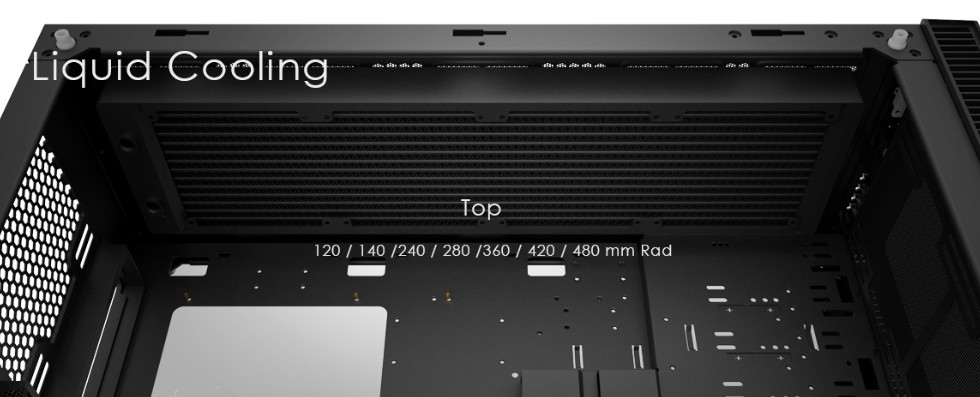

| Top | 120 / 240 / 280 / 360 / 420 / 480mm Rad. Max thicknes 100mm |
| Rear | 120 / 140mm x 1 Rad |
| Packing | |
| Model | AI-CL-XL-AR |
| Net Weight | 20.5 kg / 45.19 Ibs |
| EAN | 6952093601357 |
| UPC | 848043001321 |
