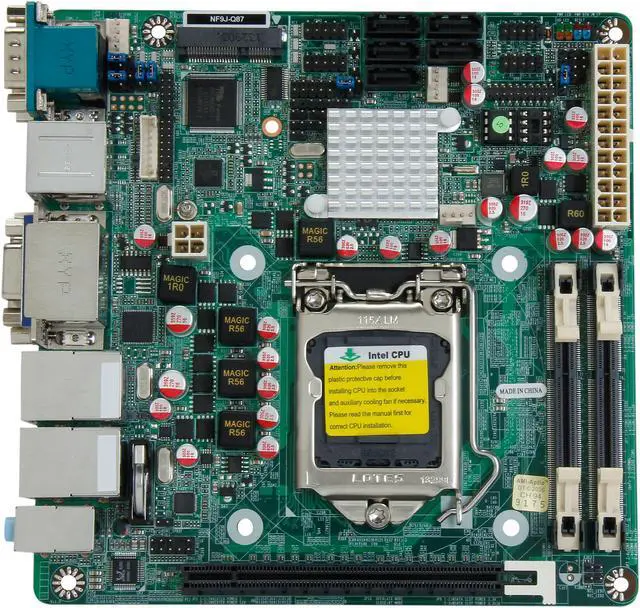

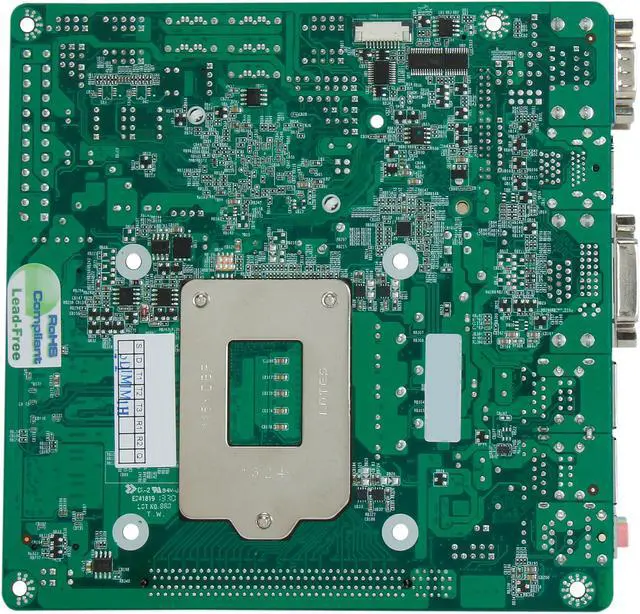

JetWay JNF9J-Q87 LGA 1150 Intel Q87 HDMI USB 3.0 Mini ITX Intel Motherboard
- Intel Q87
- 4th Generation Intel Core i7/i5/i3/Pentium (LGA 1150)
- DDR3 1600
Learn more about the JETWAY JNF9J-Q87
| Brand | JetWay |
|---|---|
| Model | JNF9J-Q87 |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | 4th Generation Intel Core i7/i5/i3/Pentium (LGA 1150) |
| Chipset | Intel Q87 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3 1600 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| Other Slots | 1 x Shared mSATA/mini-PCI Express slot (Full-size) |
| Serial ATA (SATA) | 5 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10/JBOD |
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 5.1 Channels |
| LAN Chipset | Intel I217-LM |
|---|---|
| Second LAN Chipset | Intel I211AT |
| Max LAN Speed | 2 x 1Gbps |
| Back I/O Ports | 1 x HDMI / 2 x USB 3.0 / 4 x USB 2.0/1.1 |
|---|---|
| COM | 1 x RS232/422/485 jumperless com port 1 x RS232 Serial port |
| Video Ports | 1 x D-Sub 1 x DVI-D |
| HDMI | 1 x HDMI |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 3.0 + 4 x USB 2.0 |
|---|---|
| Other Connectors | 1 x 24-bits Dual Channel LVDS connector/Inverter 1 x 9-pin Audio header 2 x Serial Headers (1 x RS232, 1 x RS232/422/485) 1 x GPIO header 1 x Chassis Intrusion header 1 x Front Panel header 3 x Fan headers 1 x 24-pin ATX Power Connector 1 x 4-pin 12V ATX Power Connector |
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24 Pin |
| Features | Long-Life Embedded Class Industrial Motherboard with Planned Lifecycle Through Q4'2018 Intel HD 4000/5000 Graphics, DirectX 11.1 Supports up to Three Independent Displays, HDMI, DVI, VGA, 24bit LVDS Supports DDR3-1600 SODIMM up to 16GB Total Dual Intel Gigabit LAN, Intel iAMT 9.0 Supported 4 x Serial Jumperless Config Ports, 8-bit GPIO 4 x USB 3.0 Ports, 8 x USB 2.0 Ports, Watchdog Timer Compatible with Win XP, Win 7, Win 8, Linux |
|---|
| First Listed on Newegg | October 01, 2013 |
|---|
