Learn more about the GIGABYTE GA-X38T-DQ6
Model
Brand
GIGABYTE
Model
GA-X38T-DQ6
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Quad-core / Core 2 Extreme / Core 2 Duo / Pentium EE / Pentium D / Pentium 4
Supported CPU Technologies
Hyper-Threading Technology
Chipsets
Chipset
Intel X38
South Bridge
Intel ICH9R
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR3 1600
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
2 x PCI Express 2.0 x16
PCI Express x1
3 x PCI Express x1
PCI Slots
2 x PCI Slots
Onboard Audio
Audio Chipset
Realtek ALC889A
Audio Channels
8 Channels
Onboard LAN
Max LAN Speed
2 x 1Gbps
Rear Panel Ports
Back I/O Ports
2 x PS/2 / 8 x USB 2.0/1.1
PS/2
2
USB 1.1/2.0
8 x USB 2.0
IEEE 1394
2 x IEEE 1394a
S/PDIF In
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
4 x USB 2.0
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
Supports Intel Core 2 multi-core and upcoming 45nm processors Support for 1600 MHz FSB. Dual DDR3 1600 memory with Intel XMP , featuring faster speeds and performance tuning. High quality CPU power module with Ferrite Core Chokes, Lower RDS (on) MOSFETs and Lower ESR Solid Capacitors. Re-engineered Thermal Design featuring All Copper Silent-Pipe and Crazy Cool. Japanese manufactured SMD All Solid Capacitor motherboard design. Supports CrossFire with Dual PCI-E 2.0 x16 graphics for extreme gaming performance. Features SATA 3Gb/s with Quad eSATA 2 interface.
Packaging
Package Contents

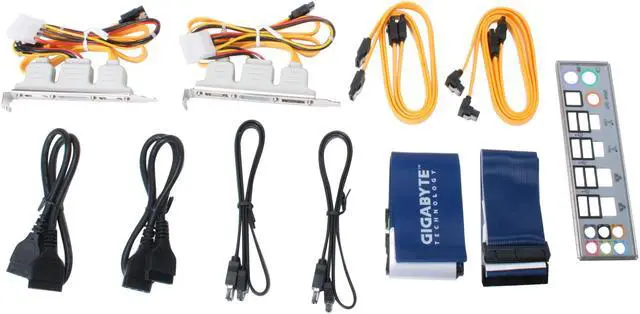

GA-X38T-DQ6 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 2 x eSATA Cable & eSATA Power Cable 2 x eSATA and Power Brackets
