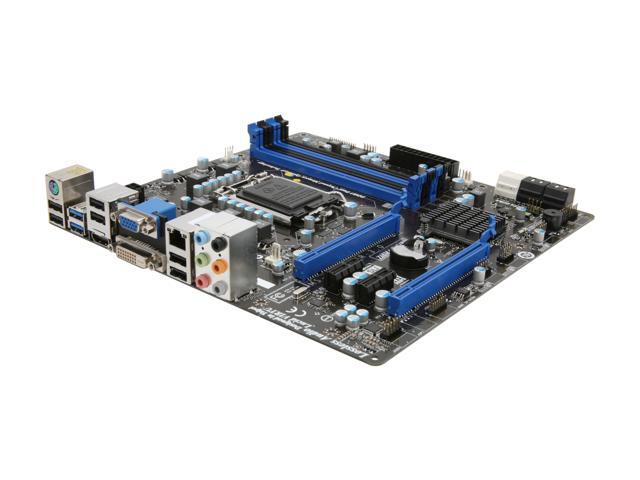

Main image of MSI Z68MA-G45 (B3) LGA 1155 Intel Z68 HDMI USB 3.0 Micro ATX Intel Motherboard with UEFI BIOS

Alt view image 2 of 5 - MSI Z68MA-G45 (B3) LGA 1155 Intel Z68 HDMI USB 3.0 Micro ATX Intel Motherboard with UEFI BIOS

Alt view image 3 of 5 - MSI Z68MA-G45 (B3) LGA 1155 Intel Z68 HDMI USB 3.0 Micro ATX Intel Motherboard with UEFI BIOS

Alt view image 4 of 5 - MSI Z68MA-G45 (B3) LGA 1155 Intel Z68 HDMI USB 3.0 Micro ATX Intel Motherboard with UEFI BIOS

Alt view image 5 of 5 - MSI Z68MA-G45 (B3) LGA 1155 Intel Z68 HDMI USB 3.0 Micro ATX Intel Motherboard with UEFI BIOS

Shop All MSI Products

MSI Z68MA-G45 (B3) LGA 1155 Intel Z68 HDMI USB 3.0 Micro ATX Intel Motherboard with UEFI BIOS

(39) Write a Review

Intel Z68
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155)
DDR3 1066 / 1333 / 1600* / 1866* / 2133*(OC)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (39)

Any questions? Our AI mode will help you find out quickly.

Try me now

Thank you for choosing the Z68MA-G45 (B3) Series (MS-7676 v3.X) Micro-ATX mainboard. The Z68MA-G45 (B3) Series mainboards are based on Intel Z68 (B3) chipsets for optimal system efficiency. Designed to fit the advanced Intel LGA1155 processor, the Z68MA-G45 (B3) Series deliver a high performance and professional desktop platform solution.

Model
Brand	MSI
Model	Z68MA-G45 (B3)

Supported CPU
CPU Socket Type	LGA 1155
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Xeon (LGA1155)

Chipsets
Chipset	Intel Z68

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 1066 / 1333 / 1600* / 1866* / 2133*(OC)
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	2 (x8, x8)
PCI Express x1	2 x PCI Express x1

Storage Devices
Serial ATA (SATA)	2 x SATA 6Gb/s
SATA RAID	SATA3~6 ports support RAID 0/1/5/10) by Intel Z68 (B3) SATA1~2 ports support RAID 0/1) by Intel Z68 (B3)

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 6 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	6 x USB 2.0
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	6 x USB 2.0
Other Connectors	ATX 24-Pin power connector 4-pin ATX 12V power connector CPU x 1 / System x 2 FAN connectors Front panel audio connector Front panel connector 1 x chasis intrusion connector 1 x Clear CMOS jumper 1 x SPDIF-out connector 1 x TPM module connector 1 x Serial port connector 1 x Parallel port connector

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	24 Pin

Features
Features	Top quality & stability OC Genie II: Auto OC to boost performance in 1 sec ClickBIOS: Easy-to-use UEFI BIOS interface THX TruStudio PRO: deliver the fullest audio experience Support USB 3.0 & SATA 6Gb/s

Additional Information
First Listed on Newegg	July 26, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
