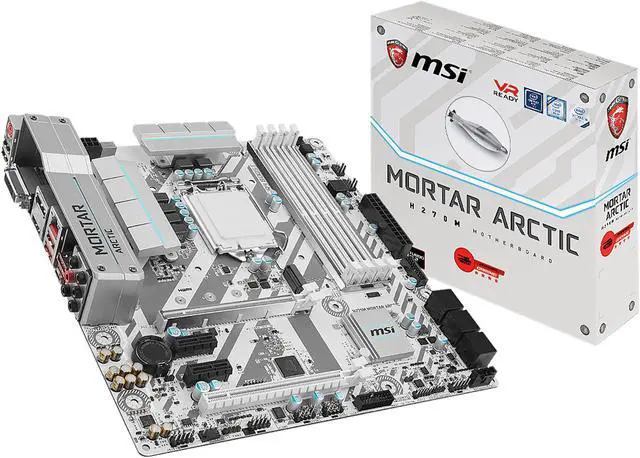

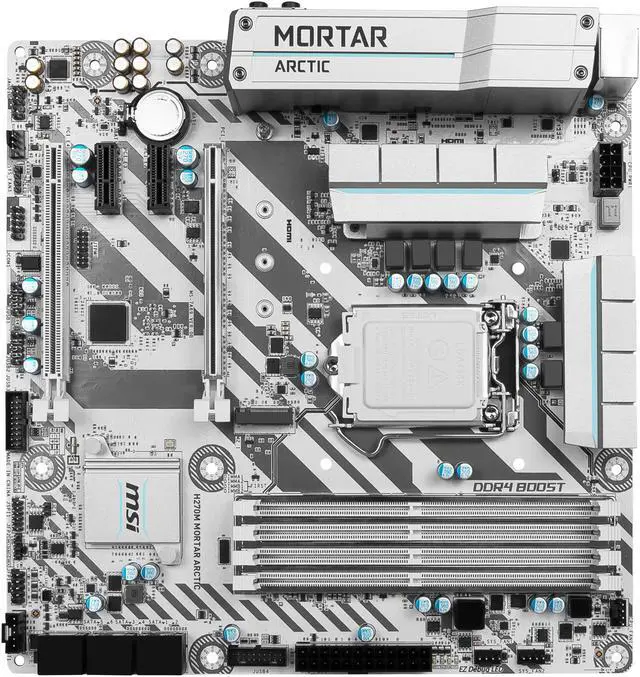

MSI H270M MORTAR ARCTIC LGA 1151 Intel H270 HDMI USB 3.1 Micro ATX Intel Motherboard
- Intel H270
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- 7th Gen processors support DDR4 2400/ 2133
- 6th Gen processors support DDR4 2133
Learn more about the MSI H270M MORTAR ARCTIC
| Brand | MSI |
|---|---|
| Model | H270M MORTAR ARCTIC |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Supported CPU Technologies | * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel H270 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | 7th Gen processors support DDR4 2400/ 2133 6th Gen processors support DDR4 2133 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCIe 3.0 x16 slots (support x16/x4 mode) |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s ports* * The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot. |
|---|---|
| M.2 | 1 x M.2 slot (Key M) - Support up to PCIe 3.0 x4 and SATA 6Gb/s - Supports 2242/ 2260 /2280/ 22110 storage devices - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card ** - Intel Optane Memory Ready ** The Turbo U.2 Host Card is not included, please purchase separately. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 1 Type-C / 2 x USB 2.0/1.1 / 3 x USB 3.1 Gen 1 Type-A |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 3 x USB 3.1 Gen1 Type-A ports 1 x USB 3.1 Gen1 Type-C port |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Serial port connector 1 x RGB LED connector 1 x TPM module connector 1 x TBT connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-2400 Memory (Max.) DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost VR Ready: Best virtual reality game experience without latency GAMING LEDs: Ambient LED lights for an awesome look & feel Lightning Fast Game experience: Turbo M.2 with Steel Armor, Intel Optane Memory Ready Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience GAMING LAN with LAN Protect, powered by Intel : The best online gaming experience with lowest latency and bandwidth management Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click In-Game Weapons: GAMING Hotkey, X-Boost, Xsplit Gamecaster EZ Debug LED: Easiest way to troubleshoot Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players |
|---|
| First Listed on Newegg | January 16, 2017 |
|---|
