Dose this MB come with a SLI brige?

I did not see an SLI bridge in the box nor did I expect to find one.

Does this motherboard have a specific way to install 2 RAM sticks? Like they go one alternate of another? Or do they both go in side by side?

Yes, but if you install them incorrectly you will receive a message when you start your computer up telling you to swap them into the correct positions. You can also check the manual that comes with it to see which slots you should use when only using 2 sticks of ram.

Where on the board are the LEDs?

There are multiple LEDs placed around this motherboard. I installed the application that controls these lights and played with them for roughly 10 minutes. There are 6 or 8 LEDs built into the board that you can control. Of course I purchased a case that does not have a window so I shut the case and went on my way. Most of the lights are around the processor and memory end of the motherboard. These are multi-colored for your entertainment. I recommend this board and a M.2 boot drive.

is this motherboard compatible with DDR5 video cards and with windows 7? Thank you

As long as the GPU fits the PCI standard, it’ll be fine. I’m booting Linux with no problem; how hard can windows seven be?—but I haven’t tried it.

Does this motherboard come with standoffs? My case doesn't have any.

I don't recall this MB coming with them. Normally the screws come with the case and sometimes pre-installed.

Will this motherboard support EVGA GeForce GTX 1050 SSC GAMING? Im new to PC building and although the graphics card says it supports PCI Express 3.0, I wanted to make sure.

Yes it will support the 1050. If you budget supports it go with the 1050ti or 1060 if you will be playing anything more than esports games

it says supports pentium for socket lga 1151 can i use a pentium until i get a coffee lake plz explain what this mean thank you?

There is a a coffee lake Pentium part, you can not use just any Pentium processor that you want.Pentium Gold G5400 or G5600.

Does it come with Direct M.2 Connections or do you have to buy a sata card for them?

It has 2 slots on the motherboard for M.2.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 1 wish list)

Get Educated

Make informed decisions with expert advice. Learn More

Main image of MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 2 of 9 - MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 3 of 9 - MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 4 of 9 - MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 5 of 9 - MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 6 of 9 - MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 7 of 9 - MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

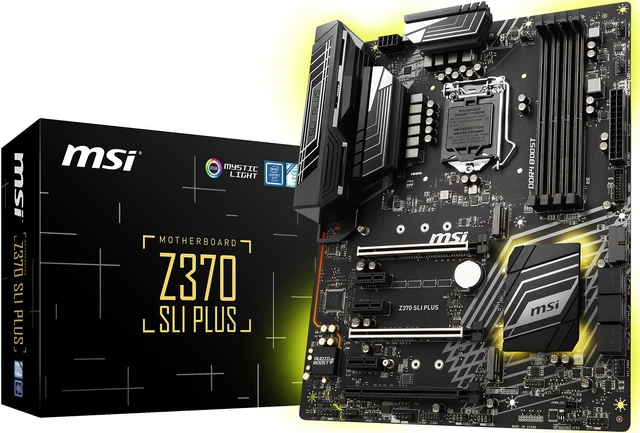

Alt view image 8 of 9 - MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Alt view image 9 of 9 - MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Shop All MSI Products

MSI Z370 SLI PLUS LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

(345) Write a Review

Intel Z370
Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151
* Not backward compatible with older generation of LGA 1151 CPUs
DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (345)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Z370 SLI PLUS
MAXIMUM CLASS

1	DVI-D
2	Lightning USB 3.1 Gen2
3	HDMI
4	4x USB 3.1 Gen1
5	Golden audio jacks with S/PDIF

6	Professional I/O cover Stunning looks, protecting the I/O ports
7	Heavy plated heatsinks Leading heatsinks design, for maximum cooling
8	Mystic Light RGB heatsink Change up to 16.8 million colors & 17 LED effects
9	DDR4 Boost Optimized traces and isolated memory circuitry
10	NPCI-E Steel Armor Protecting VGA cards against bending and EMI
11	Twin Turbo M.2 NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
12	Audio Boost 4 with amplifier Optimized audio using the best components, 120 dB SNR 32-bit

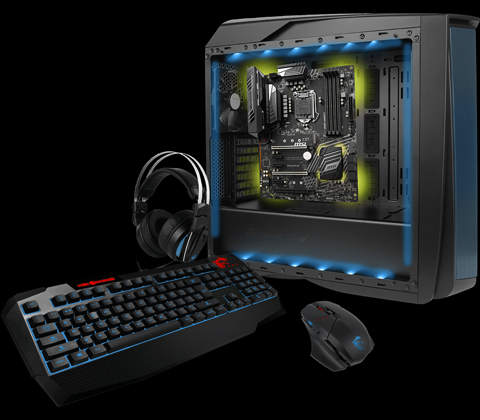

Customize your Rig

Personalize your PC with 7 colors and 5 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.

Works with certified Mystic Light Sync products:
Z370

DESIGNED FOR UNLIMITED PERFORMANCE

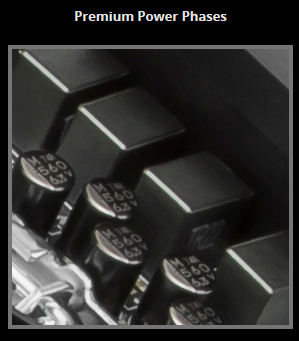

MSI Z370 motherboards are optimized to maximize the performance on the 8th Gen Intel® processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

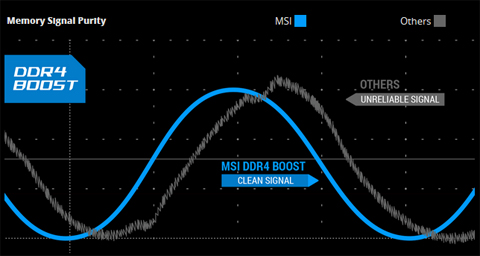

Unmatched Memory Performance

MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.

Best compatibility

Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

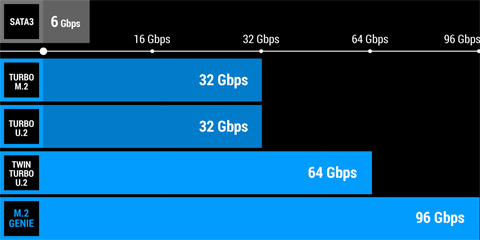

Extreme storage performance: 2 x Turbo M.2

Enjoy a blazing fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection! You can even mix up devices and set up RAID easily using M.2 Genie, for even better performance.

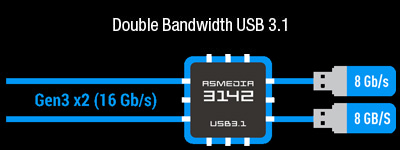

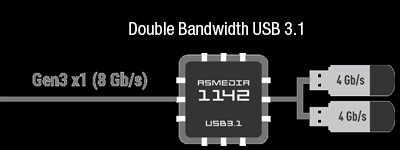

Maximize your USB Device performance

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

Professionbal Sound quality

Like a dedicated sound card Audio Boost offers a HD audio processor, a dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest HI-FI audio signal.

Immerse yourself into Virtual Worlds

Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.

Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second! Personalize your PC with 16.8 million colors & 17 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Supports 8th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1151 * Not backward compatible with older generation of LGA 1151 CPUs

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	3 x PCI Express 3.0 x16
PCI Express x1	3 x PCIe 3.0 x1 slots

Serial ATA (SATA)	6 x SATA 6Gb/s ports* * The SATA1, SATA5 and SATA6 ports will become unavailable with some conditions of M.2 devices. Please refer the manual for M.2 & SATA combination table.
M.2	2 x M.2 slots (Key M) - Supports up to PCIe 3.0 x4 and SATA 6Gb/s - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card - M2_1 slot supports 2242/2260/2280/22110 storage devices - M2_2 slot supports 2242/2260/2280 storage devices - Supports Intel Optane Memory Ready for all M.2 slots The Turbo U.2 Host Card is not included, please purchase separately.
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels Supports S/PDIF output
