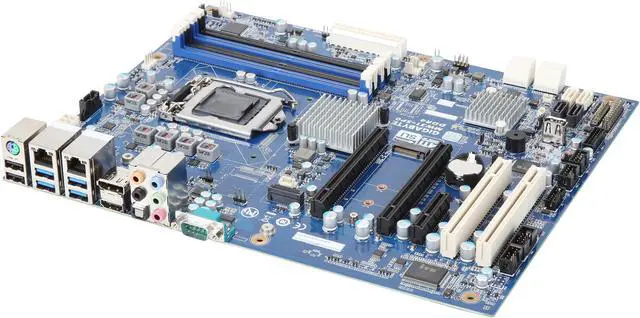

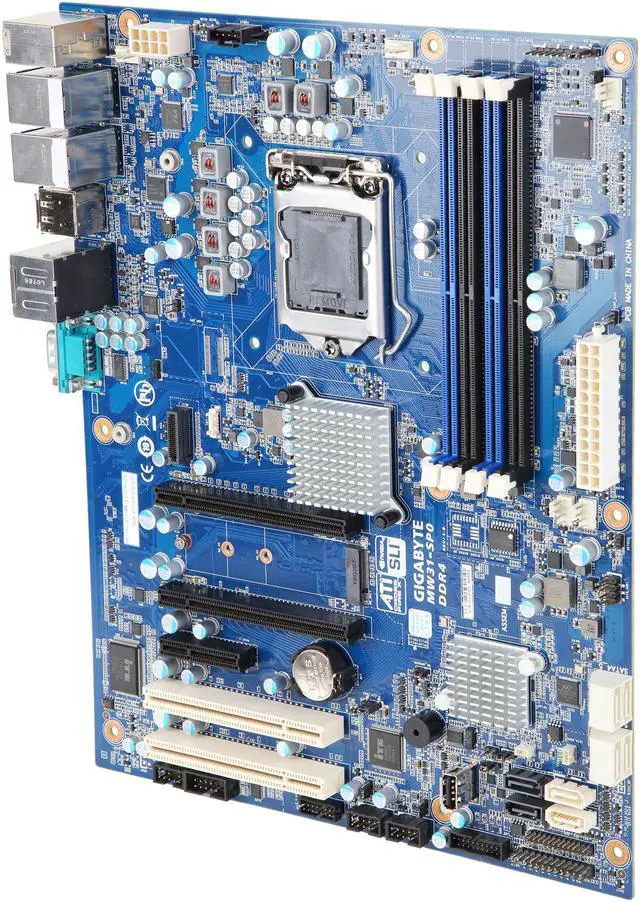

GIGABYTE MW31-SP0 ATX Server Motherboard LGA 1151 Intel C236
REFURBISHED Product Type
- LGA 1151
- Intel C236
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE MW31-SP0

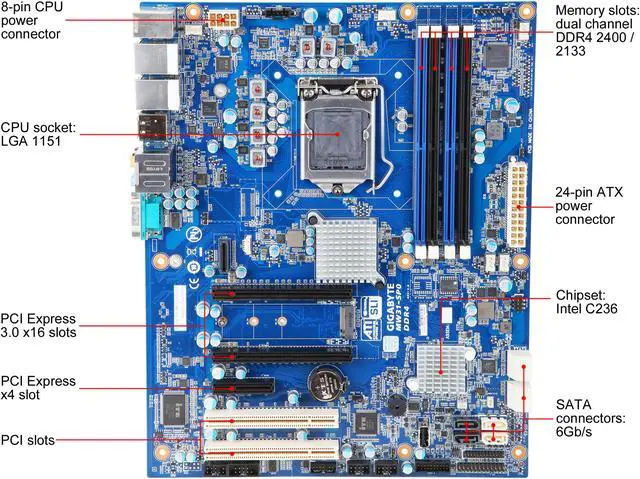

| Brand | GIGABYTE |
|---|---|
| Model | MW31-SP0 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Supports Intel Xeon processor E3-1200 V6 / V5 product family Supports 7th / 6th Gen Intel Core i3 processors, Intel Celeron processors, Intel Pentium processors |
| North Bridge | Intel C236 |
|---|
| DDR4 Standard | DDR4 2400 / 2133 MHz |
|---|---|
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 2 x PCIe x16 (Gen3 x16 bus) connectors |
|---|---|
| PCI Express x4 | 1 x PCIe x4 (Gen3 x2 bus) connector 1 x PCIe x4 (Gen3 x4 bus) mezzanine card slot |
| Other Slots | 2 x PCI connectors Support NVIDIA SLI and AMD CrossFireX technologies (2-way) 1 x M.2 (Gen3 x4 bus) slot: - Socket 3 - M-key - Max. width: 22mm - Max. length: 80mm |
| SATA | 4 x SATA III 6 Gb/s ports 4 x SATA III 6 Gb/s ports (Marvell 9230 controller) |
|---|---|
| SATA RAID | Intel SATA RAID 0 / 1 / 10 / 5 Marvell SATA RAID 0 / 1 / 10 |
| Audio Chipset | Realtek ALC887 |
|---|
| Number of LAN | 2 x GbE LAN ports (Intel I210 + I219LM) |
|---|---|
| LAN Chipset | Intel I210 |
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I219-LM |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |

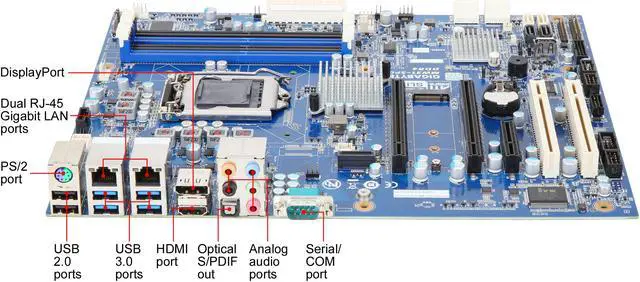

| PS/2 | 1 |
|---|---|
| RJ45 | 2 x RJ45 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 4 x USB 3.0 |
| Audio Ports | 5 x Audio jacks |
| Features | ATX form factor Intel Xeon processors E3-1200 V6 / V5 product family Intel C236 4 x UDIMM slots, DDR4 2400 MHz Supports 2-Way NVIDIA SLI / AMD CrossFireX 2 x GbE LAN ports (Intel I210 + I219) 1 x M.2 slot M-key 8 x SATA III 6Gb/s |
|---|
| Form Factor | ATX |
|---|---|

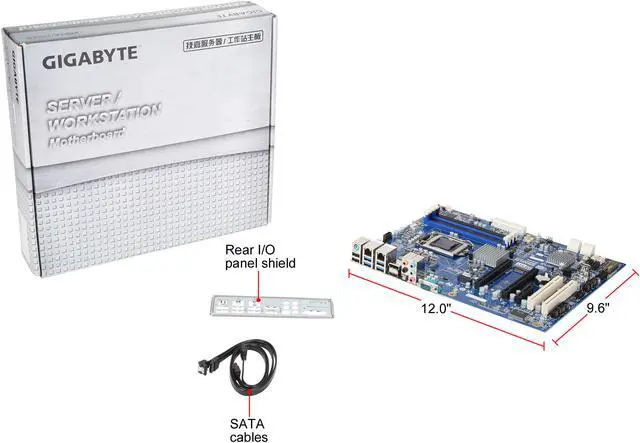

| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | November 20, 2018 |
|---|
