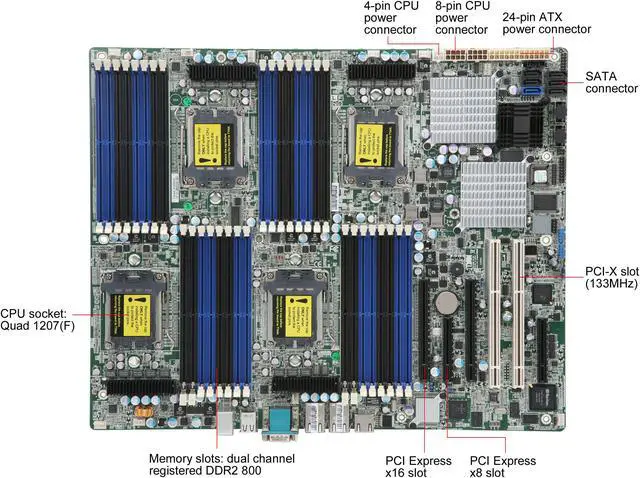

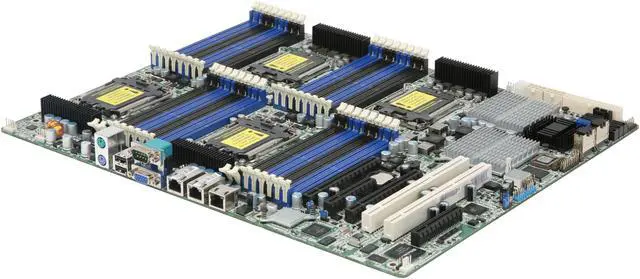

TYAN S4989WG2NR-SI MEB Server Motherboard Quad 1207(F) NVIDIA nForce Professional 3600 + 3050 DDR2 800 - OEM

Be the first to review this product...
  • Quad 1207(F)
  • NVIDIA nForce Professional 3600 + 3050
  • 32 x 240Pin
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the TYAN S4989WG2NR-SI

Model
Brand TYAN
Model S4989WG2NR-SI
Supported CPU
CPU Socket Type Quad 1207(F)
CPU Type Quad AMD 45nm Quad-Core Opteron 8300/8400 Series Processors
Chipsets
North Bridge NVIDIA nForce Professional 3600 + 3050
Memory
Number of DDR2 Slots 32 x 240Pin
DDR2 Standard DDR2 800
Maximum Memory Supported 256GB
Channel Supported Dual Channel
ECC Supported Yes
Registered Yes
Expansion Slots
PCI Express x16 1 x PCI-E x16 slot
1 x PCI-E x16 slot (w/ x8 link)
PCI Express x8 2 x PCI Express x8
PCI-X Slots (64-bit 133MHz) 2
Storage Devices
SATA 6 x SATA 3.0Gb/s
SATA RAID RAID 0/1/0+1/5 (NV RAID)
Onboard Video
Onboard Video Chipset XGI Z9s
Onboard LAN
LAN Chipset Intel 82571EB
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel 82571EB
Second LAN Speed 10/100/1000Mbps
Third LAN Chipset Davicom DM9161
Third LAN Speed 10/100Mbps
Max LAN Speed 2 x 1Gbps + 100Mbps

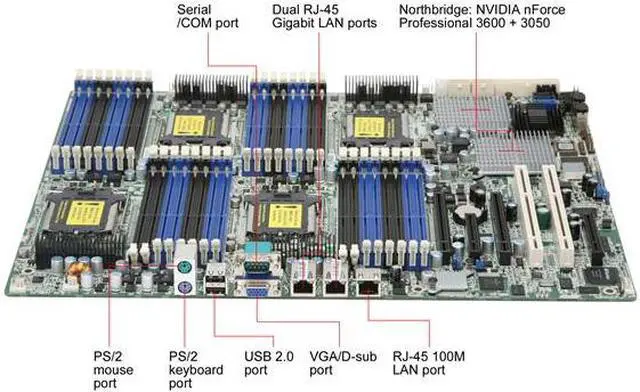

Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 2 x USB 2.0
Dimensions
Form Factor MEB
Dimensions (W x L) 16.2" x 13"
Additional Information
First Listed on Newegg September 11, 2009
