ASRock Z390 Taichi Ultimate LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Z390
  • Supports 9th and 8th Gen Intel Core processors (Socket 1151)
  • * Not backward compatible with older generation of LGA 1151 CPUs
  • On board LAN support 10Gbps + Dual 10/100/1000Mbps
  • DDR4 4200+(OC)*/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133
  • * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
Z390 Z390

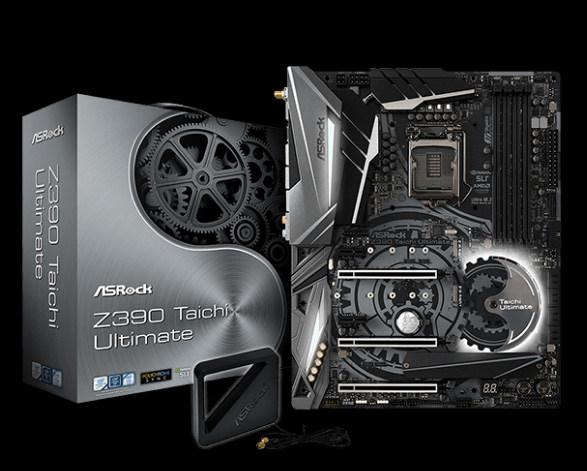

Z390 Taichi Ultimate
  • Supports 9th and 8th Gen Intel Core processors (Socket 1151)
  • AQUANTIA 10 Gigabit LAN, Dual Intel Gigabit LAN
  • IR Digital PWM, 12 Power Phase design
  • Supports DDR4 4200+(OC)
  • 3 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • NVIDIA Quad SLI, AMD 3-Way CrossFireX
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Purity Sound 4 & DTS Connect
  • 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 5 USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-C, 3 Rear Type-A)
  • 8 USB 3.1 Gen1 (4 Front, 4 Rear)
  • Intel 2T2R Dual Band 802.11ac WiFi (2.4/5GHz), supports up to 1.73Gbps wireless network and BT v5.0
  • ASRock Polychrome SYNC
  • Hyper BCLK Engine II
Z390
  1. 2T2R Dual Band 802.11ac WiFi
  2. AQUANTIA 10Gb/s LAN
  3. Dual Intel Gigabit LAN(I219V + I211AT)
  4. Gold Audio Jack
  5. Purity Sound 4
  1. IR Digital PWM
    12 Power Phase Design
    Premium 60A Power Choke
    Dual-Stack MOSFET (DSM)
    Combo Caps
  2. Intel LGA 1151 Socket
    Supports 9th and 8th Gen Intel Core Processors
  3. PCI-E Steel Slots
    Supports 2-Ways SLI/3-WayCFX
  4. 3 x Ultra M.2 Socket
    (PCIe Gen3 x4 & SATA3)
  5. Nichicon 12K Black Caps
  6. USB 3.1 Gen2 10Gb/s Type-C Header
  7. 8 SATA3 6Gb/s
  8. Full Coverage M.2 Heatsink
  9. RGB LED + Addressable RBG LED Headers
z390

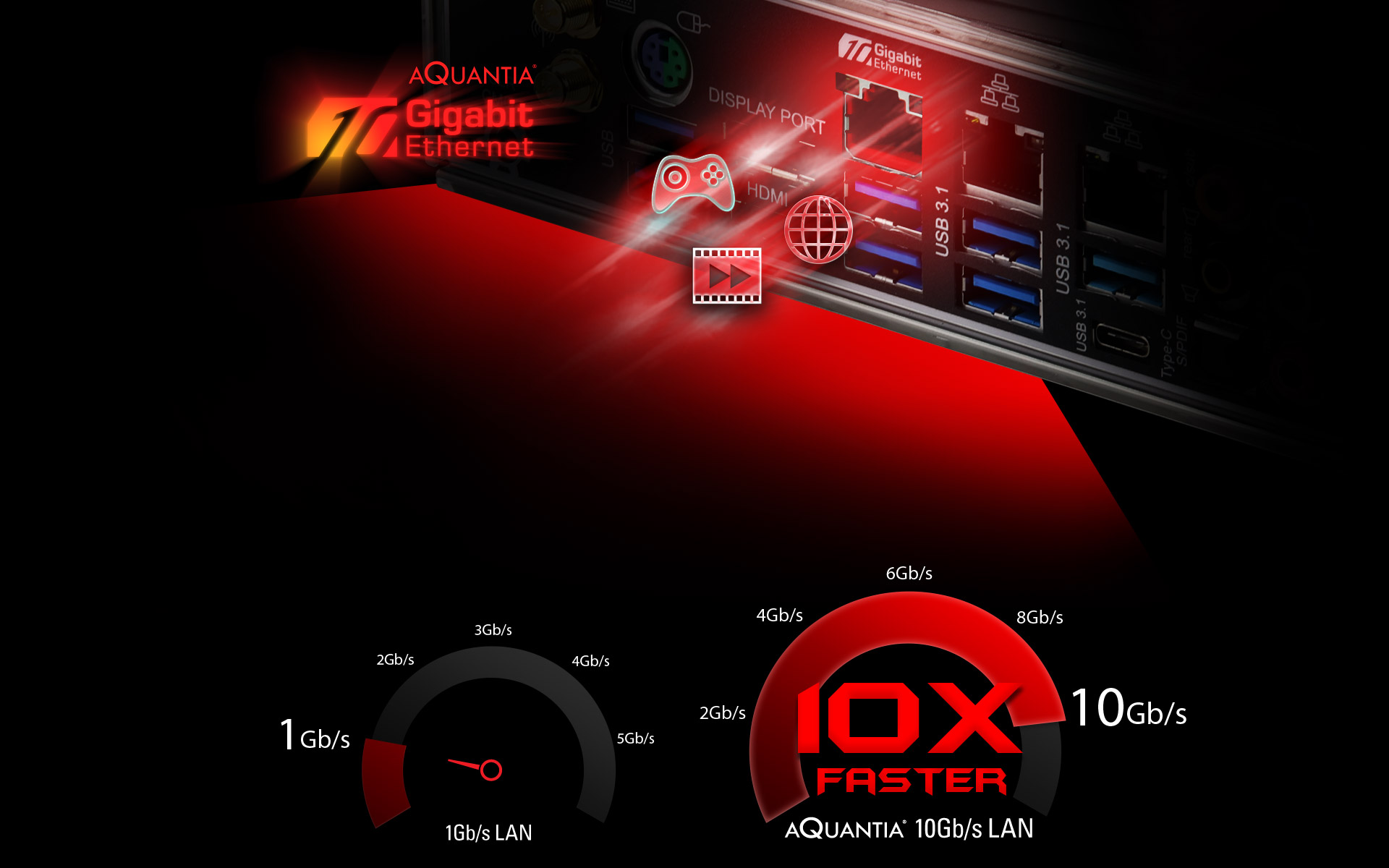

AQUANTIA 10Gb/s BASE-T Ethernet

The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.

z390
Fully Supports 9th Gen Intel Core Processors

The motherboard is designed to make the best out of 9th Generation Intel Core Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.

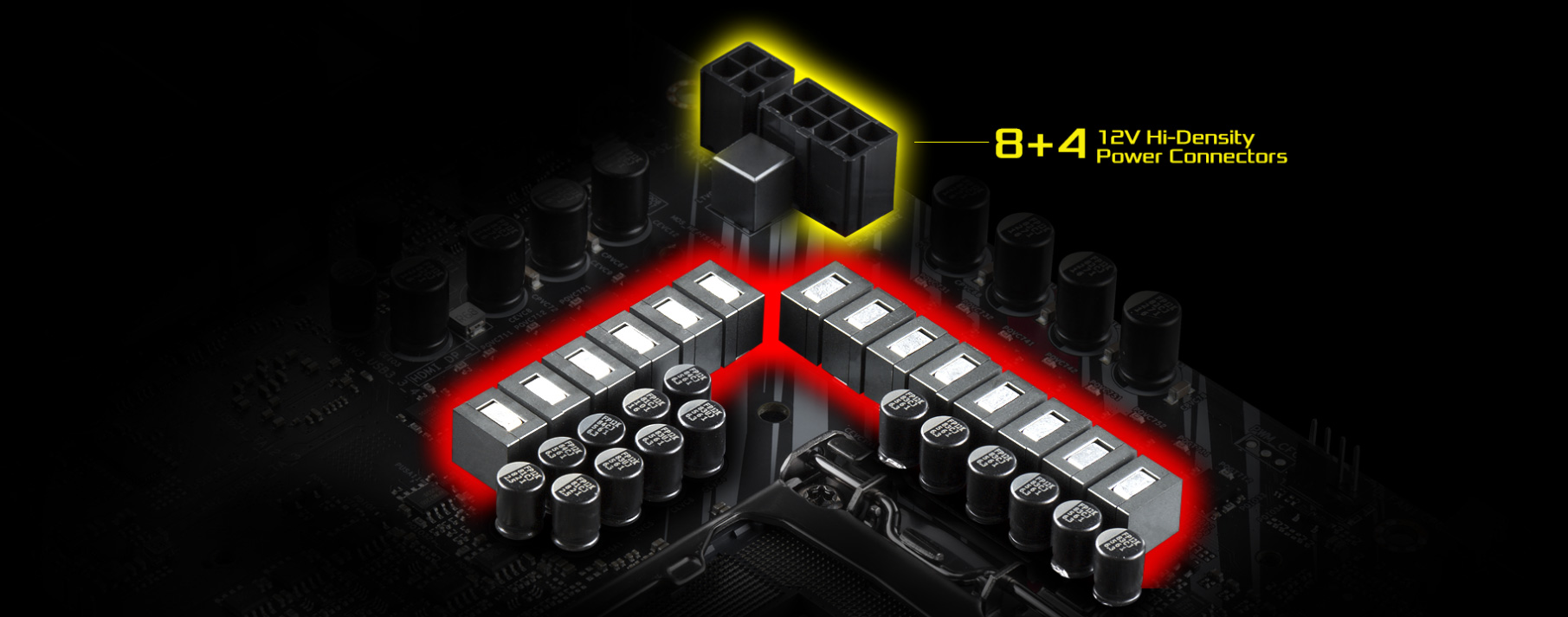

12 POWER PHASE DESIGN (IR DIGITAL PWM)

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

z390
z390

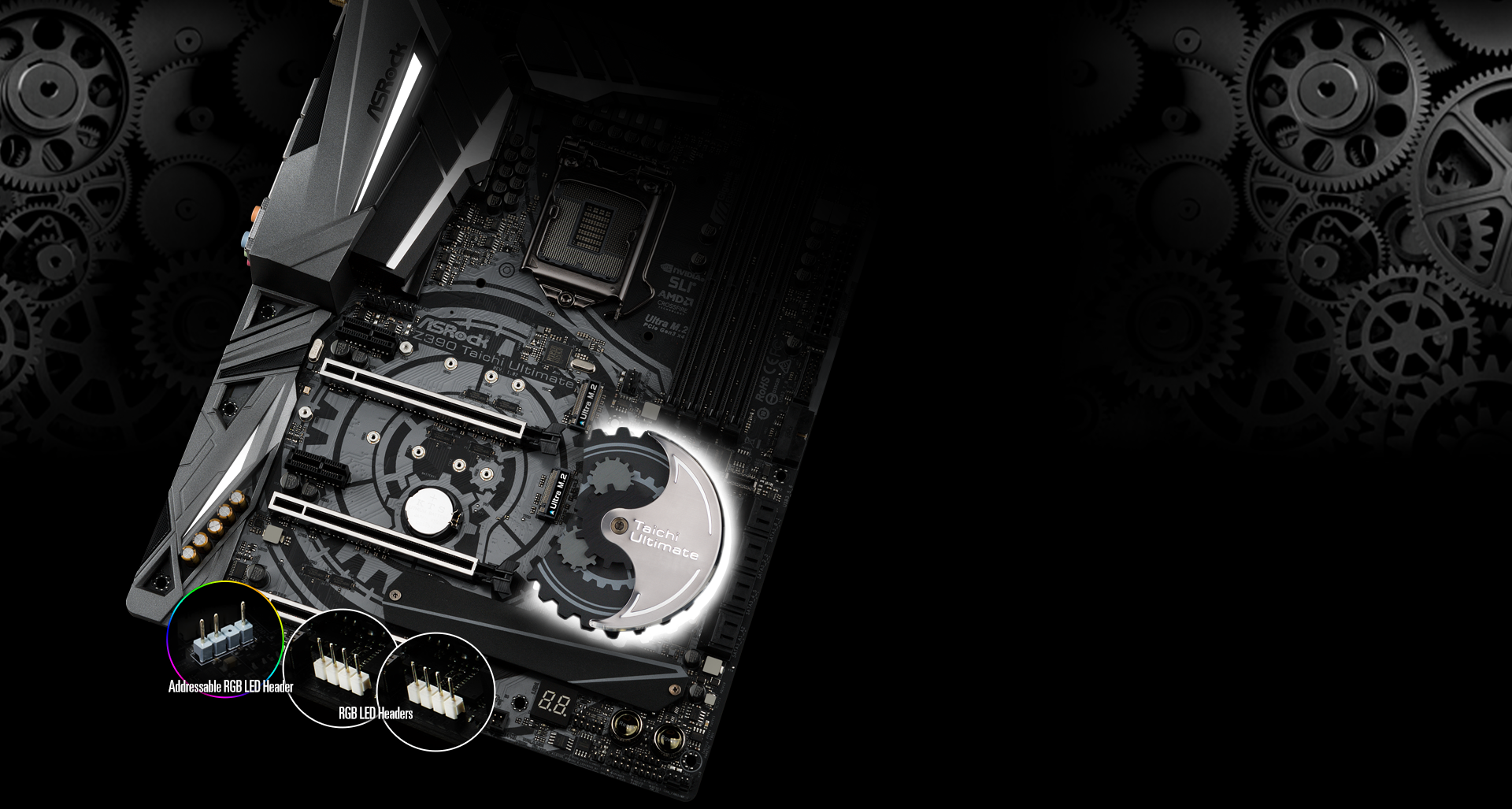

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

z390

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

z390
z390
z390

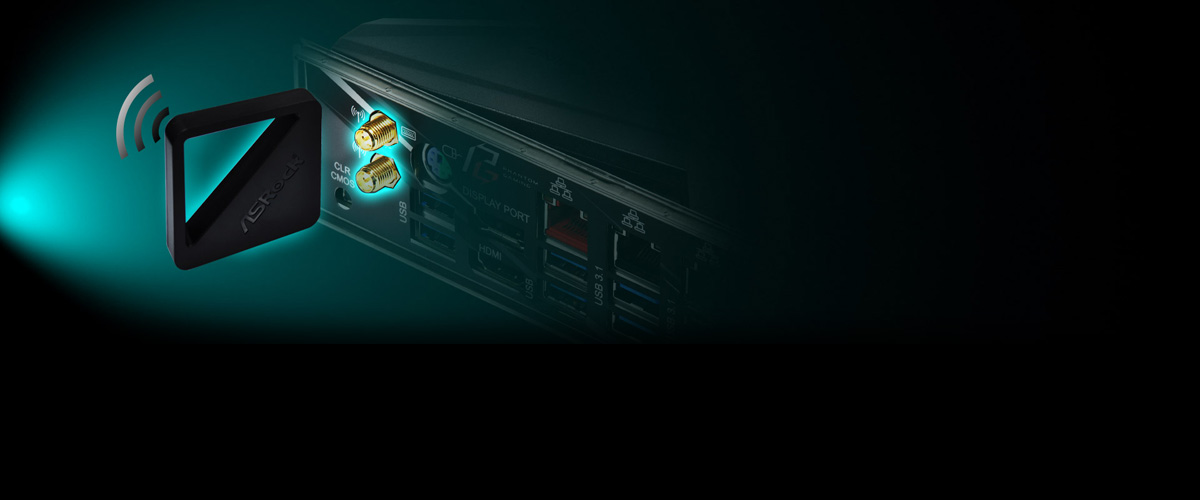

2T2R 802.11ac WiFi
Dual Band (2.4/5 GHz)

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi 2.4/5Ghz (160Mhz) module that supports up to 1.73Gbps wireless networks and Bluetooth v5.0. Experience up to 289% speed boost compared to your old WiFi!

*The doubled bandwidth 160MHz with the max. speed up to 1.73Gbps is only supported with 802.11ac Wave 2 router.

Full Coverage M.2 Heatsink

A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.

z390
z390

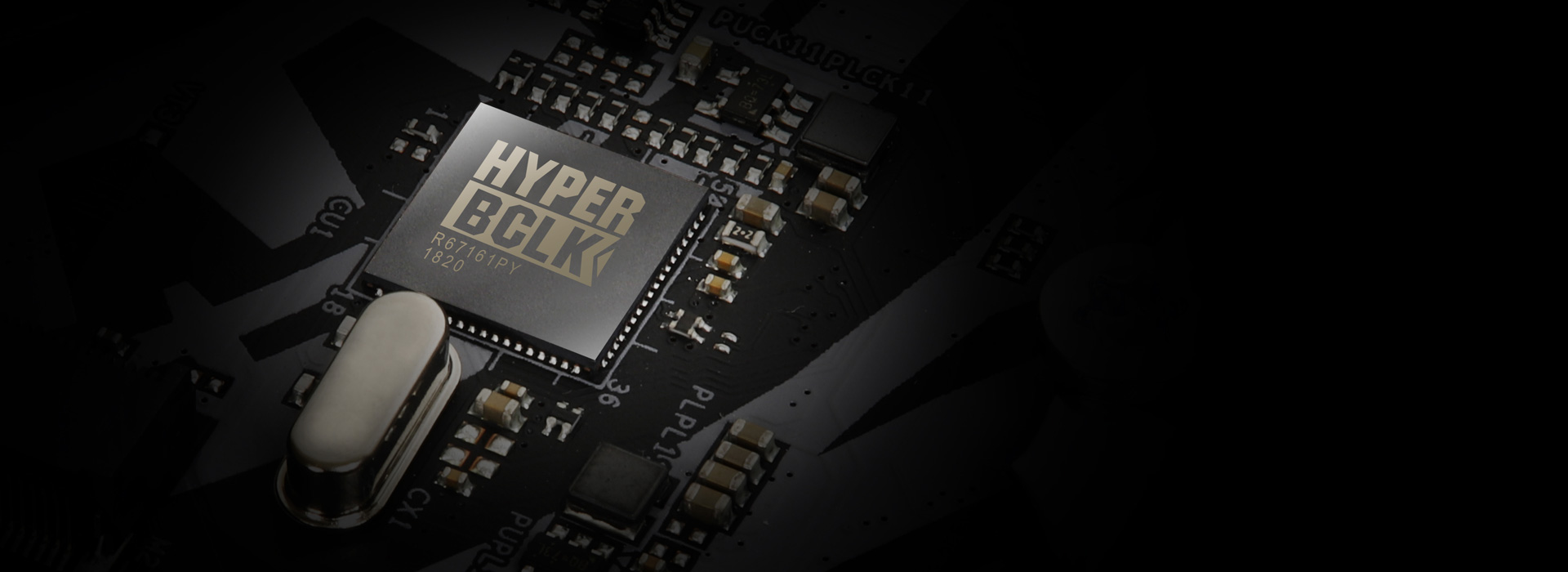

Hyper BCLK Engine II

An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.

Purity Sound 4

It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

z390
z390

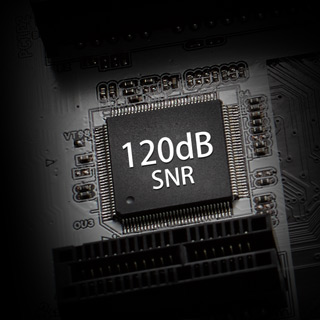

120dB SNR DAC

z390

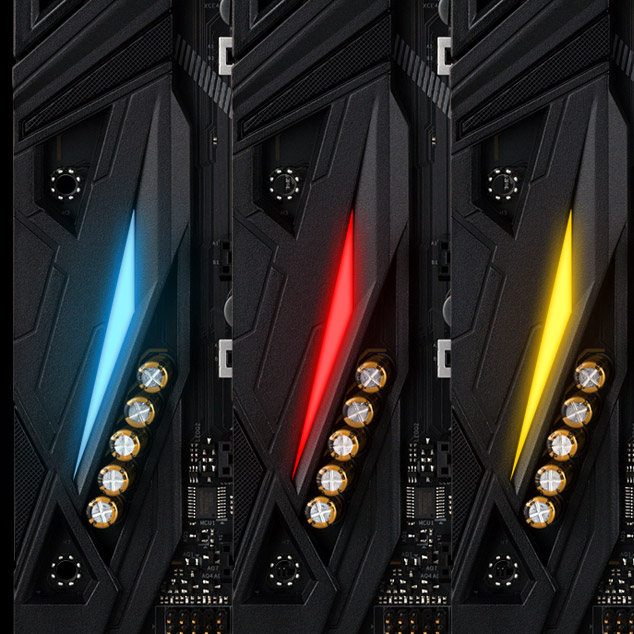

RGB LED

z390

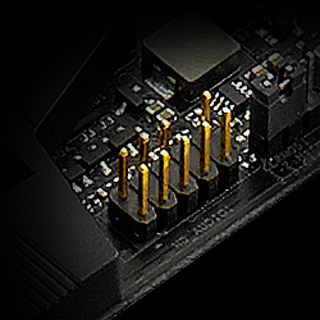

Gold Audio connector

z390

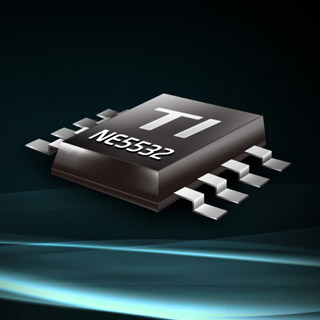

TI NE5532 Premium Headset Amplifier

z390

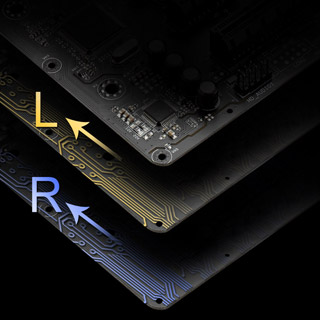

Individual PCB Layers for R/L Audio Channel

z390

Impedance Sensing on Front Out port

z390

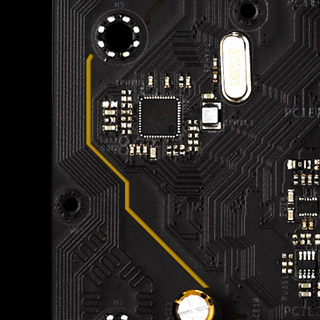

PCB Isolate Shielding

z390

Pure Power-In

z390

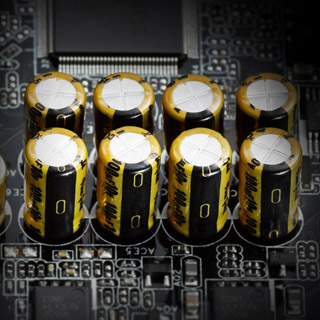

Nichicon Fine Gold Series Audio Caps

z390

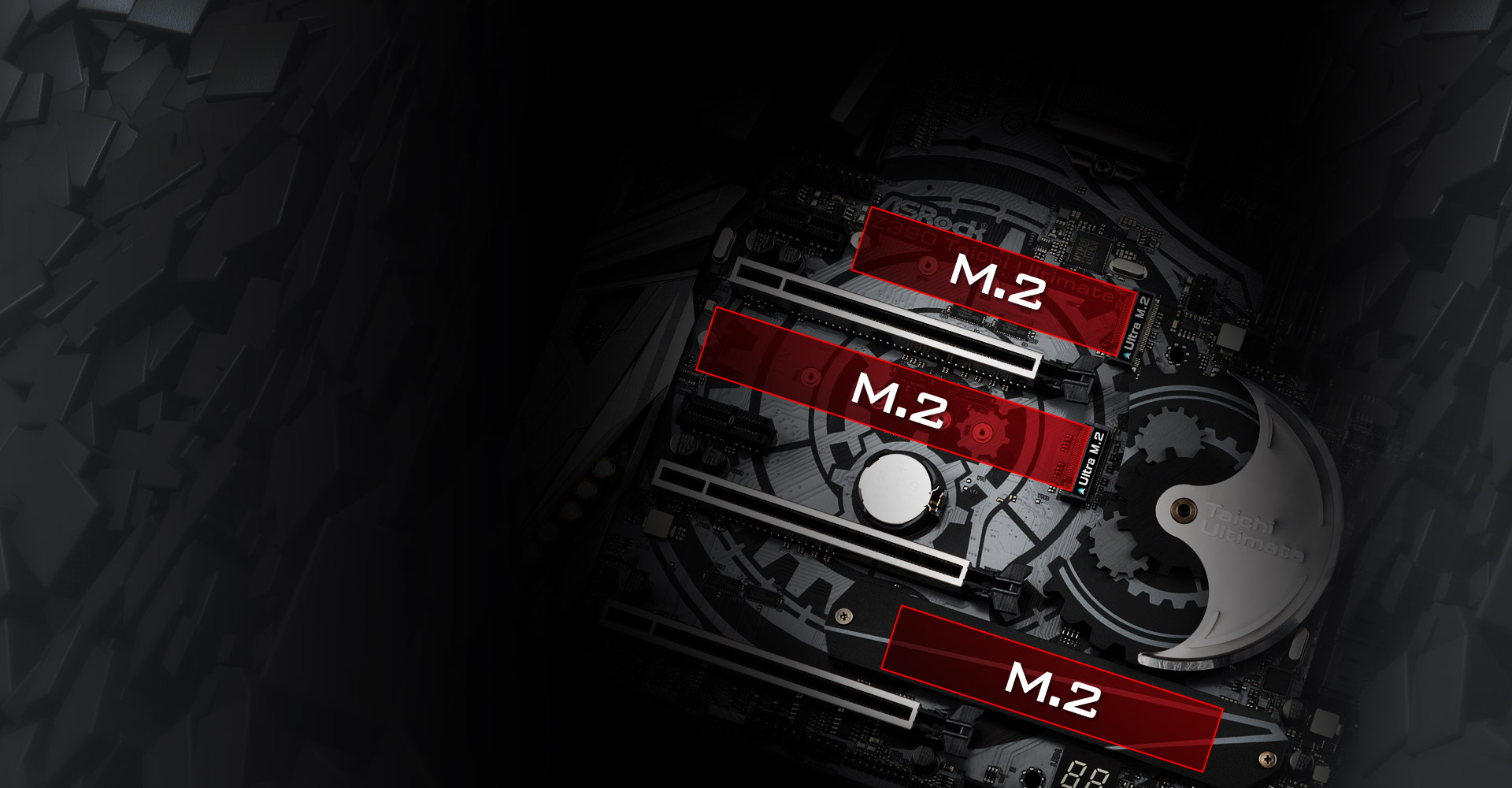

Triple Ultra M.2

Triple of the world's fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.

*Performance result may vary with a different configuration.

z390

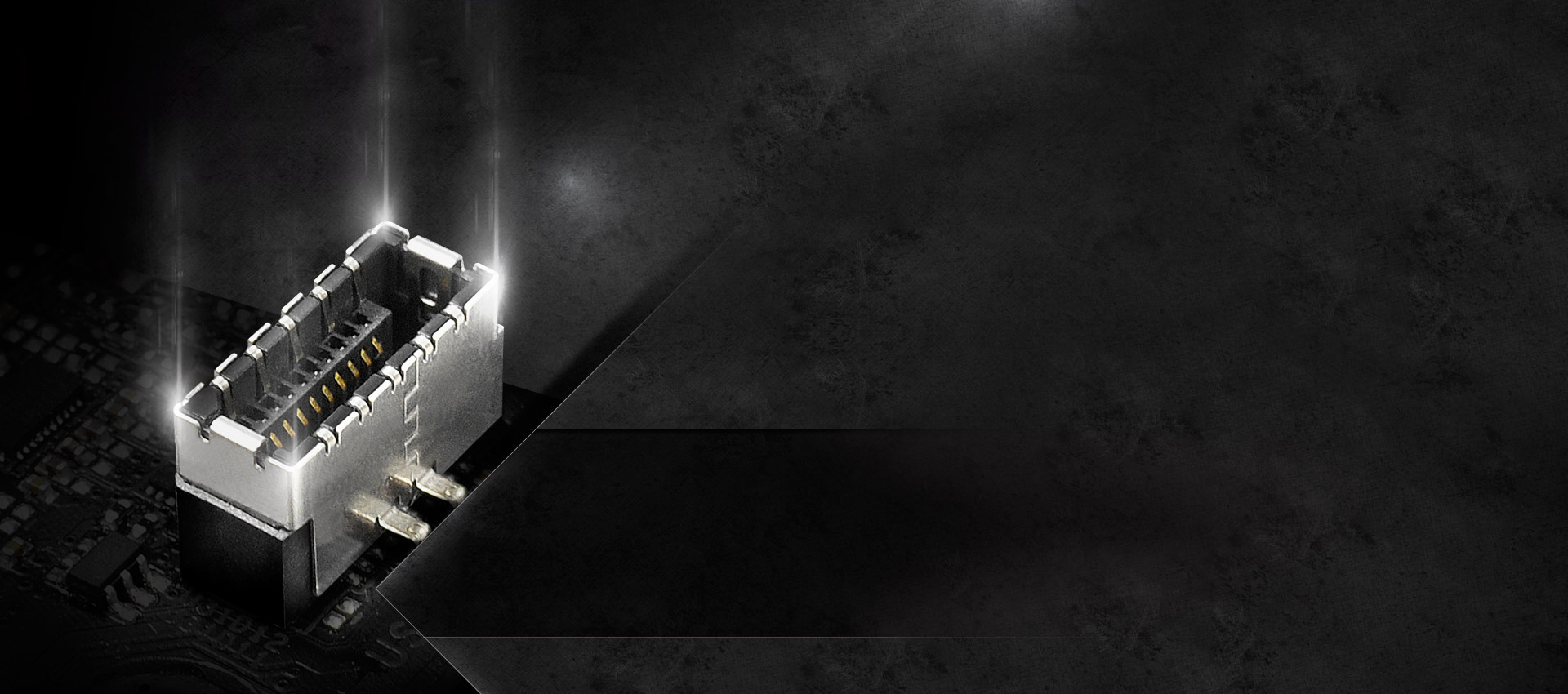

Front USB 3.1 Gen2 Type-C

Front USB 3.1 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

z390

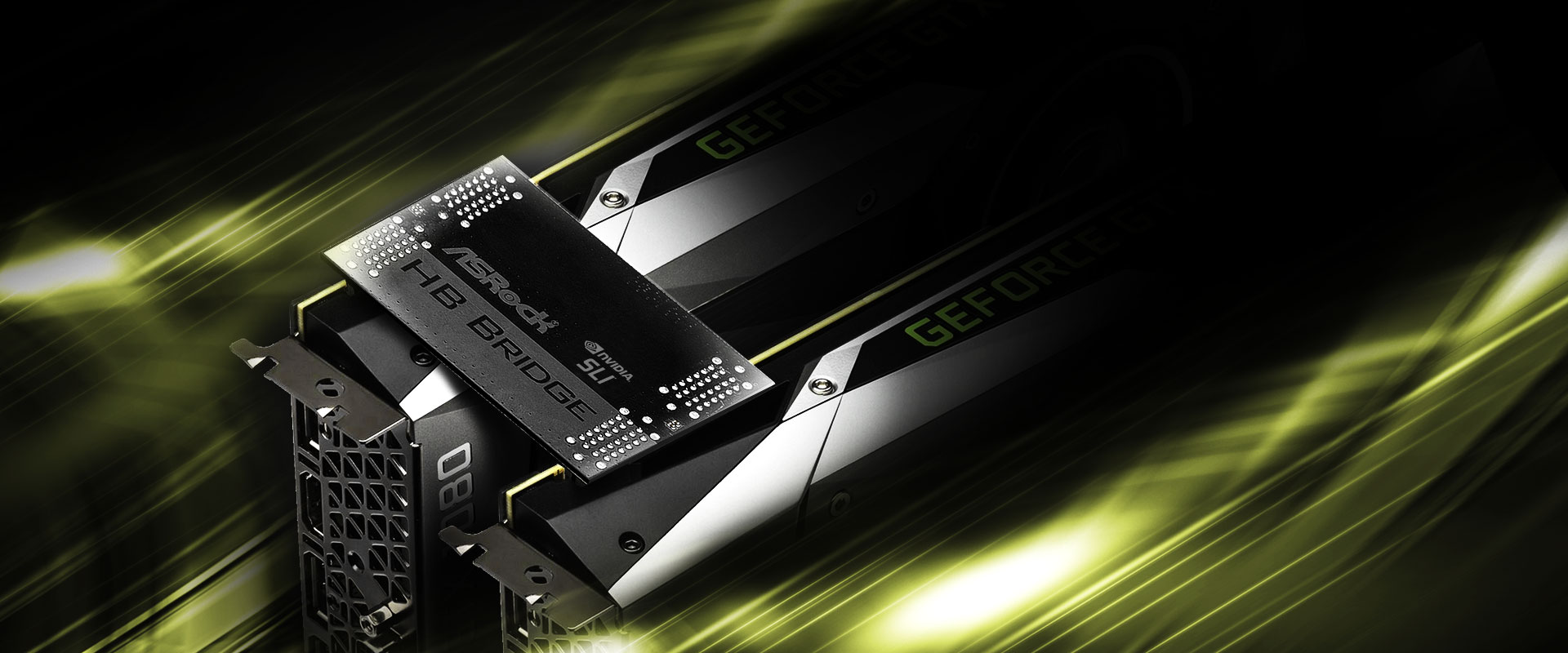

SLI HB Bridge Free Bundled

The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.

z390

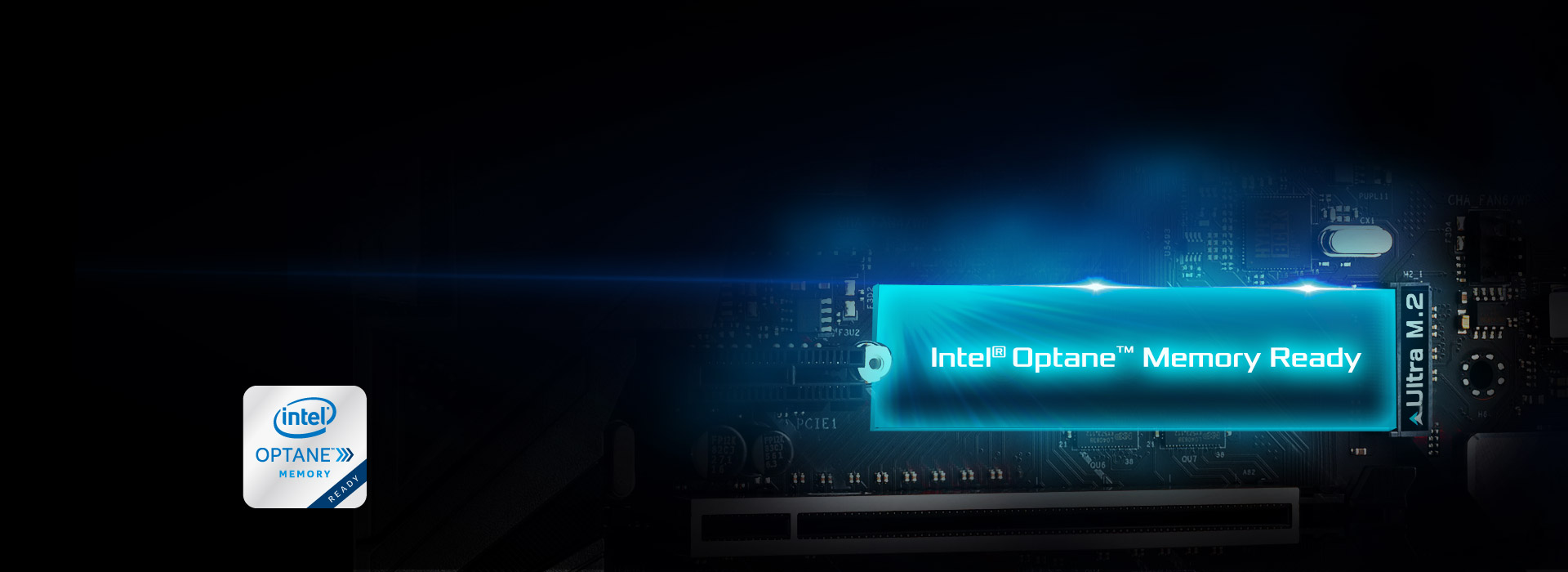

Intel Optane Memory Ready

Supports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness.

z390

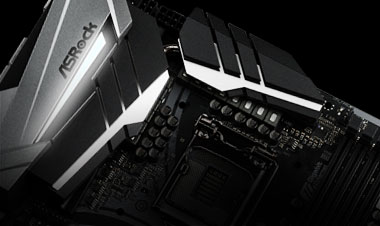

XXL Aluminum Alloy Heatsink
z390

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

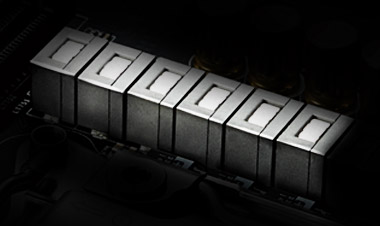

Premium 60A Power Choke
z390

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

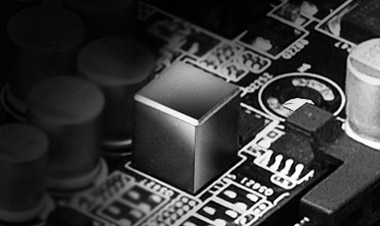

Premium Memory Alloy Choke
z390

Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

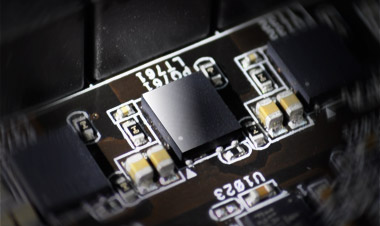

Dual-Stack MOSFET (DSM)
z390

Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mO, so the power supply for the CPU Vcore is more efficient.

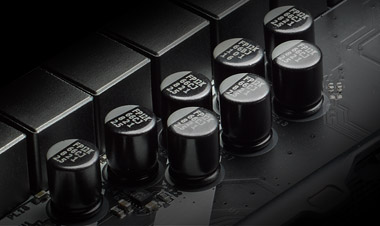

Combo Caps
z390

A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

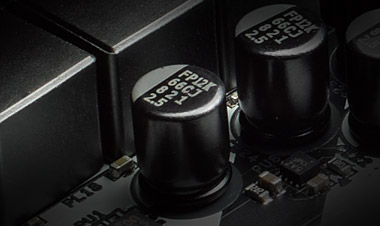

Nichicon 12K Black Caps
z390

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

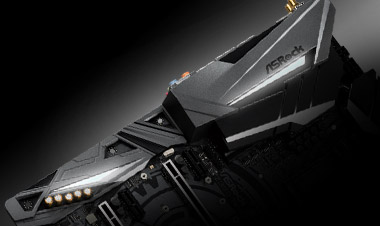

I/O Armor
z390

A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

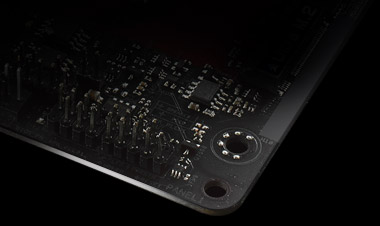

Matte Black PCB
z390

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

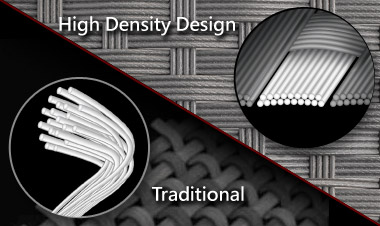

High Density Glass Fabric PCB
z390

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

z390

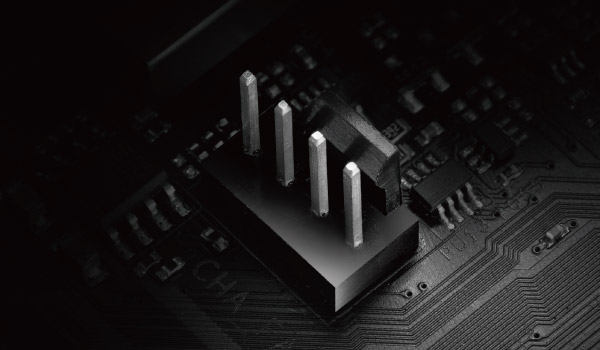

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

z390
Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

z390
Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.


Learn more about the ASRock Z390 Taichi Ultimate

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
  • We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1, 2018 and December 24, 2018 you will have until January 31, 2019 to return your product. There's nothing additional that you have to do!
Ownership: 1 week to 1 month
Verified Owner
4/ 5
My 4th Asrock motherboard

Pros: My favorite motherboard brand, and this one did not disappoint. (My 4th Asrock MB) It has every feature you could ask for and worked perfectly the first time I booted it with an i9, 9900k installed. Asrock provides as good or better quality motherboards at significantly less cost than their competitors.

Cons: Why is a 4 pin power connector needed? Though the board works fine without it, I thought I'd better hook it up even though my 1,000 watt PS has no 4 pin connector, and I had to send away for one. If Asrock continues to require a 4 pin adopter, they should include an adopter with the motherboard.

One other thing: Because of my large hands I had to get my wife to help me hook the front panel connectors, which was a horror show since everything is black, and there are so many MB connectors so close together. Gigabyte provides a solution to this with a color coded adapter that allows you to hook up the front panel connectors outside the case, then simply place it over the connector pins on the MB. (Please take notice Asrock.)

1 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Dear Robert,

Thank you for purchase and review.
The 8 pins (4+4) 12 v CPU power is recommended to install. But 4 pins 12v CPU power is optional.
Its additional power to the CPU for OC, not certainly required.
If you have any technical or warranty inquiry in the future, please contact us at https://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: https://event.asrock.com/tsd.asp
Ownership: 1 month to 1 year
Verified Owner
5/ 5
good, stable board

Pros: -Feature rich. Many connector options and possibilities with this.
-Receiving support updates often, seems very stable with its latest BIOS
-It looks good

Cons: -No motherboard screws. I had to rely on my old motherboard's screws to install this. So far as I remember, this is the first time I've received a motherboard that didn't come with mounting hardware.
-It wasn't a perfectly stable motherboard on its release day but BIOS updates have made it rock-solid.

Other Thoughts: ASRock has been pumping out BIOS updates for this thing that keep improving it. I had it from it's earliest BIOS version (1.2 I believe) through it's latest. I encountered some problems in the older BIOS versions which included occasional system freezes, but since the version number reached 1.5 and beyond I have not encountered any issues while using this board. I can confidently recommend it in its current state.

1 out of 2 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Great board, looks awesome.

Pros: - Works (This is always a big plus with mobos as they are hit or miss)
- Good thermal and system performance
- Easy/frequent bios updates
- Looks cool

Cons: - One of the RGB lights unfortunately stopped changing colors. It's stuck on a reddish color. Not a huge deal though.

Other Thoughts: This is a great board and I am happy I went with this one. I had never tried ASRock products but always heard good things about the taichi models. To my knowledge there really isn't much difference between the ultimate and the regular taichi aside from a few non-essential features so you may be able to save yourself some cash there.

Thermal performance is great, have not had any issues with my 9900k (Stock, no oc) or 32gb ddr4 (with xmp enabled @ 3000mhz).

My system is a little bit loud due to the default fan settings of the board. There seems to be 4 levels in the bios of how you can set your system fan speeds and mine is on the 2nd. Even still they seem like they are running almost at full speed. Maybe its bugged? Not sure, but I don't mind as my case does a good job of keeping the sound in.

All in all, great board and I would not hesitate to buy it again.

1 out of 1 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
This review for ASRock review rebate program.

Pros: Excellent board for a Hackintosh

Cons: None yet

Other Thoughts: This review for ASRock review rebate program.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Did all I want

Pros: Did fine out of the box with the 9900k. I don't really over clock, etc. I just want something that works

Cons: nothing so far. Ask me in 6 months time. If it's still running fine and cool, then this has no cons from me

Other Thoughts: I have not tried overclocking and probably won't. I see lots of overclock potential here, so if you like doing this, the Mobo seems to do that.

2 out of 3 people found this review helpful. Did you?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Solid and reliable.

Pros: Got this specifically for the Z390 chipset for the overclock support, USB 3.1, and ample M.2 slots.

Cons: So far, no problems.

Other Thoughts: This review for ASRock review rebate program.

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
4/ 5
Lots of Potential

Pros: There's a lot of ports. and expansion slots. I'll write a better review as the year goes by. This is more computer than I can every hope to need. I'm hoping to us Fedora Linux on this one. I'll let you know.

Cons: It was shipped with a few lose parts. But there were extra screws to tighten things down.

Other Thoughts: I'll let you know how it goes as the year goes by. Right now it has lots of potential. I am really happy with how many expansion slots it has. And I can put the latest processor in it and lots of ram. Hoping it does well with Fedora.

0 out of 2 people found this review helpful. Did you?
2/ 5
Hampered By The One Key Feature I Need The Most

Pros: Layout is good
Features are fine
LEDs are low-key
Quality seems good (everything but the 10Gb nic)

Cons: The one feature I need to work most is the 10Gb ethernet port. It doesn't hardly work at all.

Other Thoughts: I installed all the components and had zero issues. It boots quickly, it runs my games, and without the only con, I would rate this five stars in a heartbeat. After installing all my apps I then randomly decided to try one other test before stuffing the computer into its final home in the basement; I decided to do a file transfer over the Aquantia 10Gb port, more to just make sure I hadn't forgotten to install that driver. It should be noted that all of my initial setup and testing was connecting the 10Gb port to my 1Gb network.

Within seconds of starting the transfer test while connected to my 10Gb home network, the copy stopped and I received a message that said the network share couldn't be found. Somewhat confused I got up off the couch and looked at the back of the PC where I expected to see the network lights blinking away. They were both off. I pulled the cable out, plugged it back in, nothing. Frustrated, I rebooted the PC. The lights came back on.

After booting back up I opened computer management and found three very unfortunate errors in this order:
"Aquantia AQtion 10Gbit Network Adapter: Hardware temperature is high" with event ID 20 and source aqnic
"Aquantia AQtion 10Gbit Network Adapter: Network link is lost" with event ID 14 and the source aqnic.
"Aquantia AQtion Network Adapter has overheated. Please reboot to re-establish connection." <-paraphrasing. I didn't think to capture the message exactly before totally disassembling to make sure there wasn't something about the install I had done incorrectly.

I quickly tried to repeat the errors by copying a large amount of data across the 10Gb network. I started two file transfers, achieving a network throughput of ~940MB/sec and almost instantly the network cut out and I experienced the same error again.

All that said, I'm trying to work with ASRock to at least identify what could be going on. The process of communicating with them has been slow/painful so far. I really want to use THIS board, but I'm not going to be able to if it keeps crashing and overheating on the simplest of network transfers.

NOTE: I purchased my board somewhere else but as a frequent NewEgger, I thought I'd post my thoughts here for anyone else who might find the situation useful. It could also be that I got a bad board. Time will hopefully tell. If I get this resolved I will update my rating accordingly, because it is so close to being a 5-star board to me.

5 out of 9 people found this review helpful. Did you?
Manufacturer Response:
Dear David,

We sincerely apologize for any inconvenience this may have caused you.
We do the test on Z390 Taichi Ultimate , The Aquantia 10G LAN works well with drivers installed.
Checked the event viewer, and there is no error states that the NCI has overheated.
In addition, there is a heatsink on Aquantia 10G LAN to improve the cooling.
However, the Aquantia 10G LAN can work properly without rebooting the system.

If you have any technical support inquiry, please contact us at http://event.asrock.com/tsd.asp
We will assist you shortly.

Thank you

ASRock Support
Tech Support Email: http://event.asrock.com/tsd.asp
ICON Loading...
  • Add to Wish List
Selected Items

Best Sellers

  • SpicyBomb

    146 (90% Positive)

    Sold and Shipped by: SpicyBomb Email This Seller
    Ask SpicyBomb about:
    • ASRock Z390 Taichi Ultimate LGA 1151 (300 Series) Intel Z390 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard
    • We won't share your email with anybody. We'll only use your
      email to contact you
    • Submit

    Ships from United States.
    On-Time
    Delivery
    97.10%
    Product
    Accuracy
    97.10%
    Customer Service
    SATISFACTION
    94.87%

    View All Seller's Reviews

Are you an E-Blast Insider?

Subscribe Newegg e-Blast
PayPal
Shop without retyping payment details. Secure shopping made faster.
Check out with PayPal.
Price Available at Checkout
Why can’t we show you details of this product?

Some manufacturers place restrictions on how details of their products may be communicated.

If the Adobe Reader does not appear when you click on a link for a PDF file, you can download Adobe Reader from the Adobe web site.

Your Personal Data

Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.

Your Personal Data

Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.

Your Personal Data

To use this third-party content we need your approval to share your data with them. Here are all the details about Newegg’s Cookie and Privacy Policies. Please accept if you wish to continue with third-party features. Thank you.
