Does Anyone know what revision the current board that newegg sells? 1.02? or 1.01? as of 9/2/2016

I put together a pfsense box a couple of weeks ago. The board rev is 1.02, and works flawlessly with pfsense. I also purchased a single 8GB DIMM, which works fine in this box, despite the 2x4GB posted limitation. Unfortunately, my board appears to have a video controller issue. I cannot get the HDMI or DP working. VGA works fine, as does the glorious IPMI console output. Error-Unrecoverable video controller failure. - Assertion

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

Get Educated

Make informed decisions with expert advice. Learn More

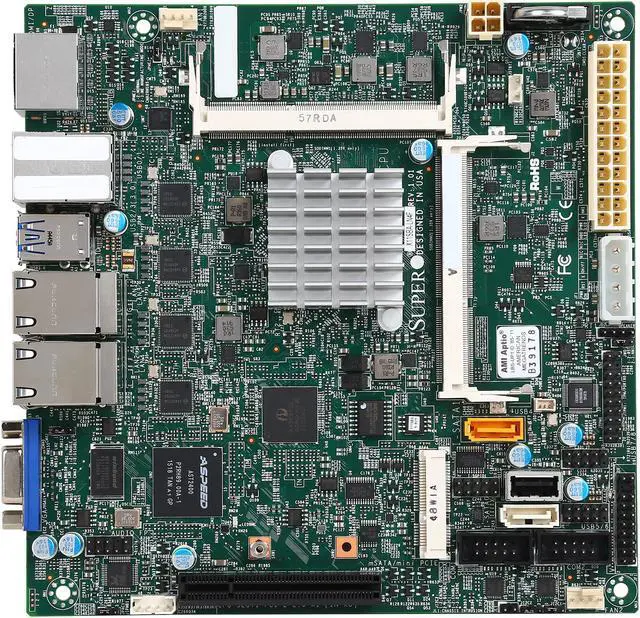

Main image of SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard Socket FCBGA1170 Intel N3700 1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

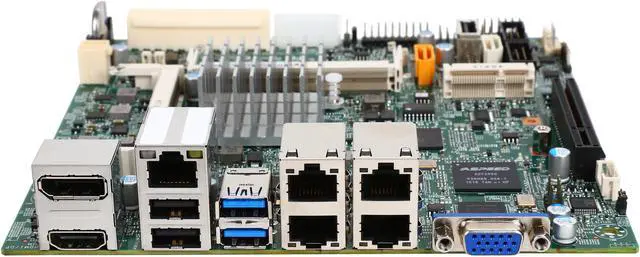

Alt view image 2 of 5 - SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard Socket FCBGA1170 Intel N3700 1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

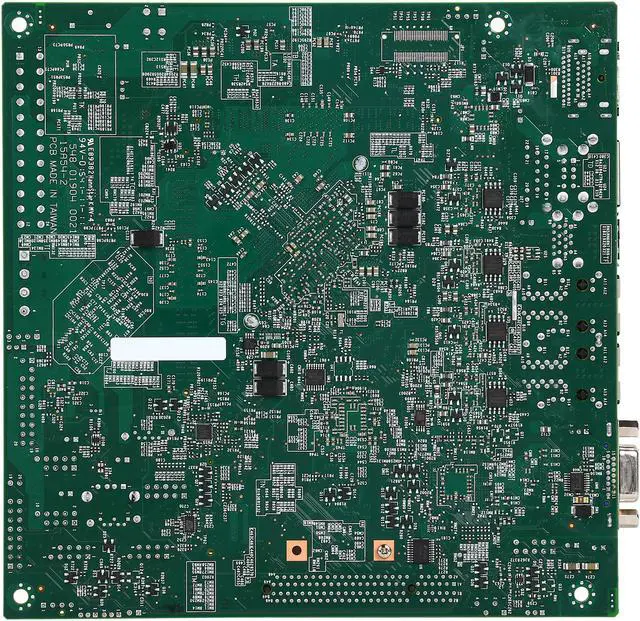

Alt view image 3 of 5 - SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard Socket FCBGA1170 Intel N3700 1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

Alt view image 4 of 5 - SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard Socket FCBGA1170 Intel N3700 1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

Alt view image 5 of 5 - SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard Socket FCBGA1170 Intel N3700 1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

Shop All Supermicro Products

SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard Socket FCBGA1170 Intel N3700 1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

(7) Write a Review

Socket FCBGA1170
Intel N3700
2 x 204pin

Overview

Specs

Reviews (7)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard

Features

Intel® Pentium® Processor N3700, Socket FCBGA 1170; CPU 6W
System-on-Chip
Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets
1x PCI-E 2.0 x1 (in x8) slot, 1x Mini-PCIe slot
HD Graphics with 1x HDMI & 1x DP (Display Port), 1x VGA for BMC
Quad GbE LAN with Intel® i210-AT
2x USB 3.0 ports (2 rear), 7x USB 2.0 (2 rear, 4 via headers, 1 Type A)
2x COM ports (2 headers)
1x SuperDOM port, TPM header
IPMI 2.0 with dedicated Port and KVM
12V DC or ATX

Specifications

Product SKUs
MBD-X11SBA-LN4F -O	X11SBA-LN4F (Retail Pack)
MBD-X11SBA-LN4F -B	X11SBA-LN4F (Bulk Pack)
Physical Stats
Form Factor	Mini-ITX
Dimensions	6.7" x 6.7" (17cm x 17cm)
Processor/Cache
CPU	Socket FCBGA1170 Intel® Pentium® Processor N3700 CPU TDP 6W 1.6-2.4GHz, 2MB
System Memory
Memory Capacity	2x 204-pin SO-DIMM slot Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel)
Memory Type	1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes	4GB, 2GB
Memory Voltage	1.35 V
On-Board Devices
Chipset	Intel® N3700 System on Chip
SATA	SATA 3.0 (6Gbps) from Intel® SoC
Network Controllers	Quad Gigabit Ethernet LAN ports with Intel® I210-AT Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	Realtek ALC888S HD Audio
Graphics	Aspeed AST2400 BMC
Input / Output
Serial ATA	2x SATA3 (6Gbps) ports
LAN	4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	2x USB 3.0 ports (rear) 7x USB 2.0 ports (2 rear, 4 via headers, 1 Type A)
DOM	1x SuperDOM (Disk on Module) port with built-in power
Video Output	1x HDMI, 1x Display Port via SoC HD Graphics VGA port is for BMC via AST2400
Serial Port/Headers	2x COM ports in headers
Others	Audio header TPM header
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features	Plug and Play (PnP) ACPI 5.0 UEFI 2.3.1 SMBIOS 2.7 DMI 2.3 USB Keyboard support RTC (Real time Clock) Wakeup 3TB HDD Support

CPU Socket Type	Socket FCBGA1170
CPU Type	Intel Pentium Processor N3700 CPU TDP 6W 1.6-2.4 GHz, 2MB

SATA	2 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

LAN Chipset	Quad GbE LAN with Intel i210-AT
LAN Speed	10/100/1000Mbps

USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard Socket FCBGA1170 Intel N3700 1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

SUPERMICRO MBD-X11SBA-LN4F-O Mini ITX Server Motherboard

Features

Specifications

Whats in the Box

Learn more about the Supermicro MBD-X11SBA-LN4F-O

Customer Reviews of the Supermicro MBD-X11SBA-LN4F-O

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Number of DDR3 Slots	2 x 204pin
DDR3 Standard	1600 / 1333 / 1066 MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
Maximum Memory Supported	8GB
Channel Supported	Dual Channel

Model
Brand	SUPERMICRO
Model	MBD-X11SBA-LN4F-O

Item#: N82E16813182988
