Item#: 9SIA5EM5VR8727

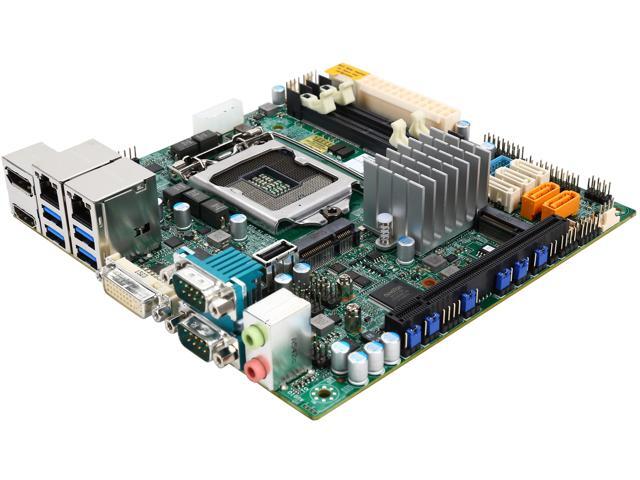

SUPERMICRO MBD-X11SSV-Q-O Mini ITX Server Motherboard LGA 1151 Intel Q170

SUPERMICRO MBD-X11SSV-Q-O Mini ITX Server Motherboard LGA 1151 Intel Q170

Ships from United States. Most customers receive within 2-10 days.

Sold and Shipped by CA Server Pro a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • LGA 1151
  • Intel Q170

WARNING: Products with exposed solder may contain lead, a chemical known to the State of California to cause cancer, birth defects and other reproductive harm. Please wash hands after handling internal components and motherboards and avoid inhalation of fumes if heating the solder. For more information, go to www.P65Warnings.ca.gov.

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

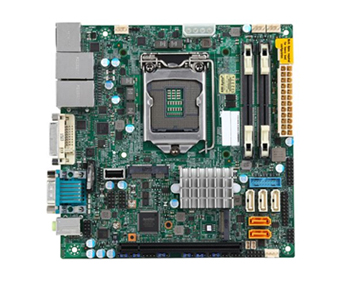

SUPERMICRO MBD-X11SSV-Q-O Mini ITX Server Motherboard

Key Features


PHILIPS
  1. 1. Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors
  2. 2. Intel® Q170 Express chipset
  3. 3. Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2133MHz; 2 DIMM slots
  4. 4. 1x PCI-E 3.0 x16, Mini-PCIe with mSATA support, M.2 PCIe 3.0 x4 with SATA support, 2242/2280
  5. 5. 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM
  6. 6. 5x SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
  7. 7. HDMI, DP, DVI-I, Intel HD Graphics, 3x independent displays
  8. 8. 2x SATA DOM, 2x COM ports, TPM header, ALC 888S HD Audio
  9. 9. 6x USB 3.0 (4 rear + 2 via header) 5x USB 2.0 (4 via headers + 1 Type A)

Specifications

Product SKUs
MBD-X11SSV-Q -B
  • X11SSV-Q (Bulk Pack)
Physical Stats
Form Factor
  • Mini-ITX
Dimensions
  • 6.7" x 6.7", (17cm x 17cm)
Processor/Cache
CPU
  • Intel® 6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 95W TDP
  • Single Socket H4 (LGA 1151)
System Memory
Memory Capacity
  • 2x 260-pin DDR4 SODIMM slots
  • Up to 32GB DDR4 Non-ECC UDIMM
Memory Type
  • 2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
On-Board Devices
Chipset
  • Intel® Q170 Express chipset
SATA
  • SATA3 (6Gbps) via Intel® Q170 Express controller
  • RAID 0, 1, 5, 10
Network Controllers
  • Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC 888S High Definition Audio
Input / Output
SATA
  • 5x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 6x USB 3.0 ports (4 rear + 2 via header)
  • 5x USB 2.0 ports (4 via headers + 1 Type A)
Audio
  • Front panel header and 2 port jack
Video/Display
  • 1x HDMI, 1x DP (Display Port), 1x DVI-I, Intel® HD Graphics
  • 3x Independent Displays
Serial Port / Header
  • 2x RS232 COM ports (2 rear)
SuperDOM
  • 1x SuperDOM (Disk on Module) ports with built-in power
TPM
  • 1x TPM 20-pin Header
Others
  • SGPIO Header
  • SMbus header
  • 4x GPIO pins

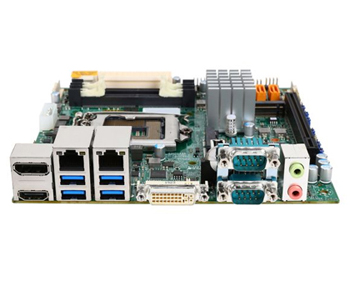

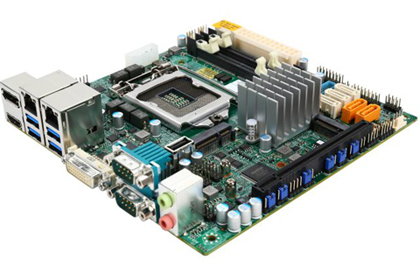

Gallery

PHILIPS PHILIPS PHILIPS

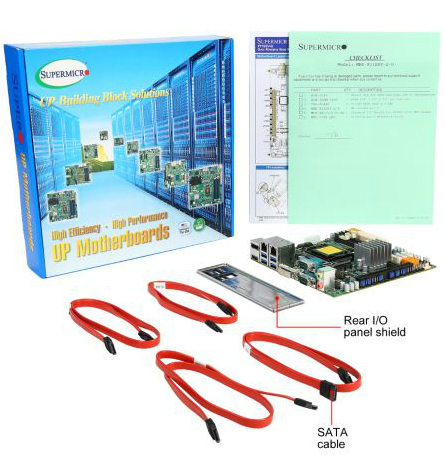

What's in the Box

PHILIPS

Learn more about the SuperMicro MBD-X11SSV-Q-O

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
