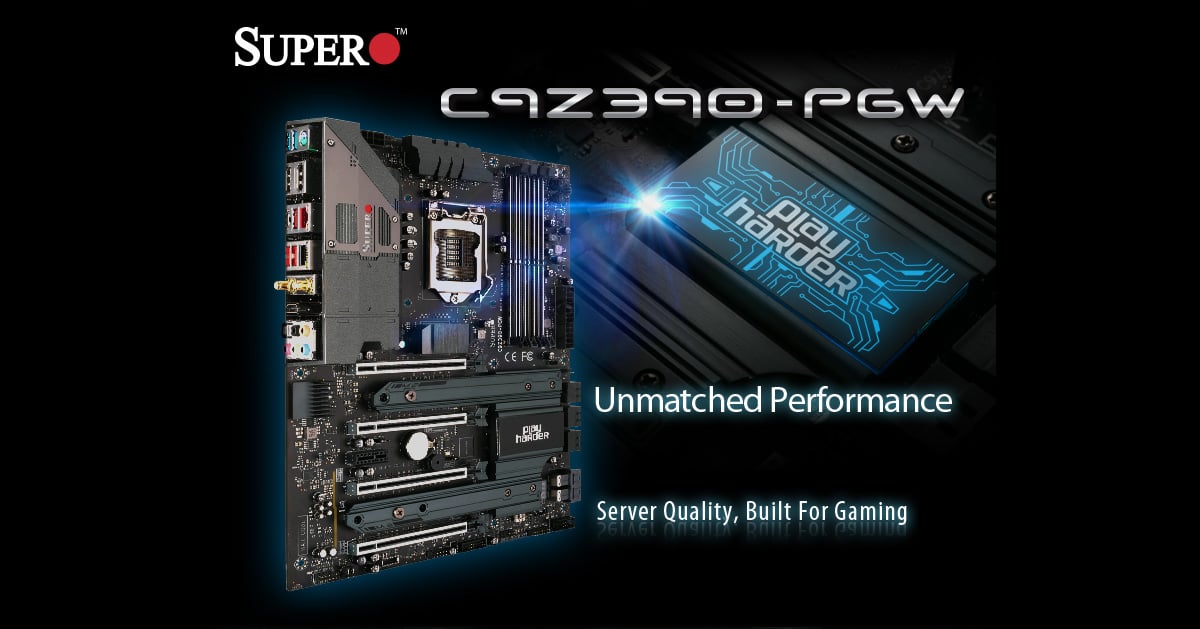

The SUPERO Pro Gaming series blows gamer's expectations out of the water with top tier performance and a range of features that aren't just there for show, but to get you to a higher standard than ever before. Fully loaded with our latest SUPERO Booster overclocking software, multiple high speed storage options including M.2 and U.2, and the fastest wired and wireless networking technologies, the C9Z390-PGW takes the cake. If you are looking for the best gaming motherboards around, go with SUPERO Pro Gaming.
- PS/2
- USB 3.1 Gen 1
- 2 DisplayPort 1.2
- Gigabit LAN
- 2 USB 3.1 Gen 2 (Type A + C)
- 10G LAN
- 2 USB 3.1 Gen 2
- Wireless 802.11ac + Bluetooth 5.0
- HDMI 2.0
- 7.1 Channel HD Audio
- 4 PCI-E 3.0 x16 (16/NA/16/NA, 8/8/8/8)
- 1 PCI-E 3.0x1
- USB 3.1 Gen 2 Tpye C Front Panel Header
- 2 M.2(PCI-E 3.0x4, 2260/2280 + 2260/2280/22100)(M-key for SSD and Intel Optane, RAID 0,1)
- USB 3.1 Gen 1 Header(2 Ports)
- USB 2.0 Headers(2 Ports)
- COM header
- 2 U.2(PCI-E 3.0x4, RAID 0,1)
- POST Code LED
- 6 SATA 3.0(RAID 0,1,5,10)
- 4-pin SYS Fan Header
- 4 DDR4-4000+ MHz(OC)non-ECC UDIMM up to 64GB
- Socket 1151(H4)for 8th/9th Gen. Intel Core, Pentium, and Celeron series CPU up to 140WTDP
- 2 RGB Headers
- Power + Reset + Clear CMOS Buttons
- 4-pin SYS Fan Header
- 2 4-pin CPU Fan Headers

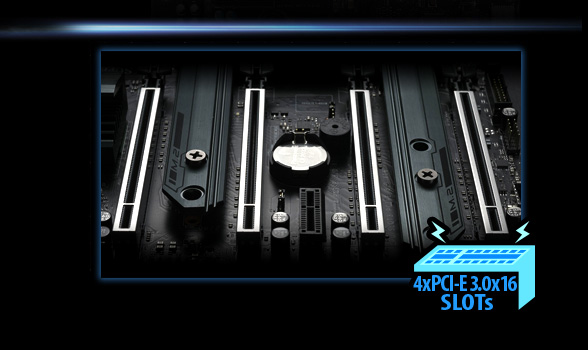

With the power of up to 4 full-length, double-width graphics cards coupled with the bandwidth of the embedded PLX chip, you'll get the most immersive gaming experience out there! Supporting DirectX12 and CrossFireX you'll be blasting through every 2D, 3D, and any VR adventure on the market!

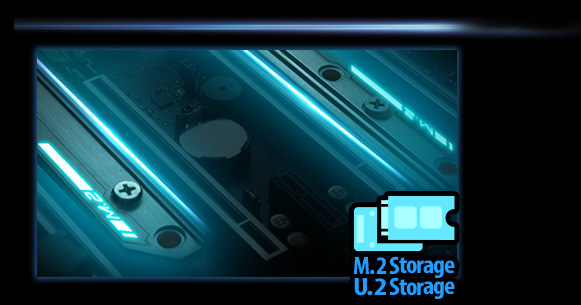

We include the latest NVME storage options, two M.2 slots and two U.2 ports on the C9Z390-PGW motherboard. We offer RAID 0 or 1 with the inclusion of supporting Intel® Optane™ memory, giving you even more flexibility within your system. We also have included heatspreaders for both M.2 slots to keep your drives cool without compromising your performance.

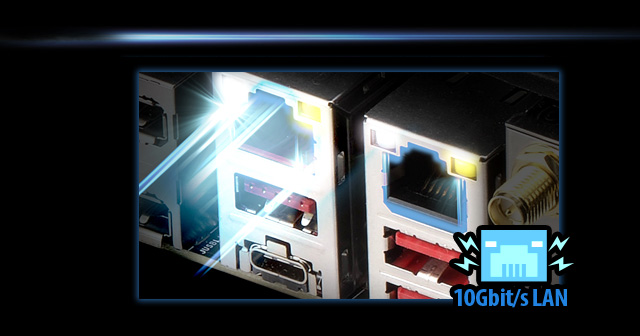

When you are on the road or on the move our SUPERO motherboards will have the best network connectivity options. The C9Z390-PGW motherboard is equipped with gigabit LAN, gigabit wireless 802.11ac, AND 10G LAN (which is 10x the maximum data throughput of single gigabit)!

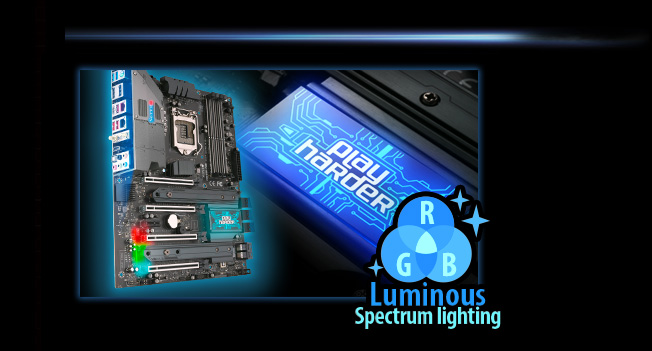

Fully customizable with our SUPERO Booster software, we have installed RGB LEDs on the Play Harder PCH, HD audio area, and the SUPERO I/O cover. Not only is the motherboard equipped with LEDs, we have gone a step above including an additional 2 RGB LED headers so you can light up your rig from the inside out.

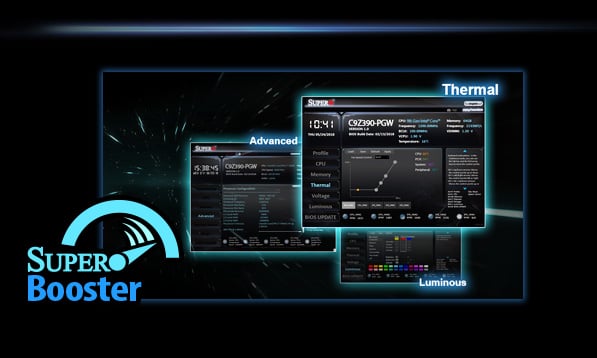

You have the ability to overclock and adjust the CPU, memory speeds, voltages, and fan speeds on the fly. The SUPERO Booster gives you the ability to control your destiny and succeed.
