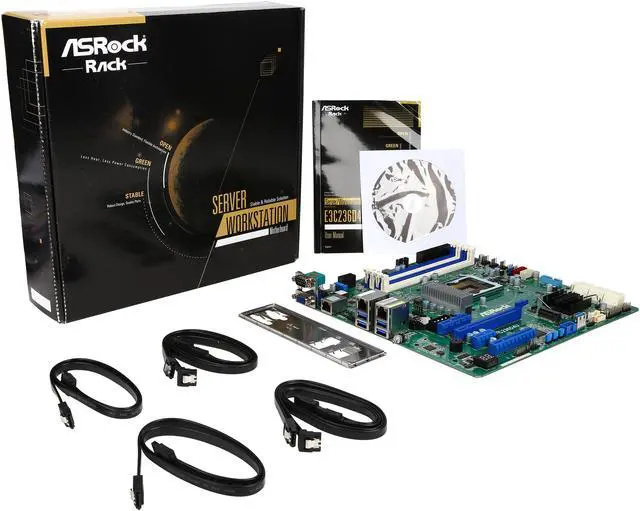

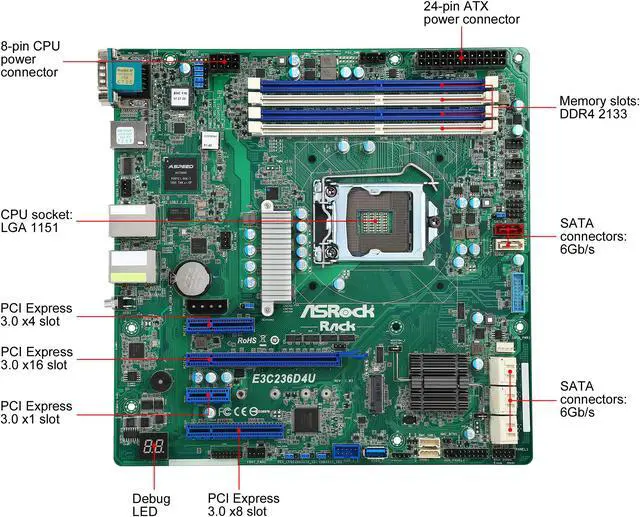

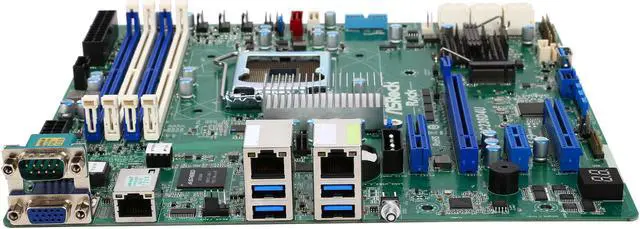

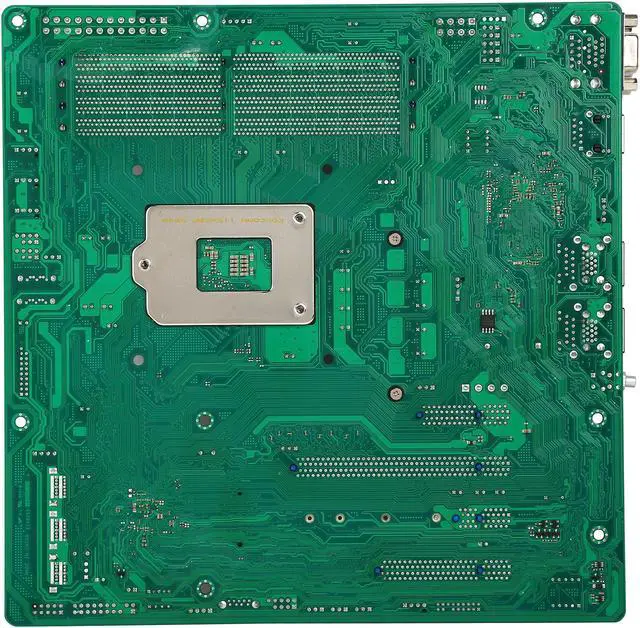

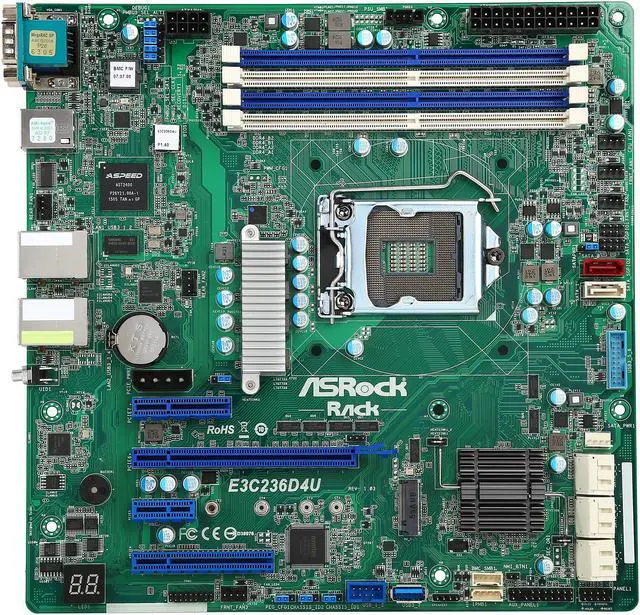

ASRock Rack E3C236D4U Micro ATX Server Motherboard LGA1151 Intel C236

Be the first to review this product...
  • Micro ATX 9.6" x 9.6"
  • Support Intel Xeon E3-1200 v5/v6 Series Processors
  • Support 4 x DIMM slot, Dual channel DDR4 2133/1866 ECC and Non-ECC UDIMM max 64 GB
  • Support 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x4(share with M.2) + 1 x PCIe 3.0 x1
  • Support 8 x SATA3 by C236 (1 port support SATA DOM), support RAID 0,1,5,10
  • Support 2 x GLAN by Intel I210 + 1 x IPMI Dedicated LAN
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock Rack E3C236D4U

Model
Brand ASRock
Model E3C236D4U
Supported CPU
CPU Socket Type LGA 1151
CPU Type Intel Xeon E3-1200 v5 Series Processors
Chipsets
North Bridge Intel C236
Memory
DDR4 Standard DDR4 2133
Maximum Memory Supported 64GB
Expansion Slots
Other Slots PCIe 3.0 x 16 - 1 slot (PCIE4/6: x16/x8, x8/x8 )
PCIe 3.0 x 8 - 1 slot (PCIE4/6 x0/x8 )
PCIe 3.0 x 4 - 1 slot (PCIE7 : shared with M.2)
PCIe 3.0 x 1 - 1 slot
Storage Devices
SATA C236: 8 x SATA3 6Gb/s
Onboard Video
Onboard Video Chipset Aspeed AST2400
Onboard LAN
LAN Chipset 2 x RJ45 GLAN by Intel i210
Max LAN Speed 1Gbps

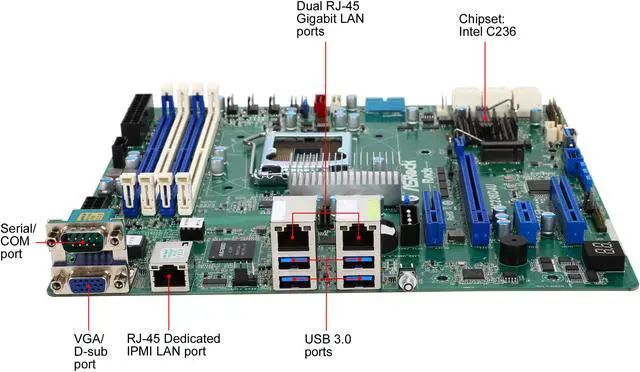

Rear Panel Ports
Video Ports D-Sub
USB 3.0 4 x USB 3.0
Features
Features Intel Xeon E3-1200 v5 Series Processors

Supports Dual channel DDR4 2133 / 1866 ECC and U DIMM max 64 GB

Support 8 SATA3 by C236

Supports 1x PCIe 3.0 x16, 1x PCIe 3.0 x8, 1x PCIe 3.0 x4 (share with M.2), 1x PCIe 3.0 x1

Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)

Supports Intel I210 * 2
Dimensions
Form Factor mATX

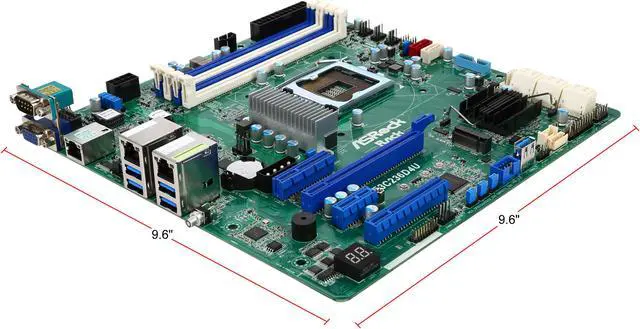

Dimensions (W x L) 9.6" x 9.6"
Additional Information
First Listed on Newegg February 08, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
