Question 1

Will this fit a DELL Optiplex 390 (SFF) ?
Does Low Profile mean it can fit any smaller computer?

Accepted Answer

Yes, this card will fit a Dell 390 SFF. I currently have the card in a Dell 790 SFF. Exact same case.

Question 2

Would this fit in my Hp Pavillion p010?

Accepted Answer

If you have the desktop Pavillion, then I think it will.  If it doesn't fit, then most likely nothing will, as this is the shortest low profile GTX 1050 Ti video card I could find.  It fit in my HP Compaq Pro 6300 slim form factor[which appears to be a smaller case than yours] and brought it into spec for the latest games.  I would measure the inside of your case to make sure it's not too long, though.

Question 3

Will it fit in my Dell Optiplex 3010? It's one of those small, slim cases.

Accepted Answer

if you're computer has 4 slots in the back, slim for normal it will fit. Another way of checking is if the black  (CD) is 50% of  the height with the gray grill the other 50%. You're good to go, not the shorter one like Inspiron 660 slim, which is 2 slot 1. Only for video  card. From googling I'm almost sure you are the tall slim case, which means you're good to go. Great improvement on the stock HD 2500, which is quite crappy. Just switch to the lower profile bracket, which is included

Question 4

Where do I get the bracket to put this in a slim PC?

Accepted Answer

The gpu has a standard bracket, but in the box there is also a slim bracket for you to switch out if you need. If you look at the photos of the product, it shows the included accessories.

Question 5

hey I'm wondering if my pc can run this     its a lenovo 90B700E5US it has 12gb of ram. 1 TB storage. its a i5 intel processor. and the max watt output is 280 could i use this card?        if you want please leave your opinion on this card and if you know any better ones around this price

Accepted Answer

Short answer: Yes, you most likely can use it.

Long answer: The Lenovo 90B700E5US is a model of the Lenovo H50-50 dekstop PC line. According to the user manual, the motherboard in this desktop has 1 usable PCI-Express x16 slot. You can definitely install the card into this desktop.  What may limit you is the power supply. The 1050 Ti does not need an external power supply connector and draws all the power it needs through the PCI-Express x16 slot. The amount of power it draws is about 65 watts under full load. The Intel i5 4460 consumes about 84 watts under full load.  Motherboard, ram, optical drive (when burning a DVD), hard drive (assuming 3.5" HDD), and case fans consume about 50, 3, 30, 8, and 6 watts, respectively. That makes for a total of 245 watts (including the 1050 Ti), so a 280 watt power supply should be enough to power this card with everything under load. When I first did research on this card, I read several reports of users running this card on a 280 watt system with no problems and 1 report of someone using the card in a 230 watt system. However, a lot will depend on what other expansion cards you may be using and whether or not you've upgraded your processor. If you're looking to get a little overhead back, and gain some speed at the same time, consider upgrading to a SSD; they are fast and consume about 2.5 watts of power compared to the 8 watts of a standard HDD.

With that said, I purchased this card as a backup for my GTX 1060  i5-6500 16 GB MSI Z170 SLI+ system, and it gives very steady ~48fps in DOOM 4 ultra settings at 1080p. I'm impressed with how well this little card performs.

Brand	ZOTAC
Model	ZT-P10510E-10L

Chipset Manufacturer	NVIDIA
GPU Series	NVIDIA GeForce GTX 10 Series
GPU	GeForce GTX 1050 Ti
Core Clock	1290 MHz
Boost Clock	1392 MHz
CUDA Cores	768 Cores

Effective Memory Clock	7 GHz
Memory Size	4GB
Memory Interface	128-Bit
Memory Type	GDDR5

DirectX	DirectX 12
OpenGL	OpenGL 4.5

Multi-Monitor Support	4
HDMI	1 x HDMI 2.0b
DisplayPort	1 x DisplayPort 1.4
DVI	1 x DL-DVI-D

Meet Your Seller

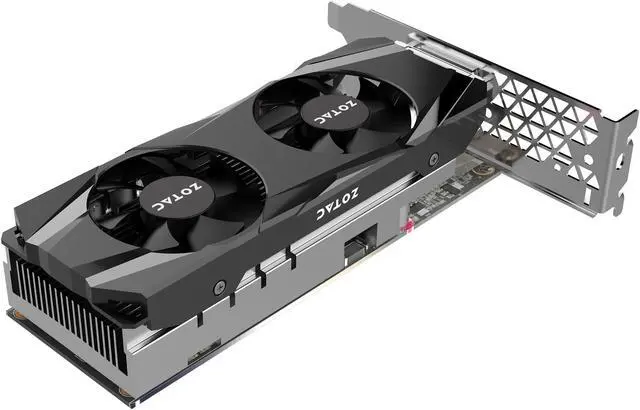

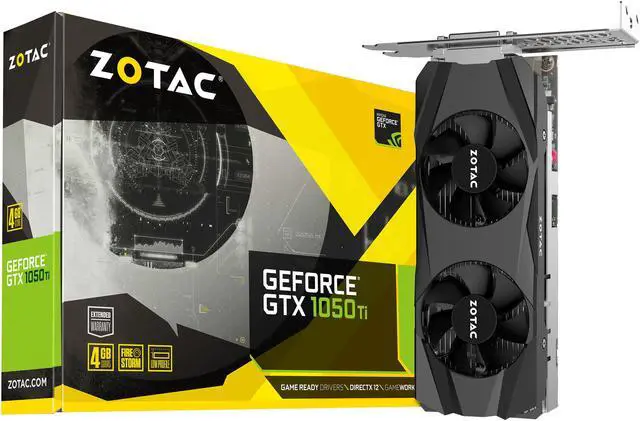

ZOTAC GeForce GTX 1050 Ti 4GB GDDR5 PCI Express 3.0 Low Profile Graphics Card ZT-P10510E-10L

FEATURES AND BENEFITS

Game Ready

Performance

The Latest Gaming Technologies

SUPER COMPACT SOLUTIONS

PCIE BUS POWERED

FIRESTORM

THE ESSENTIAL GEAR FOR EVERY GAMER

Learn more about the ZOTAC ZT-P10510E-10L

Customer Reviews of the ZOTAC ZT-P10510E-10L

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

SLI Support	No
Cooler	Dual 40mm Fans
Operating Systems Supported	Windows 10 / 8 / 7 ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power	75W
System Requirements	Recommended Power Supply: 300W Power Consumption: 75W
Dual-Link DVI Supported	Yes
HDCP Ready	Yes

Form Factor	Low Profile
Max GPU Length	160 mm
Low Profile Bracket Included	Yes
Card Dimensions (L x H)	6.30" x 4.38"
Slot Width	2 Slots

Item#: 9SIB4VJKKD8394
