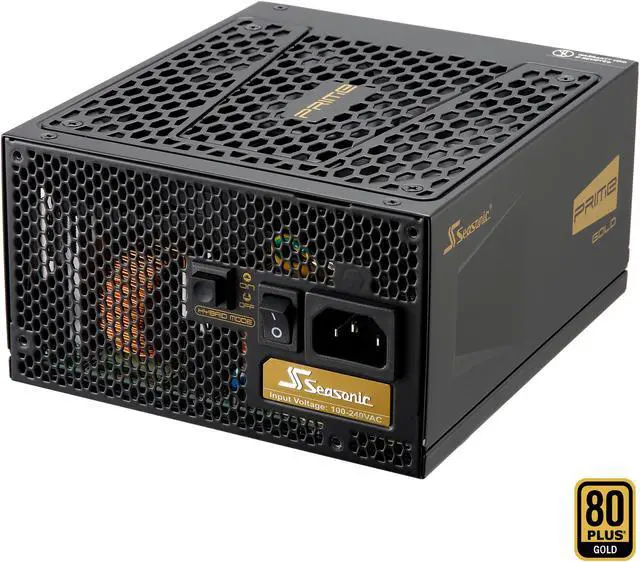

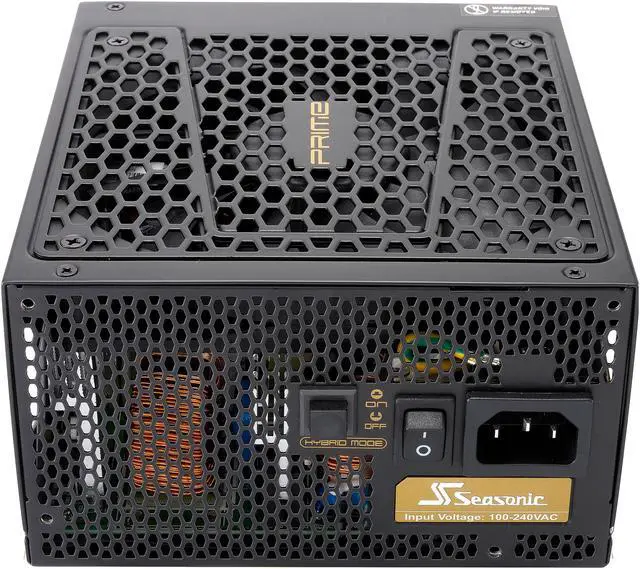

Seasonic Flagship PRIME SERIES SSR-1200GD 1200W GOLD FULL MODULAR ATX12V & EPS12V 135mm FDB Fan Super Quiet Power Supply
- Intel ATX 12 V
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz
- +3.3V@25A, +5V@25A, +12V@100A, [email protected], +5VSB@3A
Learn more about the SeaSonic USA SSR-1200GD
| Brand | SeaSonic |
|---|---|
| Series | PRIME Series |
| Model | SSR-1200GD |
| Type | Intel ATX 12 V |
|---|---|
| Maximum Power | 1200 W |
| Fans | 1 x 135mm Premium Hybrid Fan Control Fluid Dynamic Bearing Fan |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 12 |
| Modular | Full Modular |
| Efficiency | > 87 %, > 90 % and > 87 % efficiency at 20 %, 50 % and 100 % |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15 - 7.5 A |
| Output | +3.3V@25A, +5V@25A, +12V@100A, [email protected], +5VSB@3A |
| MTBF | 150,000 hours |
| Approvals | cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Connectors | 1 x Main Power 2 x 4+4-pin CPU 8 x 6+2-pin PCIE 12 x SATA 5 x Peripheral 1 x FDD |
| Features | 80 PLUS Gold Fluid Dyanamic Fan Bearing Premium Hybrid Fan Control Micro Tolerance Load Regulation Cable-free Connection Design Multi-GPU Setup Gold Plated Connectors Protection: OPP, OVP, UVP, OCP, OTP, SCP |
|---|
| Dimensions | 3.39" x 5.91" x 6.69" |
|---|---|
| Weight | 9.50 lbs. |
| First Listed on Newegg | January 20, 2017 |
|---|
