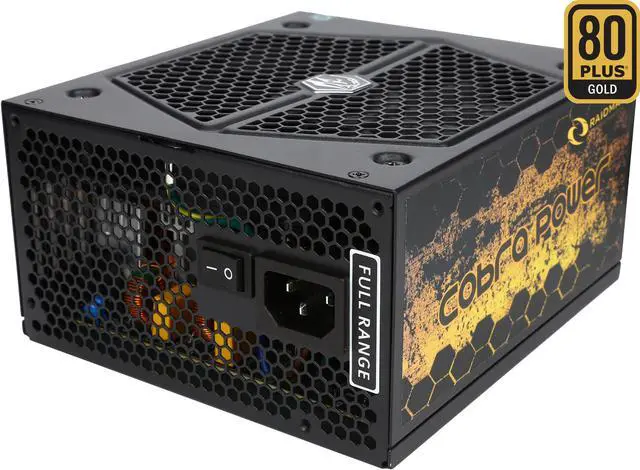

RAIDMAX Cobra series RX-600AE-B 600 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Modular Power Supply
- ATX12V / EPS12V
- Modular
- 80 PLUS GOLD Certified
- 110 - 240 V 50/60 Hz
- +3.3V@20A, +5V@20A, +12V@49A, [email protected] ,[email protected]
Overview
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Cobra series
RX-600AE
RX-600AE
FEATURES
- Haswell Ready.
- 80 PLUS® Gold certification guarantees more than 90% efficiency at typical loads.

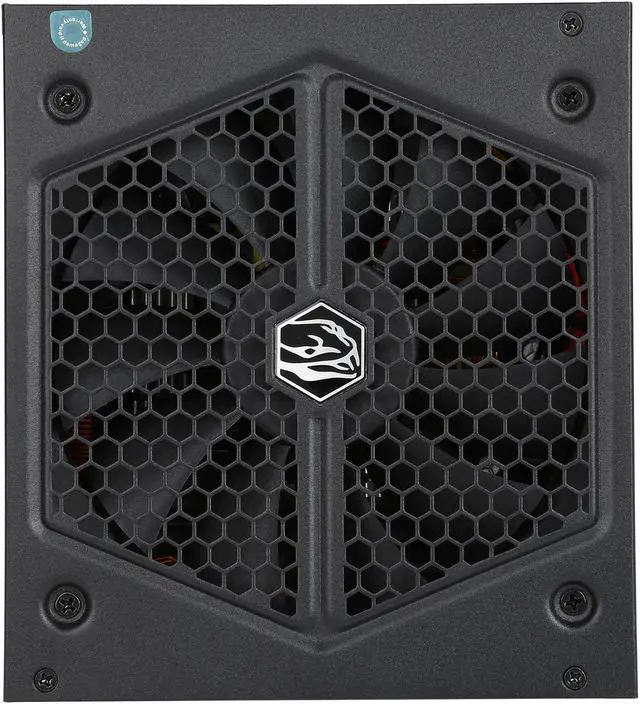

- Stable voltage, low-noise levels by thermal controlled 13.5cm fan.
- Low noise and voltage regulate DC output quality perfectly.
- A strong single +12V rail for high-end system heavy load configuration provides stable and highly compatibility.
- The COBRA series offers complete electric protection by OVP, UVP, OPP, and SCP.
- Compliance with the latest EU ErP Direction.
- Fully safety certificate with CE, FCC, TUV, and UL.
SPECIFICATIONS
| BASIC SPECIFICATION | |||||
| MODEL | RX-600AE | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| MAX OUTPUT CURRENT | 20A | 20A | 42A | 0.5A | 2.5A |
| MAX COMBINED POWER | 100W | 504W | 6W | 12.5W | |
| TOTAL POWER | 600W | ||||

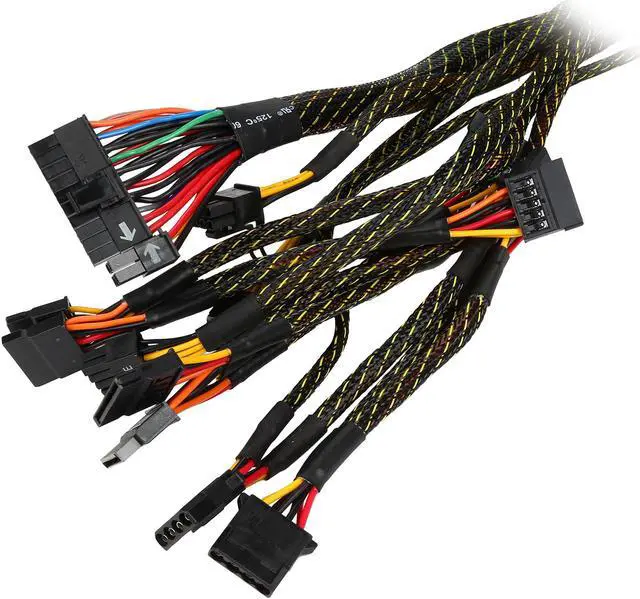

| CONNECTORS | |||||
| M/B 20+4 PIN | 1 | ||||
| CPU 4+4 PIN | 1 | ||||
| PCI-E 6+2 PIN | 2 | ||||
| SATA | 5 | ||||
| MOLEX 4 PIN | 4 | ||||
| FLOPPY | 1 | ||||
| DIMENSIONS | |||||
| 3.50" x 6.50" x 5.75" | |||||
