Main image of RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

100%

Alt view image 3 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

Alt view image 4 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

Alt view image 5 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

Alt view image 6 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

Alt view image 7 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

Alt view image 8 of 7 - RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

360^°

Shop All Raidmax Products

RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies

Name: RAIDMAX RX-700AT 700 W Power Supplies
Brand: Raidmax
SKU: N82E16817152067
Rating: 4 (11 reviews)

(11) Write a Review

Modular
80 PLUS TITANIUM Certified
100 - 264 V 47 - 63 Hz
+3.3V@20A, +5V@20A, +12V@58A, -12V@0.3A, +5VSB@2.5A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (11)

Any questions? Our AI beta will help you find out quickly.

Try me now

MONSTER POWER
RX-700AT

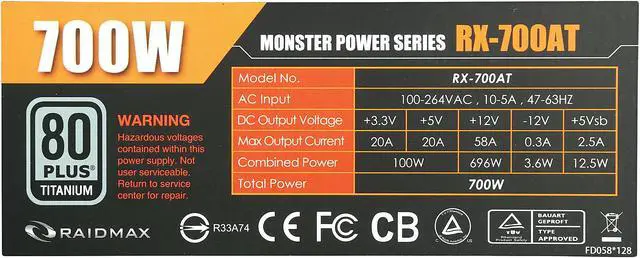

SPECIFICATIONS

BASIC SPECIFICATION
MODEL	RX-700AT
AC INPUT	100-264VAC, 10-5A, 47-63Hz
DC OUTPUT VOLTAGE	+3.3V	+5V	+12V	-12V	+5VSB
MAX OUTPUT CURRENT	20A	20A	58A	0.3A	2.5A
COMBINED POWER	100W		696W	3.6W	12.5W
TOTAL POWER	700W

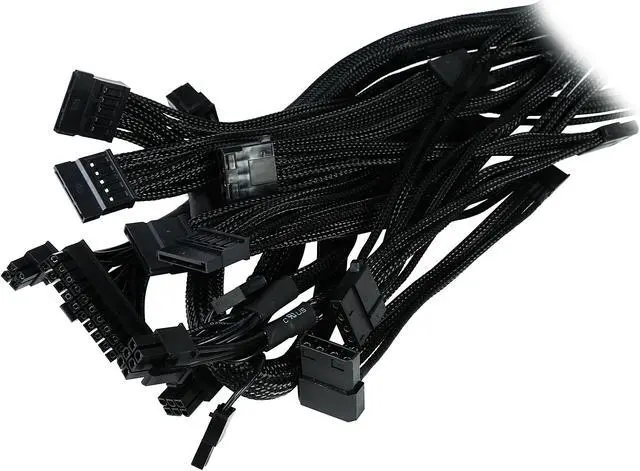

CONNECTORS
M/B 20+4 PIN	1
CPU 4+4 PIN	1
PCI-E 6+2 PIN	4
SATA	8
MOLEX 4 PIN	4
FLOPPY	1
DIMENSIONS
165(L) X 150(W) X 86(H)MM

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Maximum Power	700 W
Fans	1
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
Modular	Modular
Energy-Efficient	80 PLUS TITANIUM Certified
Input Voltage	100 - 264 V
Input Frequency Range	47 - 63 Hz
Input Current	10-5A
Output	+3.3V@20A, +5V@20A, +12V@58A, -12V@0.3A, +5VSB@2.5A
Connectors	1 x M/B 20+4-PIN 1 x CPU 4+4-PIN 4 x PCI-E 6+2-PIN 8 x SATA 4 x MOLEX 4-PIN 1 x FLOPPY

Over Voltage Protection	Yes
Short Circuit Protection	Yes
Under Voltage Protection	Yes
Over Current Protection	Yes
Over Power Protection	Yes

RAIDMAX RX-700AT 700 W 80 PLUS TITANIUM Certified Modular Power Supplies
